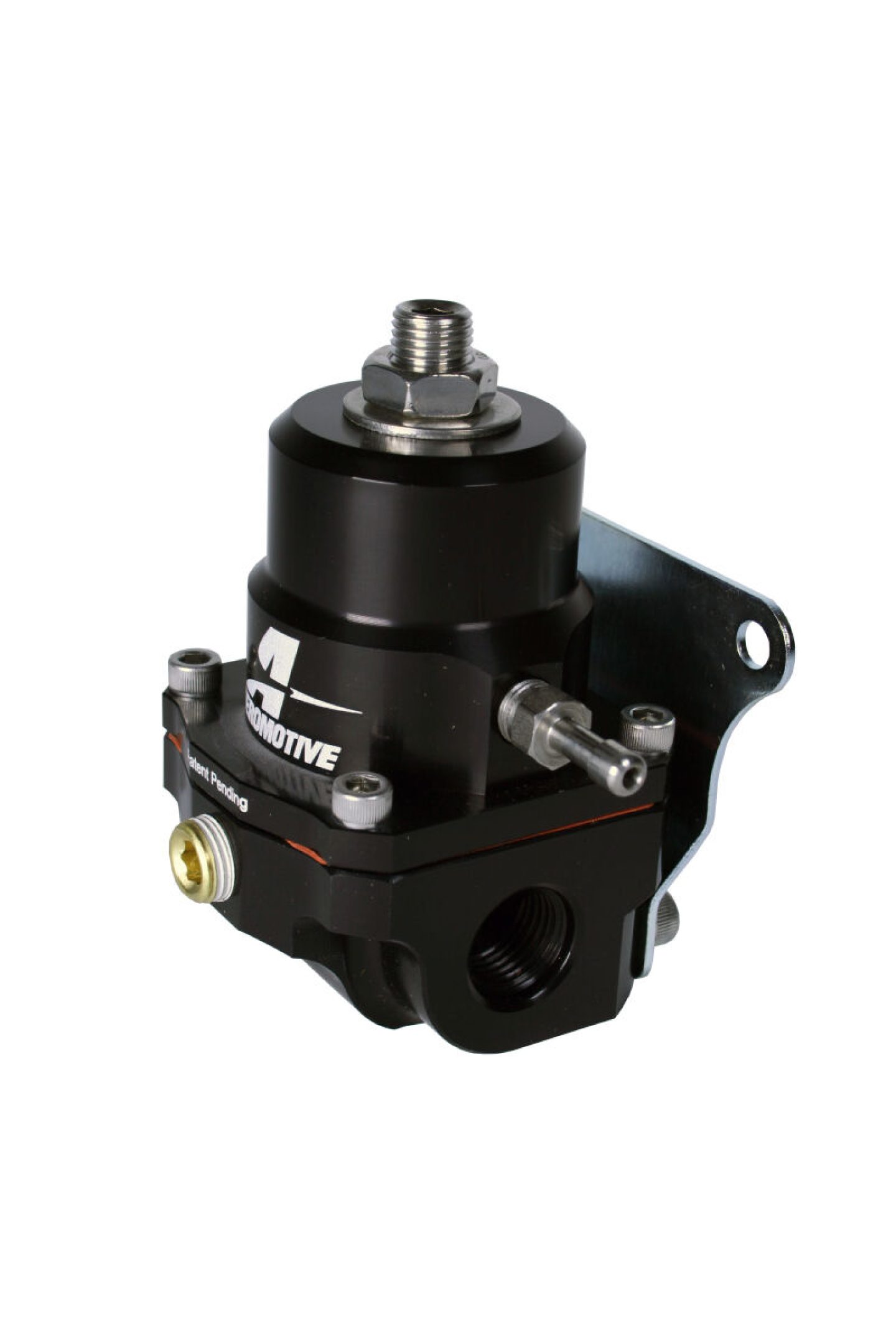

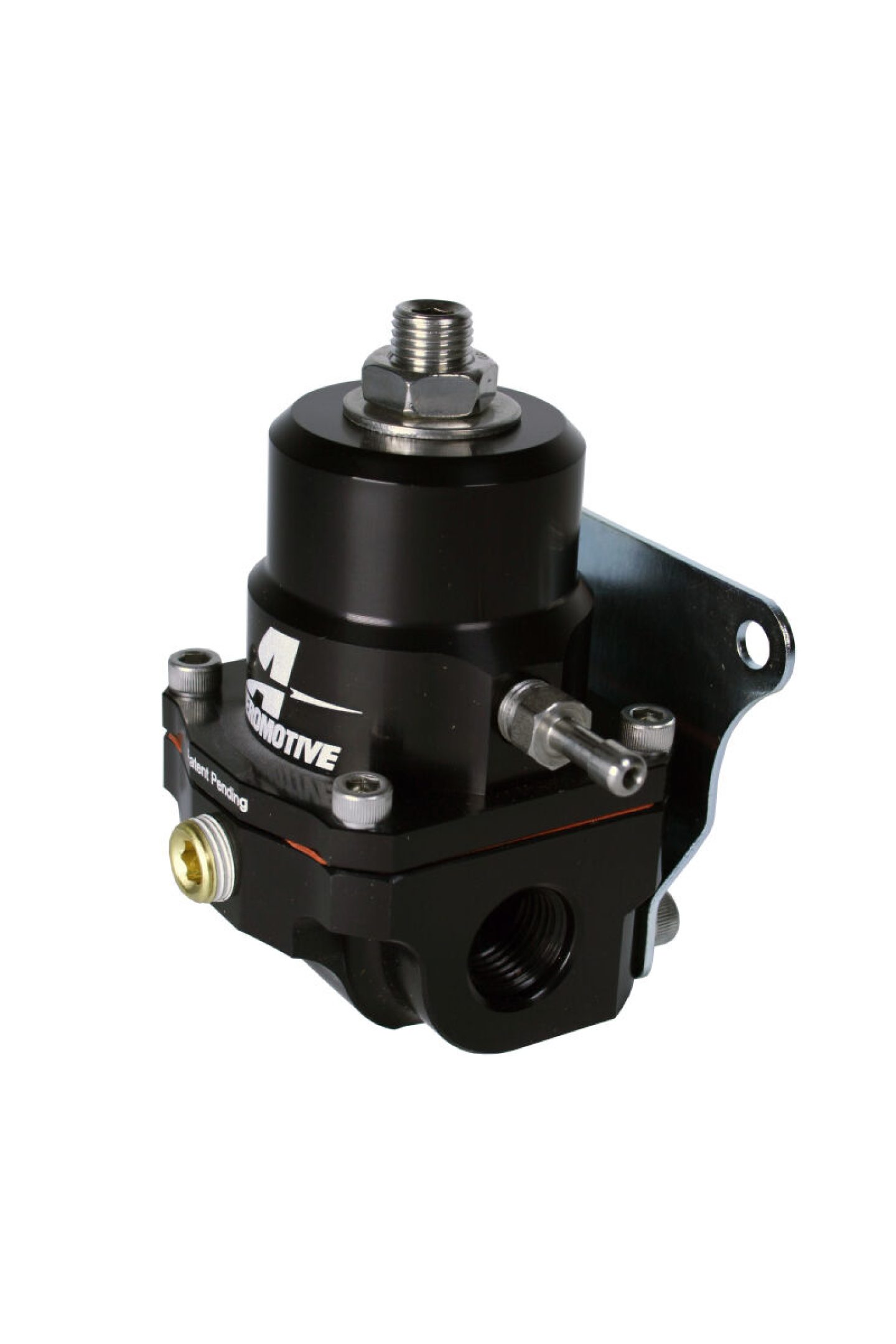

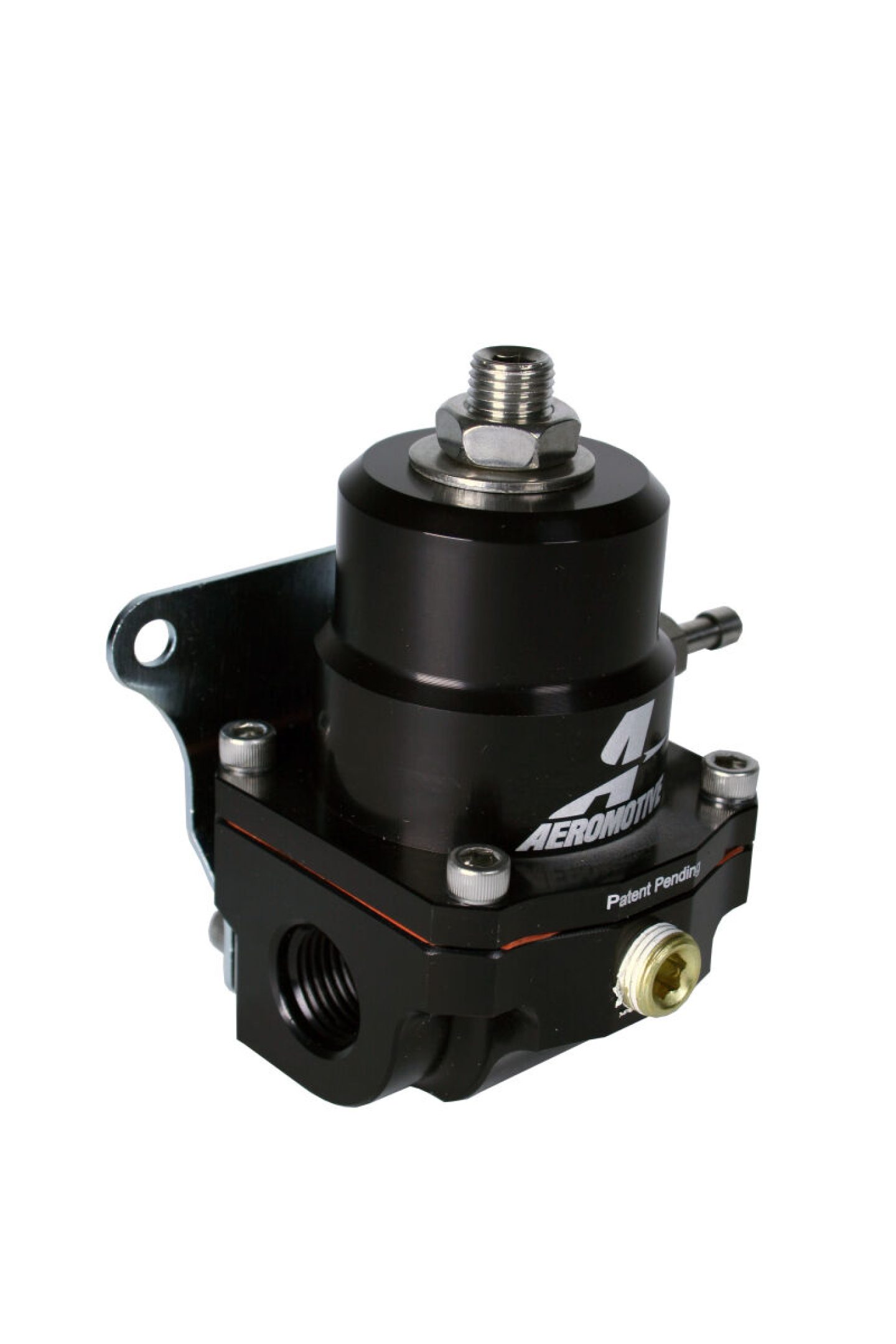

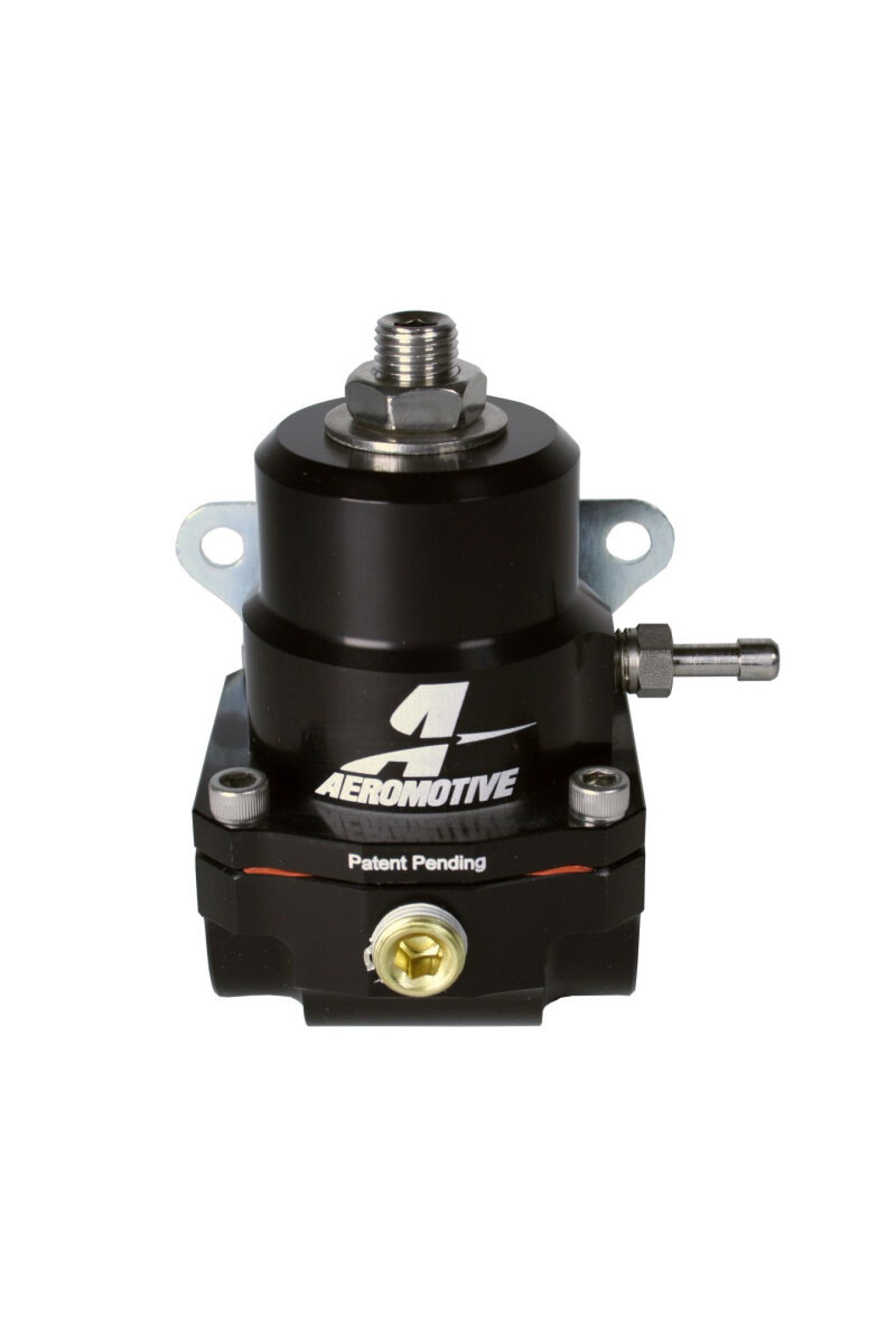

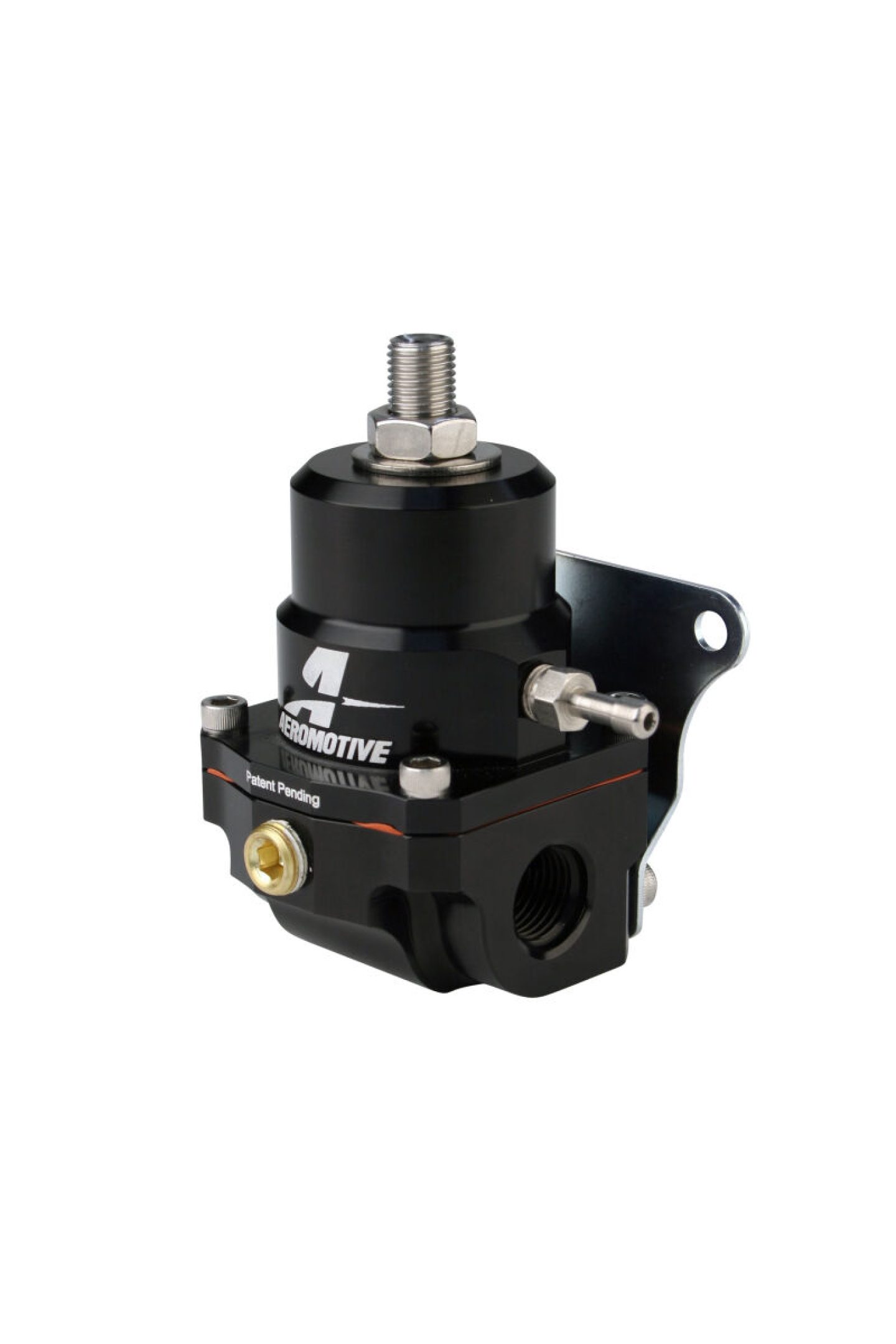

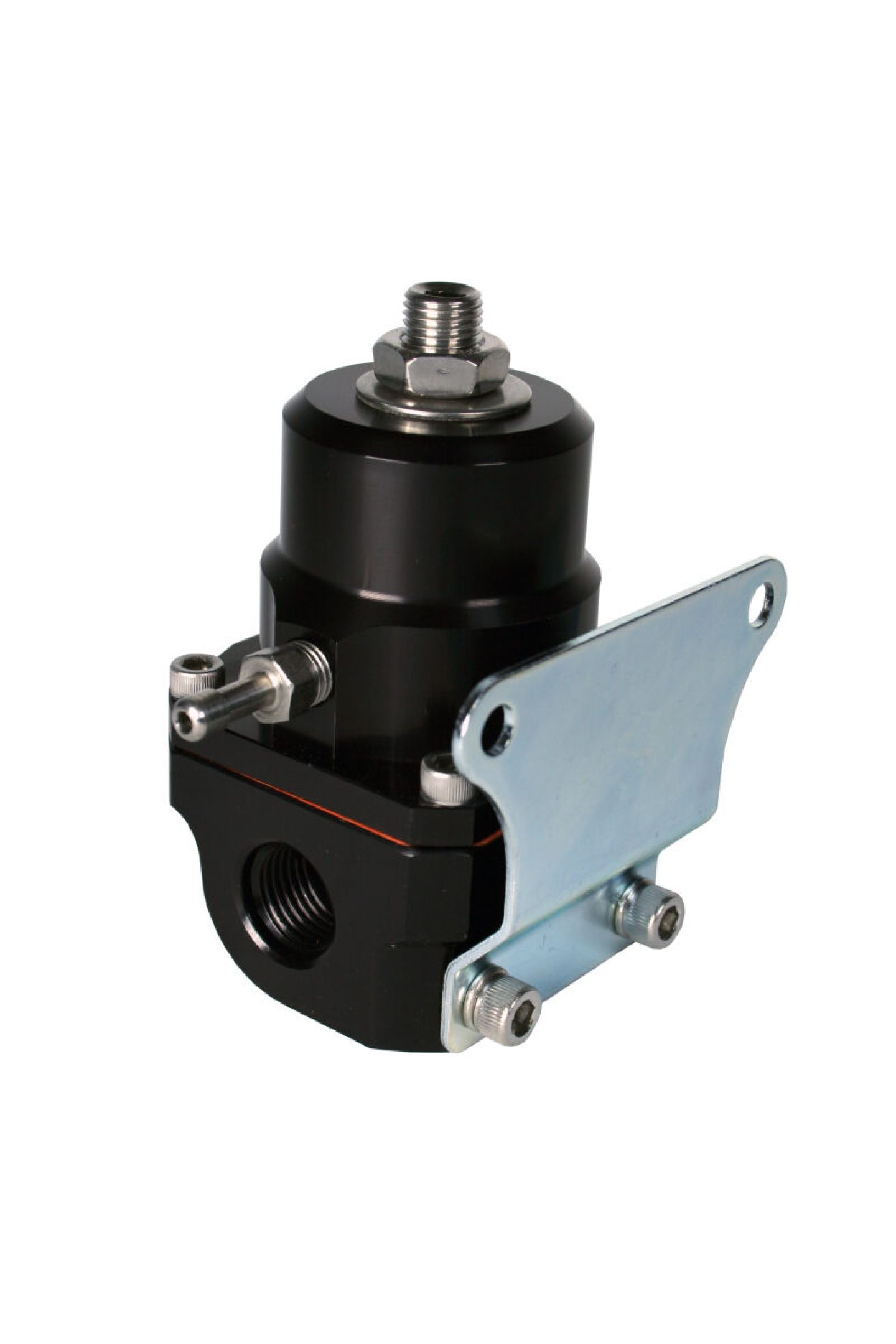

Fuel Pressure Regulator - A1000 Gen II - 40 to 75 psi - In-Line - 6 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet - 6 AN O-Ring Return - 1/8 in NPT Port - Black Anodized - E85 / Gas / Diesel / Methanol - Each
Regulator
This next generation A1000 EFI regulator features legendary Aeromotive flow and pressure control in a new body, profiled for reduced size and weight. This new, patented design features a deep, bright-dip black anodized finish on the cap and base, with AN spec ORB (o-ring boss) style inlet/outlet and return ports. In addition to the aesthetic enhancements, this next generation version A1000 regulator provides a distinct visual cue that you've purchased a genuine, Aeromotive EFI regulator, ensuring our valuable customers are not tricked into purchasing an inferior, knock-off or counterfeit component like so many flooding the market from across the ocean. On the street and at the track, A1000 regulators have logged more miles, laps and passes than any other performance EFI regulators in the world! High performance, adjustable EFI regulator designed for medium to high horsepower applications. This regulator features Aeromotive's High-flow design, superb pressure control, and legendary durability. Engineered for A1000 class and smaller pumps. Gas, ethanol, methanol, and diesel compatible. 40-75 PSI adjustable base pressure range. 1:1 vacuum/boost reference capability. 1/8 NPT dedicated gauge port. (2) ORB inlet/outlet ports. (1) ORB return port.
Additional Information
NEW A1000 Regulator, Adjustable, EFI, (2)-6 inlets, (1) -6 return .
Part Type
Fuel Pressure Regulator
Product Downloads
| # | Document Type | Download |
| 1. | Installation Instructions |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
