System/Kit

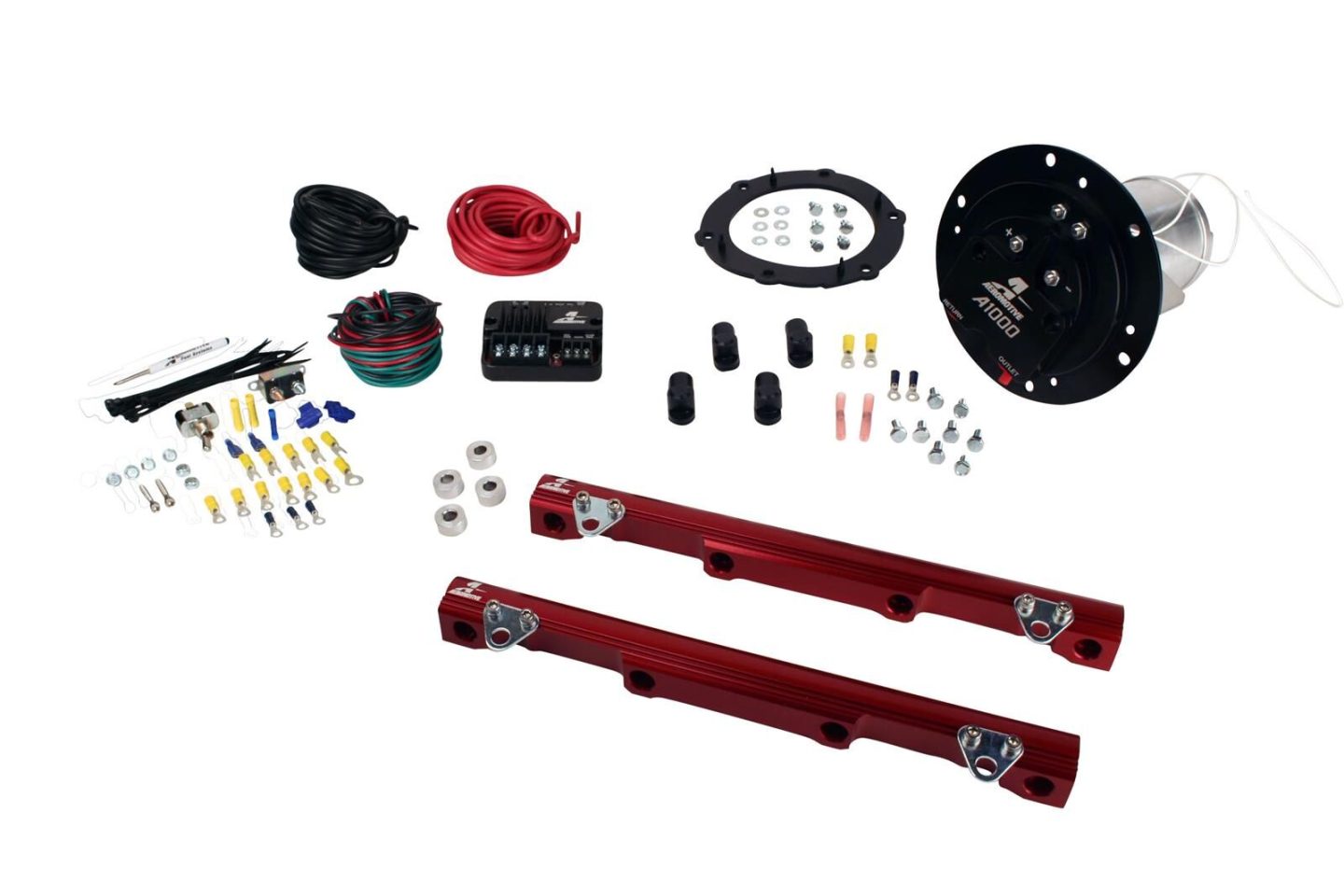

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM 03-04 Cobra Mustang tank and integrate with the stock fuel-level sending unit.? This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings.? Fuel Pump Electrical Supply is also provided, including our amazing Fuel Pump Speed Controller, designed to keep fuel cool in cars that will see extended street driving but still need full pump performance for all out racing.? Fuel Lines and Hose-Ends sold separately.? The purchase of a Tach Adapter will be required to operate Pump Speed Controller. Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on gas. For 2003-2004 Mustang Cobra Chassis with Cobra Engine and/or Intake Manifold and OEM style 03-04 Cobra Fuel Tank. Includes Aeromotive?s Fuel Pump Speed Controller for continuous duty street/strip applications.

Additional Information

System, 03-04 Cobra, 18679 A1000, 14111 4.6L Cobra Rails, 16306 PSC & Misc. Fittings.

Part Type

Fuel Pump Complete Kit

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Fuel System Pump Kit, A1000 Mustang, Ford, 100 gph, 90 Max PSI, With Fuel Rails, Kit

Aeromotive A1000 Mustang street fuel systems feature the Stealth A1000 fuel pump, designed to fit inside the OEM Cobra Mustang tank and integrate with the stock fuel-level sending unit.

These fuel systems include and feature:
• Rated for EFI engines producing up to 1,000 flywheel horsepower forced induction or 1,300 flywheel horsepower naturally aspirated on gas
• Stealth in-tank fuel pump
• Fuel pump speed controller for continuous duty street/strip applications—designed to keep fuel cool in cars that will see extended street driving, but still need full pump performance for all-out racing
• Billet high-flow fuel rails
• Billet EFI fuel pressure regulator
• 40-micron high-flow filter assembly and bracket
• One-piece CNC Y-block
• One way check valve
• Necessary high-flow, ORB port fittings
