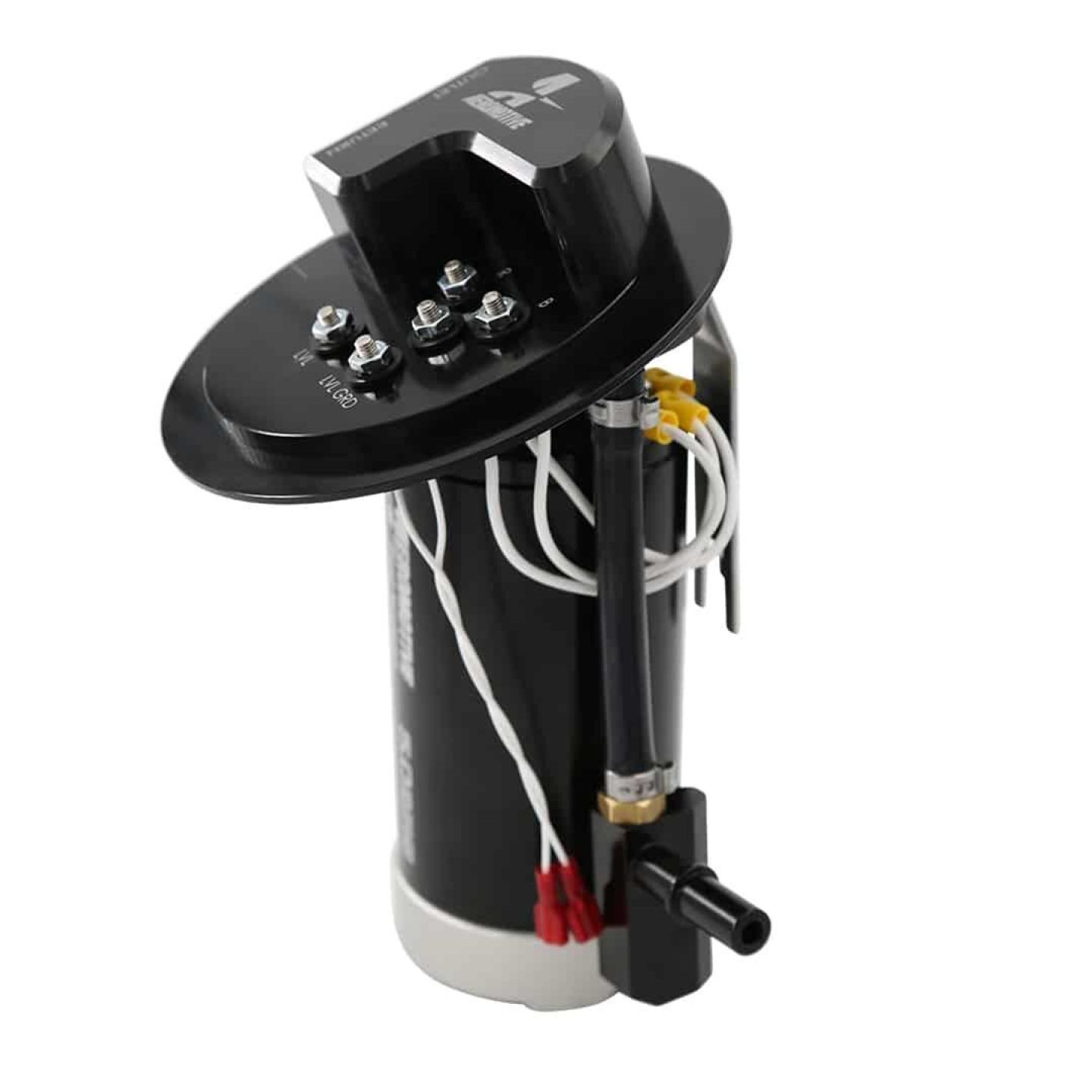

Fuel Pump - 3.5 Brushless - In-Tank - 3.5 gpm - 8 AN Female O-Ring Outlets - True Variable Speed Controller - Gas / E85 - Aluminum - Black Anodized - Ford Mustang 2011-2020 - Each

Fuel Pump

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Additional Information

Brushless In-Tank Pump 2011-2017 Mustang (S197 & S550), 2018-2020 (GT/Ecoboost)

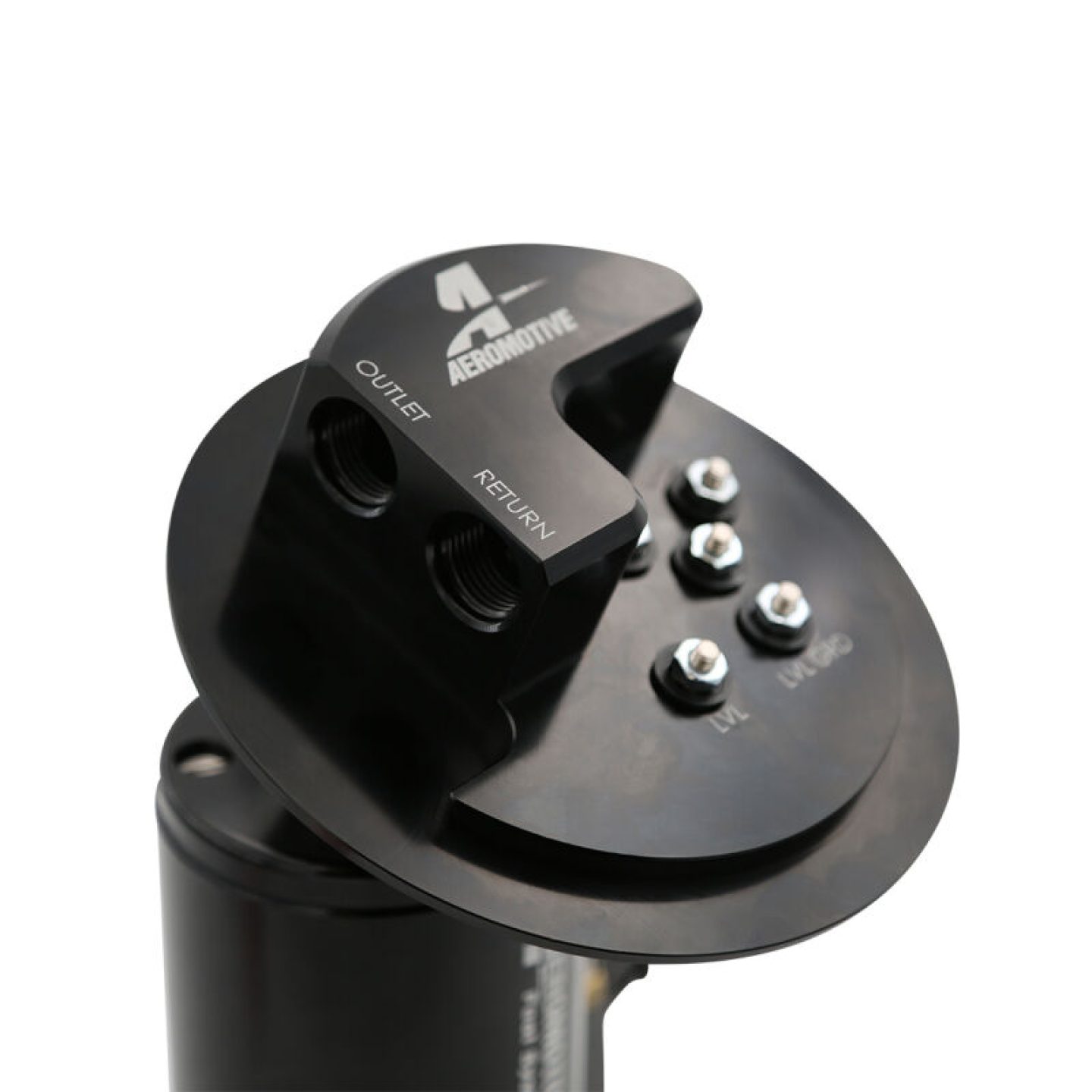

• -08 ORB Outlet and Return Ports
• Brushless Motor with Remote Mount Controller for Reduced Amp Draw
• Direct Drop in for OEM Tank

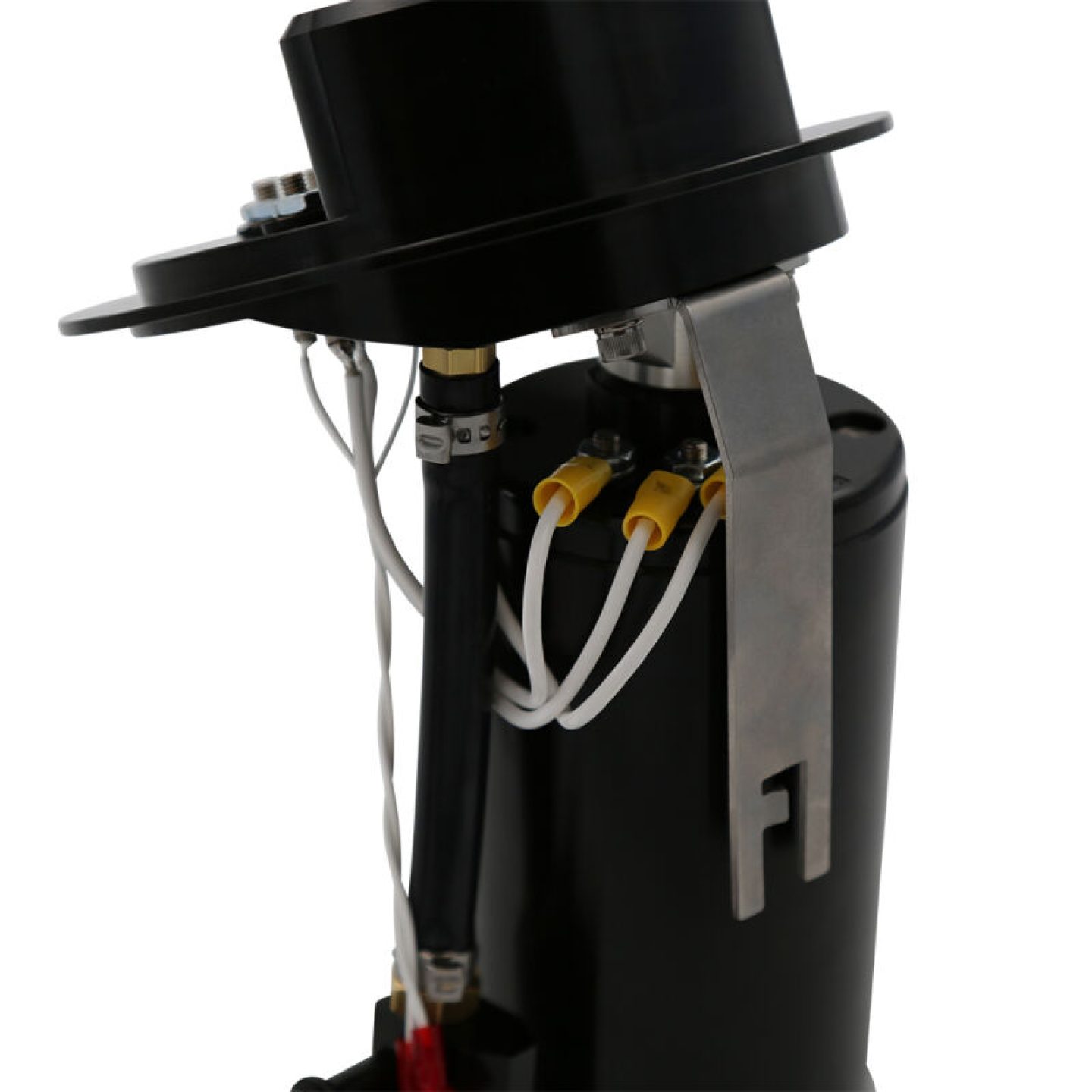

• Fuel Level Sender Bracket to Utilize OEM Fuel Level Sender
• Integrated 100 Micron Pre-Filter
• Single Pump Simplifies Wiring and Plumbing Over Multi-Pump Configurations
• True Variable Speed Controller

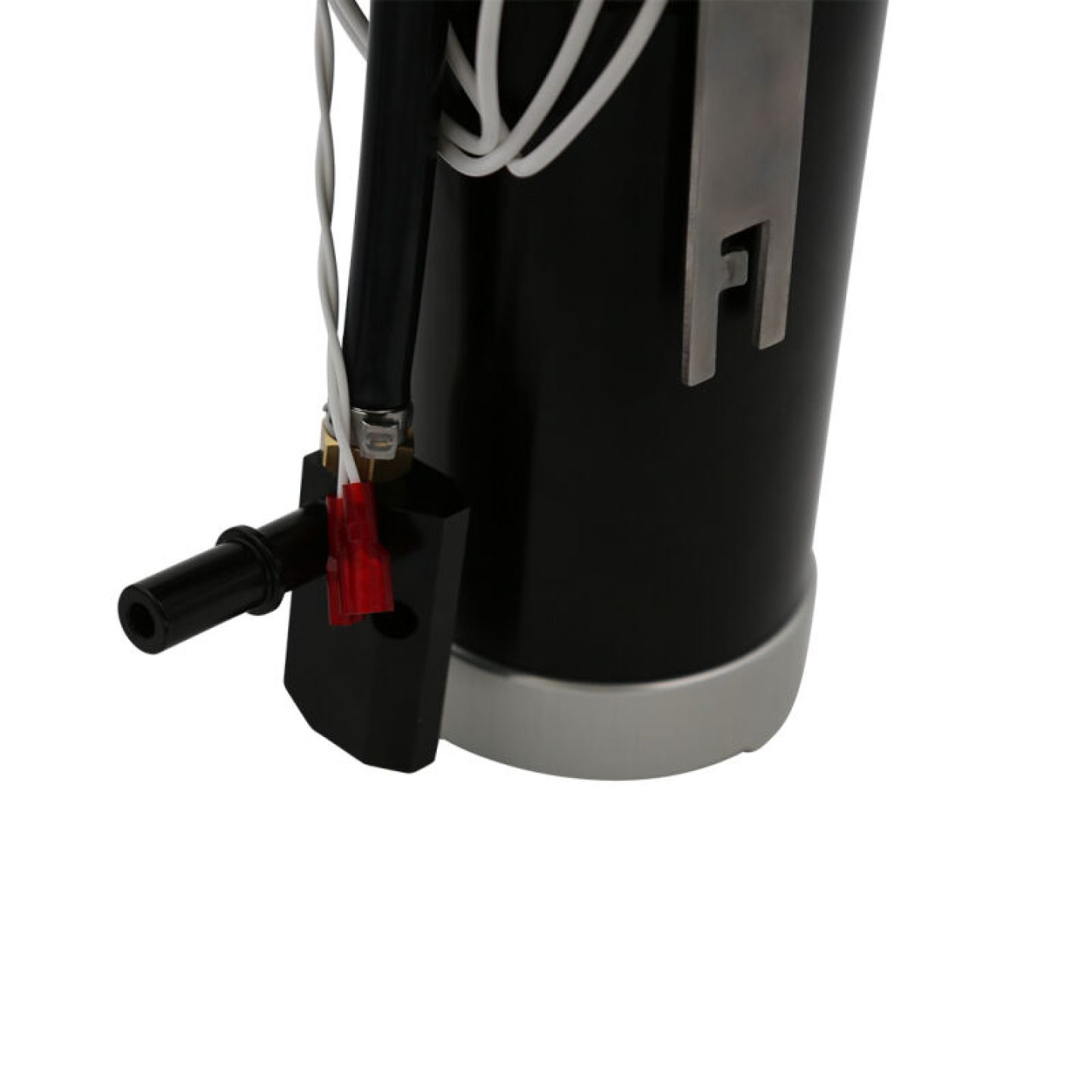

• Utilizes Patented Aeromotive Jet Siphon in conjunction with OEM Siphon Pickup

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Fuel Pumps, 3.5 GPM Brushless Variable Speed, Electric In-tank, 90 - 150 psi, 12 V, Ford, Each

Aeromotive 3.5 gpm brushless variable speed in-tank gear pumps provide multiple mounting options in almost any fuel cell or tank. Designed for the custom tank builder or fabricator, these units offer the advantage of pump speed control via a 0-5 V analog DC input signal. The 3.5 gpm in-tank fuel pump assemblies are constructed for cool and quiet operation. Order the model that's compatible with your application.
