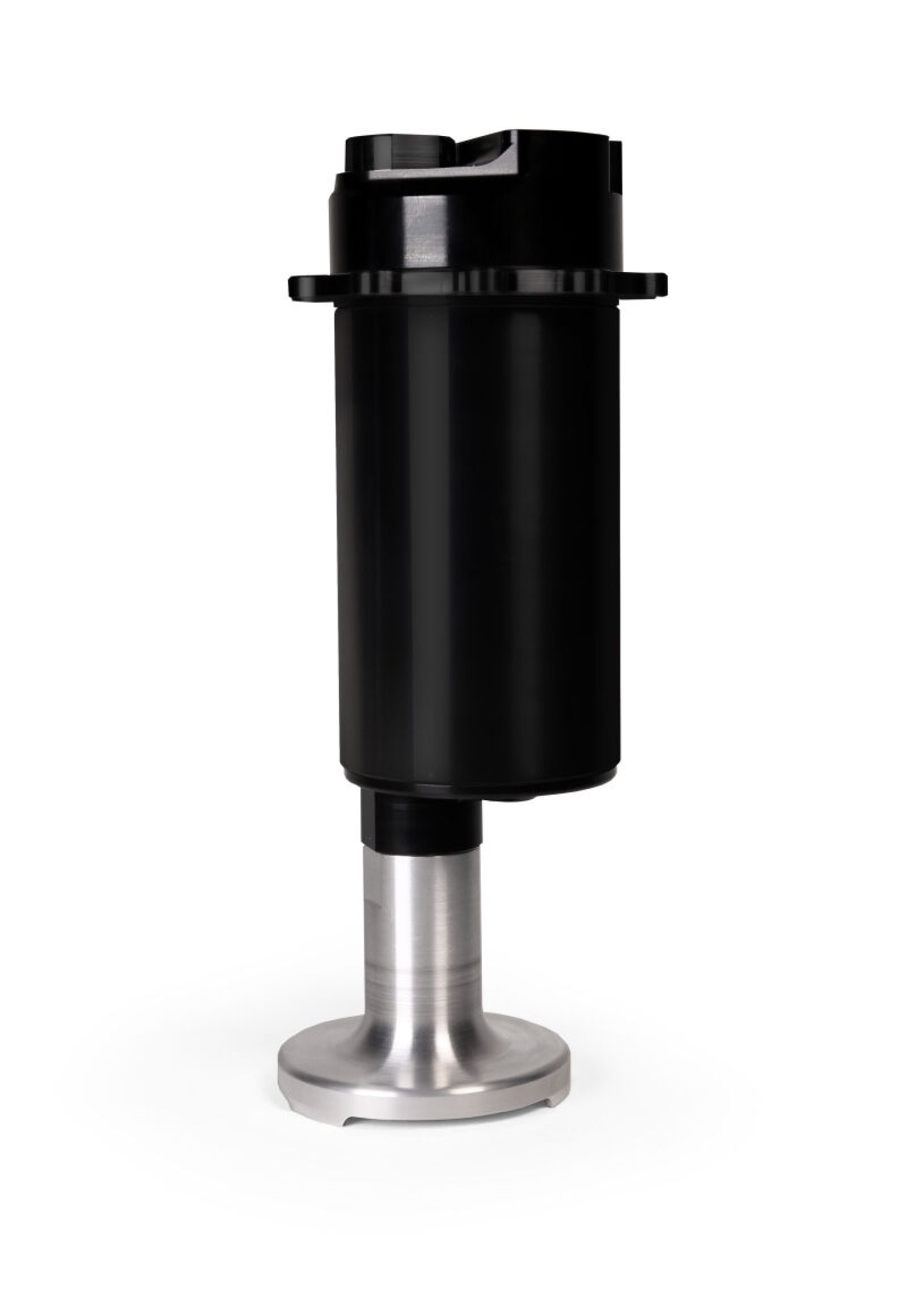

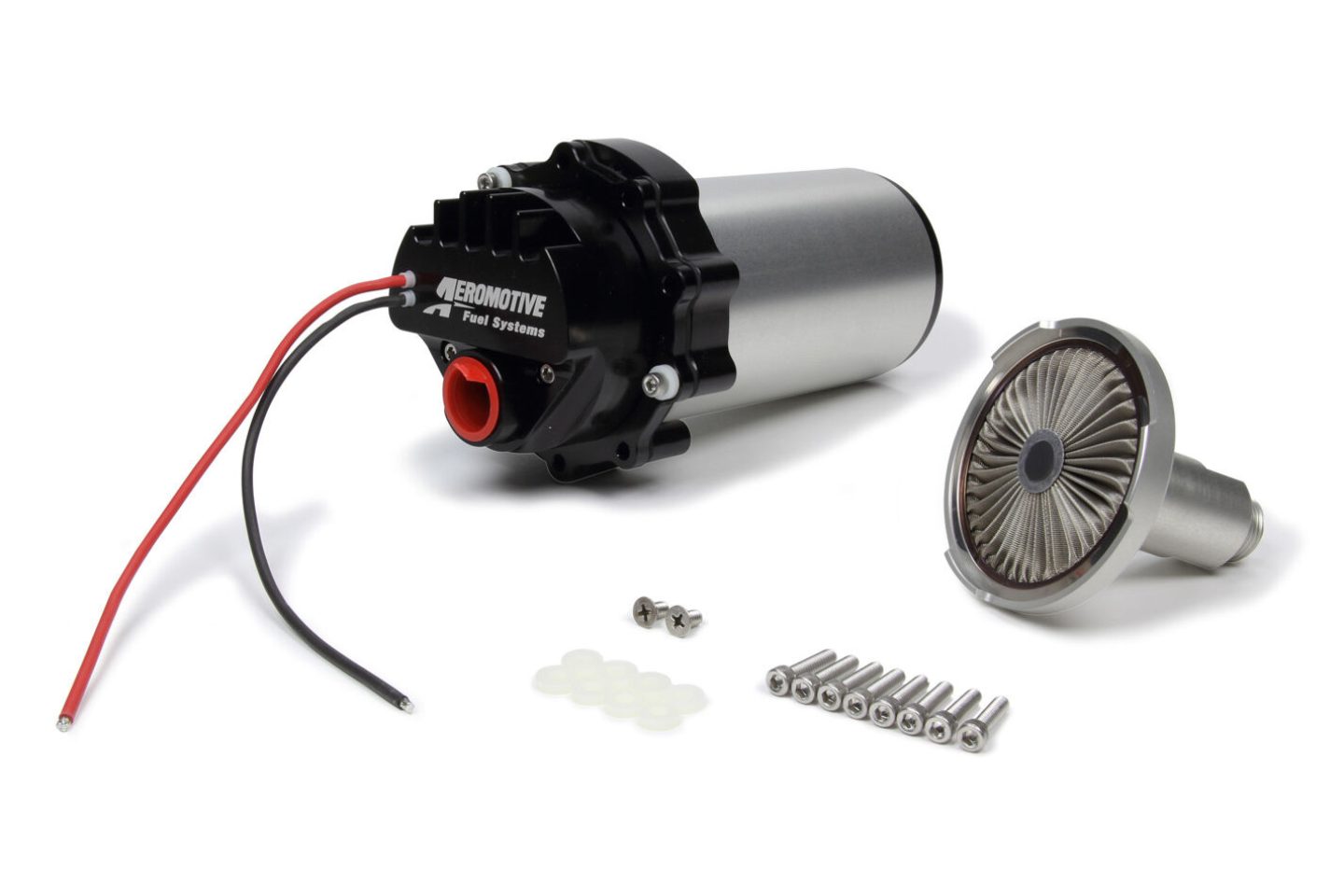

Fuel Pump - Pro Series 5.0 - Electric - In-Tank - 1700 lb/hr at 40 psi - 10 AN Outlet - E85 / Gas - Kit

Additional Information

Brushless Motor/Spur Gear Design

Aeromotive Fuel Pump - Module - w/Fuel Cell Pickup - Brushless Gear Pump 5gpm Spur Pro+

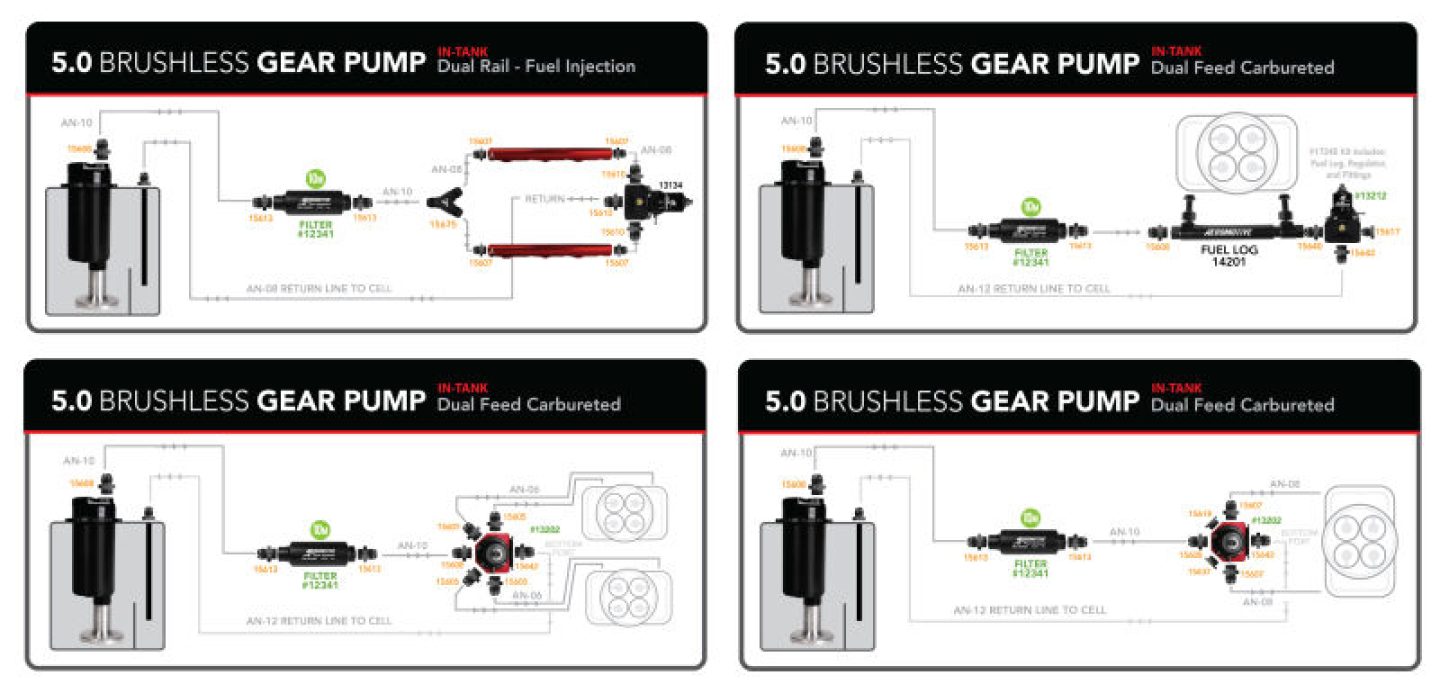

Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump).?With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability. With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve.? Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure. ORB-10 outlet port. ORB-12 inlet with integrated pickup and 100-m pre-filter. Direct fit for all Aeromotive Stealth Fuel Cells, 6, 15 and 20-gallon. For EFI applications use regulator P/N 13134 or P/N 13110. For carbureted applications use regulator P/N 13202 or P/N 13212. Capable of 90-PSI continuous operating pressure, 150 PSI peak pressure, base plus boost. Fully submersible for custom, in-tank placement. Perfect for ?blow-through? carbureted engines up to 2,700 FWHP (race gas). Upgrade your standard brushless pump to make it True Variable Speed by buying the 18047 retrofit kit cap.

Additional Information

Fuel Pump, Module, w/ Fuel Cell Pickup, Brushless Spur Pro+.

Part Type

Fuel Pump

Vehicle Compatibility and Return Conditions.

This item was designed and engineered in the USA for US domestic vehicles. OBD tools, ECUs, dongles, programmers, and tuners may have limited compatibility with vehicles outside the USA due to regional differences in emission standards and system configurations. Some features and functionality may vary depending on the vehicle and location.

Some electronic tuning devices and programmers require activation, registration, or pairing with a specific vehicle’s VIN (Vehicle Identification Number). Once activated or paired, these devices may become permanently associated with that vehicle, restricting or preventing their use on another vehicle, resticting our ability to offer returns or exchanges.

Please review the product details and images to ensure it meets your needs. For clarification or assistance, feel free to contact a StreetFX agent. Note: Returns are not accepted for special order or tuning products unless the unit is deemed faulty.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Fuel Pump, Electric In-Tank, Brushless, 5.0 GPM, Each

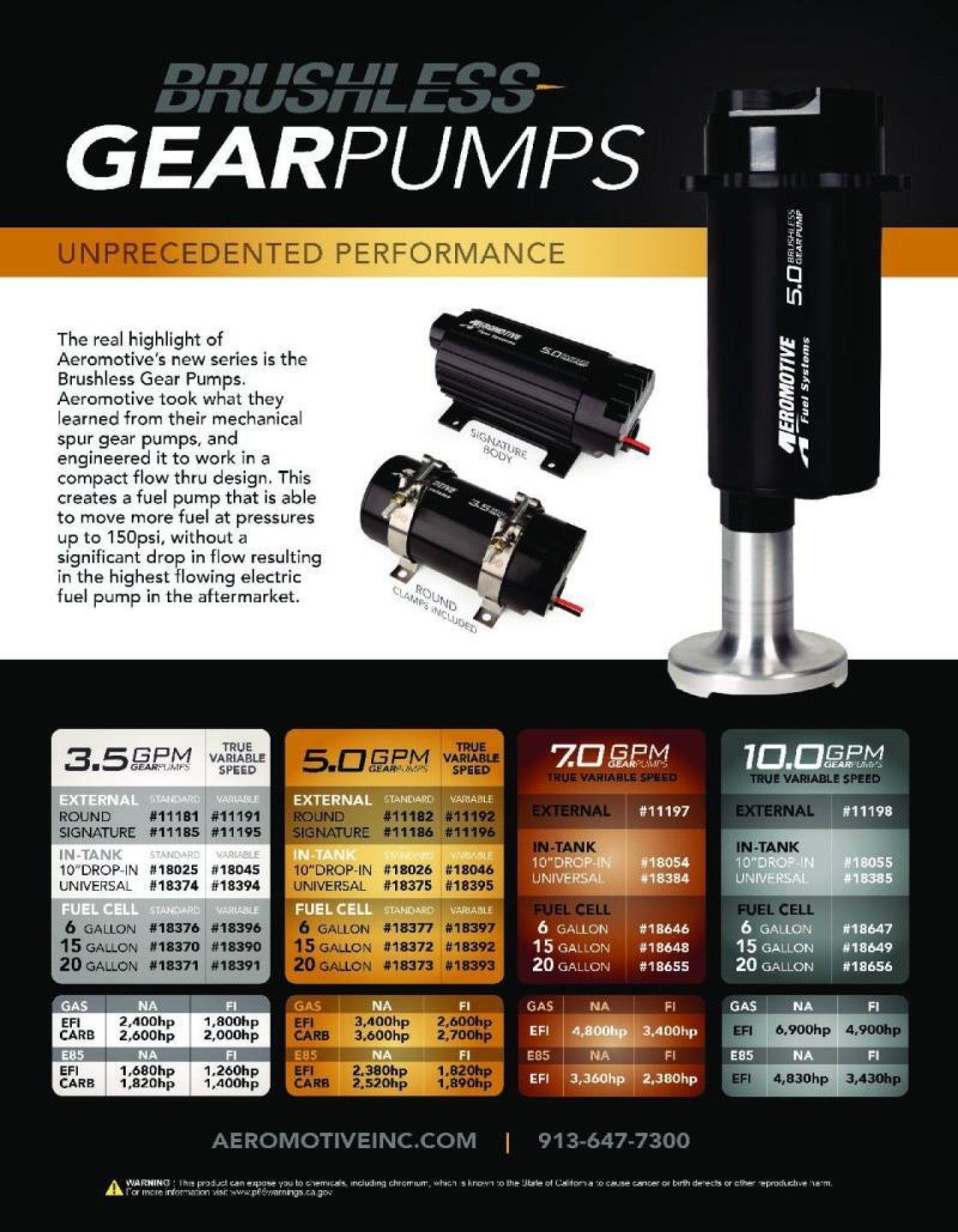

Aeromotive brushless Stealth fuel pumps provide the Pro-Series fuel pump performance the world has come to trust and depend on—now available with the latest spur-gear pumping mechanism and brushless-motor technology. These brushless spur-gear pumps are able to move more fuel and sustain higher pressures without failure. They provide a direct-fit on all Aeromotive Stealth 6, 15, and 20-gallon fuel cell tanks; and the pumps are submersible for custom, in-tank placement in 10 in. deep fuel tanks or fuel cells. For use in EFI or carburetor applications with correct regulator.
