Regulator

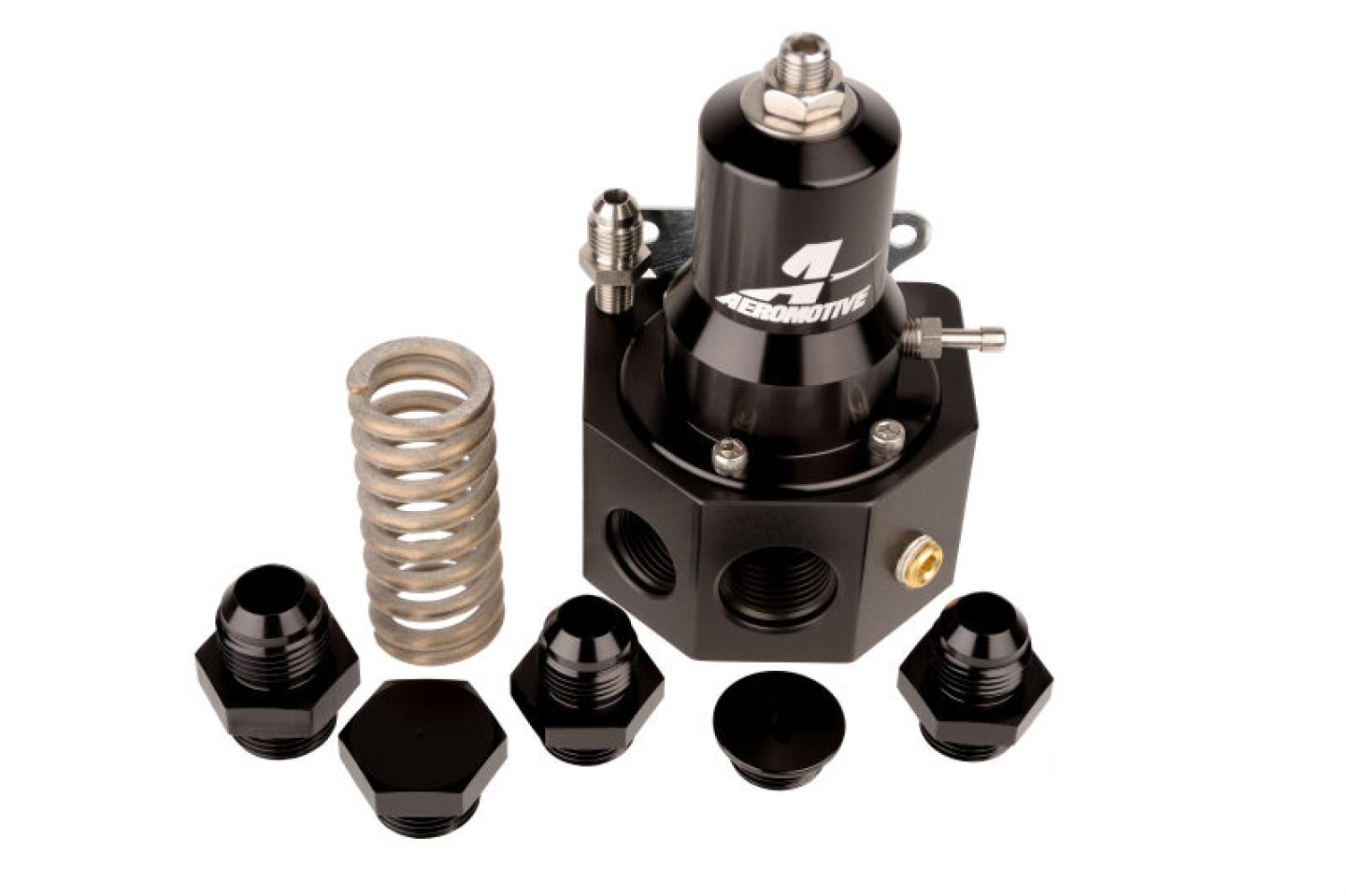

The tuner?s choice for high horsepower EFI applications. The Pro-Series Regulator can support up to 2000 HP. For engines requiring high volume, high pressure fuel delivery, the Pro-Series Boost Reference EFI Regulator is a perfect fit for serious power. Adjustable base pressure from 30-75 PSI with the spring installed. Adjustable base pressure from 75-125 PSI with the optional spring included. Ideal for Pro-Series, Brushless 3.5 and Brushless 5.0 Electric Pumps using the 30-75 PSI spring. Suitable for 6-GPM mechanical pumps using both the standard and high pressure spring. Auxiliary ports available for nitrous applications, pressure gauges and transducers. References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line (Prevents blow-off in high boost applications). Dedicated 1/8? NPT port. Includes Aeromotive?s radiused tapered flare fittings: (3) ORB-08 and (1) ORB-10 inlet ports, two with AN-08 flare adapters. (1) ORB-10 return port with AN-10 flare adapter port plugs included. Virtually indestructible electroless nickel-plating finish on the body with type II bright dip black anodized cap.
Additional Information
Pro Series Extreme Flow EFI Regulator (3)-8 inlets, (1)-10 inlet, (1)-10 Bypass (Includes fittings, O-rings).
Part Type
Fuel Pressure Regulator
Note for Australian & European Markets
This item was designed and engineered in the USA for US domestic vehicles. OBD tools, ECUs, dongles, programmers, and tuners may have limited compatibility with vehicles outside the USA due to regional differences in emission standards and system configurations. Some features and functionality may vary depending on the vehicle and location. Please review the product details and images to ensure it meets your needs. For clarification or assistance, feel free to contact a StreetFX agent. Note: Returns are not accepted for special order products.
(keyword: efi)
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Ver: 3.02 - Upd: 2025-06-19 01:28:50
Product Downloads
| # | Document Type | Download |
| 1. | Installation Instructions |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
