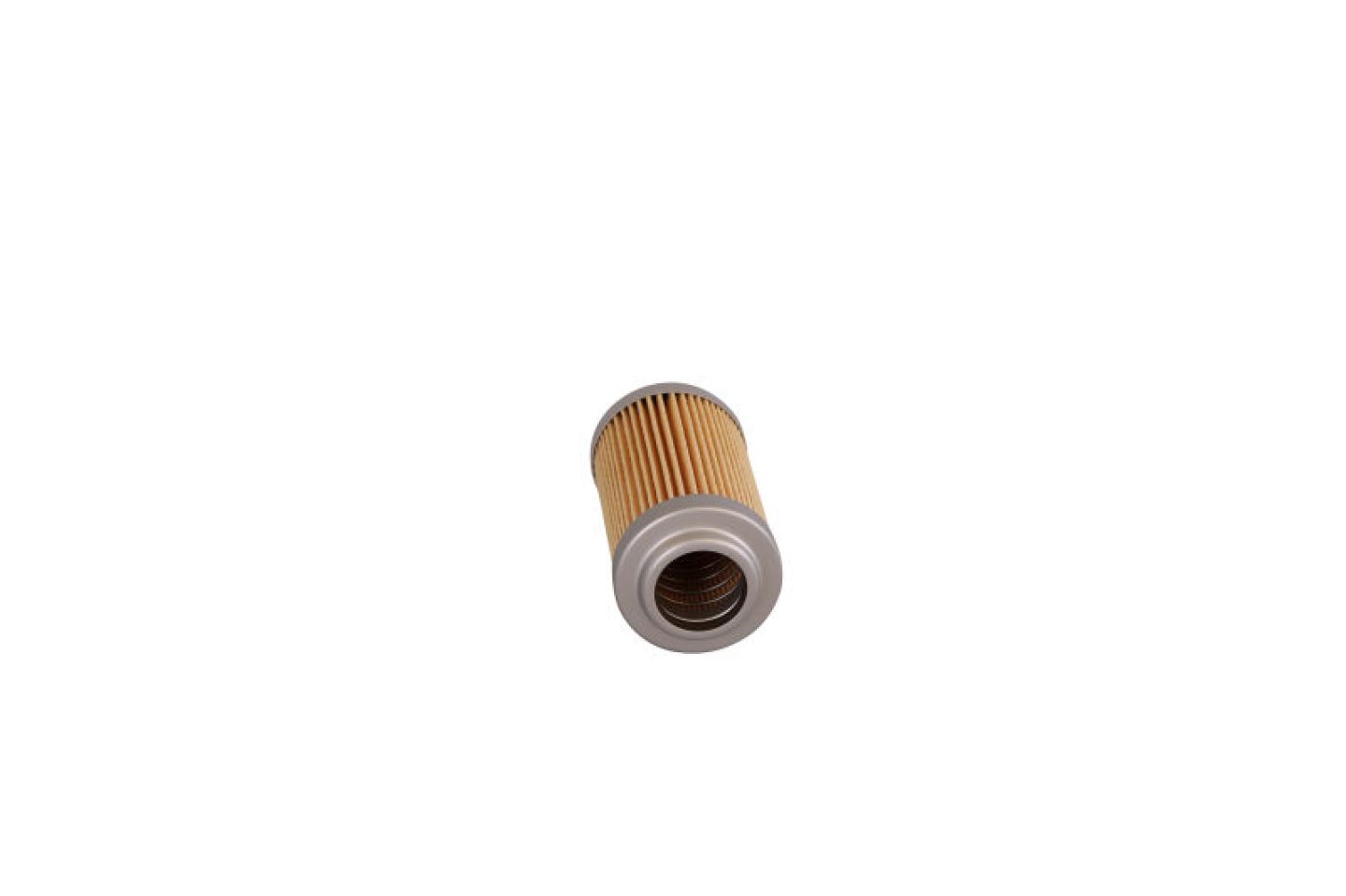

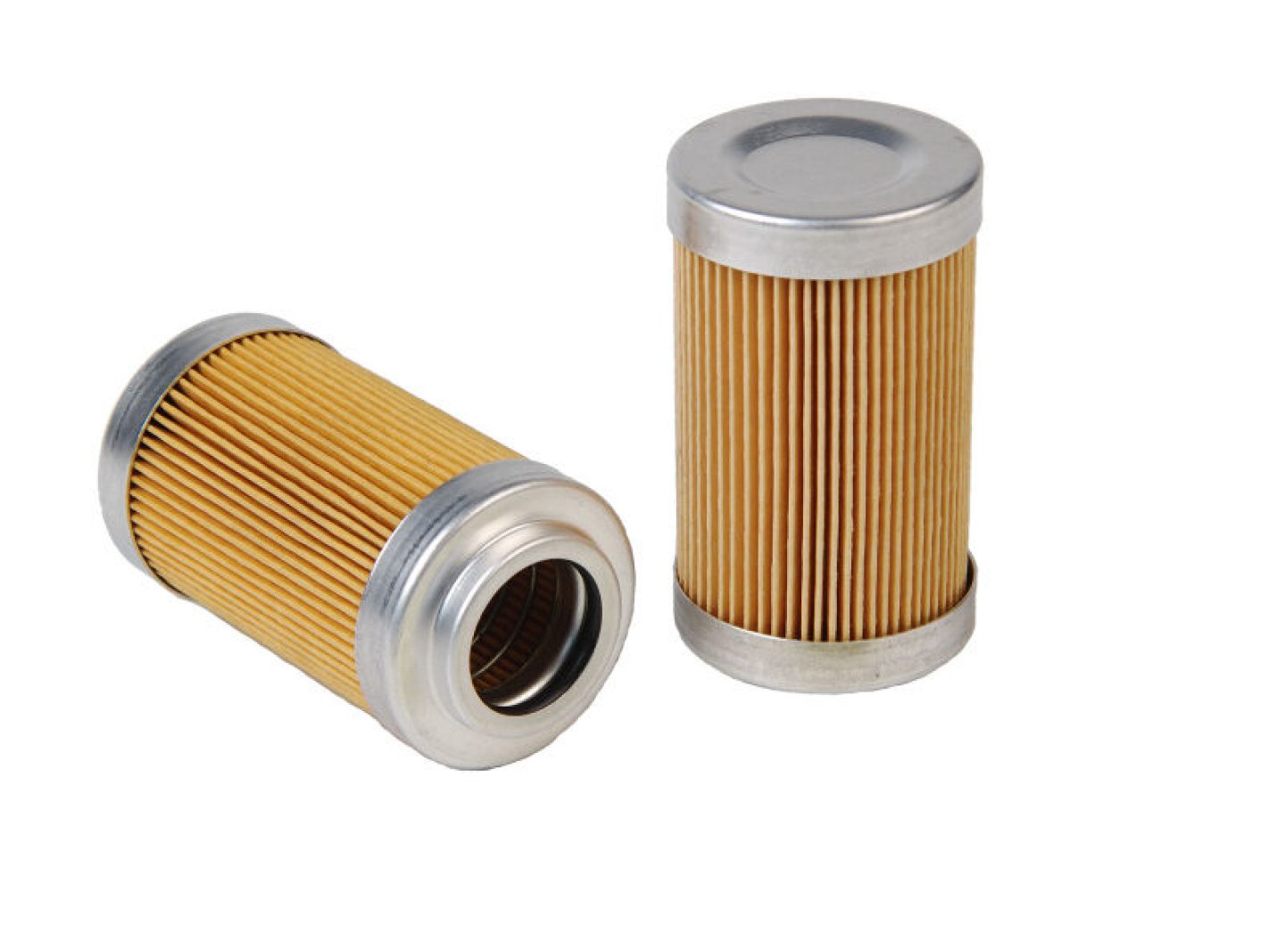

Fuel Filter Element - 10 Micron - Cellulose Element - Aeromotive In-Line Fuel Filters - Each
Filter Element
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Not recommended for alcohol fuels including ethanol and methanol. Over 60-sq. inches of element surface area supports high flow while providing good service life. Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop. Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline. Ideal for gasoline, EFI engines with small to medium Aeromotive fuel pumps from the Phantom 200 through the Eliminator pump. Popular for demanding gasoline, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps.
Additional Information

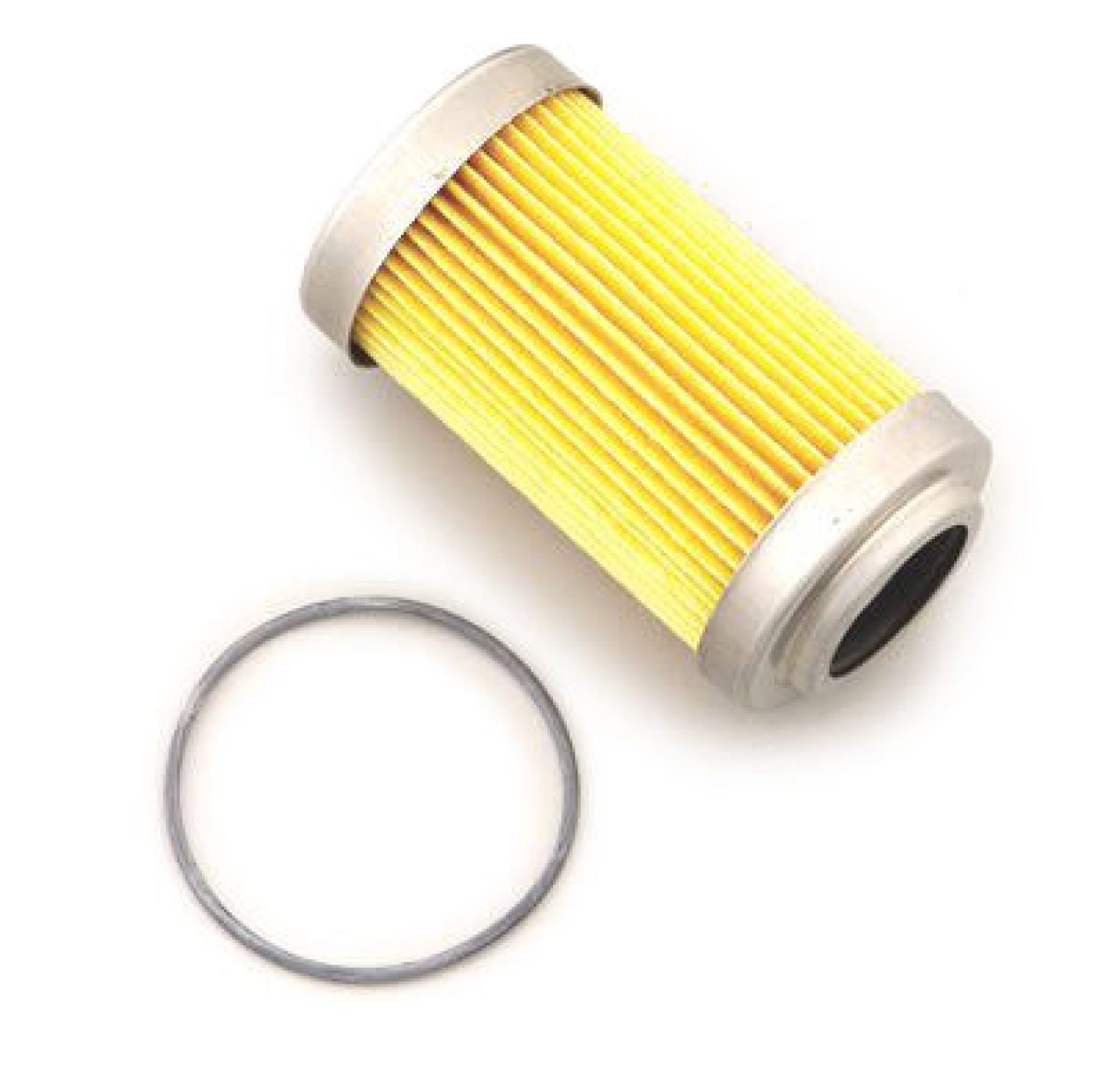

Replacement Element, 10-m fabric, for 12301/12306/12321 Filter Assembly, Fits All 2" OD Filter Housings.
Part Type
Fuel Filter Element
Product Overview
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Not recommended for alcohol fuels including ethanol and methanol. Over 60-sq. inches of element surface area supports high flow while providing good service life. Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop. Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline. Ideal for gasolin e, EFI engines with small to medium Aeromotive fuel pumps from the Phantom 200 through the Eliminator pump. Popular for demanding gasoline, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps.
Product Details
| Description: | 10-M Cellulose Element: ORB-10 Filter Housings |
| Fitting Type: | AN-10 |
| Fuel Type: | Gas |
| Inlet Outside Diameter: | .625 |
| Material: | Cellulose |
| Micron Rating: | 10 |
| Outlet Outside Diameter: | .625 |
| Part Number: | aer12601 |
| Title: | Aeromotive 10-M Cellulose Element: ORB-10 Filter Housings |
