Cold Charge Pipe

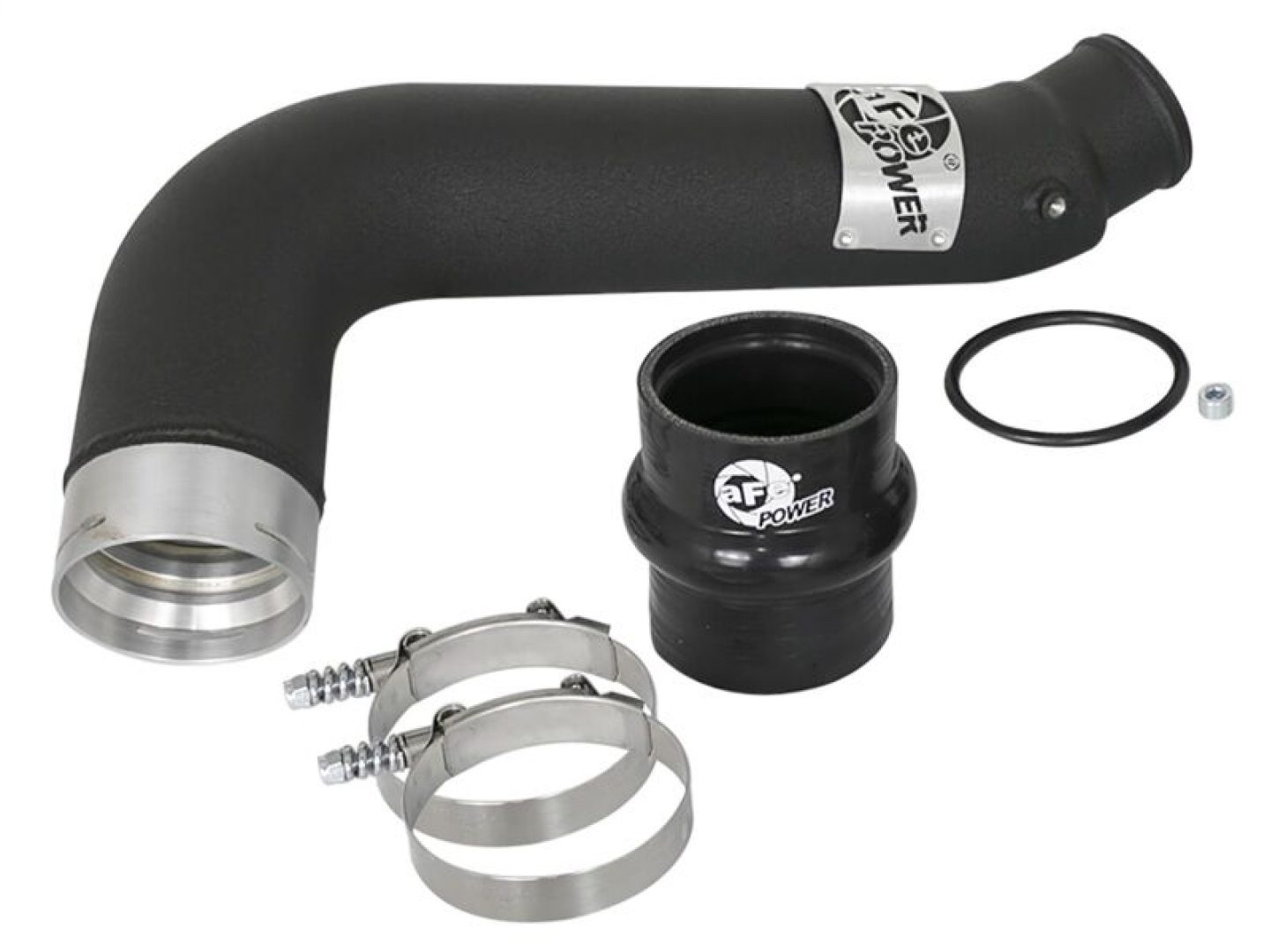

This BladeRunner Charge Pipe kit delivers more flow and is more robust to handle higher horsepower and boost than the plastic factory Charge Pipe on the 2017-18 GM L5P diesel. TIG-welded and designed from aircraft-grade, mandrel bent aluminum tubing, the BladeRunner I/C tube features factory mounting locations, quality hardware and 5-ply silicone couplings for a secure, hassle free installation. Flow and Performance: This cold side tube is constructed of 3-1/2" mandrel bent, powder coated aluminum tubing for maximum flow and performance. The smooth transition bends decrease turbulence and minimize pressure loss, increasing horsepower, torque and lowering EGT's. Featuring one (1) 1/8" NPT port for connecting a pressure sensor or water methanol injection and maintains the factory air temp sensor. Perfect Fit: Installs on the cold side to transfer cooled air smoothly to the engine for better performance. Utilizes the factory mounting locations to provide stability for a hassle-free installation. This kit also includes a factory-style quick connect adapter made from 6061-T6 billet aluminum with an O-ring seal for a quick and simple install. Quality Hardware and Couplings Included: Includes high quality stainless steel spring-loaded T-Bolt clamps and heavy-duty 5-ply polyester reinforced silicone couplings pressure tested to 200 psi for long lasting strength and durability. Custom Appearance: Finished in wrinkle-black powder coating and badged with a unique aluminum laser-cut aFe Power logo welded on for a custom look.

Additional Information

BladeRunner 3 IN Aluminum Cold Charge Pipe Black GM Diesel Trucks 17-19 V8-6.6L (td) L5P

• 1/8 in. NPT Ports For Auxiliary Sensors
• 5 Ply Polyester Reinforced Silicone Couplings
• Billet Aluminum Adapter

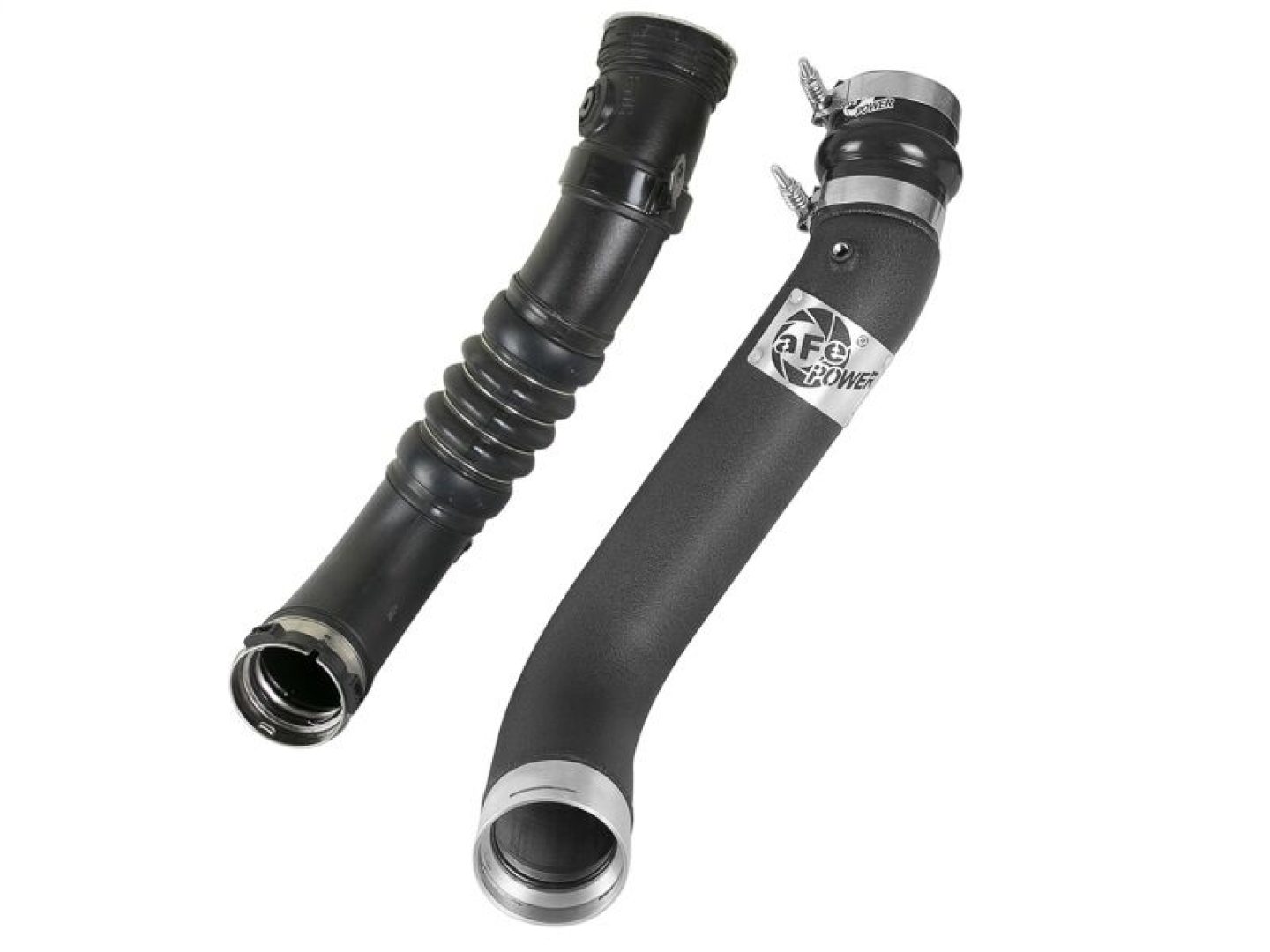

• Outflows factory I/C Tubes
• TIG Welded

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Intercooler Pipe, BladeRunner, Cold Side, Aluminum, Black, 3.5 in. Diameter, Chevy, GMC, 6.6L, Each

Get the most out of your diesel truck performance with aFe BladeRunner intercooler pipes. The connecting arms are fully mandrel-bent stainless steel or aluminum tubing that will outflow factory pipes, giving you more power and fuel efficiency. The intercooler pipes free-flowing design aids in decreasing EGTs to help protect your motor from power-robbing heat. BladeRunner pipes are available for these positions: turbocharger-to-intercooler, intercooler-to-intake, and the complete system. The kits come complete with the hardware needed for installation, and a powdercoated finish protects pipes from the elements. Don't let your factory plumbing rob your diesel of power—upgrade with aFe BladeRunner intercooler pipes!
