Axle-Back Exhaust

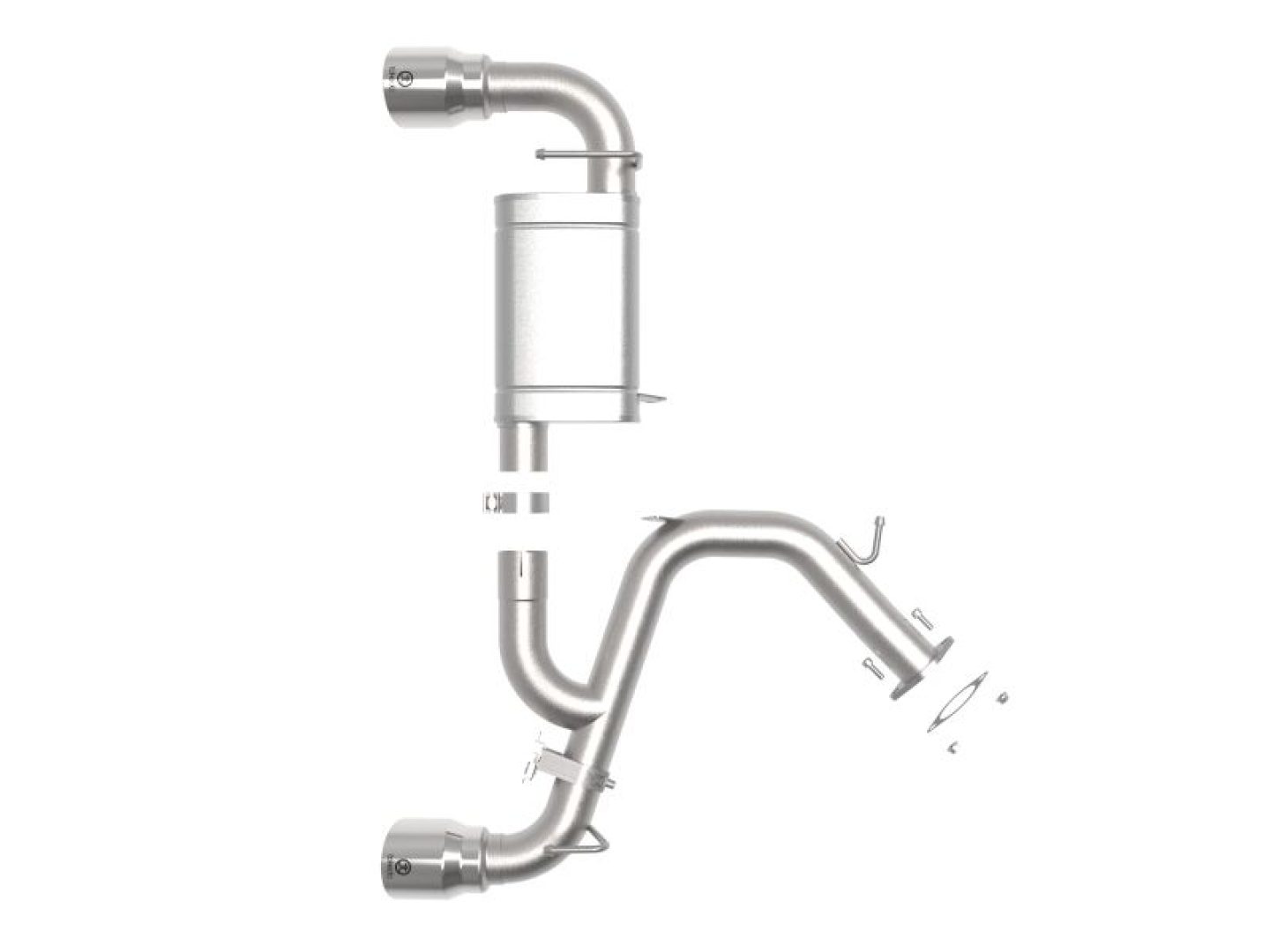

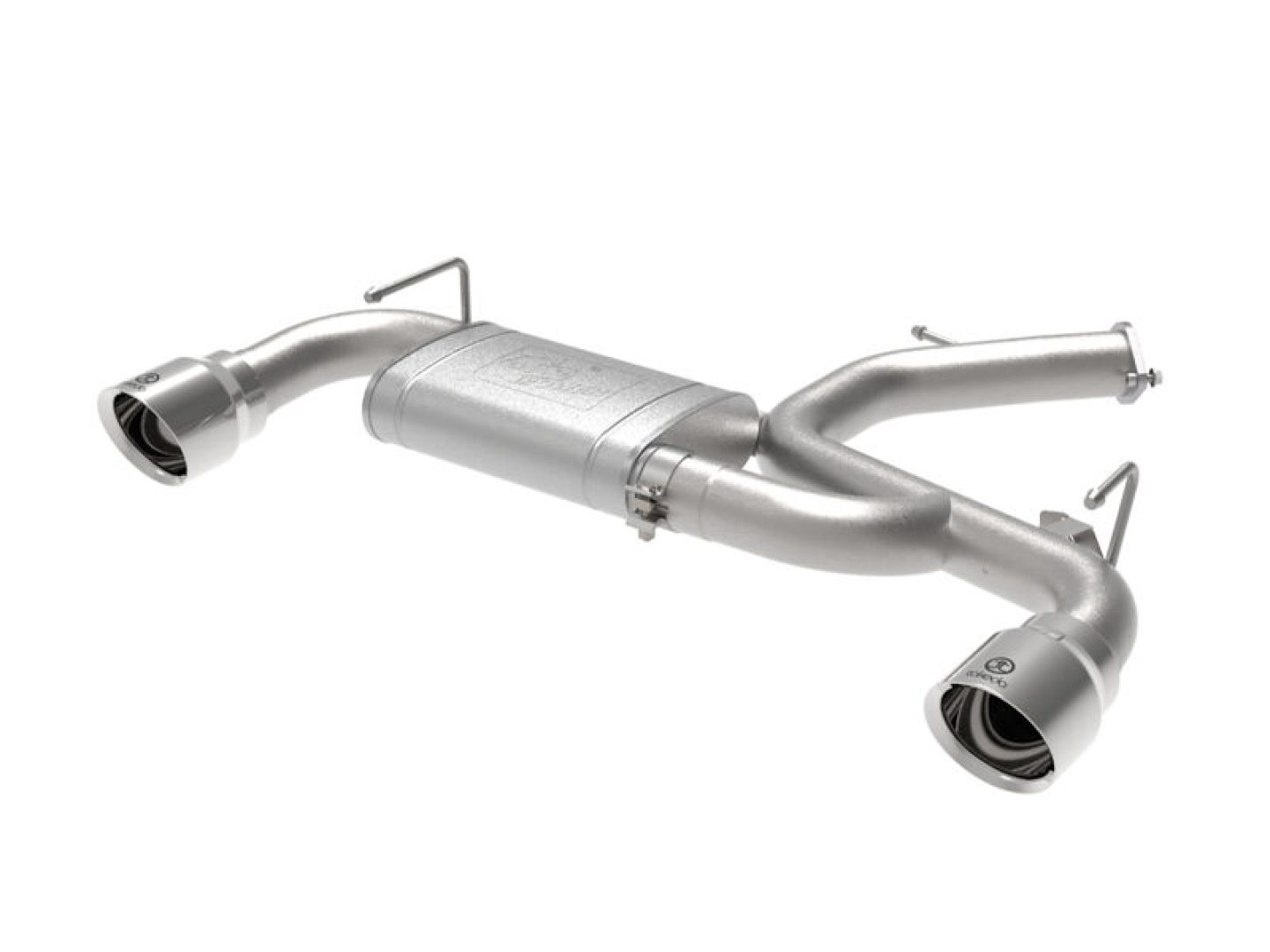

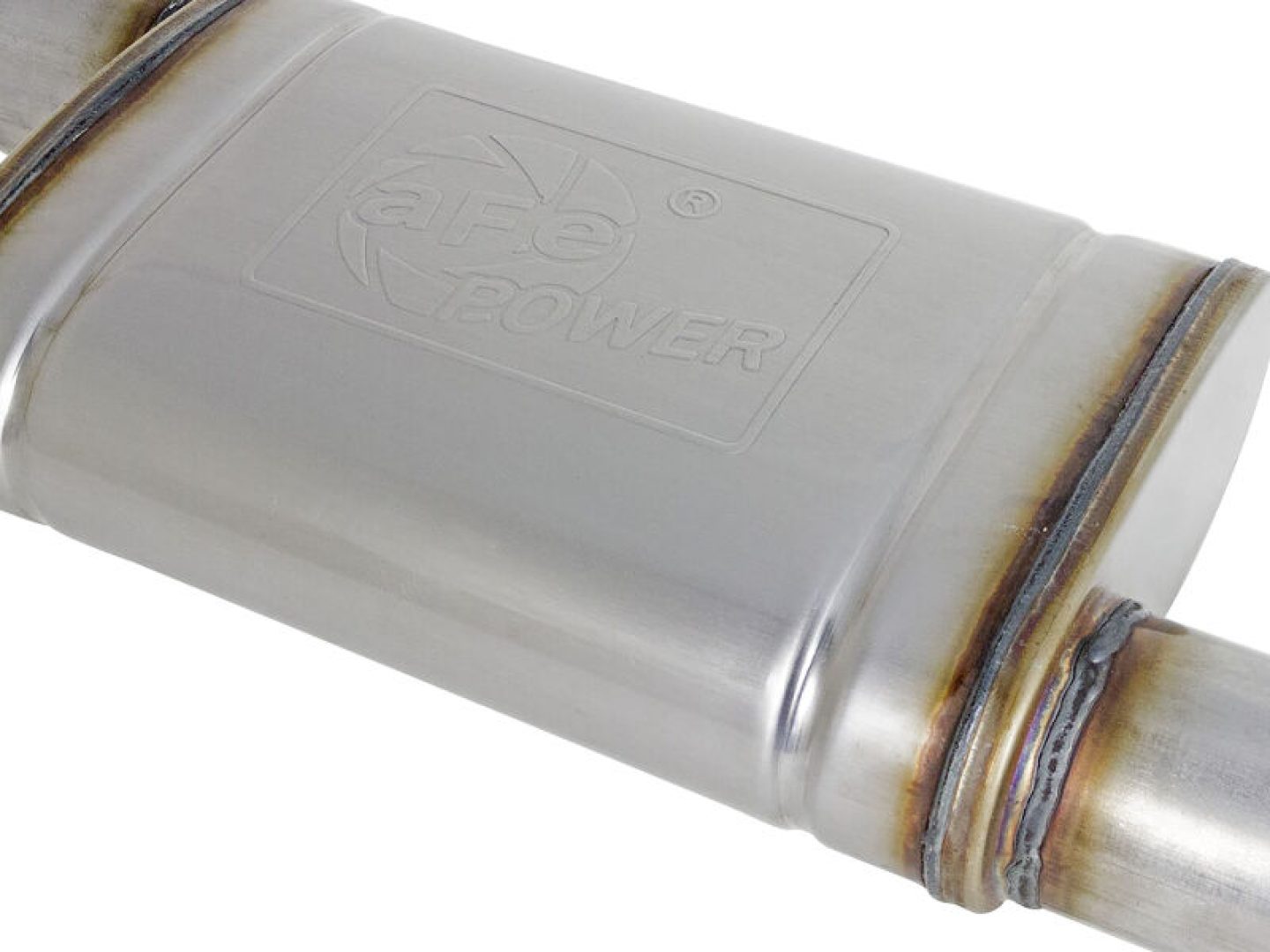

Performance Gains: This system produced gains of up to +8 horsepower and +9 lbs. x ft. torque, as measured on our in-house dyno. 3" 304 Stainless Steel Construction: This axle-back exhaust system is constructed of 3" mandrel-bent 304 stainless steel tubing for maximum strength and durability. High Flow 304 Stainless Steel Muffler: This system features a high-flow 304 stainless steel muffler, producing a deep, aggressive sound. Dual 5" Diameter Polished Exhaust Tips: Finishing off this exhaust system are dual 5" diameter polished 304 stainless steel exhaust tips. The tips features a laser etched Takeda logo for a unique style. Installation: Utilizing a factory style flange and hangers this is a bolt-on system that requires no cutting or modifications for a hassle-free installation. It is a direct fit with the factory piping or aFe POWER's mid-pipe (PN 49-37006). Exhaust Valve: This cat-back exhaust system incorporates a factory style exhaust valve which use the factory exhaust valve motor (not included). The valve helps regulate, direct, and control the flow of exhaust gases by opening, closing, or partially obstructing passageways depending on throttle position for maximum performance and sound. This system will fit only models equipped with Performance Package including the variable exhaust valve system. Integrated Mitered Merge Collector: A mitered merge collector is used to decrease turbulence and increase exhaust velocity resulting in improved horsepower, torque, and throttle response. Computer-Aided Design: Utilizing state-of-the-art computer aided design technology, this exhaust system is designed for custom, high tolerance factory fitment. MIG Welded: 100% MIG welded for race-proven strength and durability. Fitment Note: This item will only fit models equipped with Performance Package.

Additional Information

Takeda 3 IN 304 Stainless Steel Axle-Back Exhaust System w/ Polished Tips Hyundai Veloster N 19-20 L4-2.0L (t)

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• +9 lbs. x ft. TQ & +8 HP
• Constructed from 3 IN Mandrel Bent 304 Stainless Steel Tubing

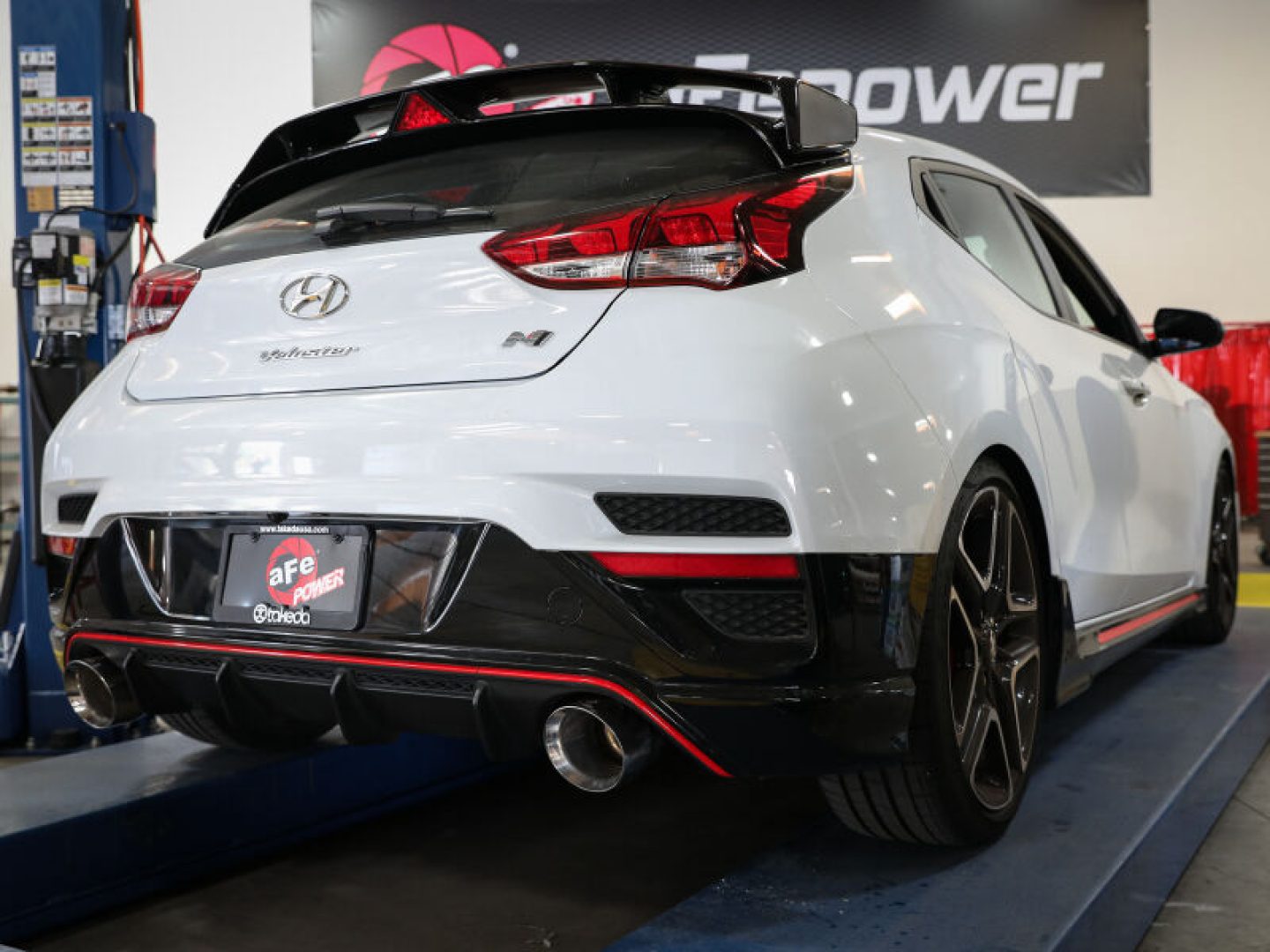

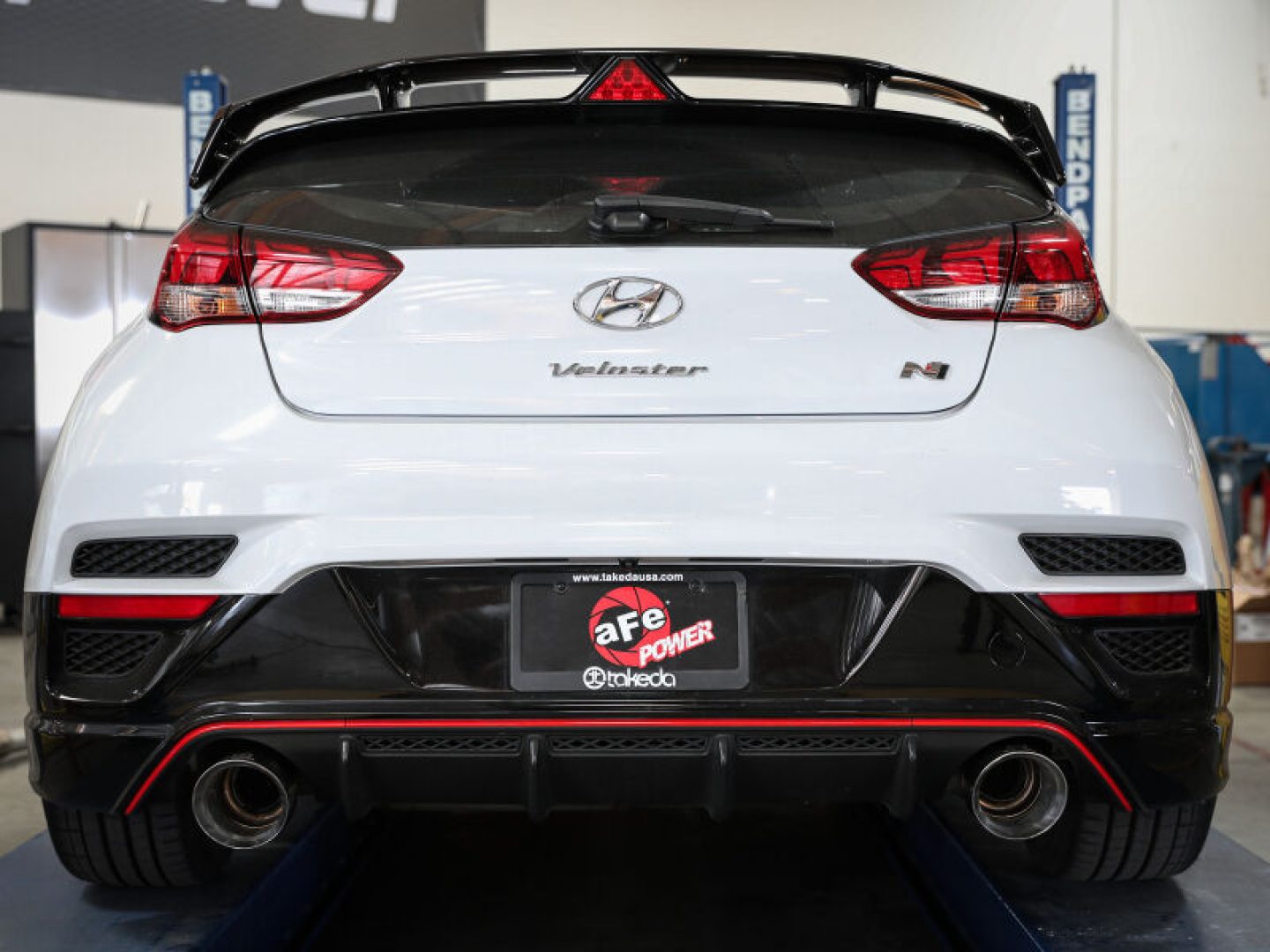

• Dual 5 IN Diameter Polished 304 Stainless Steel Exhaust Tips

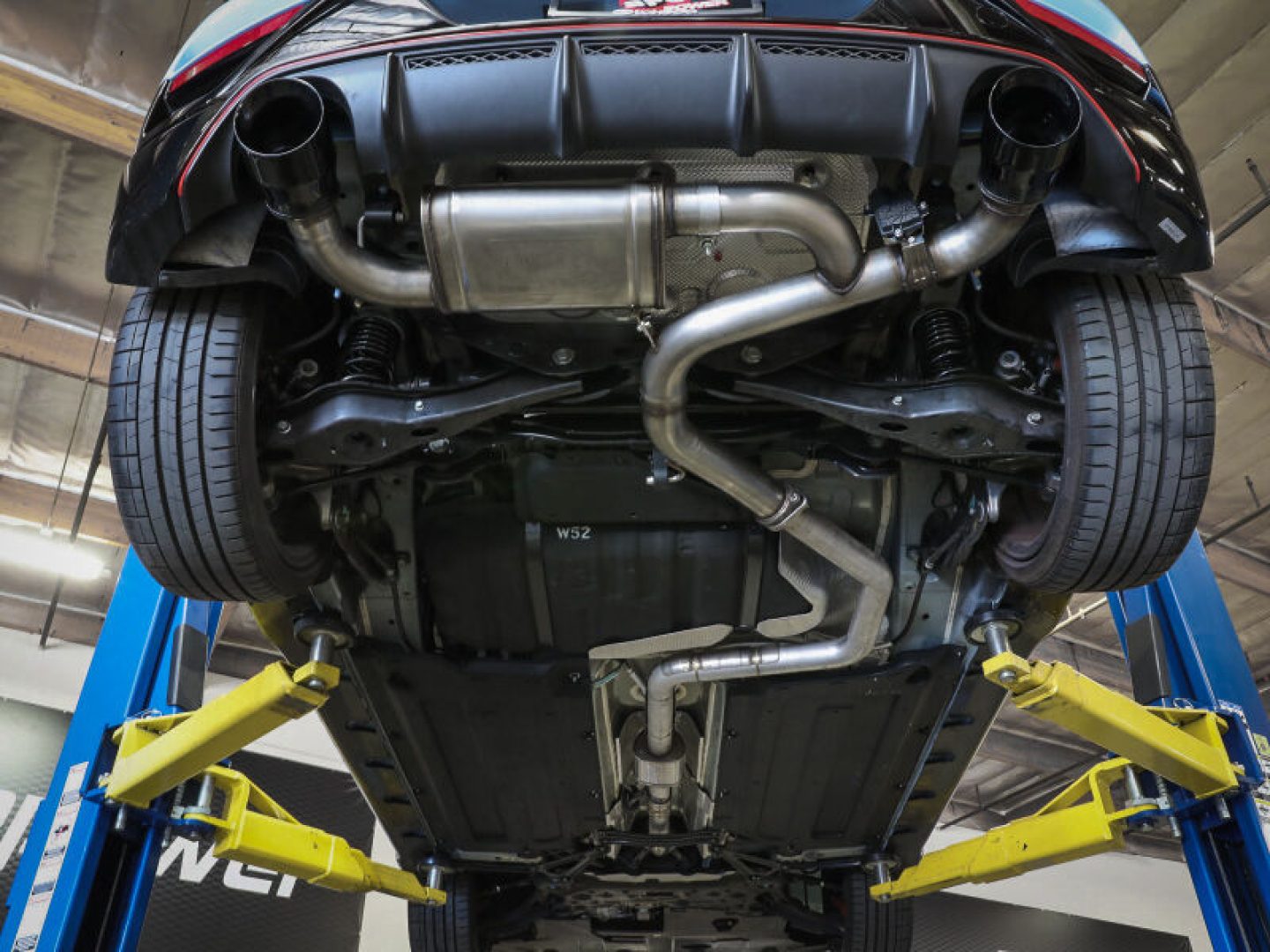

• Utilizes Factory Style Flange and Hangers for a Secure Fit

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Exhaust Systems, Takeda, Rear Axle-back, Single In/Dual Out, Stainless Steel, Natural, Split Rear Exit, Polished Tips, for Hyundai, 2.0L, Kit

aFe Takeda exhaust systems are constructed of superior quality mandrel-bent 304 stainless steel and are designed to produce significant horsepower gains. They utilize single and dual, high-flow transverse mufflers. Some models include an X-pipe balance tube, which equalizes and evenly distributes exhaust pulses for increased flow and performance across the power band, while maintaining great sound. The finishing touches on these exhaust systems are their laser-etched, slash-cut polished 304 stainless steel tips. Many options are available, such as cat-back and rear axle-back styles; exit quantity and location; and tailpipe diameters. Order the kit designed for your vehicle application.
