ARB Airlocker Dana44 30Spl 3.92&Up S/N.

The world's premier traction aid, an ARB Air Locker(TM) keep you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment and its super strong design allows activation at any speed allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.

Additional Information

Shaft Spline 30

Application Summary

S/N.....

Part Type

Differential

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Air compressor required for operation (sold separately)
• Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver's seat
• Employs Minimal Moving Parts Ensuring Maximum Reliability

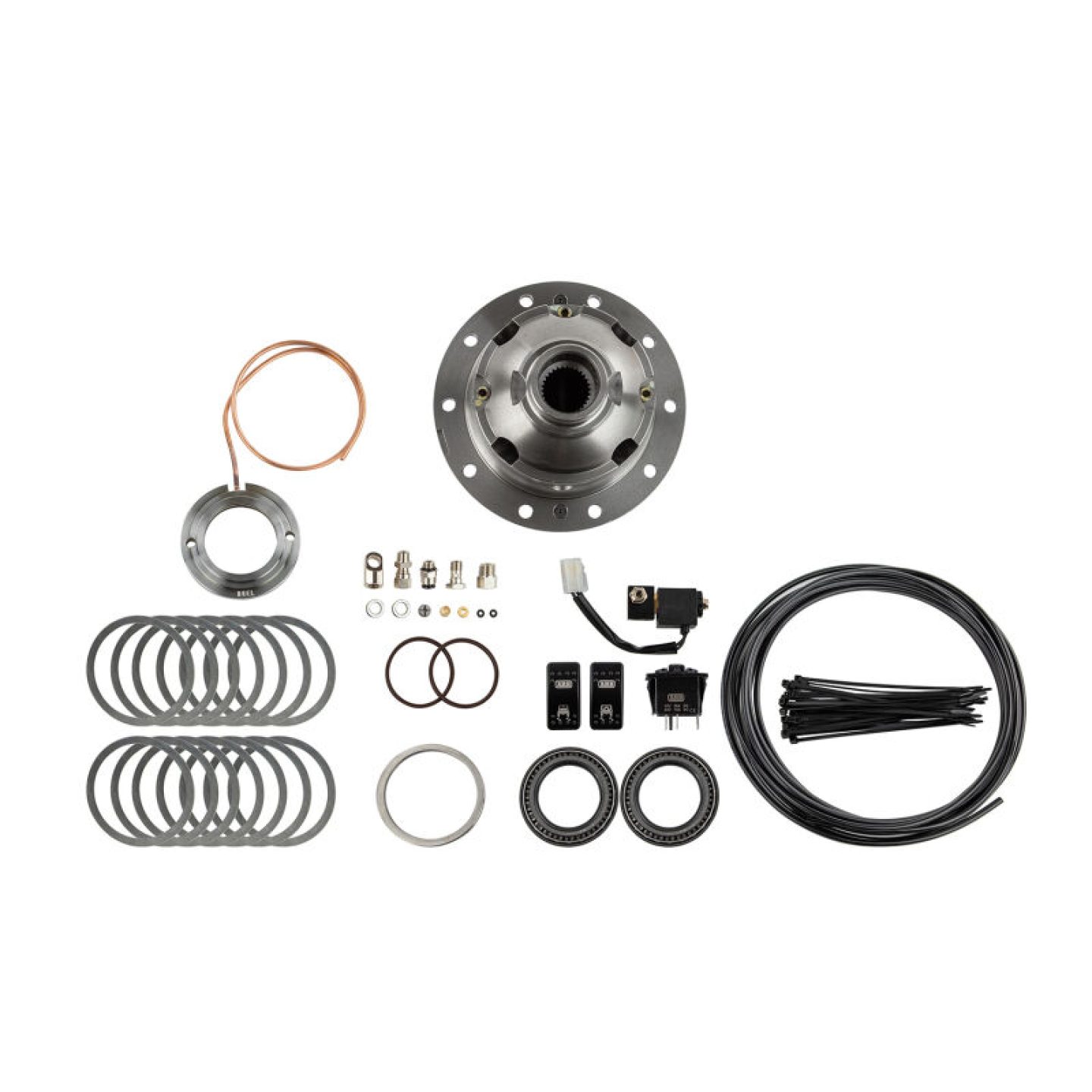

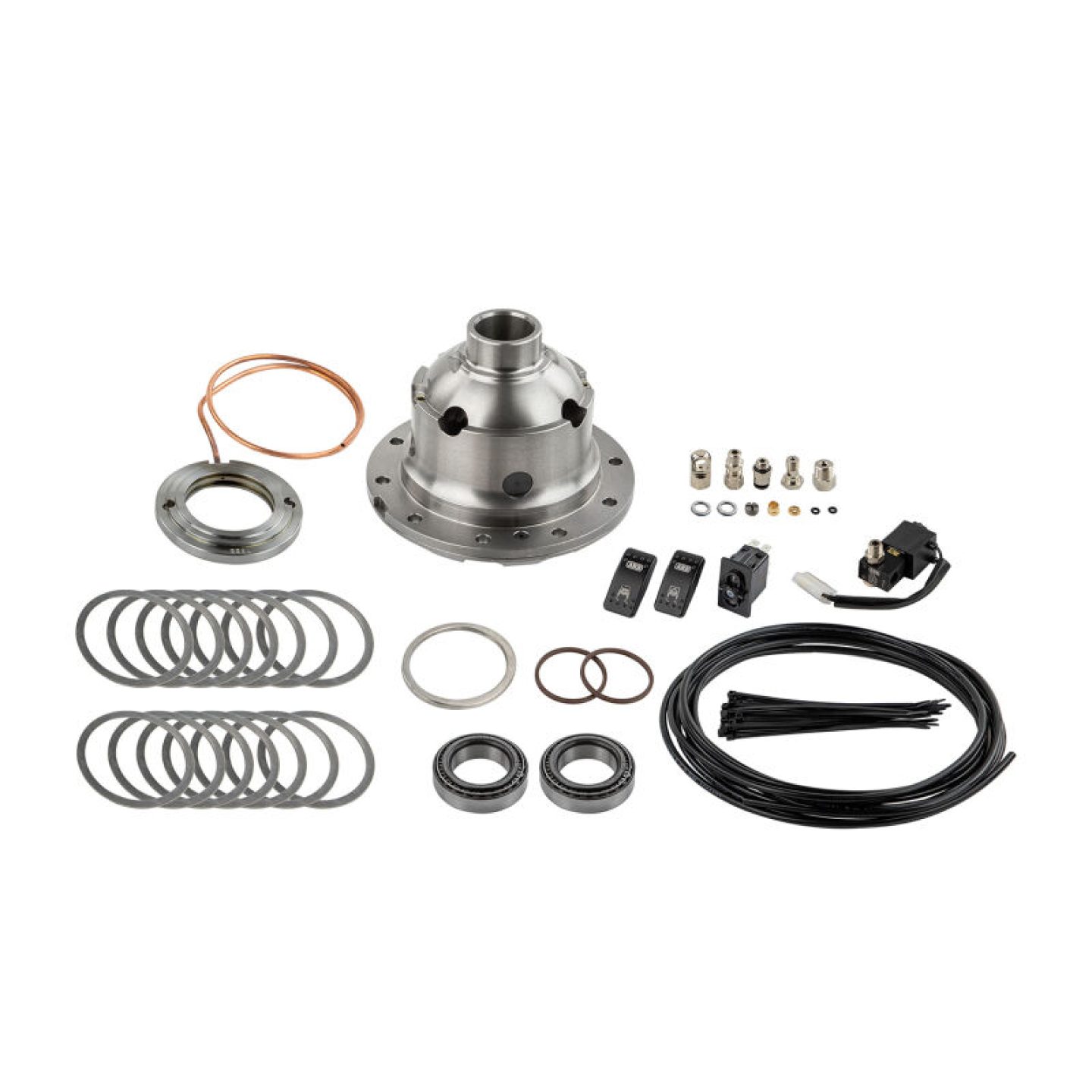

• Kit includes: Air Locker differential, activation switch, solenoid valve, air line and bulkhead fitting
• Patented ?timed' locking mechanism offers high strength and ultra-fast unlocking
• Provides 100 percent traction on demand without affecting on-road drivability or driveline wear
• Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures on Earth
• Two-piece design is ultra-durable and extremely strong ? minimal moving parts ensure maximum reliability

Note for Australian and European Markets

All ARB products are genuine and supported directly by StreetFX with in-house warranty in line with Australian Consumer Law (ACL). StreetFX is not affiliated with ARB Corporation. Front bars, and some accessories, may have slight regional differences between domestic and imported vehicles. Variations can occur due to compliance, factory LHD or RHD configurations, and may have different regional fitment standards. We recommend confirming details with a StreetFX representative if you are unsure whether your item may be affected by these differences.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions
2.	Product Specifications Sheet

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

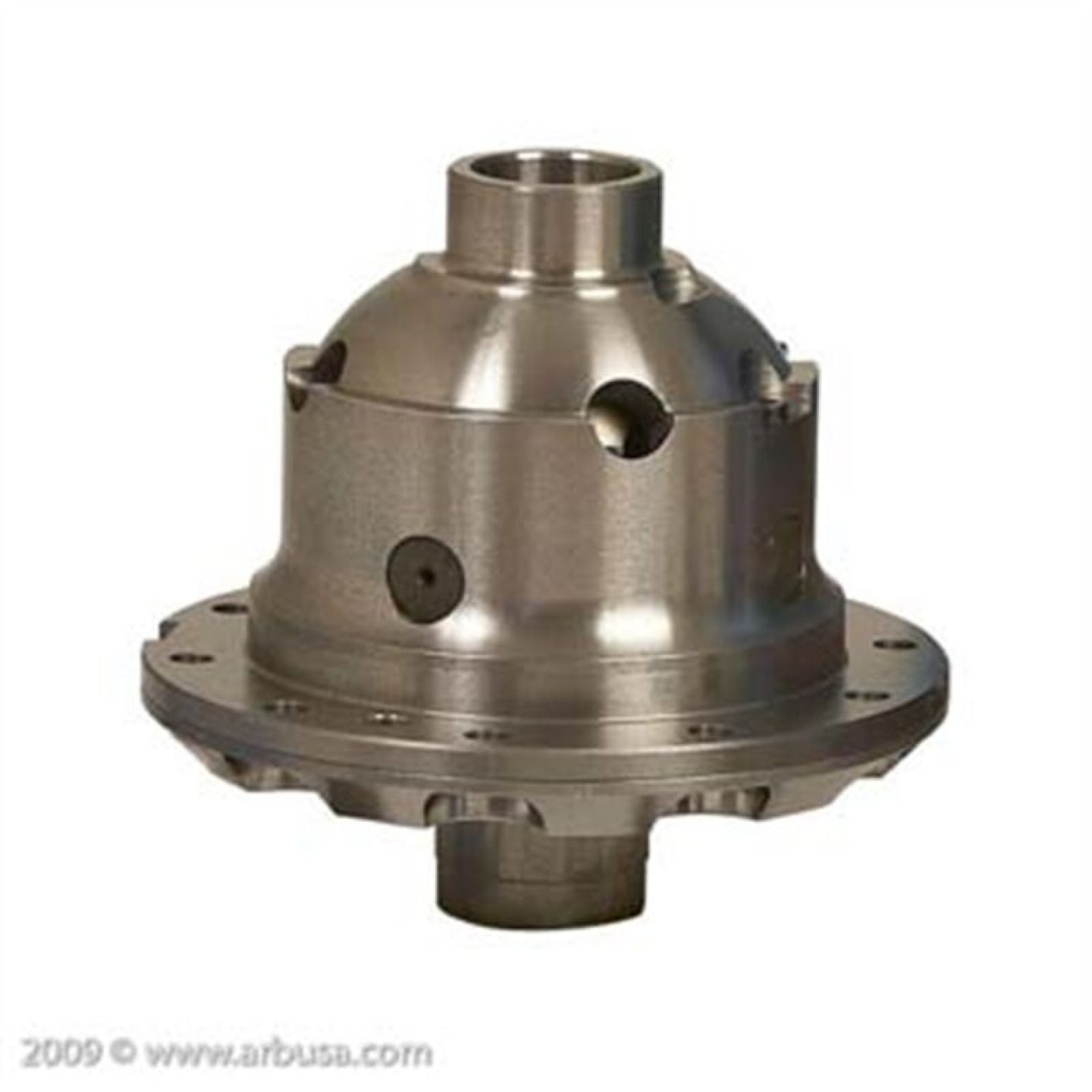

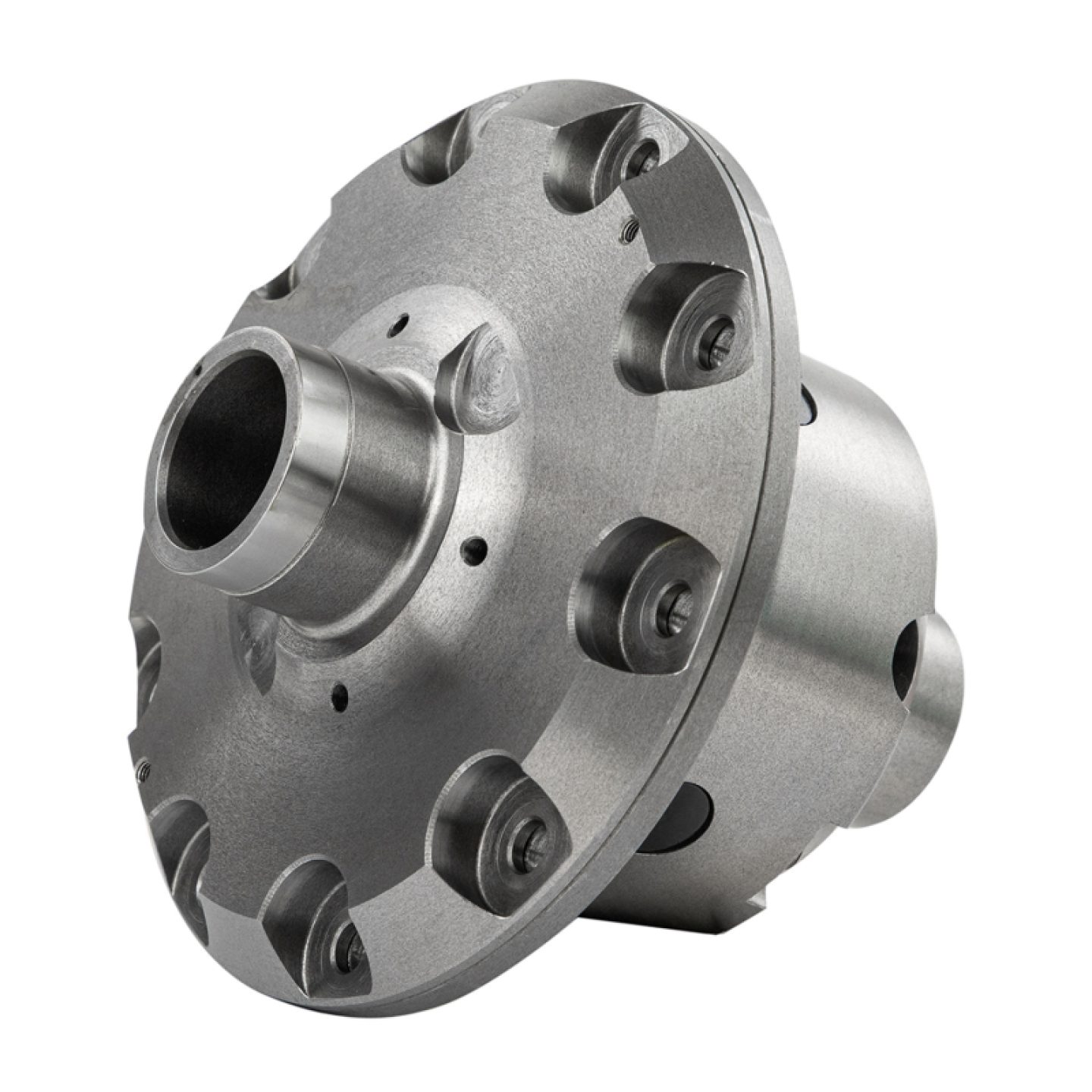

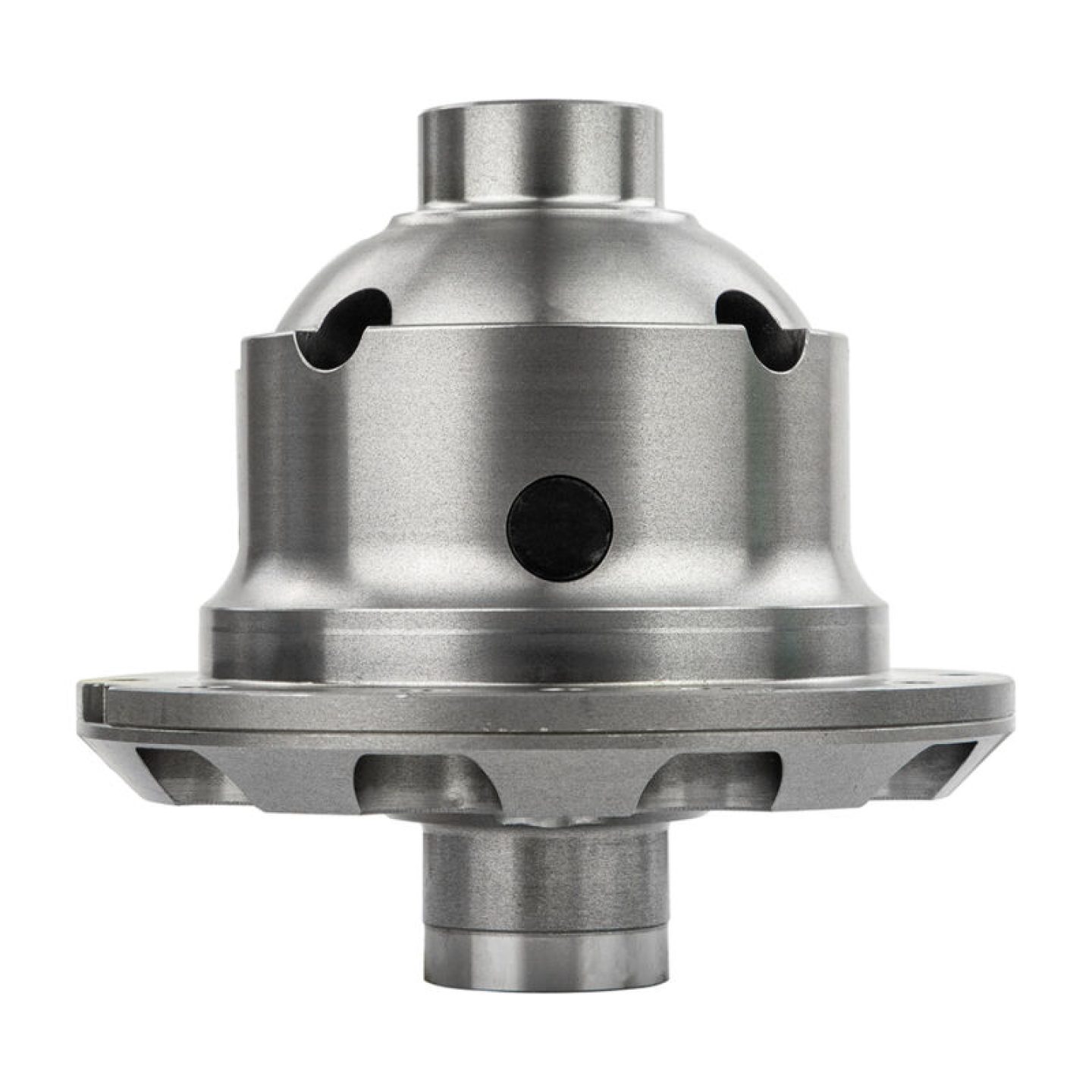

Differential Carrier, Air Locker, Nodular Iron, 30-spline, Dana 44, Kit

A 4x4 and traction go hand-in-hand; however, standard (open) differentials allow each wheel to turn independently to eliminate binding in turns. Off-road, this becomes a problem as engine power takes the path of least resistance—to the wheel with little or no traction. Limited slip differentials offer some improvement, but too often the slipping is not "limited" enough to maintain forward progress. Automatic locking differentials also have disadvantages; noisy when disengaging, they can also upset on-highway driving characteristics.

Created to provide traction on demand, without sacrificing highway driving performance, ARB Air Locker differentials employ a 12 V ARB air compressor (sold separately) to pneumatically operate a solid and durable locking mechanism inside the differential. When activated, the Air Locker prevents the differential gears from rotating and the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional open differential.

ARB Air Lockers are available in over 100 configurations for a wide range of vehicles and can be installed in both front and rear axles. Installation should be performed by a qualified differential technician, although no special tools or skills are required, apart from those necessary for fitting a standard differential. ARB also offers three compressor models suitable for Air Locker operation, two of which can be used to inflate tires and operate other equipment.

Additional features of ARB Air Lockers include:
• Vastly improved traction means less reliance on momentum, reducing the likelihood of vehicle damage
• Easy, convenient operation without leaving the comfort and safety of the driver's seat
• Ultra durable and extremely strong; only the highest quality materials used in construction
• Patented gear technology and 2-piece design ensures optimal locking strength
• Forged gears provide superior strength and durability
• Incredibly simple, yet effective, design employs minimal moving parts for maximum reliability
• Thoroughly tested and proven

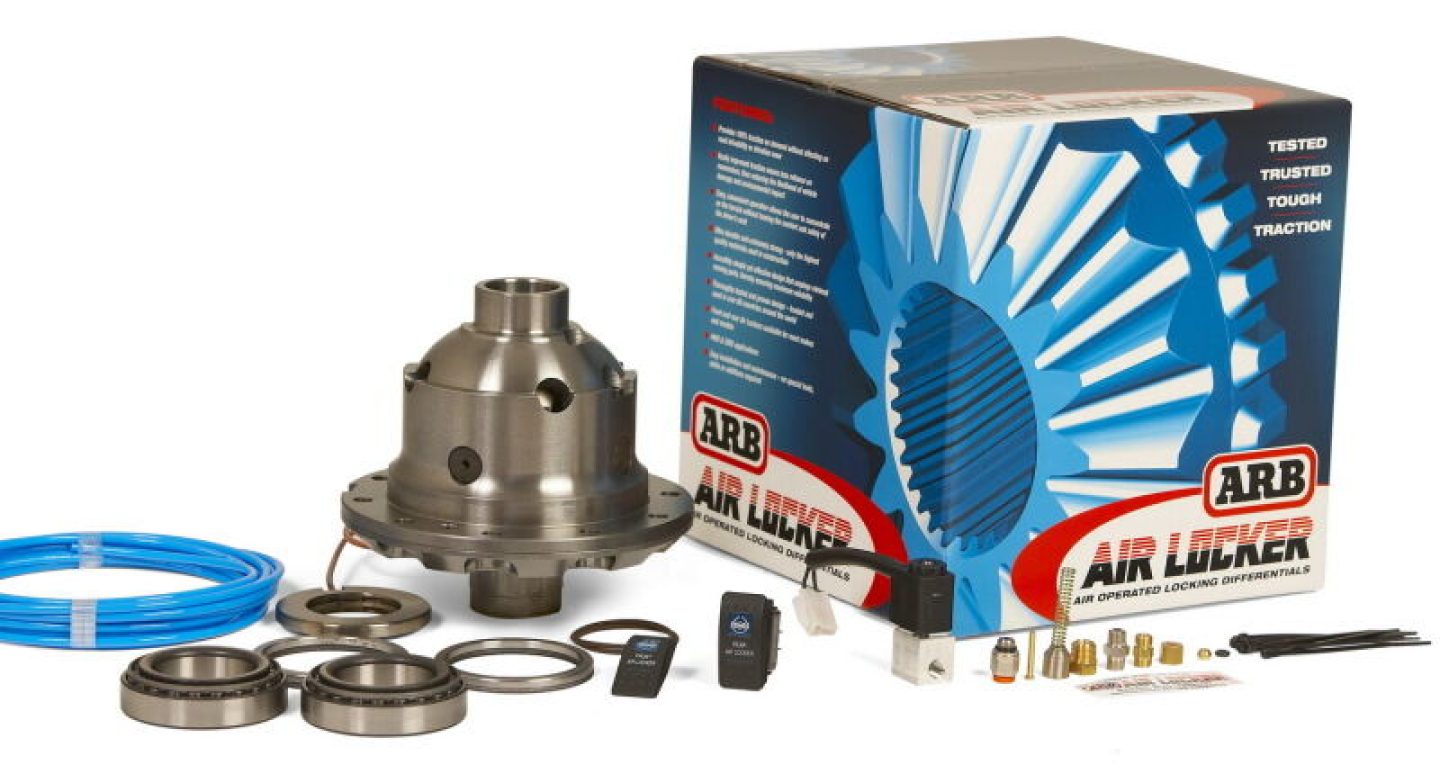

• Most sold as kits with differential, activation switch, solenoid valve, air line, and bulkhead fittings
• Front and rear Air Lockers available for most makes and models
• For 4WD and 2WD applications
• Easy maintenance; no special additives required
• Also offered in ARB Traction Packs that include two Air Lockers, a compressor, and accessories for tire inflation
