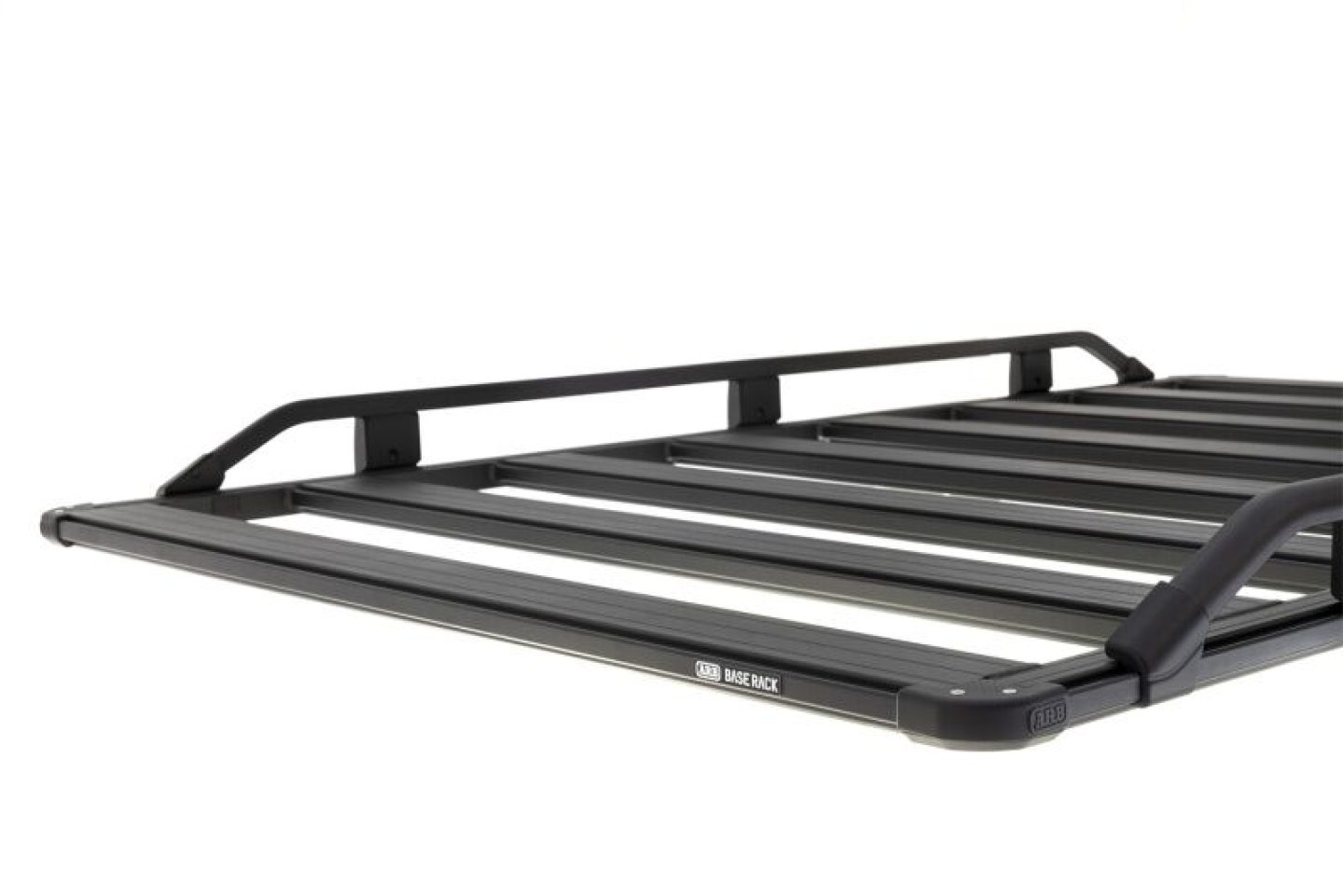

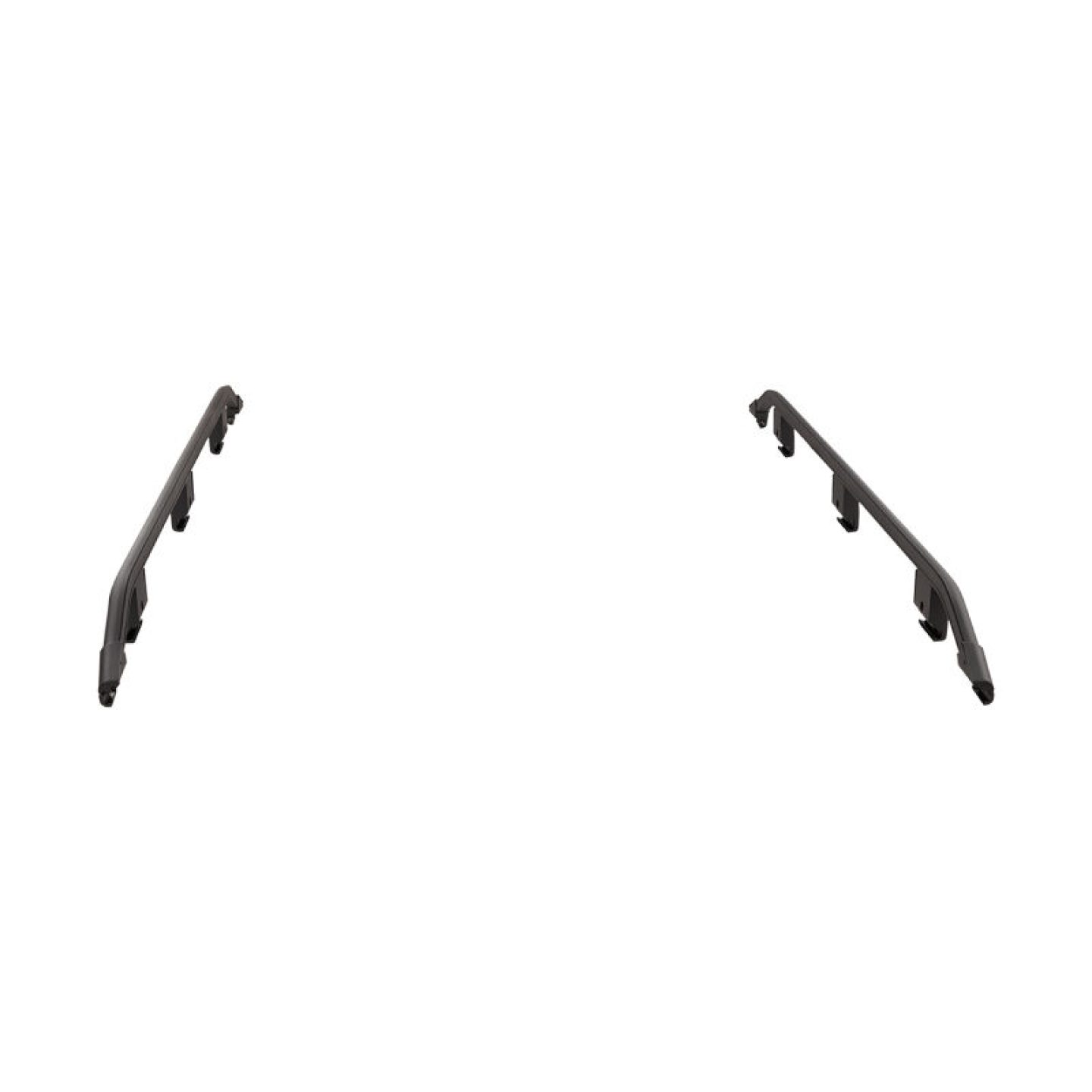

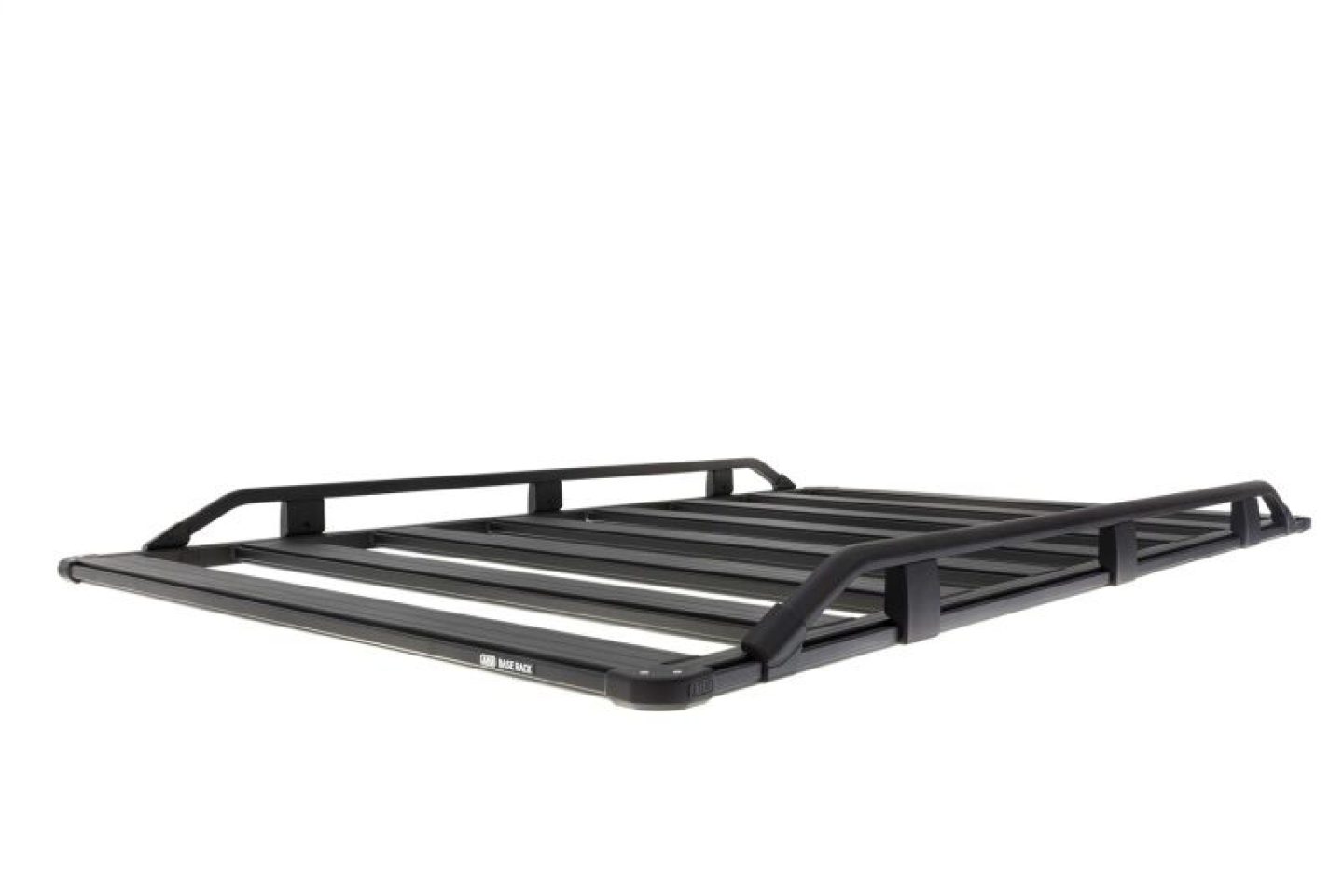

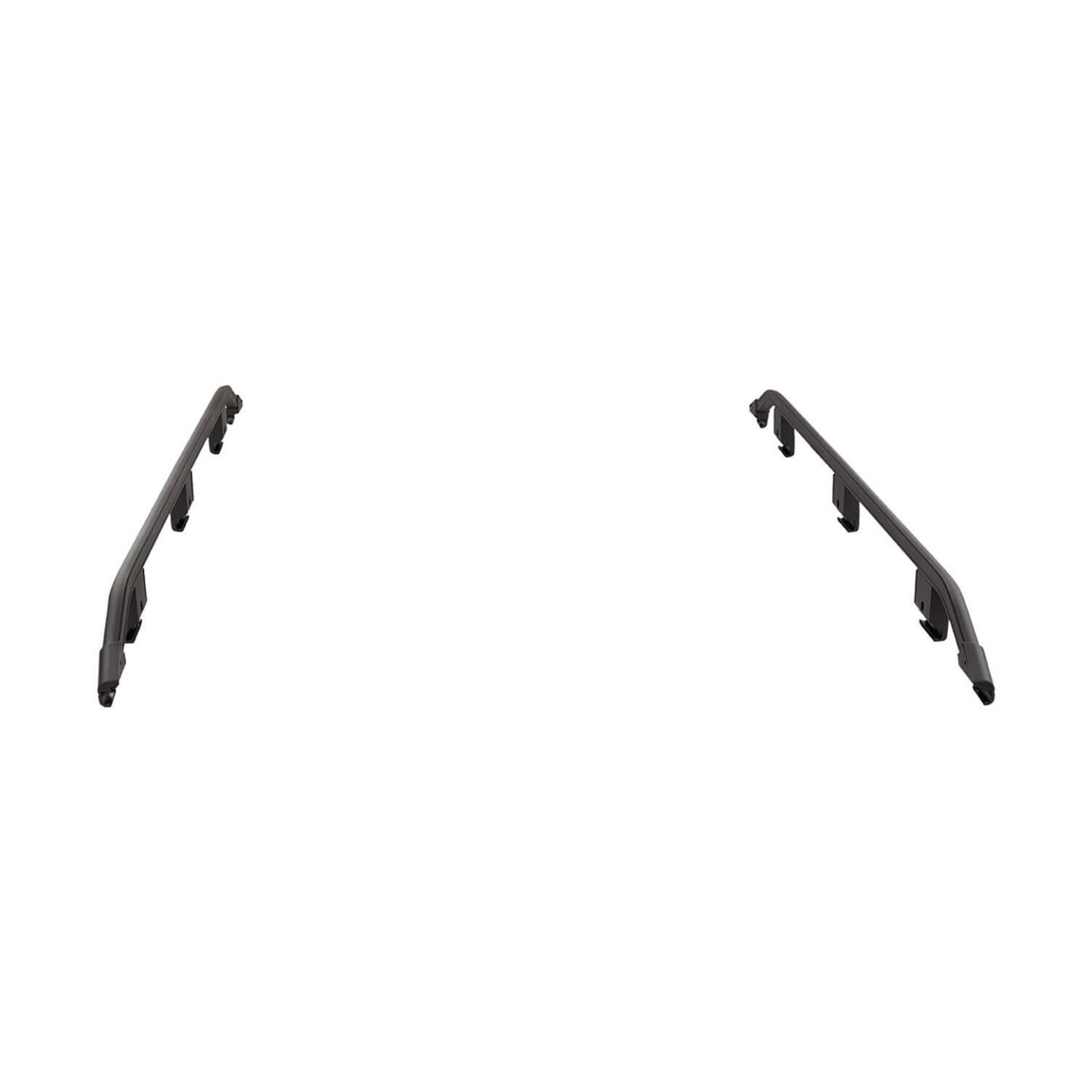

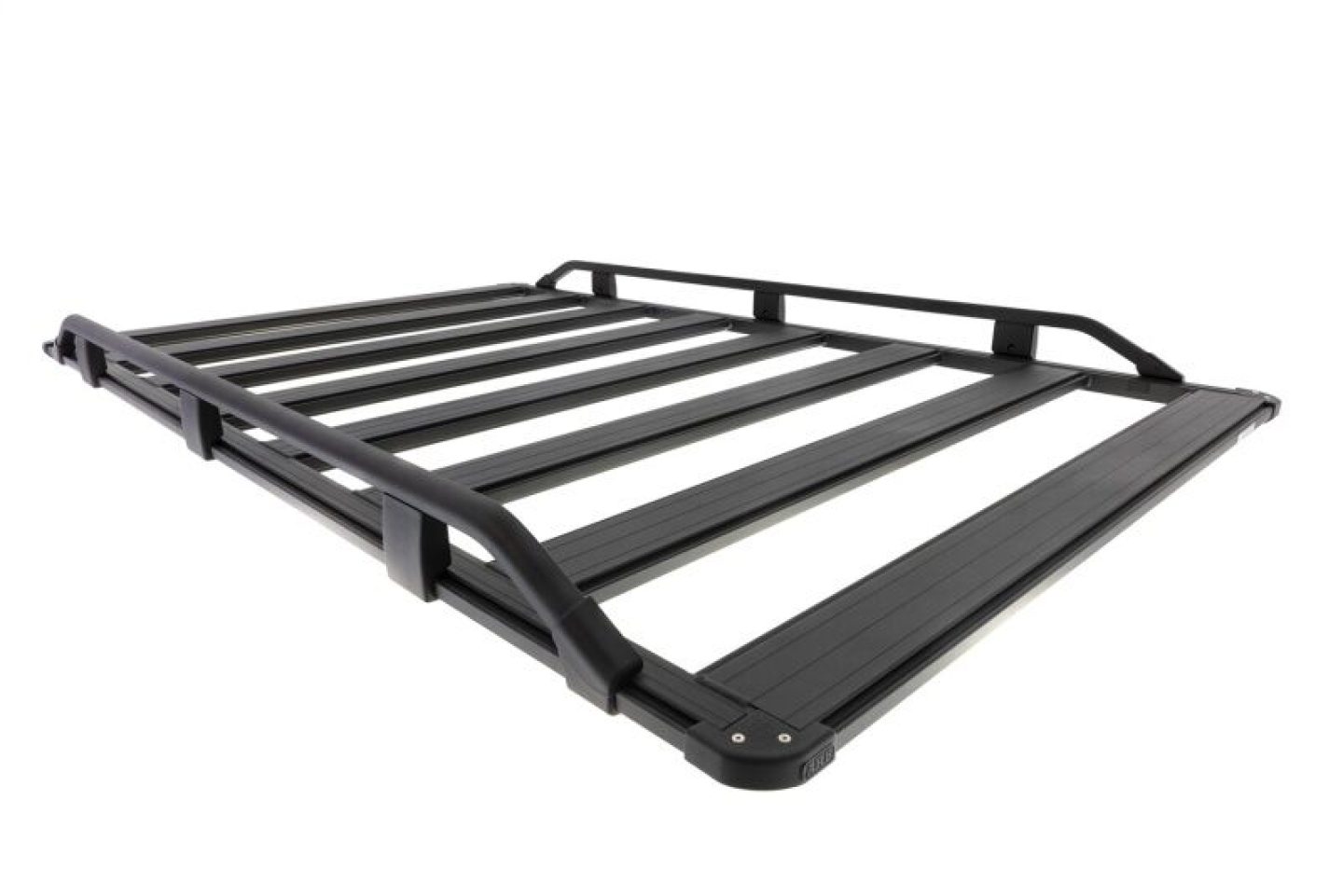

BASE Rack Guard Rail

The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed and personalisation. With a choice of sizes, accessories and attachments, you can truly Make It Your Own. By incorporating a dovetail extrusion around both the full perimeter and along each edge of the internal beams, the BASE Rack provides endless mounting and attachment options. Adding, removing and repositioning accessories and roof loads is quick and easy with the BASE Rack's dovetail system, making it easier to install and remove individual items without disturbing the whole load. Plus, unlike traditional roof rack channels, the BASE Rack dovetail extrusion won't collect dust and debris. Each BASE Rack accessory or fixture attaches to the rack with a simple clamp mount, including larger hardware such as Hi-Lift(TM) Jack mounts, rollers, recovery boards and even a BASE Rack custom light bar.

Additional Information

For Use with 72 in. BASE rack

Application Summary

SUITS 1770010/30

Part Type

Roof Rack Bar

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	arbBASE75	ARB Base Rack 72in x 51in with Mount Kit/Deflector/Trade (Side) Rails (1x arb1770030, 1x arb17900090, 1x arb17900010, 1x arb1780120)
	arbBASE205	ARB 72in x 51in BASE Rack with Mount Kit Deflector and Trade Rails (1x arb1770030, 1x arb17913010, 1x arb1780120)

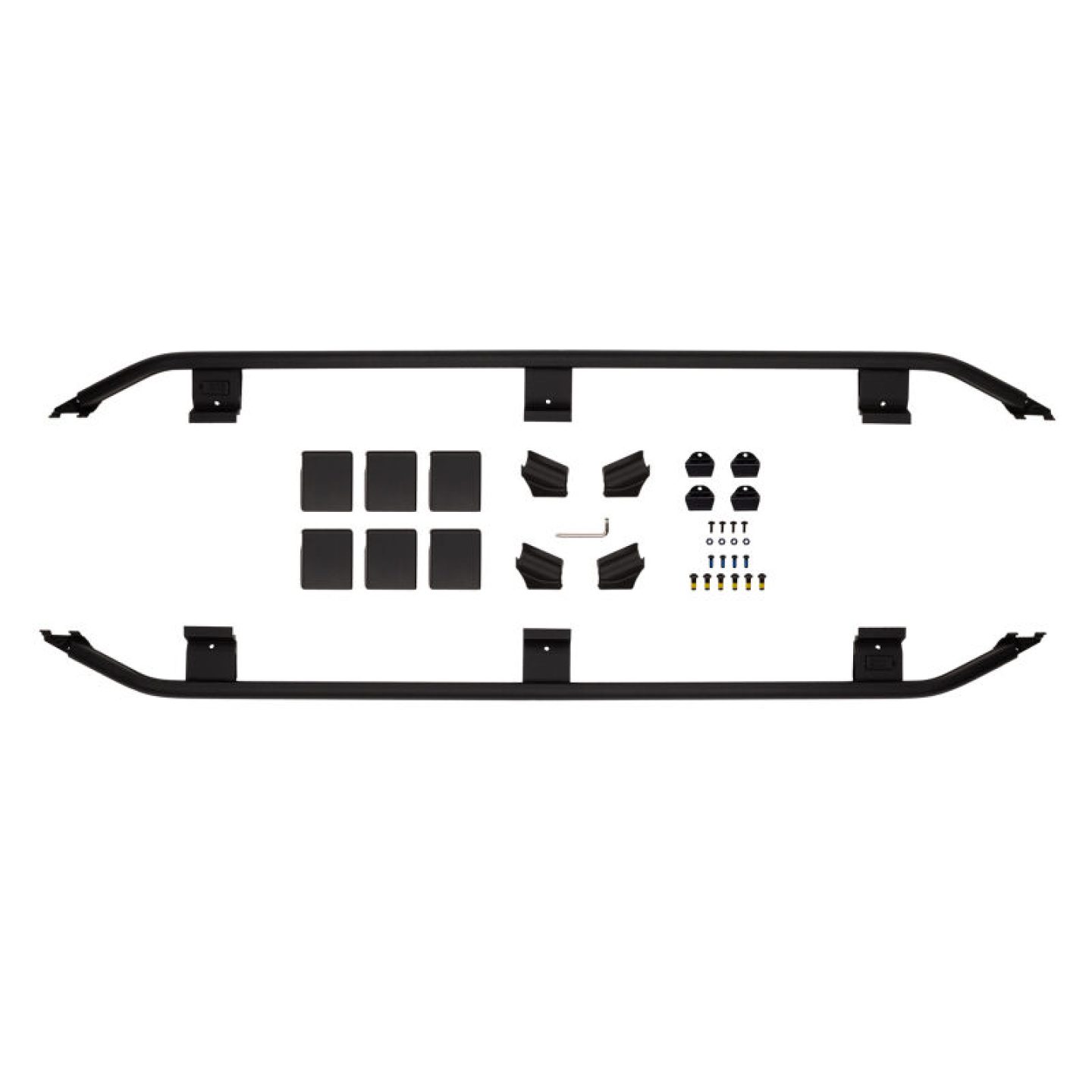

• Cast Aluminum Corner Caps
• Cast Aluminum Upright Clamps
• Fastens To BASE Rack Assembly With Torx M6 M8 And Nyloc Nuts

Note for Australian and European Markets

All ARB products are genuine and supported directly by StreetFX with in-house warranty in line with Australian Consumer Law (ACL). StreetFX is not affiliated with ARB Corporation. Front bars, and some accessories, may have slight regional differences between domestic and imported vehicles. Variations can occur due to compliance, factory LHD or RHD configurations, and may have different regional fitment standards. We recommend confirming details with a StreetFX representative if you are unsure whether your item may be affected by these differences.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

BASE Rack Guard Rail; Trade (Side) Guard Rail for 72in BASE Rack
