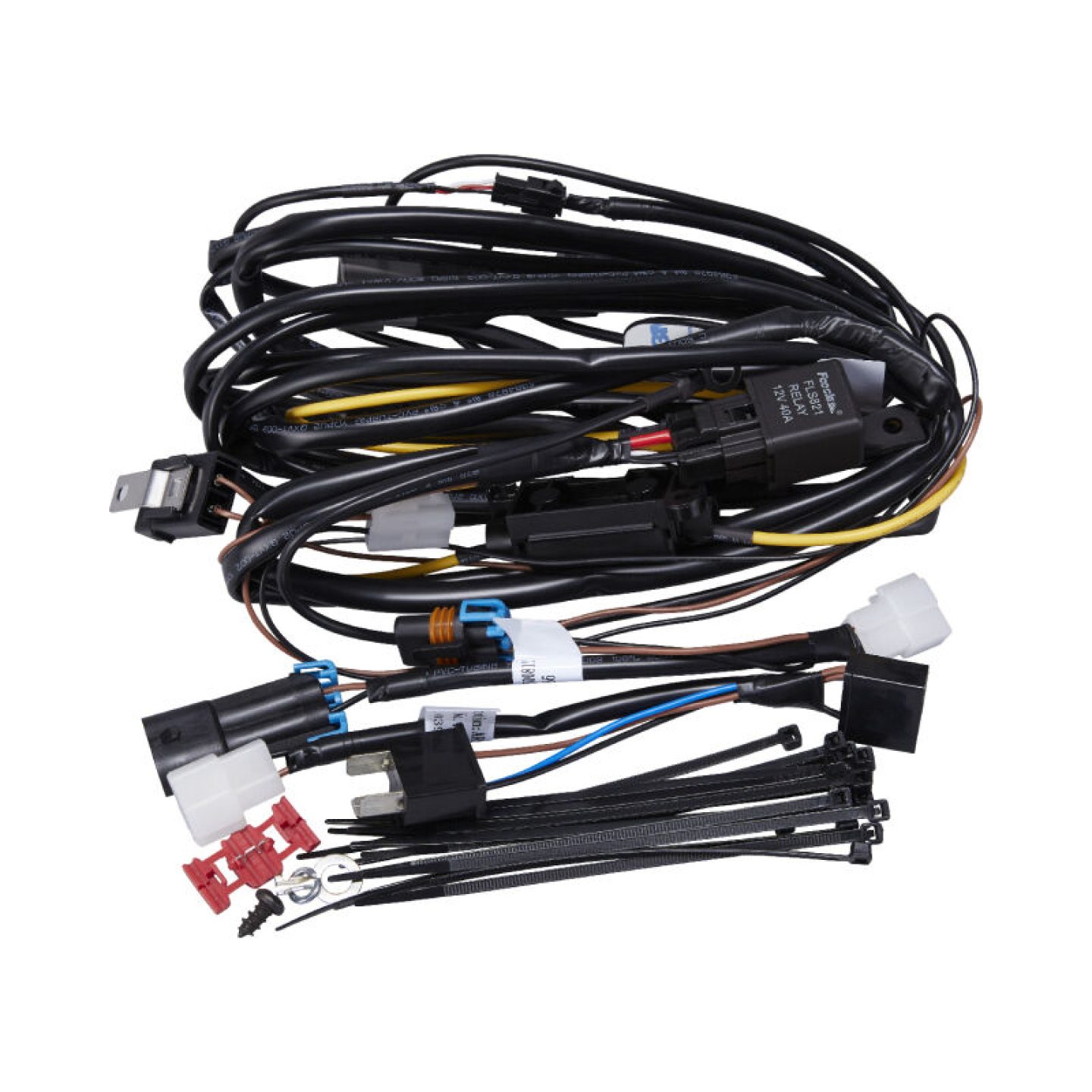

ARB Wiring Loom V2 (AR40CV2)

The increase in power draw for the ARB Intensity V2 Light bar necessitates an updated loom. Harnessing and supplying increased power, requires a dedicated harness with high current wiring and components designed to handle up to 30 amps. Coupled to the new Intensity V2 light bar loom, is the two pin DTP connector with updated over molded connector all protected by midi fuse and spike protected relays. Another update to improve fitting time and reduce problems while fitting are plug-and-play H4 and HB3 waterproof connectors included with the V2 light bar loom.

Additional Information

For Use with ARB Intensity V2 Light Bar AR40CV2

Application Summary

V2 LIGHTBAR SINGLE PLUG

Part Type

Fog/Driving Light Wiring Harness

• H4 and HB3 waterproof connectors
• Light Bar Wiring Loom
• Rated up to 30 amps
• Two-pin DTP connector

Note for Australian and European Markets

All ARB products are genuine and supported directly by StreetFX with in-house warranty in line with Australian Consumer Law (ACL). StreetFX is not affiliated with ARB Corporation. Front bars, and some accessories, may have slight regional differences between domestic and imported vehicles. Variations can occur due to compliance, factory LHD or RHD configurations, and may have different regional fitment standards. We recommend confirming details with a StreetFX representative if you are unsure whether your item may be affected by these differences.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

ARB Wiring Loom; For Use with ARB Intensity V2 Light Bar AR40CV2;
