Compressor Bracket

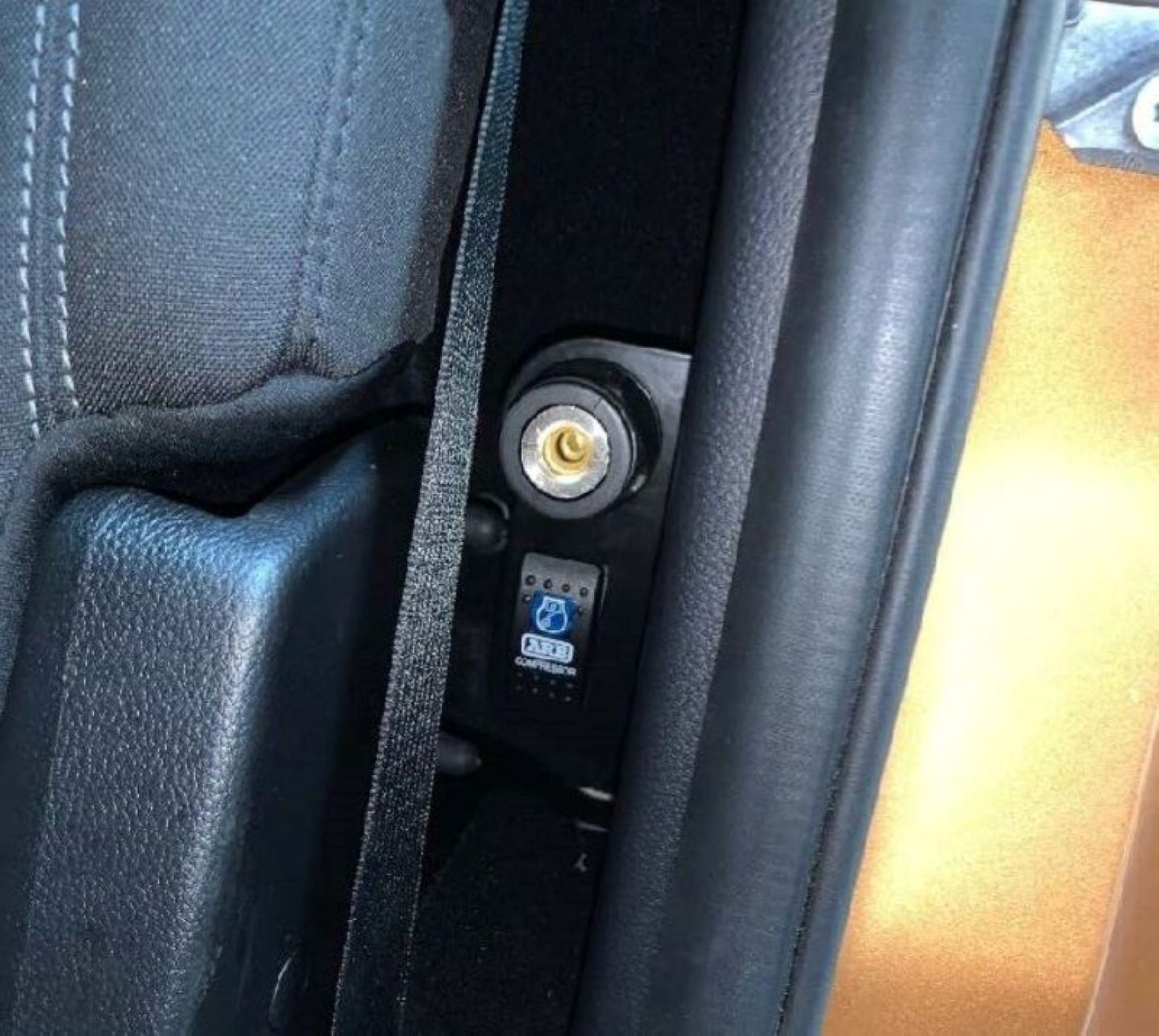

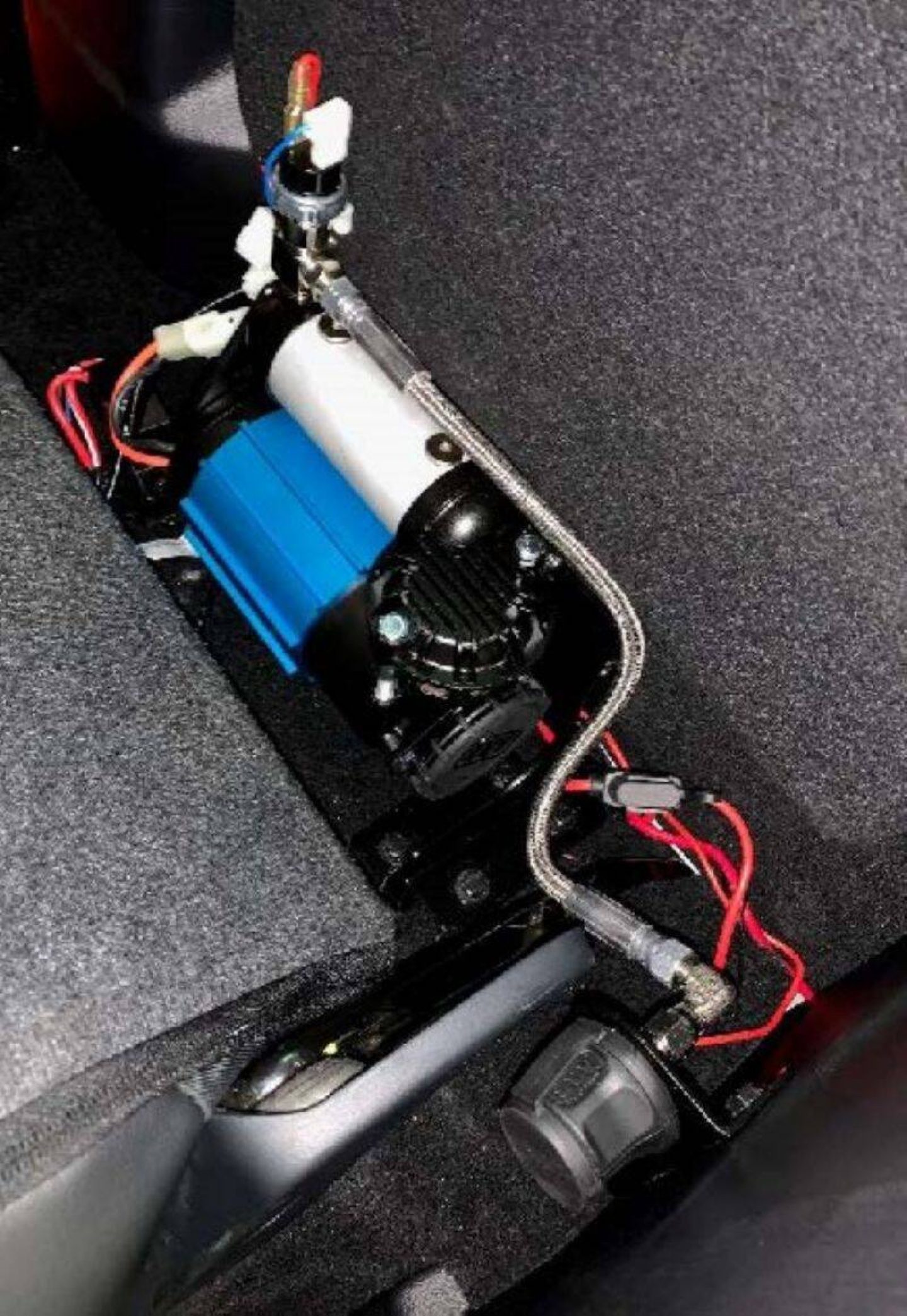

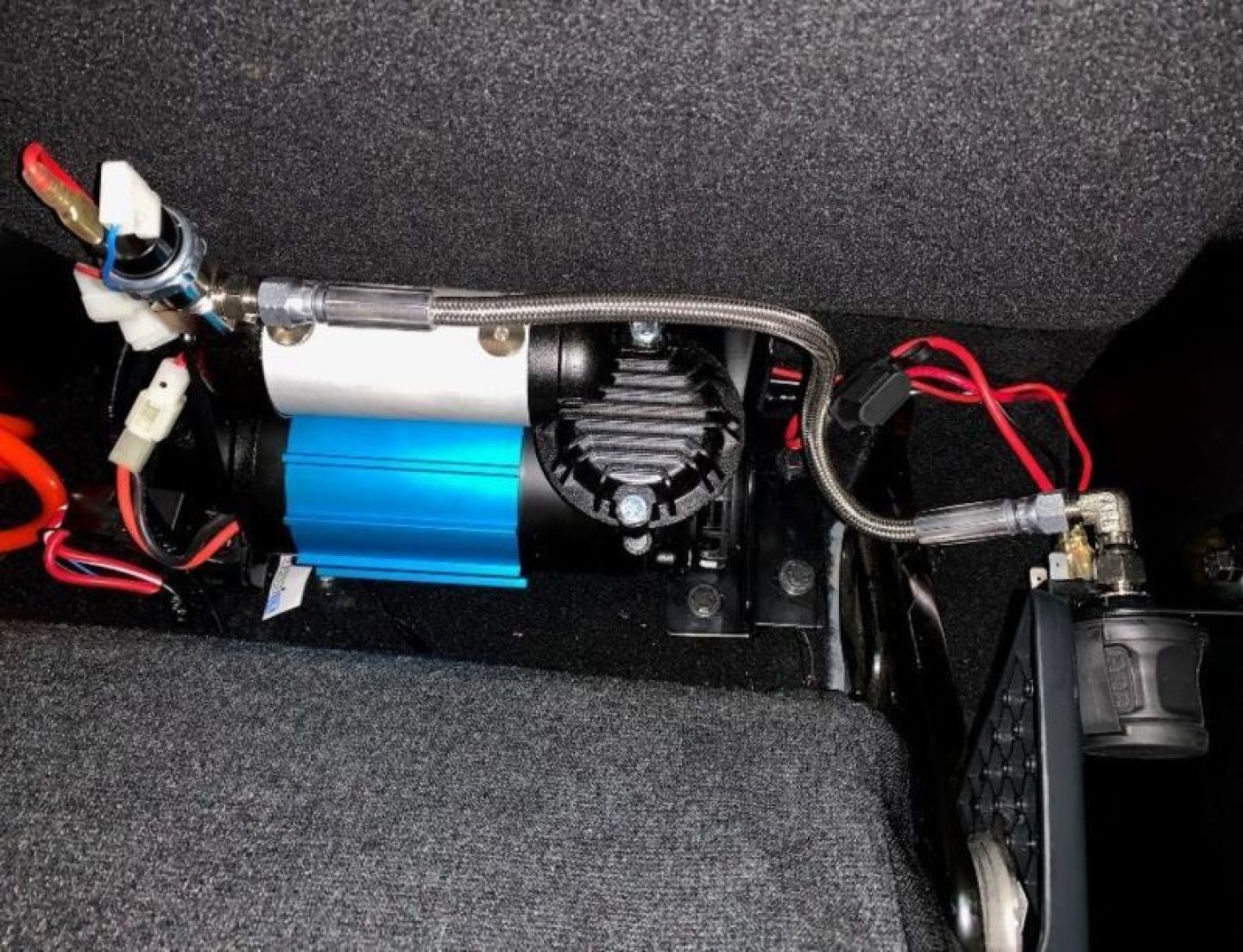

The engineers at ARB produced a solution to safely house an ARB CKSA12 or CKMA12 single air compressor behind the back seat of the vehicle. This solution allows the remote mounting of ARB's Air Locker(TM) and LINX Vehicle Accessory Interface solenoids along with the compressor. The intuitive design of this bracket kit provides direct access to the air hose coupling outlet and switch to the right of the rear passenger seat which alleviates the need to lower the back seat to access and use the compressor. The driver can simply plug their ARB air hose into the air hose coupling outlet, then flick the switch or activate pressure control on the LINX display to fire up the compressor and conveniently utilize its air supply. While the air compressor and its associated equipment is safely stored behind the seat, access to this area remains the same and continues to provide the driver with additional storage space without any interruption to the operation of the ARB Air Compressor.

Additional Information

Vehicle Specific

Application Summary

SUITS RANGER RAPTOR

Part Type

Tire Air Compressor Kit Holder

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Air compressor sold separately
• Convenient Access To Switch And Air-Hose Coupling
• Easily Mount ARB Air Locker And LINX Solenoids Behind Back Seat
• Suits ARB CKSA12 And CKMA12 Air Compressors

Note for Australian and European Markets

All ARB products are genuine and supported directly by StreetFX with in-house warranty in line with Australian Consumer Law (ACL). StreetFX is not affiliated with ARB Corporation. Front bars, and some accessories, may have slight regional differences between domestic and imported vehicles. Variations can occur due to compliance, factory LHD or RHD configurations, and may have different regional fitment standards. We recommend confirming details with a StreetFX representative if you are unsure whether your item may be affected by these differences.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Compressor Bracket, Back Seat Mount, Supercrew, Ford, Each

Tires perform best when they're set at a pressure that's appropriate for the terrain. While highway use calls for relatively high pressures, lowering air pressure will dramatically improve traction in a range of off-road environments. Equally beneficial is the ability to re-inflate tires, including tires that have been repaired; punctures aren't unusual in extreme off-road conditions. In such environments, the value of owning an air compressor is priceless.

ARB Air Systems supplements its line of air compressors with complete vehicle-specific solutions for enthusiasts looking to equip their vehicles with compressors and accessories. The product range includes items such as air fittings, manifold kits, braided stainless steel PTFE hoses, forged aluminum air tanks, and air chuck mounting solutions. Together, these provide the necessary components to fit a complete air compressor system to a 4WD, allowing a vehicle to be outfitted front to back with on-demand air.

ARB also offers a full range of replacement parts and compressor components along with a variety of tire inflators and inflation kits. When coupled with good-quality tire repair equipment, ARB air compressor components and accessories provide the off-road traveler with independence and peace of mind.
