Outfit your 1967-1972 Chevrolet Truck with an AutoMeter direct-fit gauge kit that provides a custom performance instrumentation solution without the custom fab price! These easy-to-install kits include a set of iconic AutoMeter gauges, precision engineered direct-fit dash panel, wiring harness, senders, and all the essentials needed to complete the installation. These AutoMeter complete package solutions simplify the process of gauge installation while providing a clean, timeless look. It has never been easier to add the precision and quality of AutoMeter gauges to your project.

Part Type

Gauge Set

• Direct Fit gauge dash panel replaces original instruments in 1967-1972 Chevrolet Trucks and accomodates 6 AutoMeter Ultra-Lite II gauges.
• Direct fit replacement dash - no cutting or modification of original dash required
• Fuel level gauge is paired to factory / OEM fuel level sensor

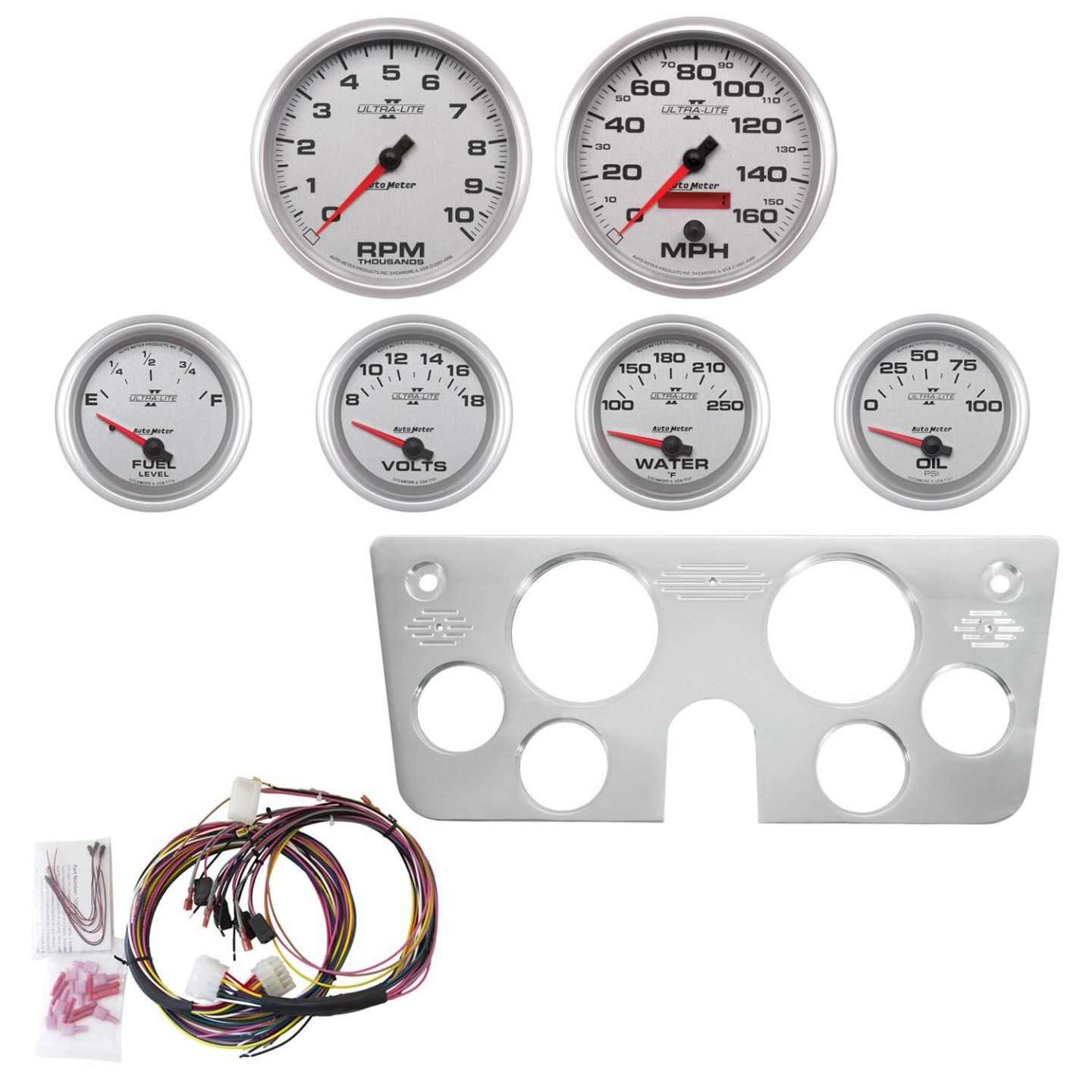

• Includes 5" tachometer & speedometer and four 2 5/8" gauges - water temperature, oil pressure, fuel level, and volts.
• Kit contains universal 6 gauge wire harness, electric speed sender, 1/8" NPT water temp & oil pressure senders with 1/4", 3/8" & 1/2" NPT adapter fittings, 3 optional LED indicators (2 green, 1 amber), and installation instructions
• Machined from billet aluminum in polished finish with ball milled details. Gauges mount from front of plate.
• Pre-drilled to accept 3 LED lights (optional part #3283) for turn signals and high beam indicator.

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Gauge Kit, Ultra-Lite II, Analog, Silver Face, Speedometer, Tach, Oil, Water, Volt, Fuel, Black Numbers, Red Pointers, Aluminum Panel, Chevy, Kit

AutoMeter Ultra-Lite II instrument clusters are available in a variety of 5- and 6-gauge layouts. These replacement dials are available mounted in direct-fit replacement dash panels. The easy-to-install packages include stunning Ultra-Lite II gauges (of different diameters), featuring bold black numerals on a silver background for a clean, modern look. Silver bezels and black panels provide a stylish contrast. AutoMeter cluster layouts are application-specific for classic muscle cars, trucks, and more. Order the model recommended for your vehicle.
