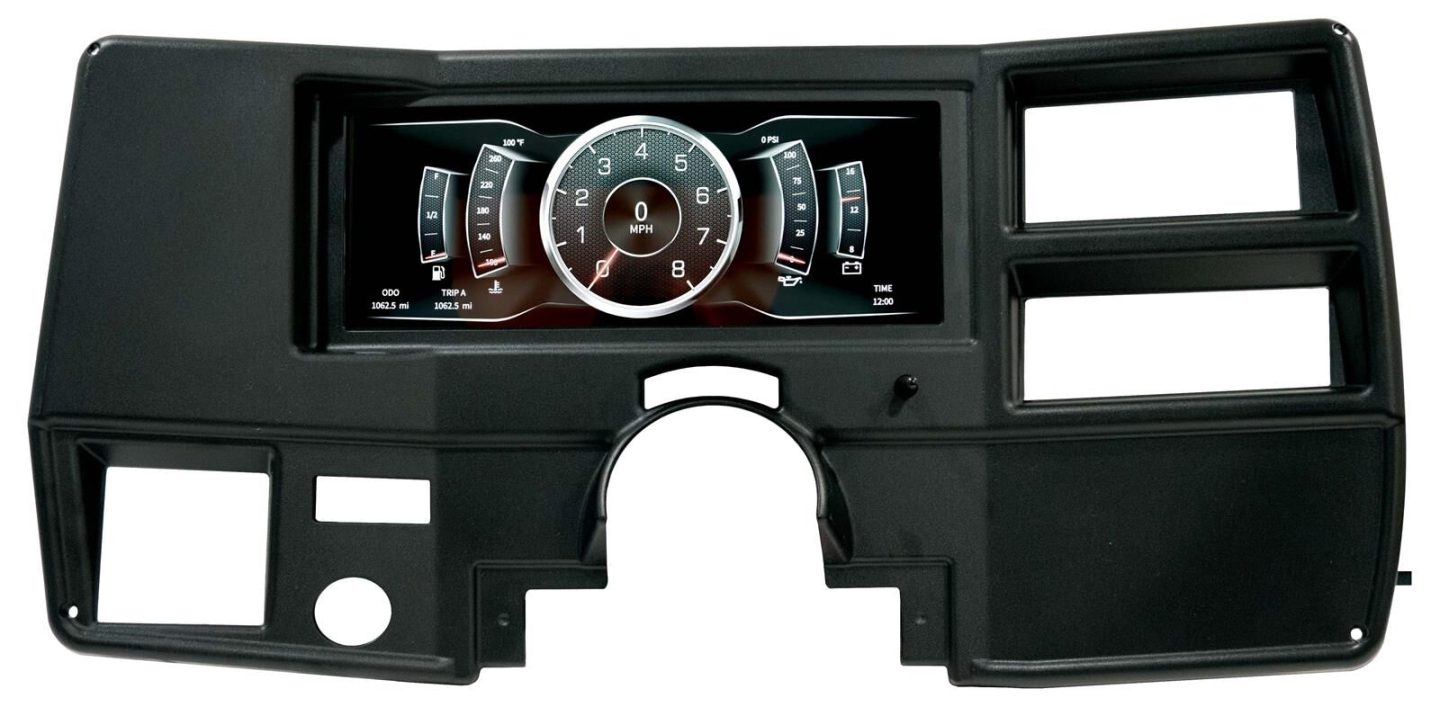

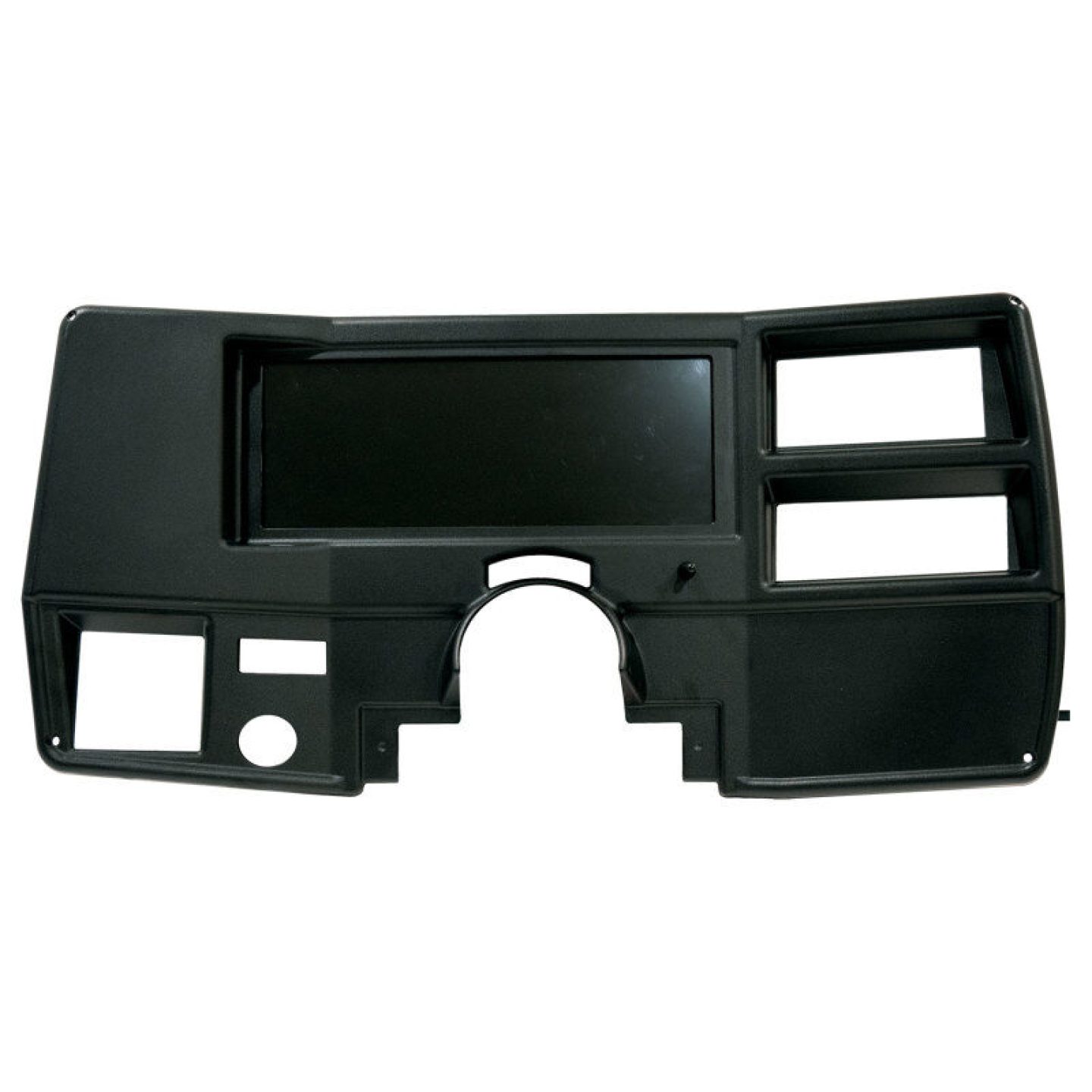

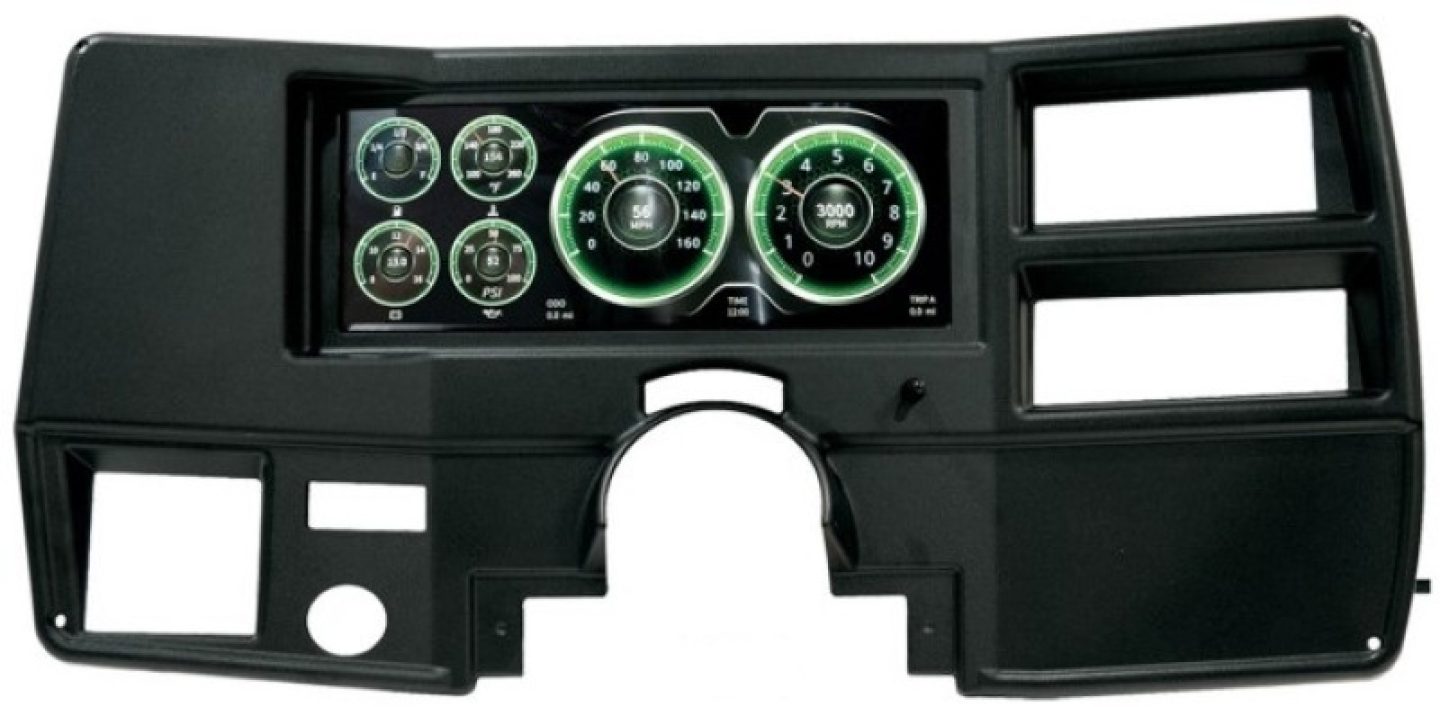

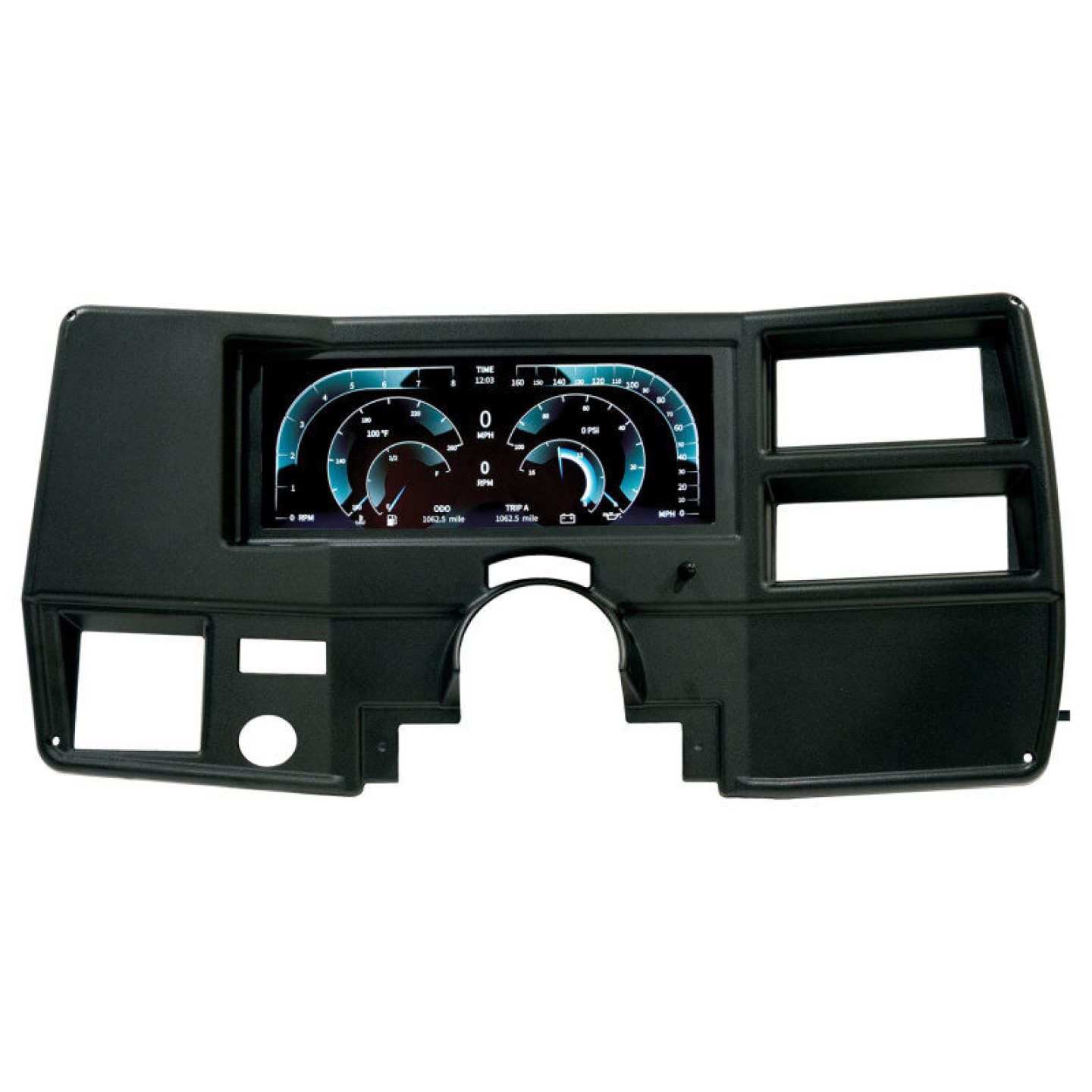

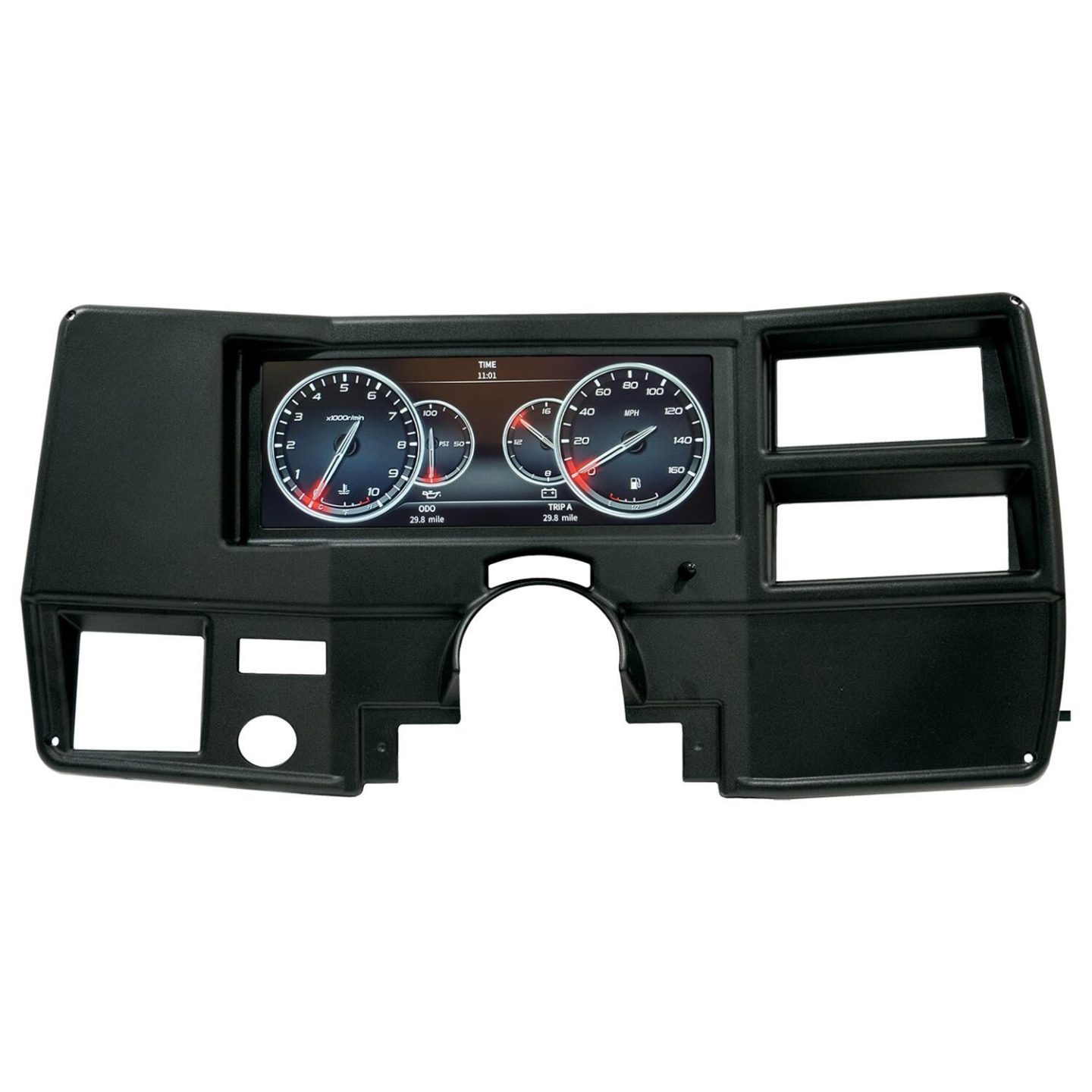

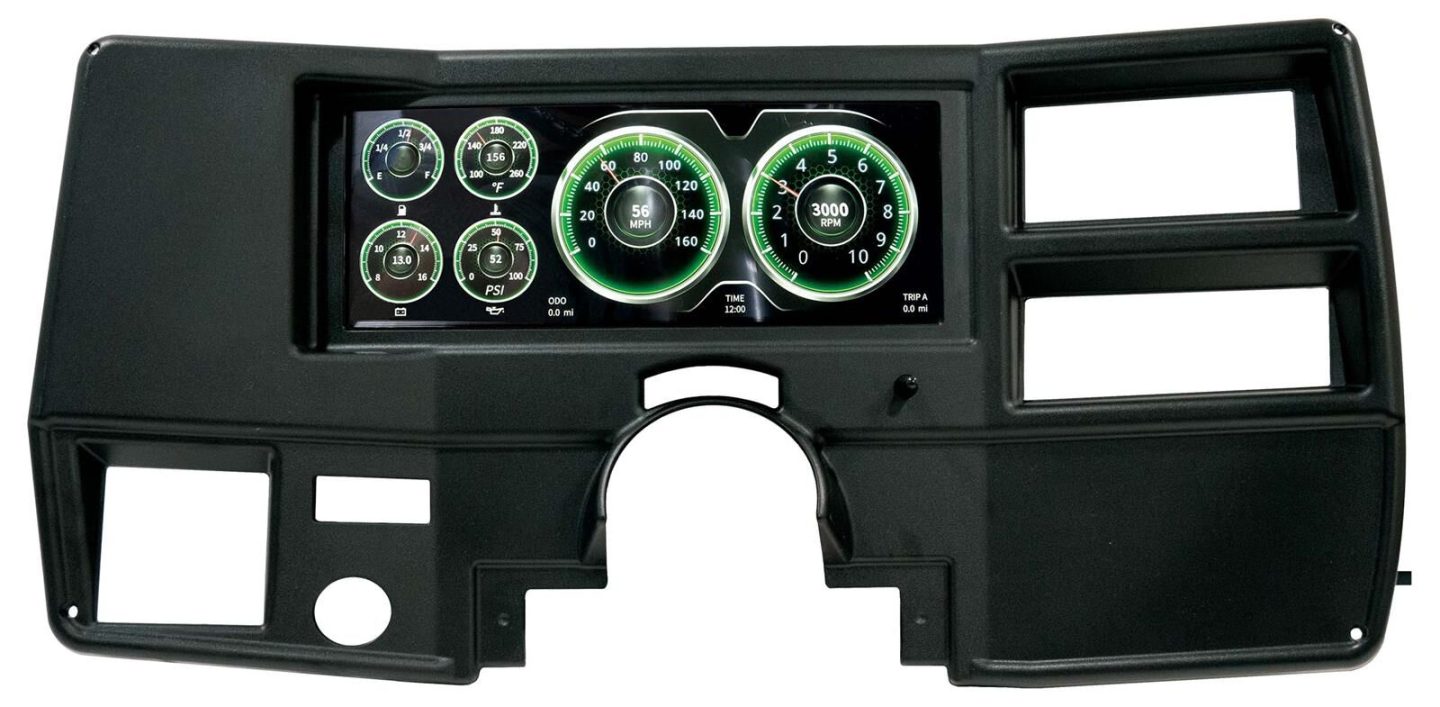

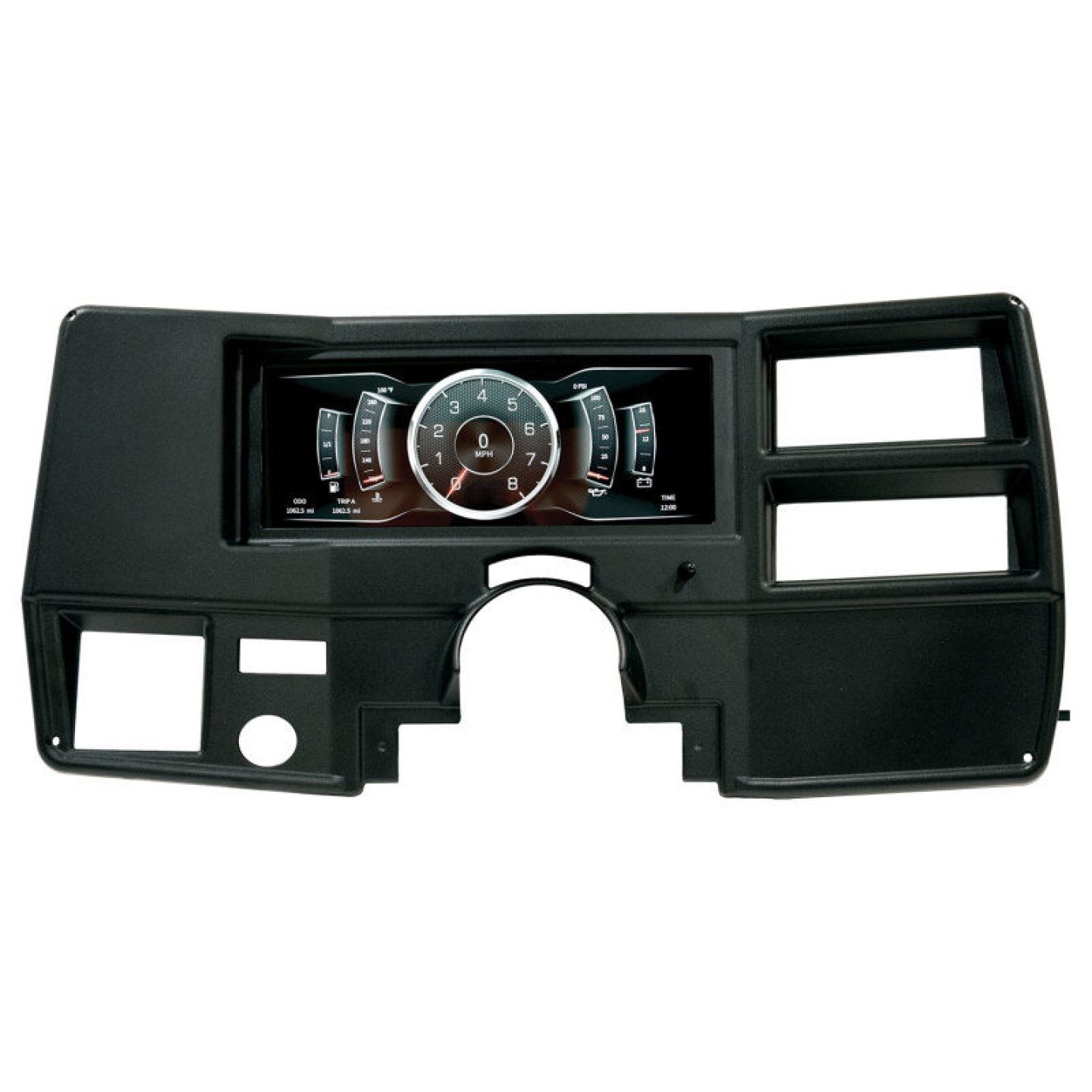

Digital Dash - Invision HD - 12.3 LCD Screen - Harness / Sensors - GM Fullsize Truck 1973-1987 - Kit

INVISION SQUARE BODY

Instrumentation is the focal point of any interior. Make your dash stand out from the crowd with the new InVision Digital Dash from AutoMeter. This complete Direct Fit Digital Dash System for 1973-1987 Chevy & GMC full size trucks is a one model solution for your entire dash. Monitor the speedometer, tachometer, fuel level, oil pressure, water temperature, and volts all in one place. Upgrade your dash with the latest, modern LCD offering from AutoMeter.

Additional Information

INVISION LCD DASH KIT, 73-87 CHEVY & GMC FULL SIZE TRUCK, DIRECT FIT DIGITAL DASH

Part Type

Instrument Cluster

• 12.3” LCD display with four user selectable screens. Two screen includes gray, blue, red, green, purple, yellow and orange color options.
• 7 User-Selectable Fuel Level Resistance Ranges To Pair With Original And Aftermarket Sending Units
• Adjustable Rpm Range And Displays In Imperial Or Metric Measurements
• All Kits Include A Wiring Harness And Sending Units For Water Temperature And Oil Pressure As Well As A Joystick For Dash Customization
• Features High Beam & Turn Signal Indicators As Well As User Selectable Warning Light
• Helps Protect Your Vehicle With Visual Or Audible Alarms - Low Fuel Level/Oil Pressure/Voltage And High Water Temperature
• Monitors Speedometer, Tachometer, Fuel Level, Oil Pressure, Water Temperature, And Volts All In A High Resolution And Colorful Display
• Requires No Cutting, Drilling Or Modification To Factory Pieces
• Speedometer Easily Calibrates To Oem Or Aftermarket Vehicle Speed Sensors And The Tachometer Is Capable Of Calibrating To Many Engine Types

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Gauge Kit and Instrument Cluster, Digital Dash System, InVision, Multicolor, Black Plastic Bezel, 12.3 in. LCD Display, Chevy, GMC, Kit

Looking for a sleek, modern alternative to traditional data instruments? AutoMeter InVision digital gauges are the answer. Winner of Best New Interior Product at SEMA, these panels are available as a direct-fit digital dash system or as a universal all-in-one dash for most vehicles.

Features include:
• 12.3 in. LCD display
• Four user selectable displays
• High beam and turn signal indicators as well as user selectable warning lights
• Adjustable RPM range (8,000 or 10,000)
• Odometer with two trip meters
• Remote mount joystick for easy programming
• 12 or 24 hour clock format
• Selectable imperial or metric measurements
• Speedometer compatible with OEM, square wave or sine wave sending units
• Tachometer compatible with single-cylinder to 12-cylinder engines
• Adjustable brightness
