Performance Exhaust

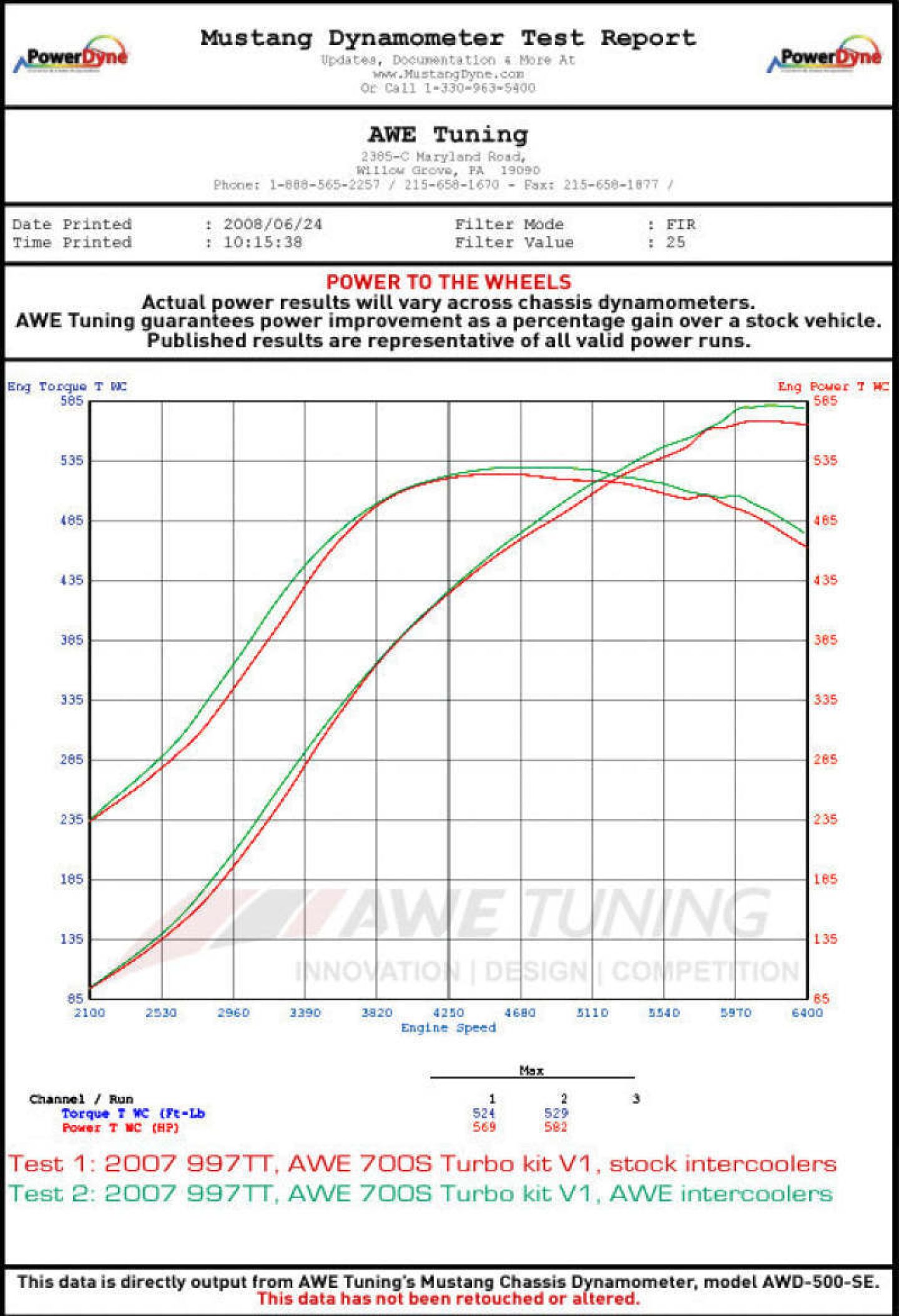

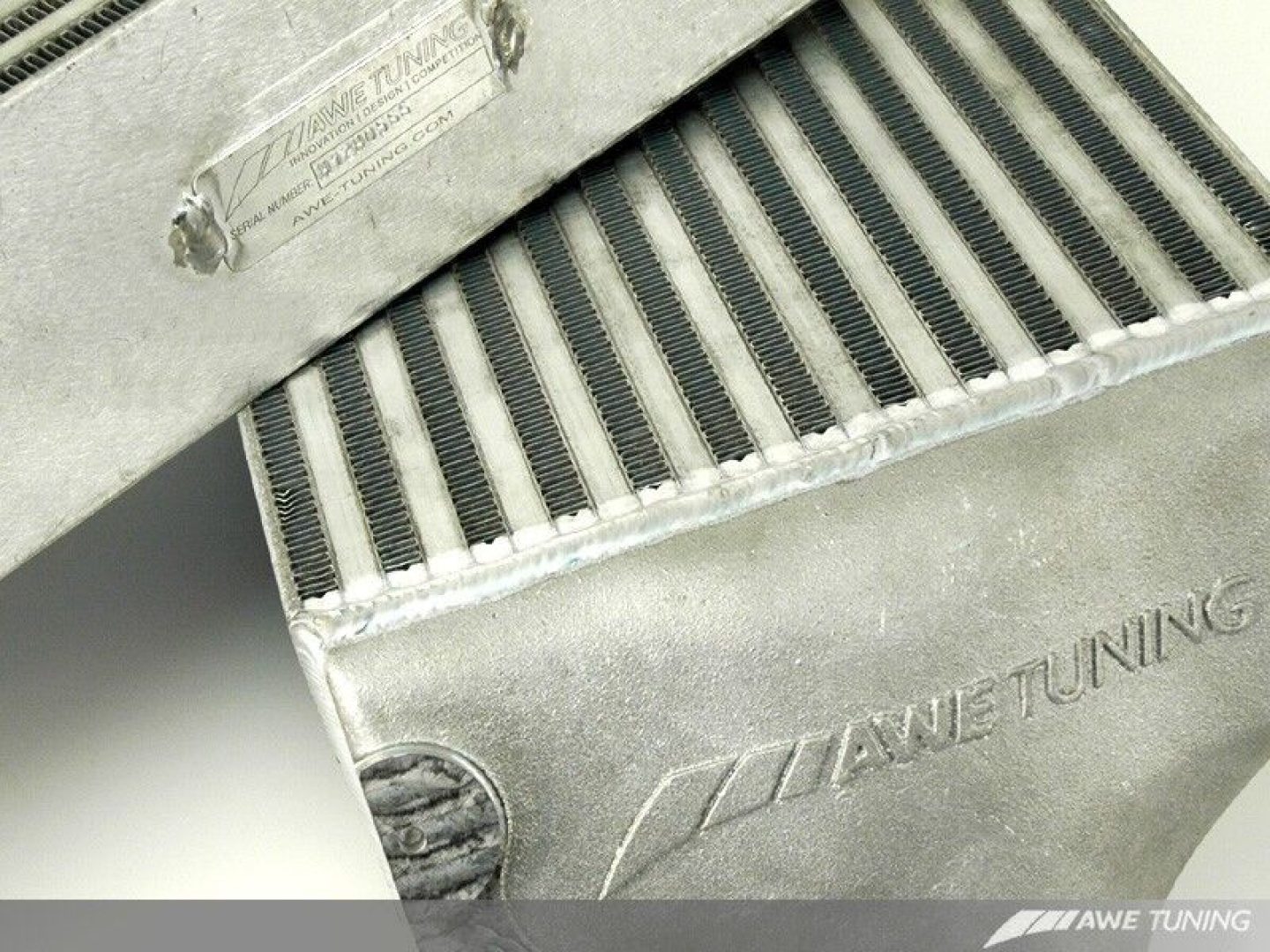

During development of AWE high horsepower turbos kits for the 997TT, AWE experienced excessively high intake air temperatures. Upon close examination of the stock intercoolers, AWE found they matched the same specs as the 996TT X50/GT2 design, which is suitable to 600hp, but not much beyond that. Since an OEM option was not available, and AWE power goals were well north of 700hp, AWE undertook the task to construct a completely new intercooler system. Compared to stock, AWE cores are 37% larger (422 cubic inches vs 308 cubic inches). In contrast to the stock cores, AWE are a high flow bar and plate style and are built to our charge row and fin count specs. These specifications resulted in improved intake temperatures by a massive 55F and improved drop pressure resistance through the core by 1 psi. Considering that extremely little trimming is involved to fit such effective units to the car, this is a huge engineering feat. In addition to the superior core and end tank design, the AWE kit also features 6-ply silicone hoses with gentle curves to prevent bursting under pressure. They are attached to the intake and turbos by stainless steel high force t-bolt clamps, and a molded lip is integrated where the hoses meet the turbos to imitate the factory locking mechanism. Further, AWE hoses use a Nomex braiding for superior strength, instead of more common polyester. The very best materials and industry-leading engineering separate this kit from all others on the market. Whether you are simply running enhanced software, or are planning on a larger turbo upgrade for your car, AWE intercoolers solve all heat-related issues that come with more turbo boost. Keeping your intake air temperatures low results in more power, better engine output stability when outside temps climb, and the safety margin needed when pushing the limit. Please note, the AWE Performance Intercooler is for racing use only.

• +16hp
• Best Fitting, Best Performing
• Cast end tanks
• No cutting or grinding of car or brackets
• Perfect Fitment - Guaranteed

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Performance Intercoolers for Porsche 997 Turbo / GT2 - Black Hoses

AWE Tuning Performance intercoolers are 37 percent larger than stock. The high-flow bar and plate style aluminum units have resulted in intake temperatures reduced by up to 55 degrees F and improved drop pressure resistance through the core. If your engine runs hot, tackle the high intake air temps with a Performance intercooler. Drivers have experience double-digit gains in horsepower and torque! Order the model recommended for your vehicle.

Additional product details:
• Forced induction
• Perfect fitment, guaranteed
• No cutting or grinding of car or brackets
• Some models include silicon intercooler pipe
• Mounting brackets included
• Fits securely behind stock crash bar
