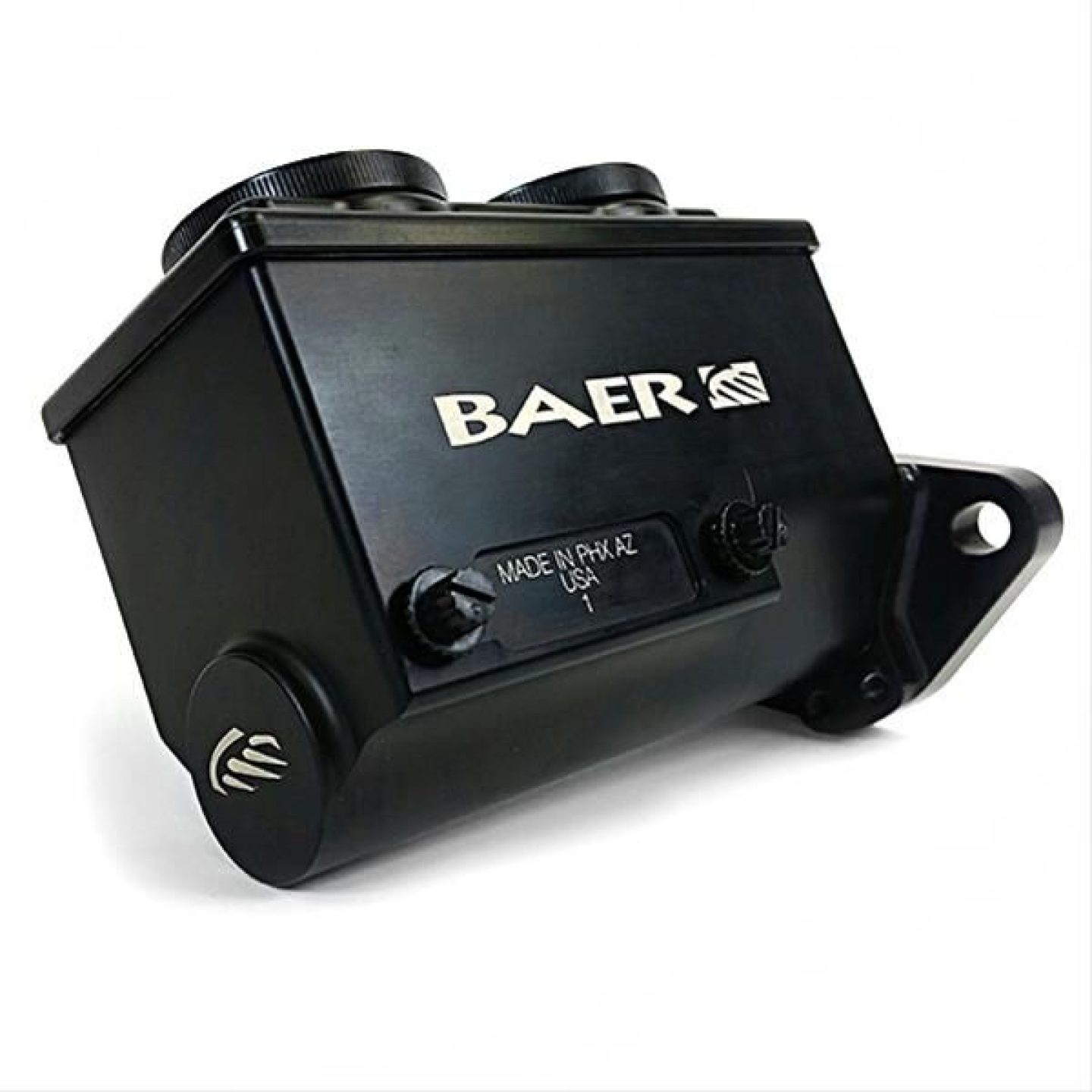

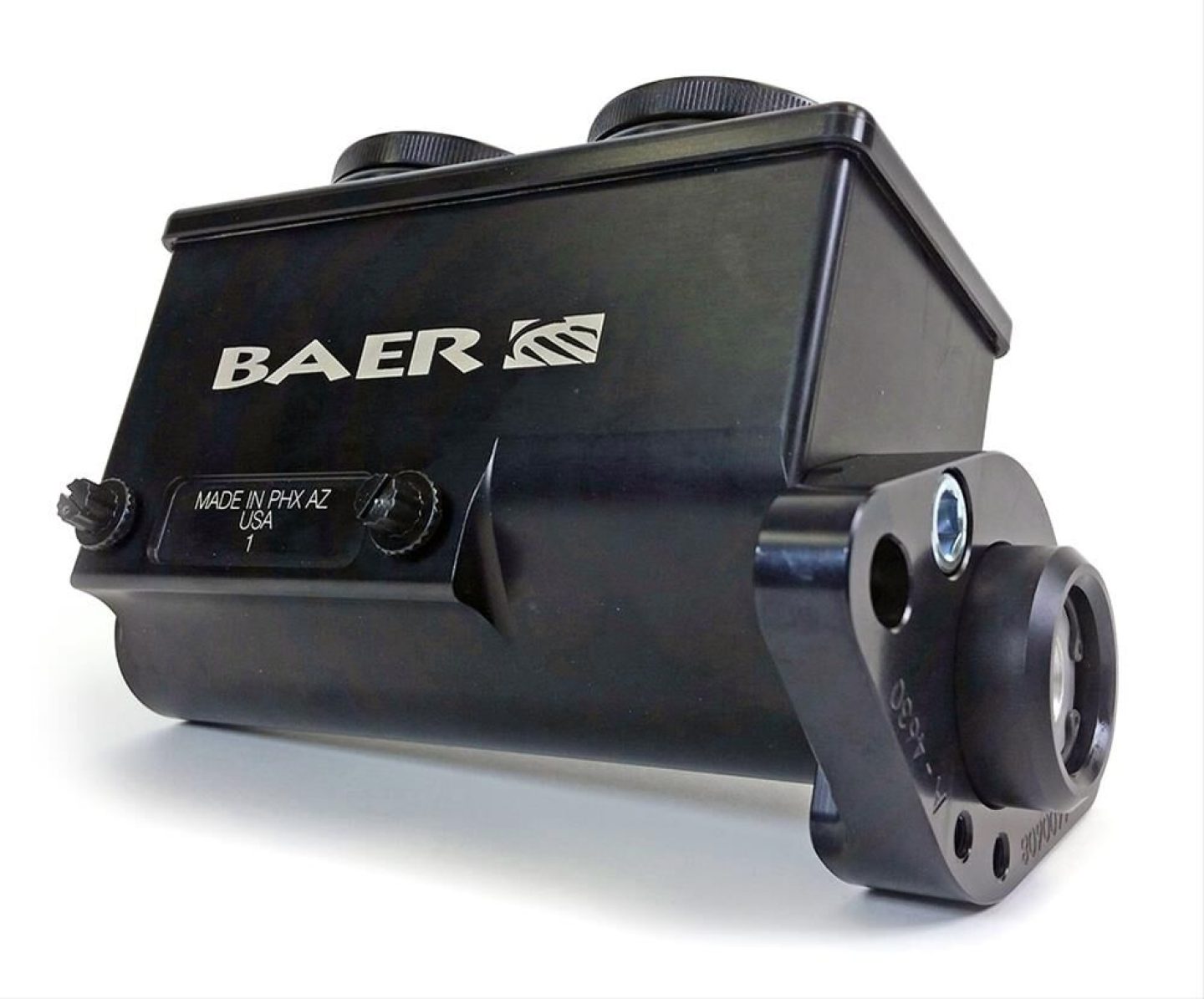

Master Cylinder, Remaster, Billet Aluminum, Black Anodized, 1.125 in. Bore, Driver Side Ports, Each

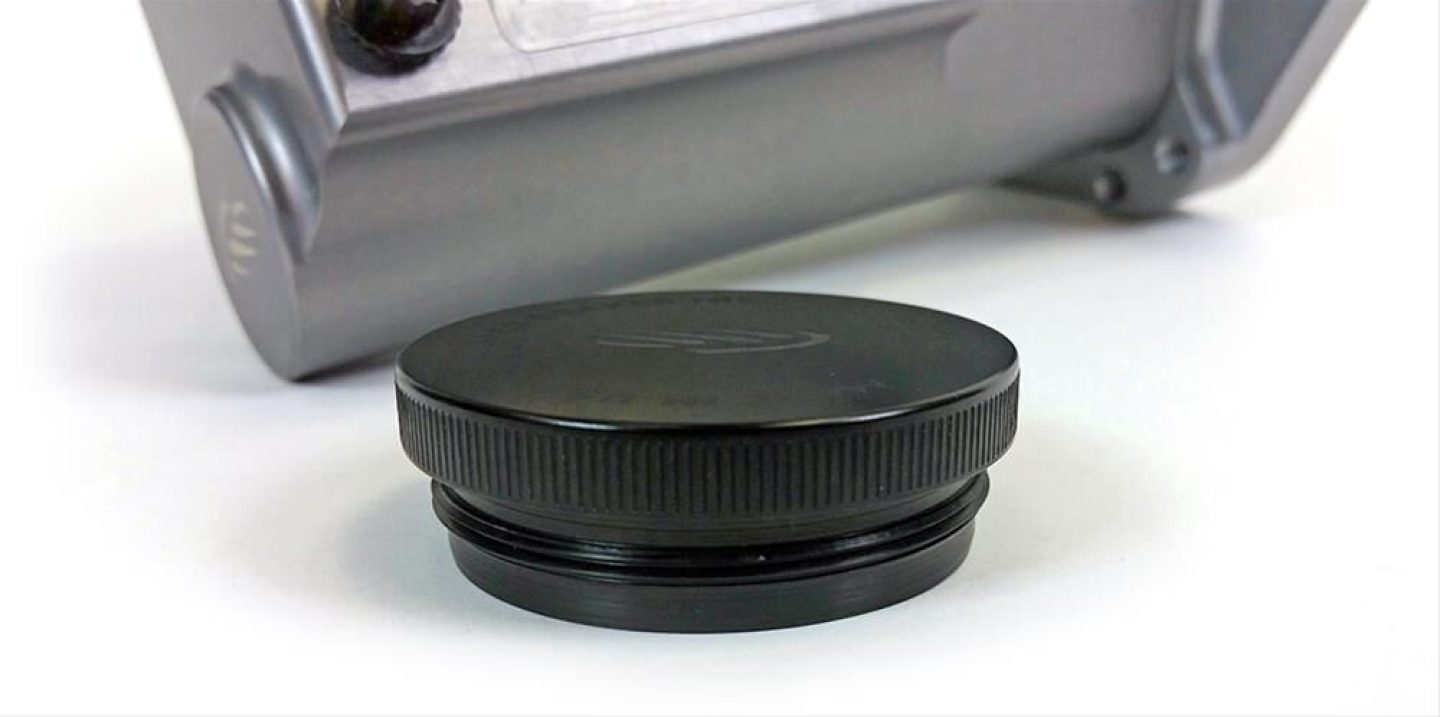

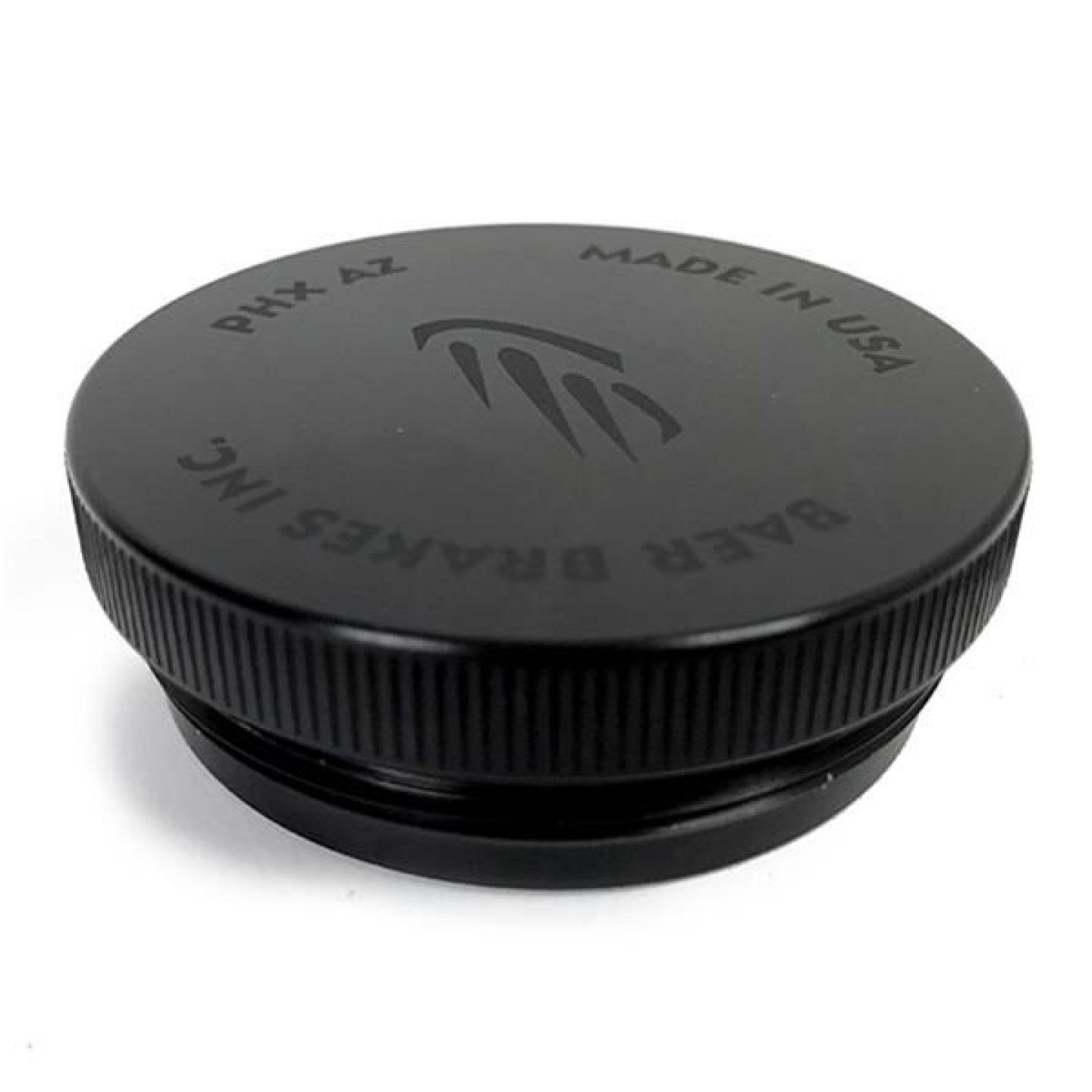

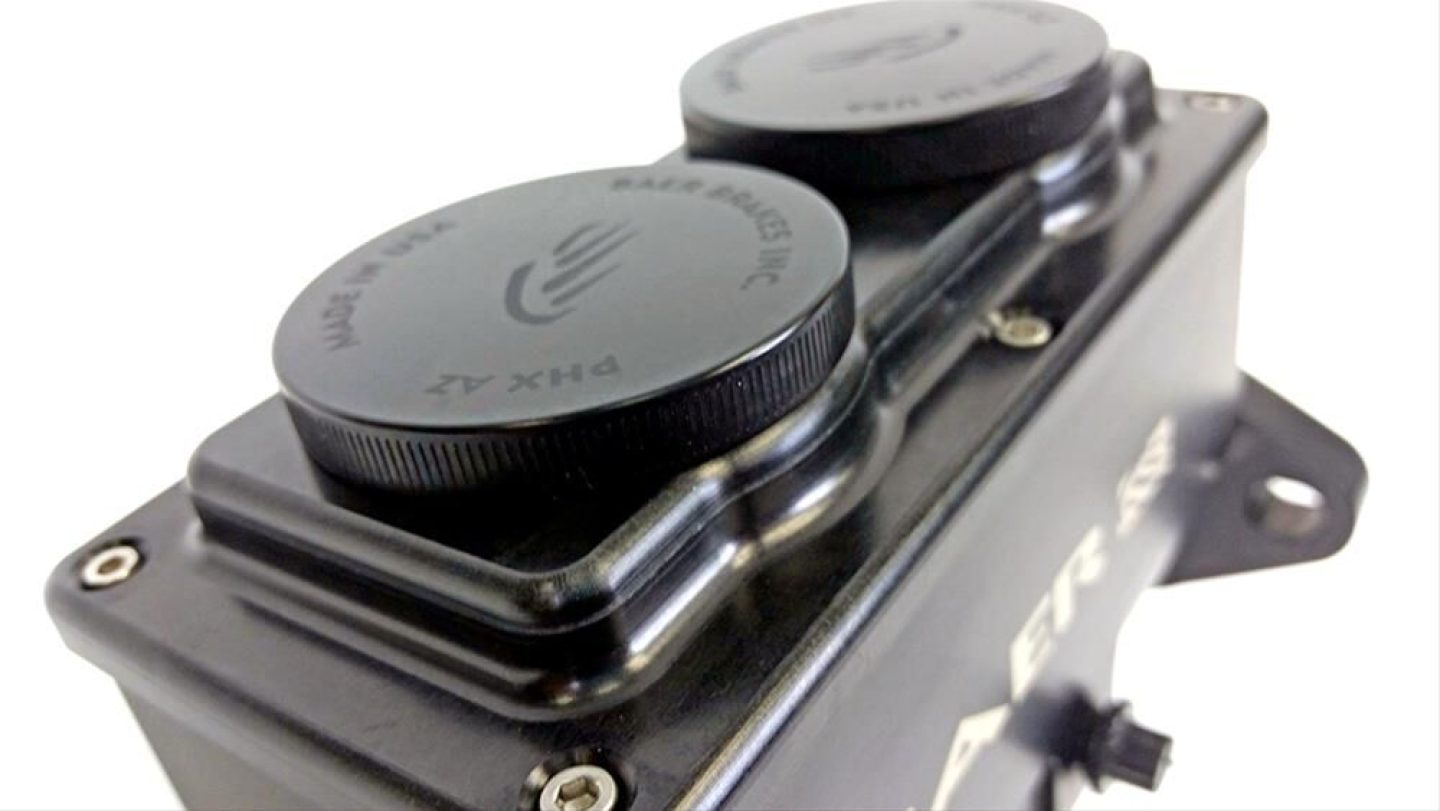

Baer Remaster is the new master cylinder built with what you need: enhanced quality, style, and options. The Remasters are engineered to match Baer braking performance and are offered as direct-replacements, with Ford, GM, and Mopar bolt patterns available. They can have a 15/16 in., 1 in. or 1 1/8 in. bore, providing an optimum balance between pressure and volume for great braking performance—with reasonable brake-pedal effort for most street and performance braking systems. These master cylinders feature a short, compact design that makes fitment easier for a variety of applications. They're also offered in right or left port position, with a choice of polished, hard anodized black, or hard anodized gray finishes. Baer Brakes Remaster master cylinders also feature: * Fully machined billet aluminum construction * Machined and knurled screw-in caps for easy access to fill (no tools needed) * Bolt-on firewall mount bracket—can be reused in other projects with a change of the bolt on the bracket * GM and Ford will use the same master (firewall-mount is designed to fit both); includes a bullet (insert adapter) for long pushrod applications * Anodized Remasters feature laser-etched logos and part numbers for a finished look
| Product Attributes |
|---|
| Brand | Baer Disc Brake Systems |
| Manufacturer's Part Number | 6801274LP |
| Part Type | Master Cylinders |
| Product Line | Baer Brakes Remaster Master Cylinders |
| UPC | 00844165051220 |
| Master Cylinder Usage | Brake |
| Master Cylinder Bore Size | 1.125 in. |
| Power Brake Compatible | Yes |
| Outlet Quantity | 2 |
| Outlet Size 1 | 3/8 in.-24 |
| Outlet Size 2 | 3/8 in.-24 |
| Master Cylinder Material | Aluminum |
| Master Cylinder Finish | Black |
| Bowl Design | Dual |
| Mounting Hole Quantity | 2 holes |
| Master Cylinder Stroke | 1.100 in. |
| Remote Reservoir | No |
| Reservoir Included | Yes |
| Reservoir Material | Aluminum |
| Reservoir Color | Black |
| Master Cylinder Cap Included | Yes |
| Pushrod Included | No |
| Mounting Brackets Included | Yes |
| Hardware Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |

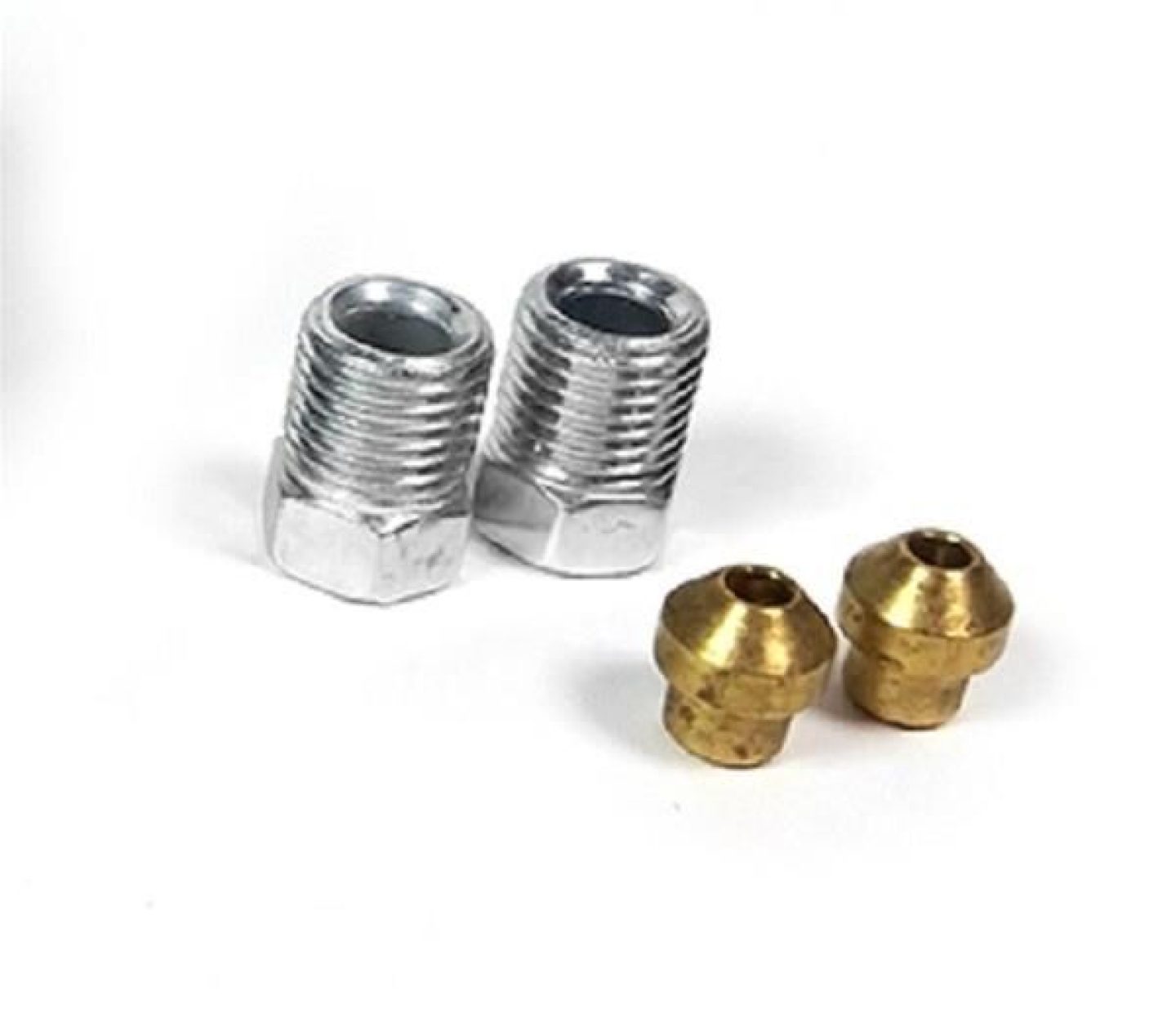

| Notes | Driver side port outlets. 3/8 in. x 24 fittings included. |
