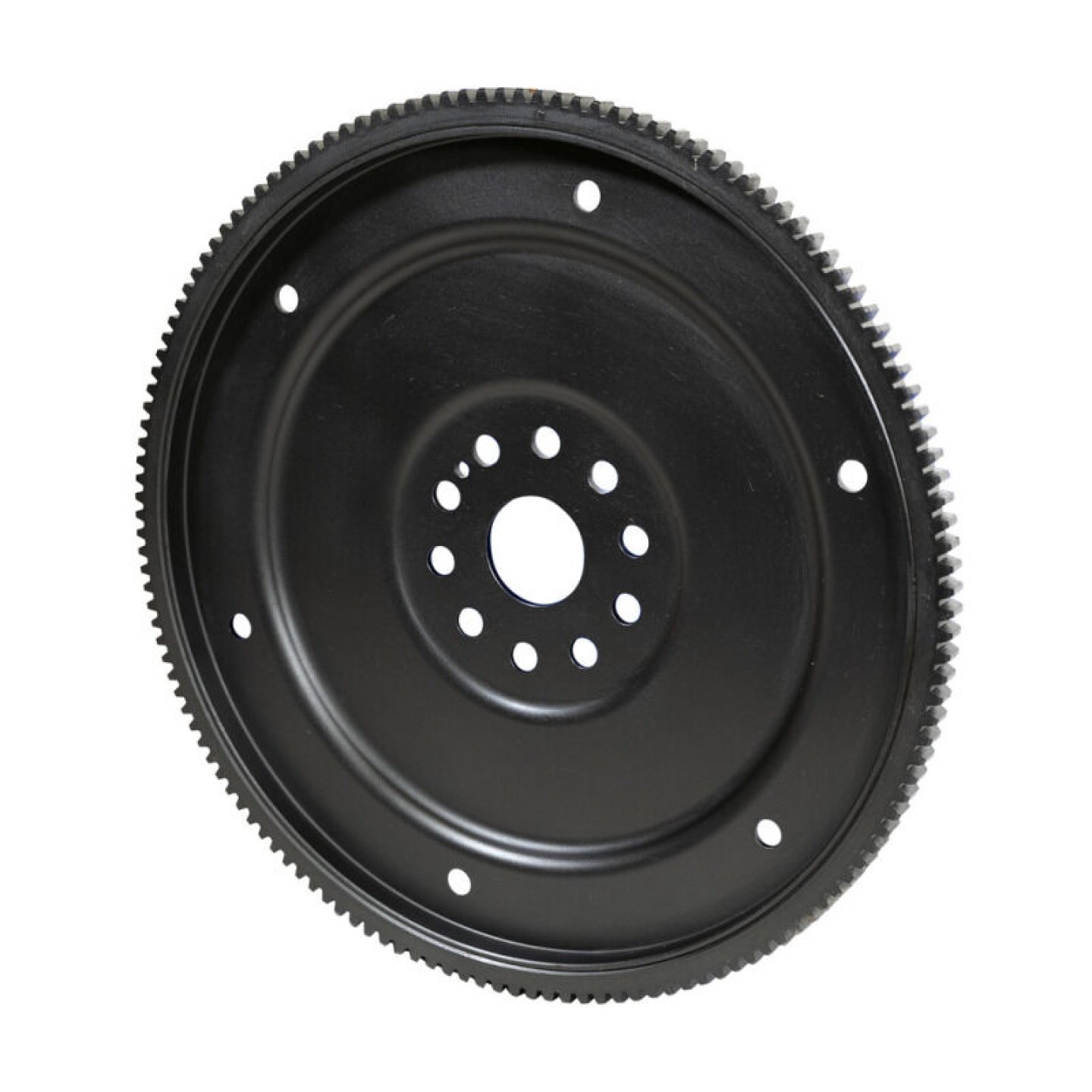

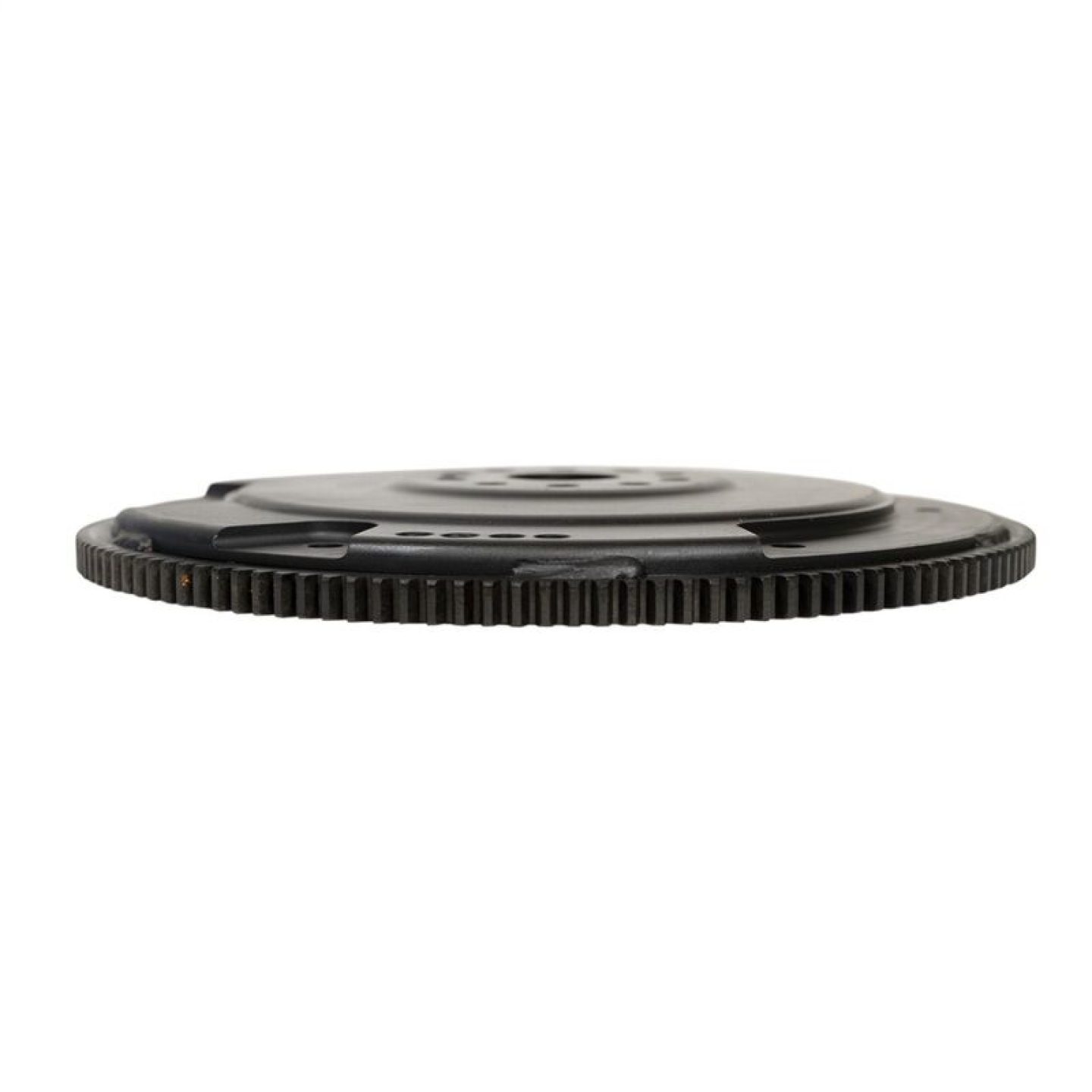

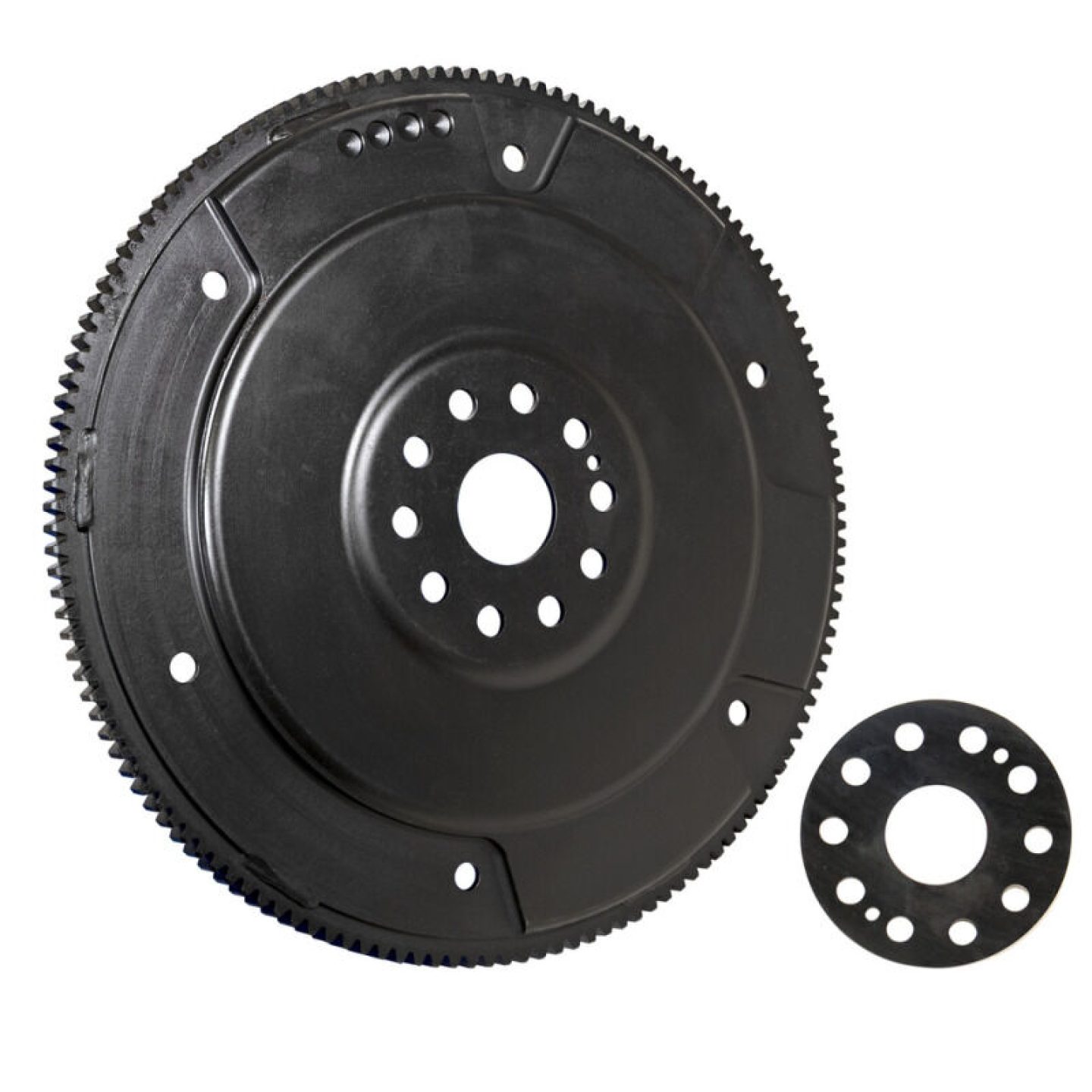

FLEXPLATE 6R140

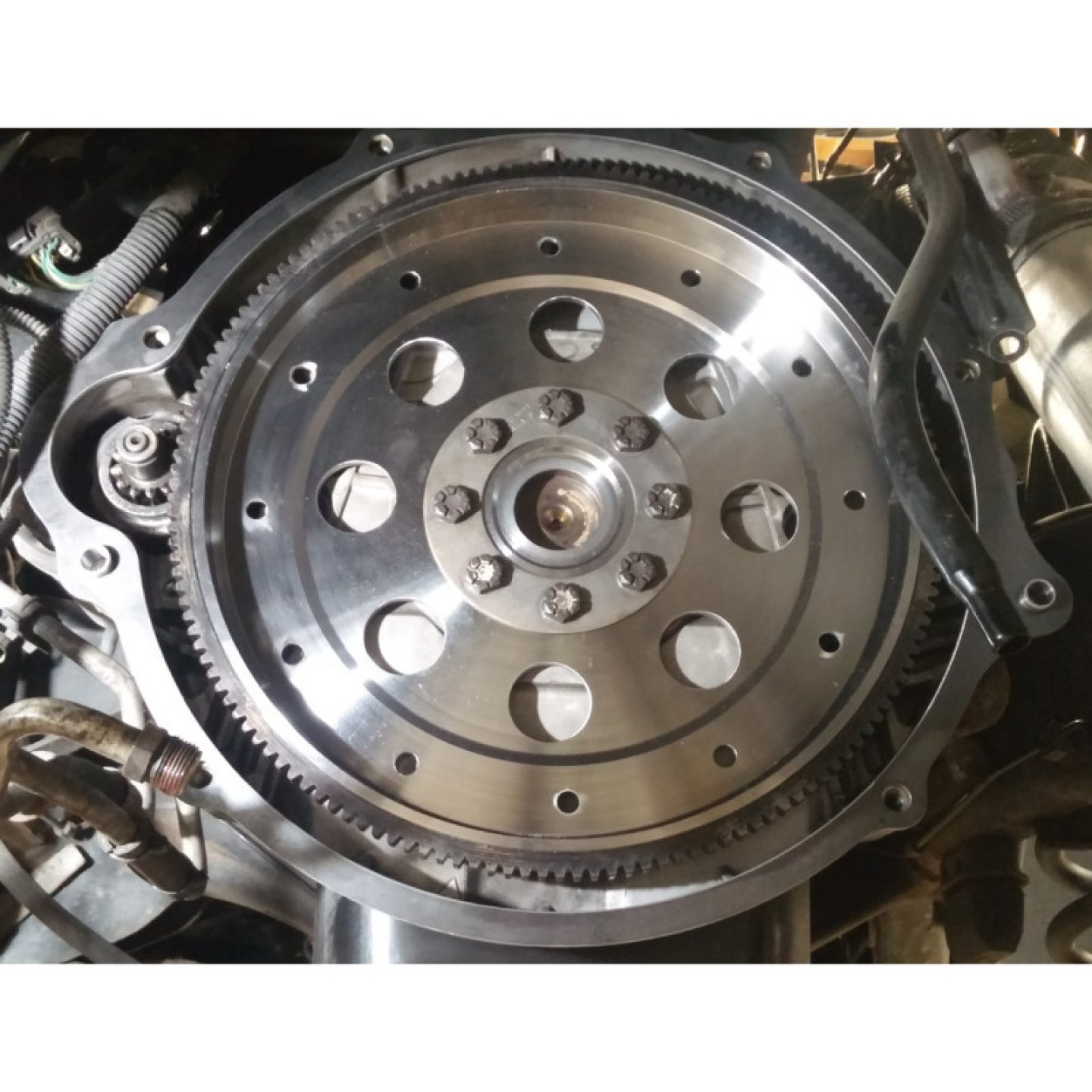

BD's 6r140 Flex Plate is CNC machined out of 1.5x thicker than stock quench and tempered 100,000psi steel. In-house machining incorporates an integrated counterweight which is then balanced to tighter tolerances than OE specifications. Black Oxide coated to resist corrosion. These units will fit any OEM or aftermarket torque converter and affordable enough to upgrade during a converter or transmission swap. The BD Flex Plate is a direct, bolt-in replacement for the stock unit. Great for racing, towing or stock use.

Additional Information

Flexplate; w/6-Bolt Converter;

Part Type

Automatic Transmission Flexplate

Product Overview

BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD's state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD's roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD's comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Balanced to OE specifications
• Black oxide coated
• Fits OEM and aftermarket 6-bolt torque converters
• Heat treated and hardened ring gear to last longer
• Manufactured from Quench and Tempered Steel with a Yield strength of 100,000psi
• One piece billet machined with integrated counterweight

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions
2.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
