TORQ/UNLOC

Currently, exhaust brake usage can cause high temperatures in the automatic transmission due to torque converter slippage, and, only 10% to 80% of the retarding force is transferred through the fluid coupling of most torque converters. The BD Torq/UnLoc commands the lock-up clutch of the torque converter to stay engaged when the BD Exhaust Brake is activated. This allows for up to 100% of the retarding force to be transferred in 3rd and 4th gear and the transmission oil temperature to remain low because of little to no slippage occurring when the converter is in these selected gears. The BD Torq/UnLoc is also able to prevent the ECM from activating the lock-up clutch when such an action would drag the engine rpm out of the optimum torque range, or, when traveling at such speeds that would cause the ECM to cycle the lock-up clutch in and out.

Additional Information

Torq Unloc Kit; Prevents Slippage; Prevents High Oil Temperatures;

Part Type

Automatic Transmission Control Module

Product Overview

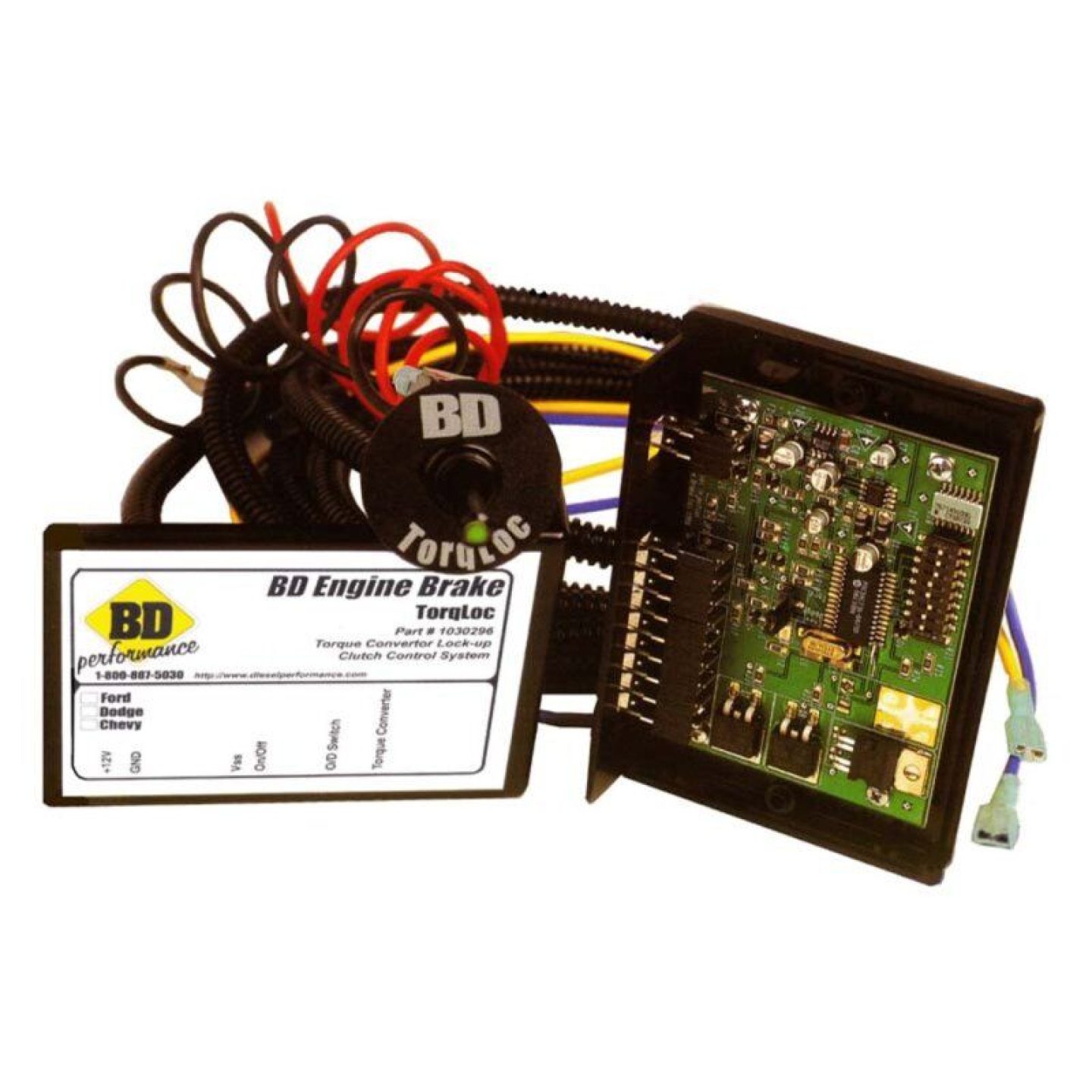

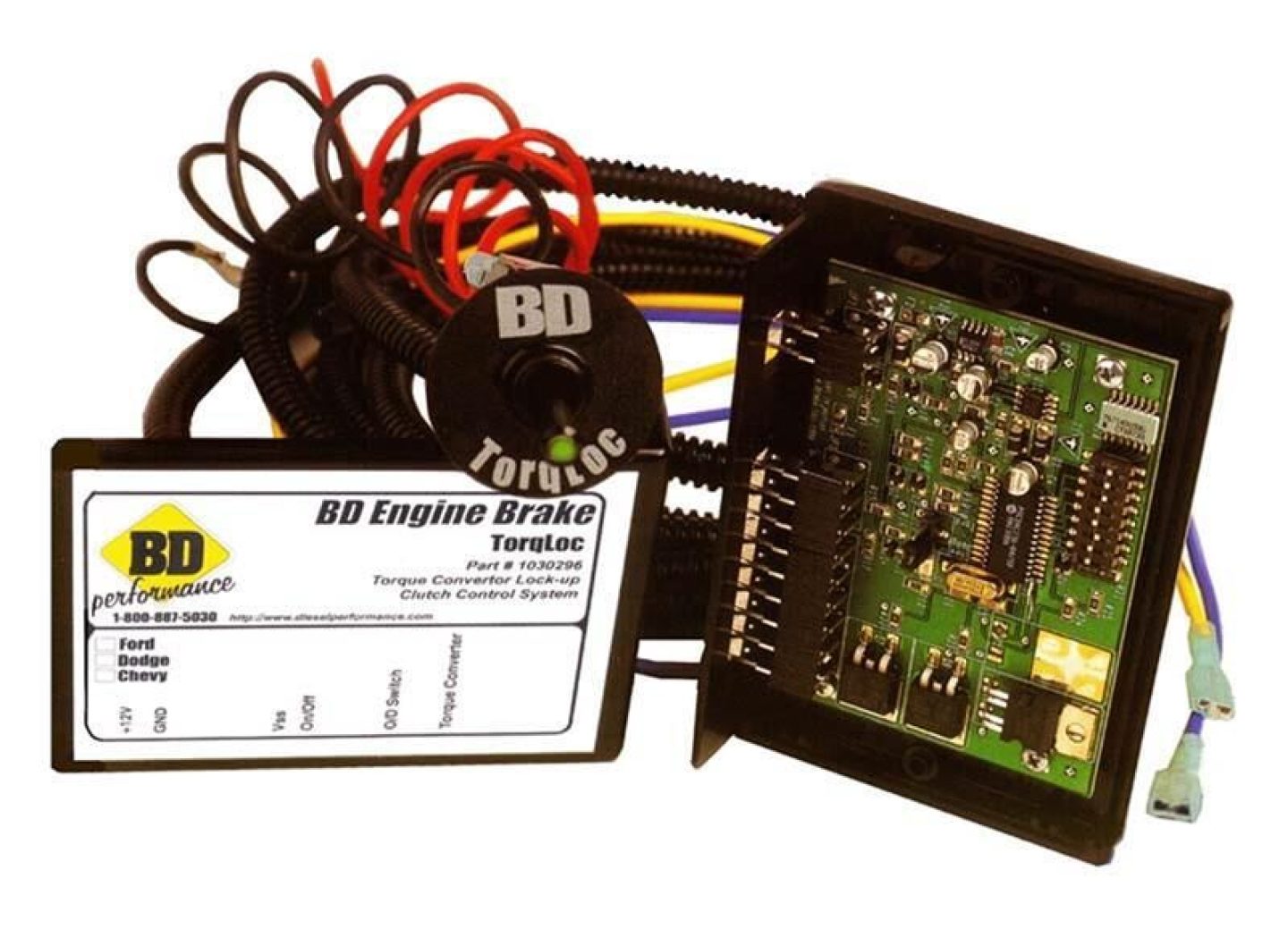

Command the torque converter to stay locked, stay unlocked, or revert to OEM settings with the BD TorqLoc. Flip the toggle switch to position one, and the lock-up clutch is engaged, so transmission temperature remains low and the exhaust brake can work with 100% effectiveness (this is a manual setting and should only be selected under light load/light power conditions, such as highway driving).

Position two reverts back to stock function, or can be wired to unlock the torque converter. Position three acts as an AutoLoc by commanding lock-up only when the exhaust brake is engaged - perfect setting for every day driving in all situations.

Additionally, the TorqLoc has an Overdrive “inverter” option which allows the transmission to start out in Drive which will prevent upshift into the Overdrive gear - great for those who live in city/urban areas. Also, if you have a BD Valve Body with the second gear lock-up capability, the lock-up can be set to hold until 5-10 mph.

Also available is the Torq/UnLoc which acts the same as the TorqLoc but in the third position the converter is prevented from locking up.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• 12 Months or 24000 Mile Warranty
• Ensures 100% Retarding Force Is Being Transferred
• Ensuring 100% of the retarding force is being transferred in 3rd and 4th gears
• Maintains Lock-Up When The Exhaust Brake Is Activated
• Prevent The ECM From Activating The Lock-Up Clutch
• Prevent the ECM from activating the lock-up clutch when such an action would drag the engine rpm out of the optimum torque range, or, when traveling at such speeds that would cause the ECM to cycle the lock-up clutch in and out
• Prevents slippage and subsequent high oil temperatures
• Prevents Slippage and Subsequent High Oil Temps

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
