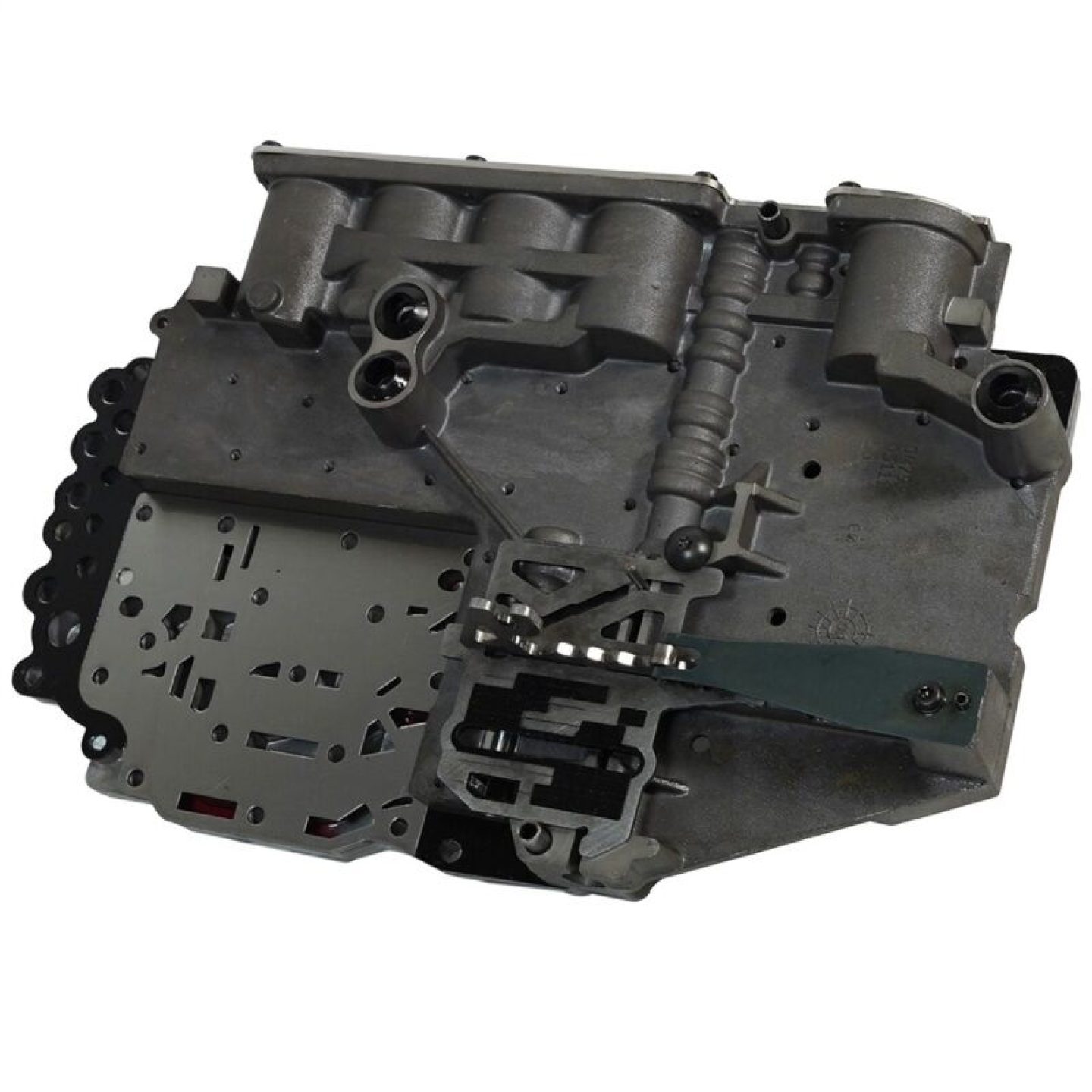

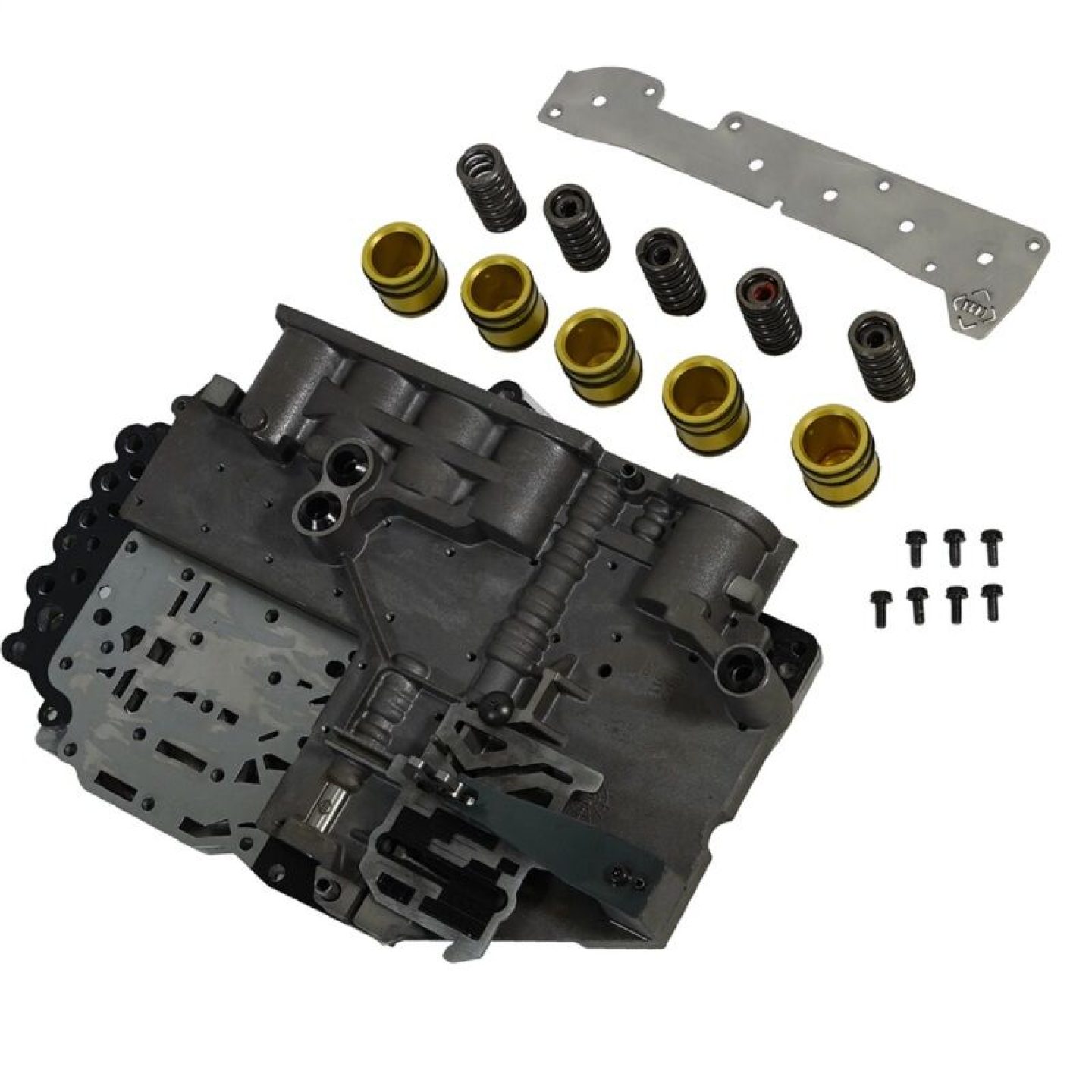

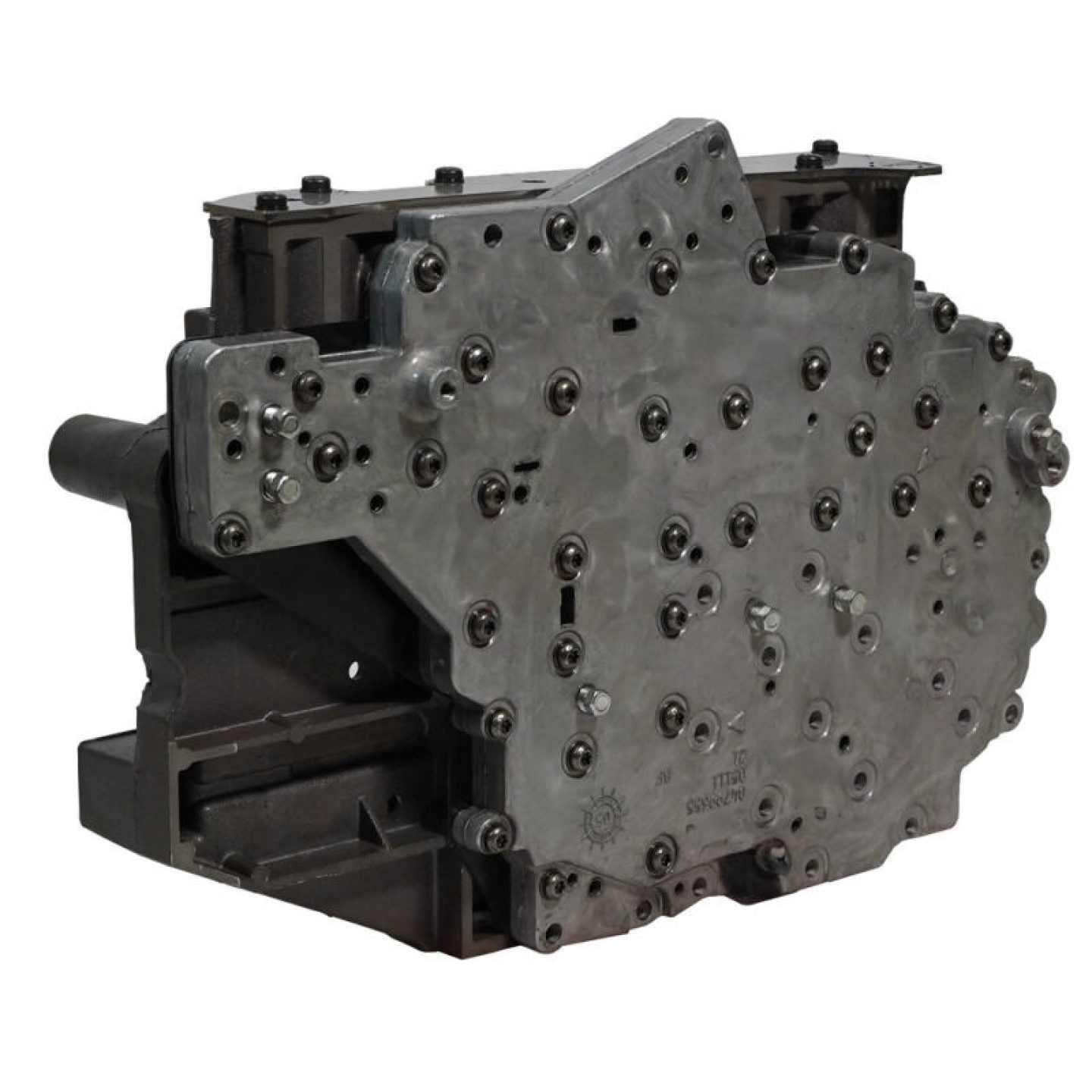

VALVE BODY 68RFE

BD's valve bodies undergo meticulous modification and rigorous testing to deliver unparalleled performance in both towing and high-performance applications. A common weak point in all 68RFE valve bodies is the significant wear on the bore. To address this issue, BD's valve bodies feature a steel-sleeved bore, which effectively prevents excessive wear and significantly extends the product's lifespan compared to other options available in the market. The assembly process of this valve body is conducted with utmost precision, incorporating upgraded components that eliminate overdrive leakage and provide a substantial increase in maximum line pressure capacity. The result is an outstanding product that provides unrivaled reliability and performance, making it the ideal choice for towing and demanding applications.

Additional Information

Transmission Valve Body; Fits w/68RFE Early Model; w/Connector;

Part Type

Automatic Transmission Valve Body Kit

Product Overview

An economical way to improve the performance and clutch life of your stock transmission is to install a BD Performance Valve Body.

Our complete upgrade of the stock valve body consists of new valve designs, increased capacity springs, revised oil circuits and optimized governor piston dimensions which the improved oil flow reduces temperatures and lowers torque converter evacuation time for quicker clutch apply.

BD's design achieves up to 80% higher clutch apply pressures over the stock unit and up to 50% over the competitors with the increase starting at much lower engine rpm's and at lighter throttle pedal position movement. Light throttle shift firmness is also maintained at these higher apply pressures. This building process also eliminates the often referred to “Shuttle Shifting” or hunting-for-gears in the 2004-2006 48RE transmissions.

For exhaust brake usage, the higher pressures achieved by BD Valve Bodies help assist in preventing convertor lock-up clutch slippage. Second gear lock-up capability has also been added that along with the addition of one of our TorqLoc or AutoLoc kits, you can get some serious engine retarding capability on towing applications.

Each valve body is tested to ensure proper function before shipping. While you're replacing the valve body, add one of our heavy duty aluminum oil pans for greater oil capacity, cooler oil temperature and improved case rigidity.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Anti-Shuttle Technology With Higher Pressures
• Custom BD bonded separator plate to eliminate cross leaks and improve line pressure
• Does NOT include solenoid, compatible with grey connector solenoid pack
• Hand-lapped Surfaces Prevent Internal Leakage
• Heavy-duty accumulator plate to prevent accumulator blowout
• Improved Shift Quality
• Includes the pan gasket for installation in the 68RFE
• Increased Clutch Holding Capacity
• Larger Oil Ports
• Modified Tuned and Tested To Provide Optimum Performance
• New BD accumulator pistons with improved sealing
• New Springs
• New Trim Valves Increase Mainline Pressure
• Oversized SSV plugs
• Proprietary Governor Piston Dimensions
• Reduced Friction and Extends Transmission Life
• Revised Valve Design
• Sleeved solenoid switch valve (SSV) bore for increased life of the valve body
• UPS Shipping Label Included To Return Back Core For Free USA ONLY
