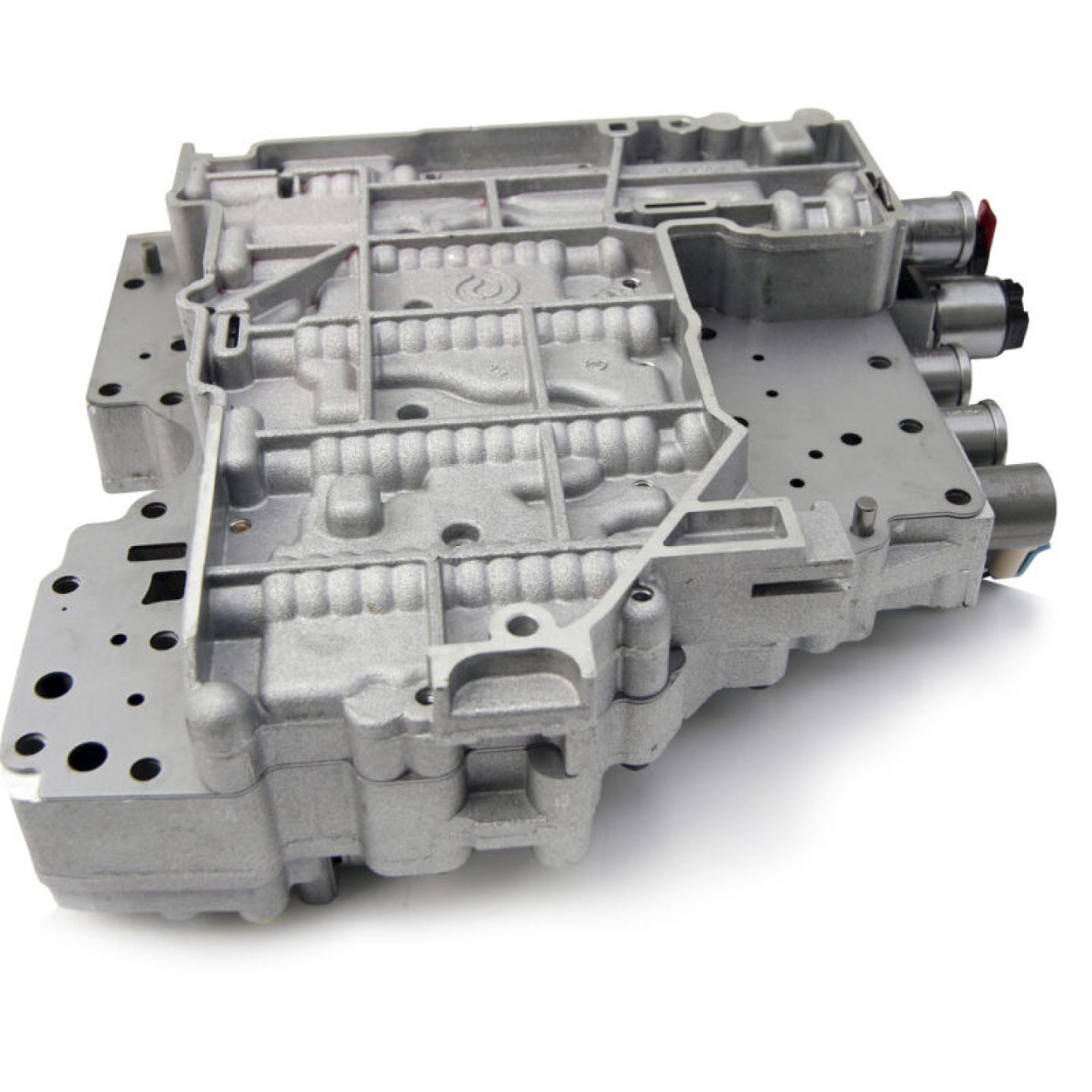

VALVE BODY

BD's exchange valve bodies are modified, tuned and tested to provide optimum performance in towing and performance applications. The end result is improved shift quality, increased clutch holding capacity, reduced wear and extended transmission life.

Additional Information

Transmission Valve Body; Modified To Optimize Performance And Towing Applications; Incl. Valve Body/Hardware;

Part Type

Automatic Transmission Valve Body Kit

Product Overview

An economical way to improve the performance and clutch life of your stock transmission is to install a BD Performance Valve Body.

Our complete upgrade of the stock valve body consists of new valve designs, increased capacity springs, revised oil circuits and optimized governor piston dimensions which the improved oil flow reduces temperatures and lowers torque converter evacuation time for quicker clutch apply.

BD's design achieves up to 80% higher clutch apply pressures over the stock unit and up to 50% over the competitors with the increase starting at much lower engine rpm's and at lighter throttle pedal position movement. Light throttle shift firmness is also maintained at these higher apply pressures. This building process also eliminates the often referred to “Shuttle Shifting” or hunting-for-gears in the 2004-2006 48RE transmissions.

For exhaust brake usage, the higher pressures achieved by BD Valve Bodies help assist in preventing convertor lock-up clutch slippage. Second gear lock-up capability has also been added that along with the addition of one of our TorqLoc or AutoLoc kits, you can get some serious engine retarding capability on towing applications.

Each valve body is tested to ensure proper function before shipping. While you're replacing the valve body, add one of our heavy duty aluminum oil pans for greater oil capacity, cooler oil temperature and improved case rigidity.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• 12 Months or 24000 Mile Warranty
• Hand-lapped Surfaces Prevent Internal Leakage
• Improved Shift Quality
• Increased Clutch Holding Capacity
• Larger Oil Ports
• Modified Tuned and Tested To Provide Optimum Performance
• Modified, tuned and tested to provide optimum performance
• New trim valves increase clutch apply pressures
• New Trim Valves Increase Mainline Pressure
• Proprietary Governor Piston Dimensions
• Reduced Friction and Extends Transmission Life
• Revised Valve Design
• UPS Shipping Label Included To Return Back Core For Free USA ONLY

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
