Turbocharger Kit

Designed for 1994-2007 5.9L Dodge trucks, the Super B Single supports modified applications making 250-425 rwhp. Featuring Borg Warner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents premature opening caused by high exhaust pressure. You can even fine-tune for ambient temperature and barometric pressure changes using BD's adjustable waste gate control. The Super B single offers quick spool-up, cooler EGT's and no compressor surge. All kits come with everything you need to allow for an easy install.

Additional Information

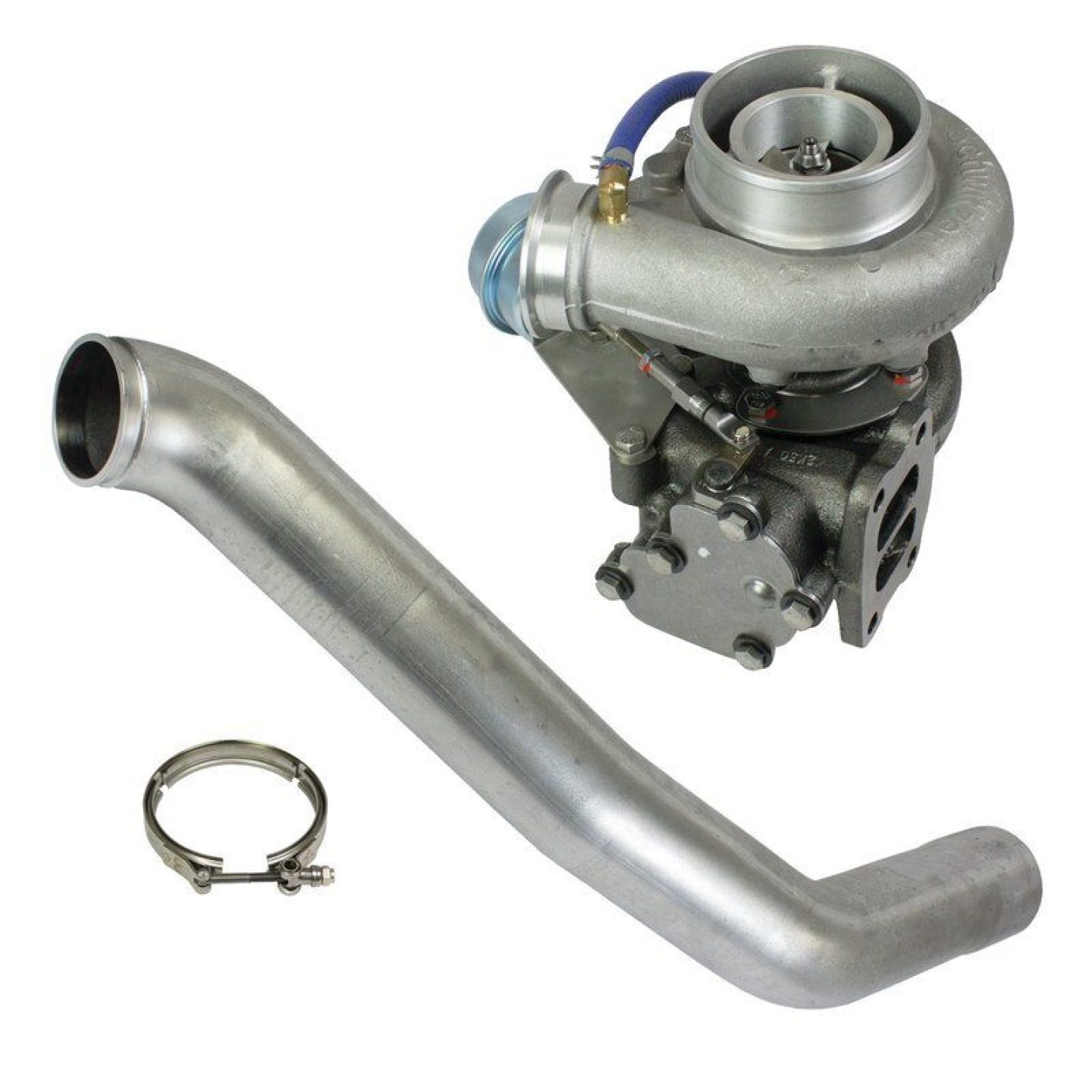

Super B Single Turbo Kit; SX S358; w/FMW Billet Wheel; Adjustable Wastegate; 870 CF / 450 HP; A/R Ration 0.80; Comp Wheel 58mm-2.28in.; Incl. Turbo/4in. Downpipe/Clamps/Hardware;

Part Type

Turbocharger

Product Overview

The Super B Special Turbo compressor assembly will flow 80 lbs./min or 1160CFM and when fueled for the designed 600hp will generate a positive boost-to-drive pressure ratio without increasing exhaust temperatures beyond peak operating conditions. The Borg Warner rotating assembly features an Extended Tip HIP'd 64.5mm compressor wheel and full floating axial bearings with a 6-pad thrust bearing design for long term durability. BD's own compressor housing with a 90-degree outlet results in perfect fitment to the stock turbocharger intake connection points.

The dual volute T3 turbine housing is made of ductile High Sil-Moly cast iron that easily handles peak operating exhaust temperatures (EGT's). Our heavy sprung dual waste gate actuator prevents boost creep while BD's own Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning.

6.7L Kit comes with a BD 2-piece high flow exhaust manifold, a special 4-inch exhaust down pipe and complete “Special EGR” hardware kit - performance tuner such as H&S XRT PRO (109005), H&S Mini Max (109003), Smarty (MADS67ME) or Smarty Jr. (MADJ67ME) is required for 6.7L operation.

Add the larger BD Cool-It Intercooler and a shot of nitrous oxide, and the Super B Special will produce even higher power levels with adequate fuel delivery. This turbo kit comes complete with exhaust down pipe, clamps and adustable wastegate.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• 12 Month Or 12000 Mile Warranty
• 870 CFM / 450 HP
• A/R Ratio: 0.80
• BD's HD Waste gate and bracket holds boost and prevents over speed damage
• Comp Wheel: 58mm 2.28in
• Cooler EGTs & less smoke
• Cooler EGTs And Less Smoke
• Custom Built To BD Specifications Not A Box Turbo
• Custom built to BD specifications, not a box turbo
• Downpipe, V-Band Clamp, Band Clamp
• Dual Volute T3 Turbine Housing Utilizes Low RPM Exhaust Pulses
• Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response
• Efficient positive boost-to-drive pressure ratio yields high power with low EGTs
• Efficient Positive Boost-To-Drive Pressure Ratio Yields High Pwr
• Forged Milled Billet Wheel
• HD Wastegate/Bracket Holds Boost And Prevents Over Speed Damage
• Most systems can be upgraded to a twin system for more power or even better towing performance
• Most Systems Can Up Be Upgraded To Twin System For More Power
• Perfect Fitment To Stock Turbocharger Inlet Connection Points
• Perfect fitment to the stock turbocharger inlet connection points
• Quick Spool-Up With No Surging
• Special Low Inertia Full Floating 6 Pad Thrust Bearings
• Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos
• Turbine Wheel: 74mm 2.91in
• Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
• Turnbuckle Boost Control For Ease Of Adjustment/Extreme Tuning
