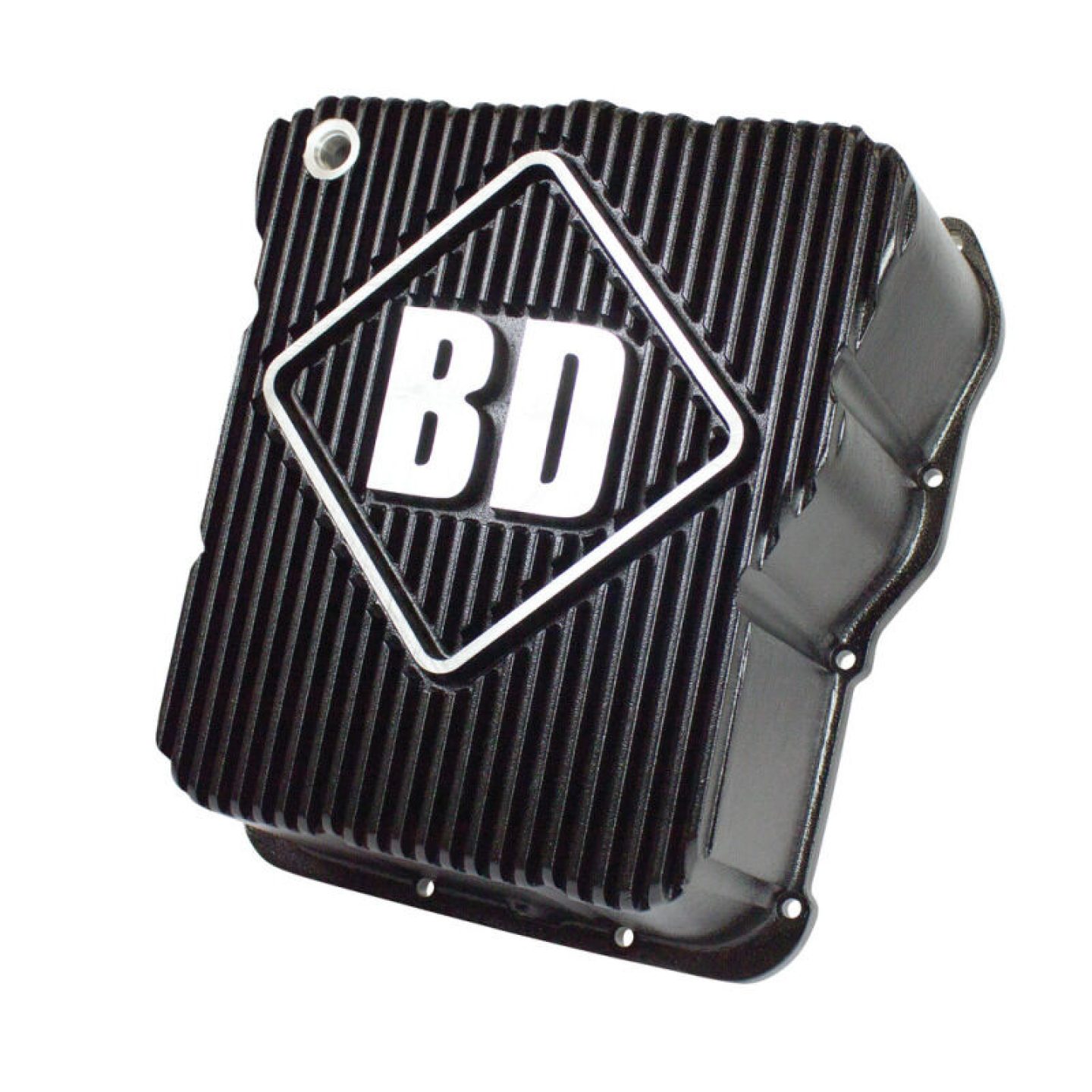

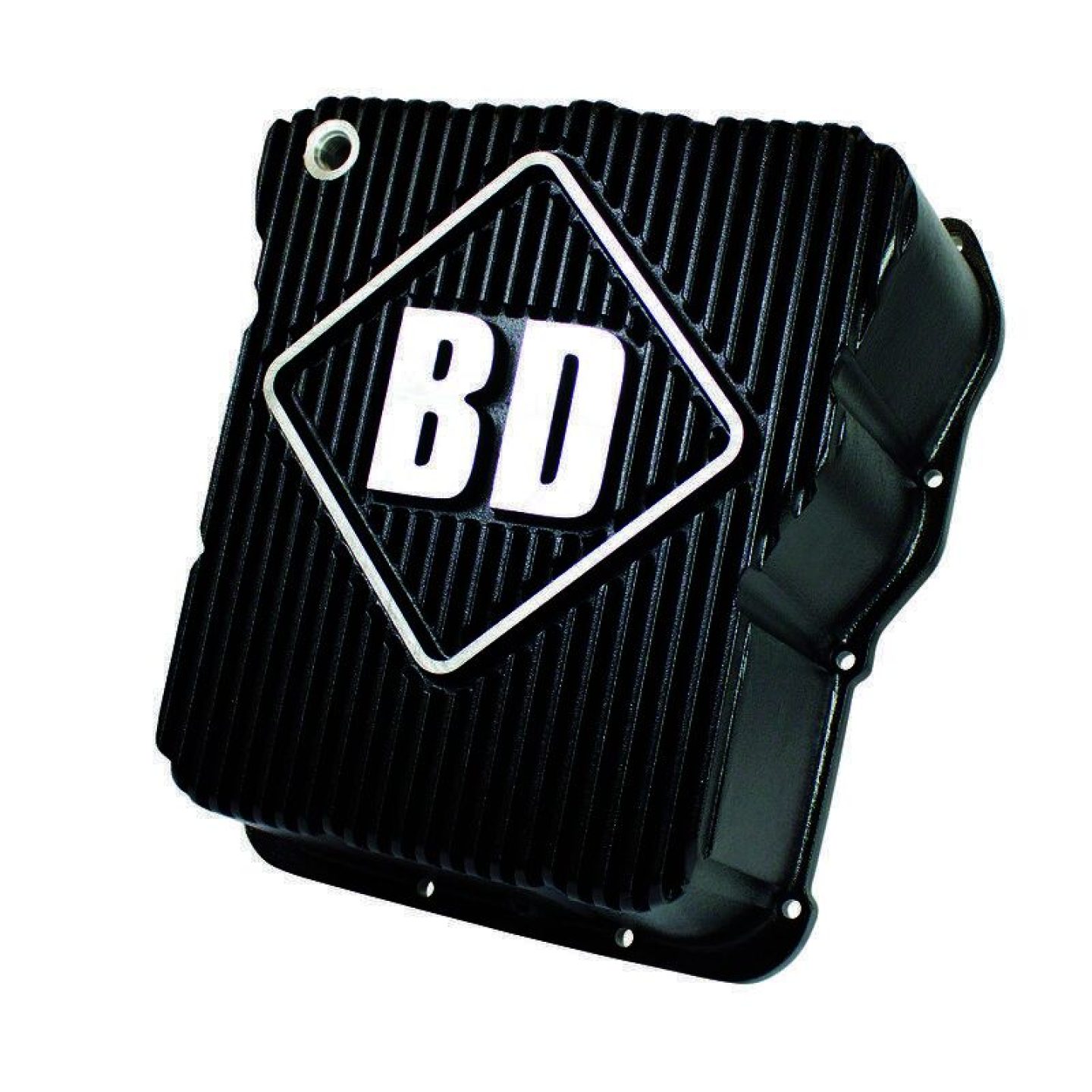

DEEP SUMP TRANS PAN

High volumes of cool transmission fluid equate to long transmission life. BDs deep aluminum pans increases the oil capacity by 1qt on the 1989-2007 model and 4.5qt on the 2008 68RFE, while aluminum construction and heat-dissipating fins keep temperature down. As an added bonus, the pans increased rigidity prevents case twisting. Kit includes a magnetic drain plug and temperature sending unit port.

Additional Information

Deep Sump Transmission Pan; Incl. Pan/Temp Sensor Port Plug/Magnetic Drain Plug/Pan O-Ring/Deep Filter/Hardware;

Part Type

Transmission Oil Pan

Product Overview

The easiest transmission mod you can make!

High volumes of cool transmission fluid equate to long transmission life. BD's deep aluminum pans increase oil capacity by 3.5 qt., while 356T6 cast aluminum construction and heat-dissipating fins keep temperature down. As an added bonus, the pan's increased rigidity prevents case twisting. Kit includes a magnetic drain plug and temperature sending unit port.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• 36 Month/150000 Mile Limited Warranty
• Adds 3.5qt!

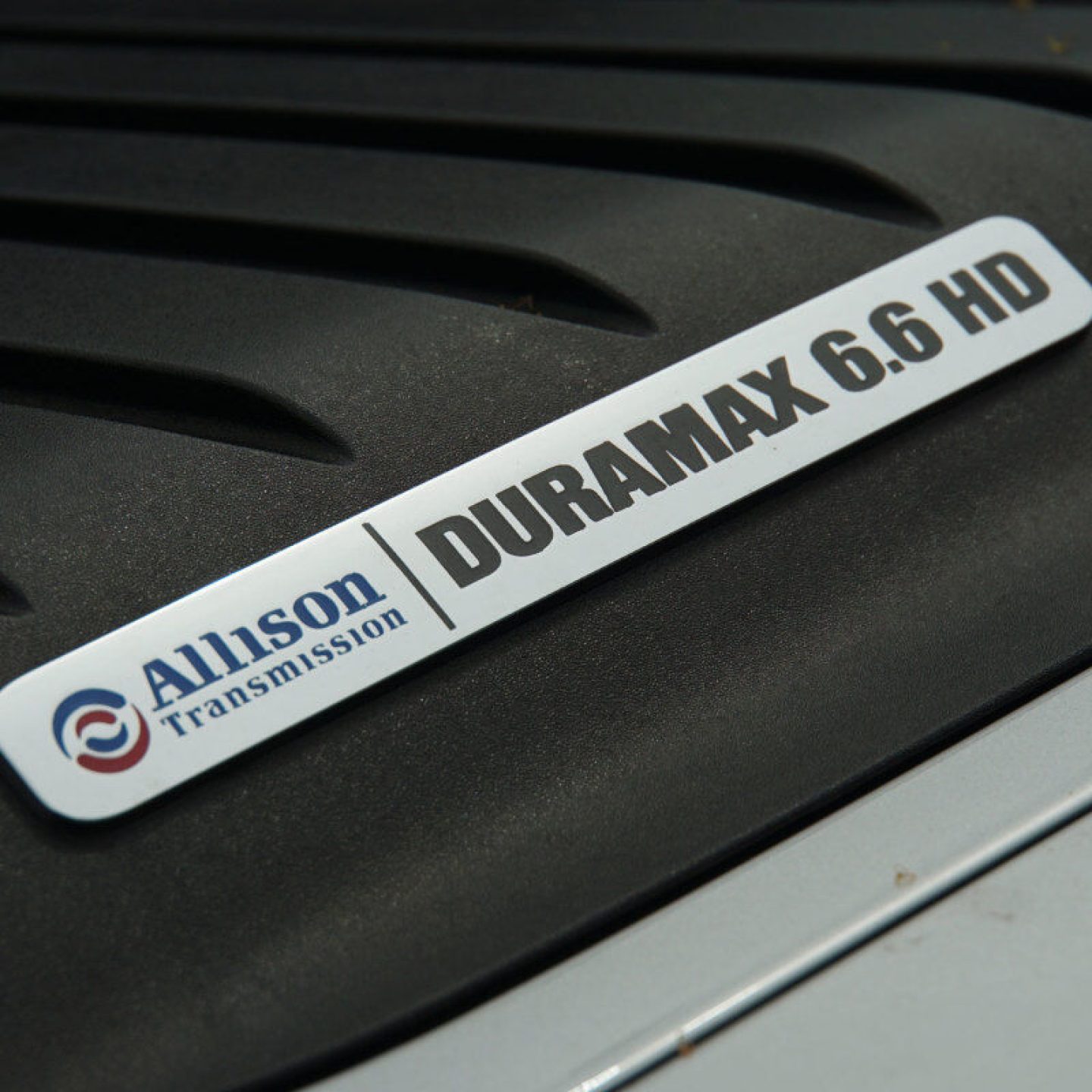

• Allison 1000 transmissions
• Aluminum construction and heat-dissipating fins keep temperature down
• Aluminum Construction/Heat Dissipating Fins Keep Temp Down
• High Volumes Of Cool Oil Equate To Long Trans. Lift
• High volumes of cool oil equate to long transmission life
• Increased Rigidity Prevents Case Twisting
• Kit includes a magnetic drain plug and temperature sending unit port
• Pans Increase Oil Capacity

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions
2.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
