XTRUDED TRANS COOLER

Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

Additional Information

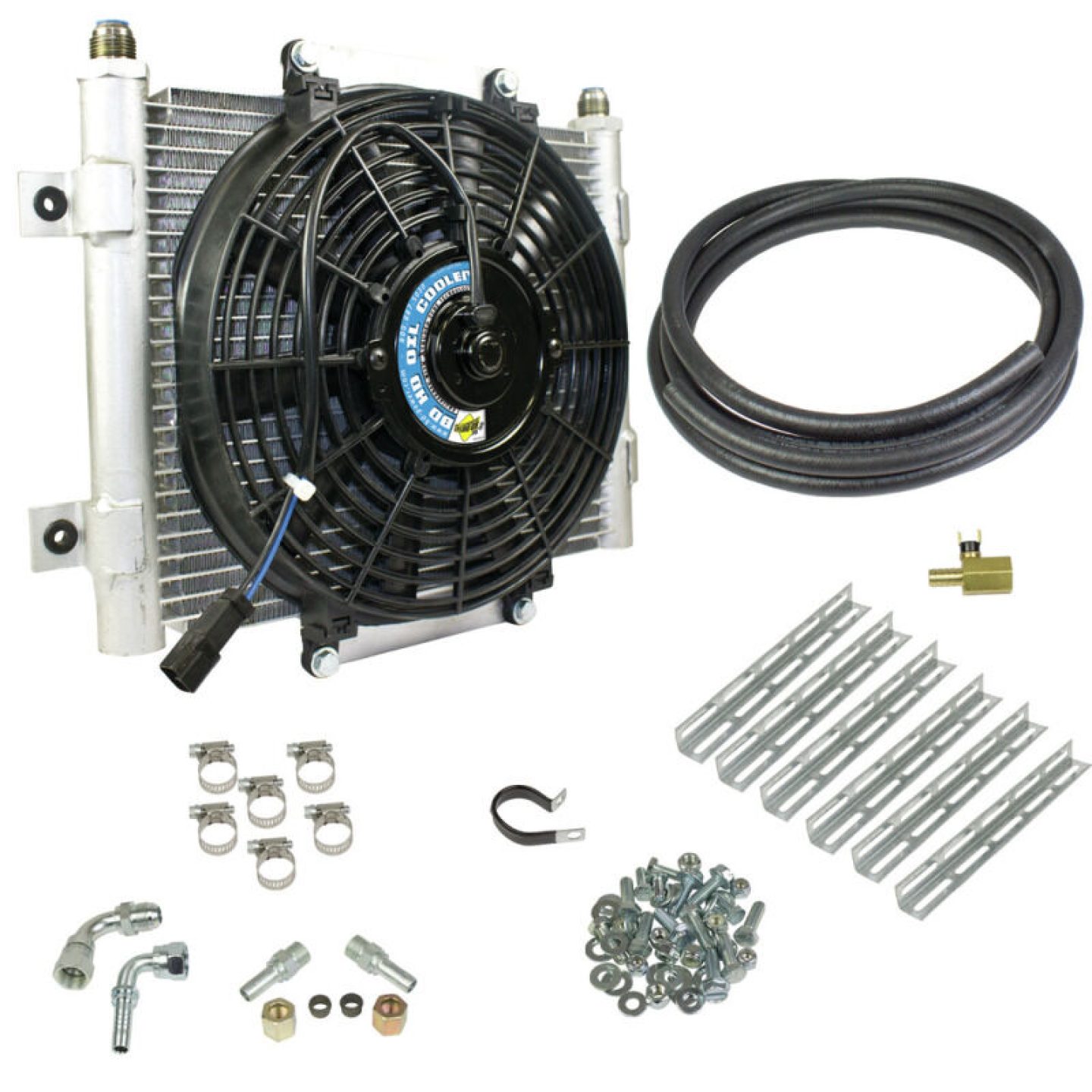

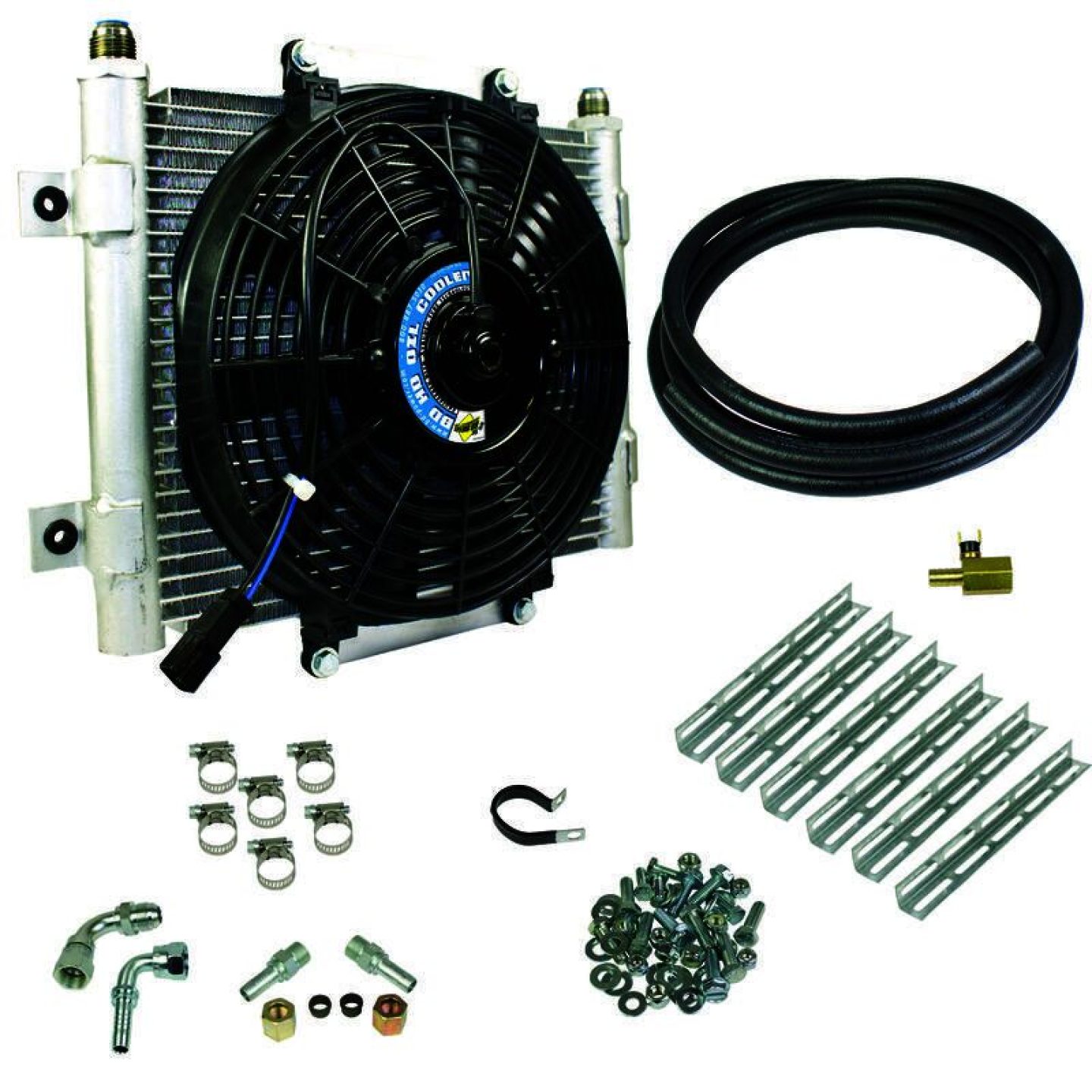

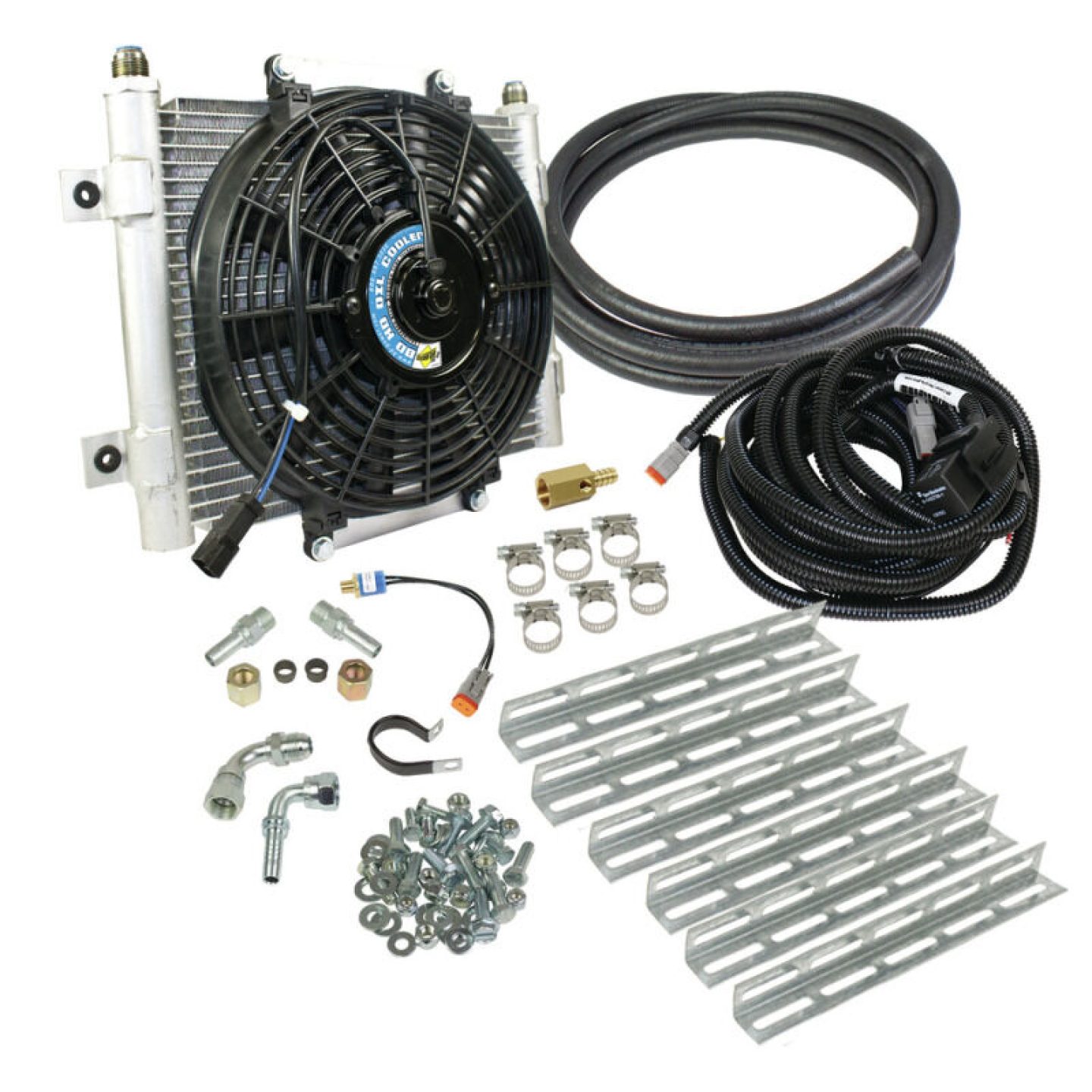

Xtruded Auxiliary Transmission Oil Cooler Kit; 5/16in. Tubing; Incl. Cooler/Brackets/Wiring Harness/Fittings/Temp Sensor/Sensor Adapter/Hoses/Bypass Frt/Rear Tube Eliminator/Hdw;

Part Type

Automatic Transmission Oil Cooler

Product Overview

The number one transmission killer is heat… Whether you are pulling heavy loads up long-steep grades, through hot-desert areas or just hauling more than you can handle, overheated oil reduces the life of your transmission and prone to leaving you broken down in the middle of nowhere.

BD's Xtruded Transmission Oil Coolers uses the same high efficiency Micro Extruded bar technology that is in our air-to-air Charge Air Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.
Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW!

Xtruded Transmission Oil Cooler packages are available to accommodate 5/16, 3/8, 1/2 and 5/8 transmission cooler lines and come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation â€" no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• 12 Months or 24000 Mile Warranty

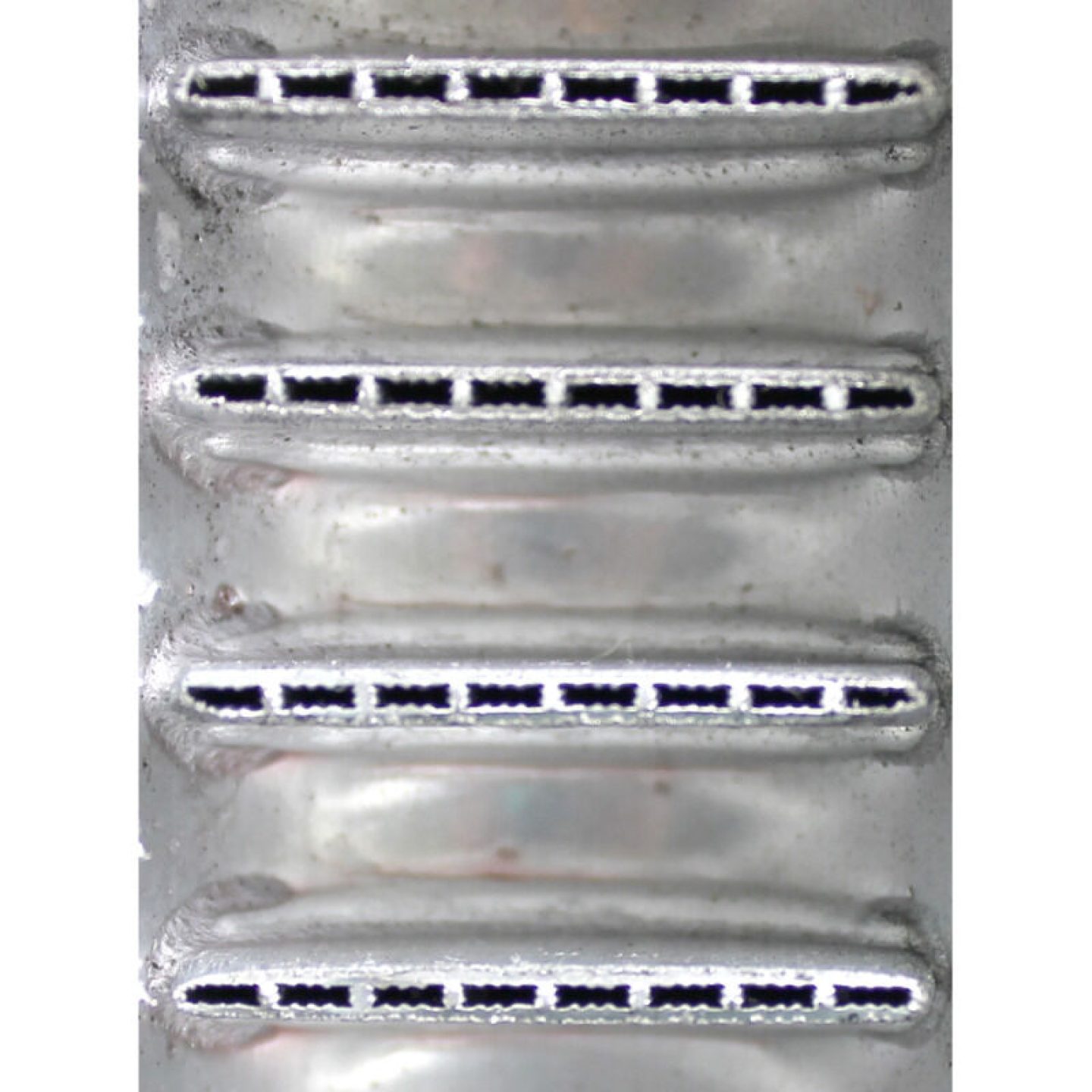

• 200 Micro Extruded Passages
• 22 Percent More Cooling Over Other Designs
• 22% more cooling over other designs
• 33,930 BTU/HR and in excess of 30,000 GVW!
• 33930 BTU/HR

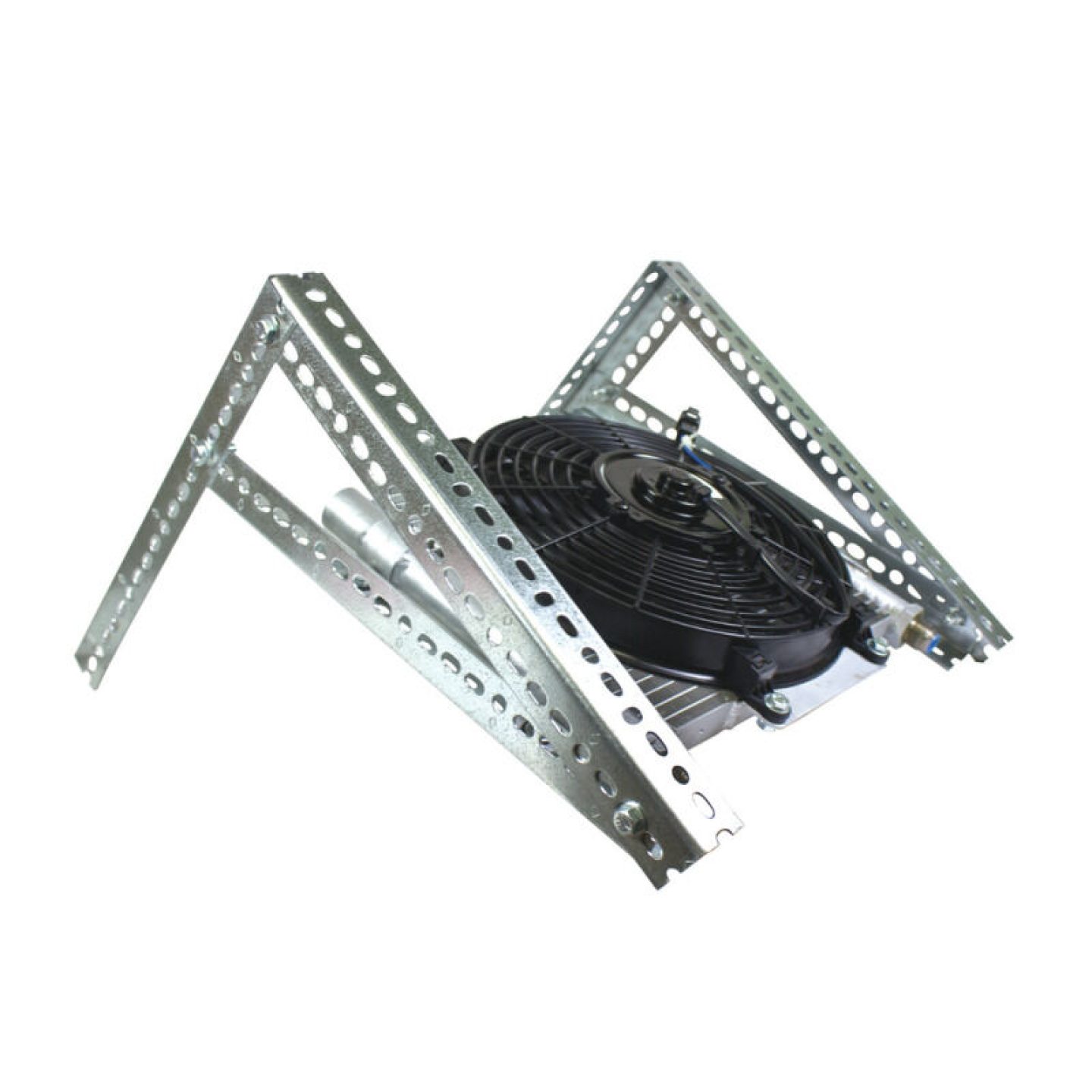

• Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
• Build-It-Yourself Galvanized Bracket Kit For Quick Installation
• Chevy 1991-1999 4L80E - 5/16-inch Cooler Lines
• Ford 1994-1997 E4OD - 5/16-inch Cooler Lines
• Furnace Brazed Rails Have Been Tested to 300psi of Pressure
• Kits complete with all fittings, clamps, hoses and hardware
• Large 5/8-inch Ports Prevents Inlet/Outlet Restriction

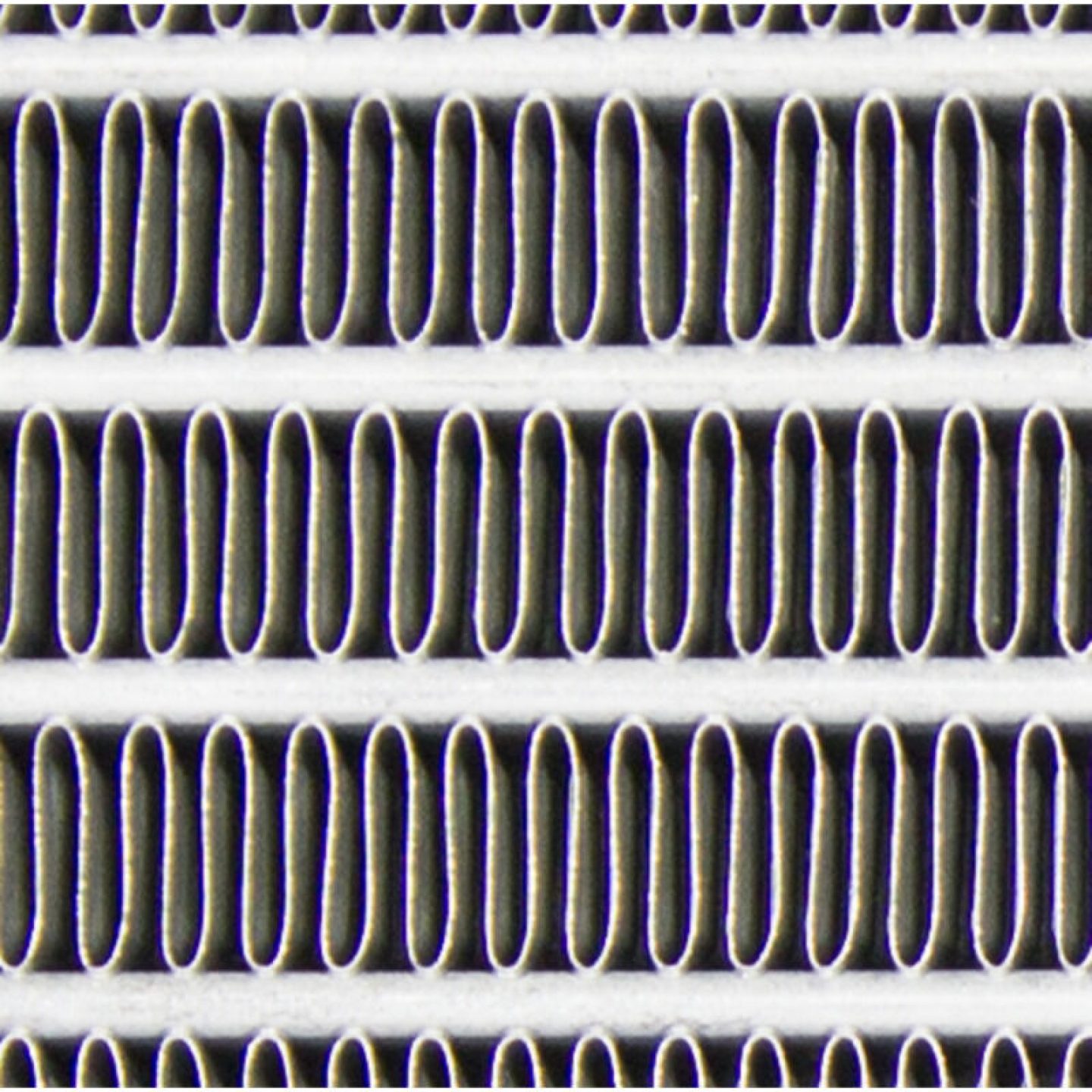

• Large Surface Area To Transfer Heat For External Air Flow Cooling
• Pre-Wired Loomed Harness w/Fuse And Relay w/Plug In Connectors
• The pre-wired loomed harness with fuse and relay comes with plug-in connectors
• Thermostatically Controlled 80-watt 10-inch 800 CFM Electric Fan
• Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
• Turbulent Oil Flow Design Promotes a More Complete Cooling
