Pinion Angle Shim - 3 Degree - Aluminum - Universal - Pair
PINION SHIM SET
Belltech axle pinion shims provide you the solution to easily correct the pinion angle of your rear axle to remove any unwanted vibrations. Crafted of high strength ductile cast iron and include new spring centering bolts. Belltech Pinion Shim kits are available sold in pairs in your choice of 1-6 degrees of angle.
Additional Information
Belltech universal extruded aluminum axle shims are sold in pairs and are available in various degrees to solve almost any driveline vibration. Fits 2.5" or 3" wide leafs including dual center pin applications.
Application Summary
Universal Fitment 3 Pinion Shim for 2.5 in.-3 in. Wide leaf springs - (Also fits 2 center pin leaf springs)
Part Type
Differential Pinion Shim
Product Overview
When lowering your truck or SUV, many things on your vehicle can change and be put out of their operating range, causing unwanted issues such as: * Incorrect Wheel Alignment * Increased tire wear * Driveline Shudders/Vibrations Not to worry, Belltech has you covered with its line of Front End alignment kits and Driveline Alignment Kits & Pinion shims. When you purchase a complete Belltech lowering kit, we go further than any other manufacturer and include EVERYTHING you need to ensure that all alignment and geometry are within factory tolerances. The next time you compare a Belltech Complete Kit to Brand X, make sure you are comparing Apples to Apples, and not lemons. *Front End Alignment Kits* Belltech alignment kits provide you the solution for all of your alignment needs. A typical Belltech front end alignment kit will consist of new âcamâ eccentrics for the upper control arms which provide increased range of adjustment (typically up to 2 degrees) above and beyond what is offered from the factory. *Driveline Alignment Kits* Driveshaft Spacer - Universal Pinion Shims - Center Carrier Bearing Kit If more adjustment for proper rear driveline angle is required, then our Driveline Alignment Kits are your solution. A combination of: * Driveshaft Spacers Engineered Application-specific aluminum spacers allow for angle correction of the driveshaft. * Pinion Shim Kit Two wedge-shaped shims with ranges from 1 to 6 degrees New spring center bolts & nuts * Center Carrier Bearing Kit Adjustable bracketry that allows for fine tuning of the carrier bearing position to your vehicles specific needs. Belltech Driveline Alignment Kits can help make your driveline problems are a thing of the past.
Features and Benefits
- Aid in correcting driveline angles to remove unwanted vibrations
- 3 degree shim set
- Universal fitment for single and double center pin applications
- For 2.5" or 3" wide leaf spring packs

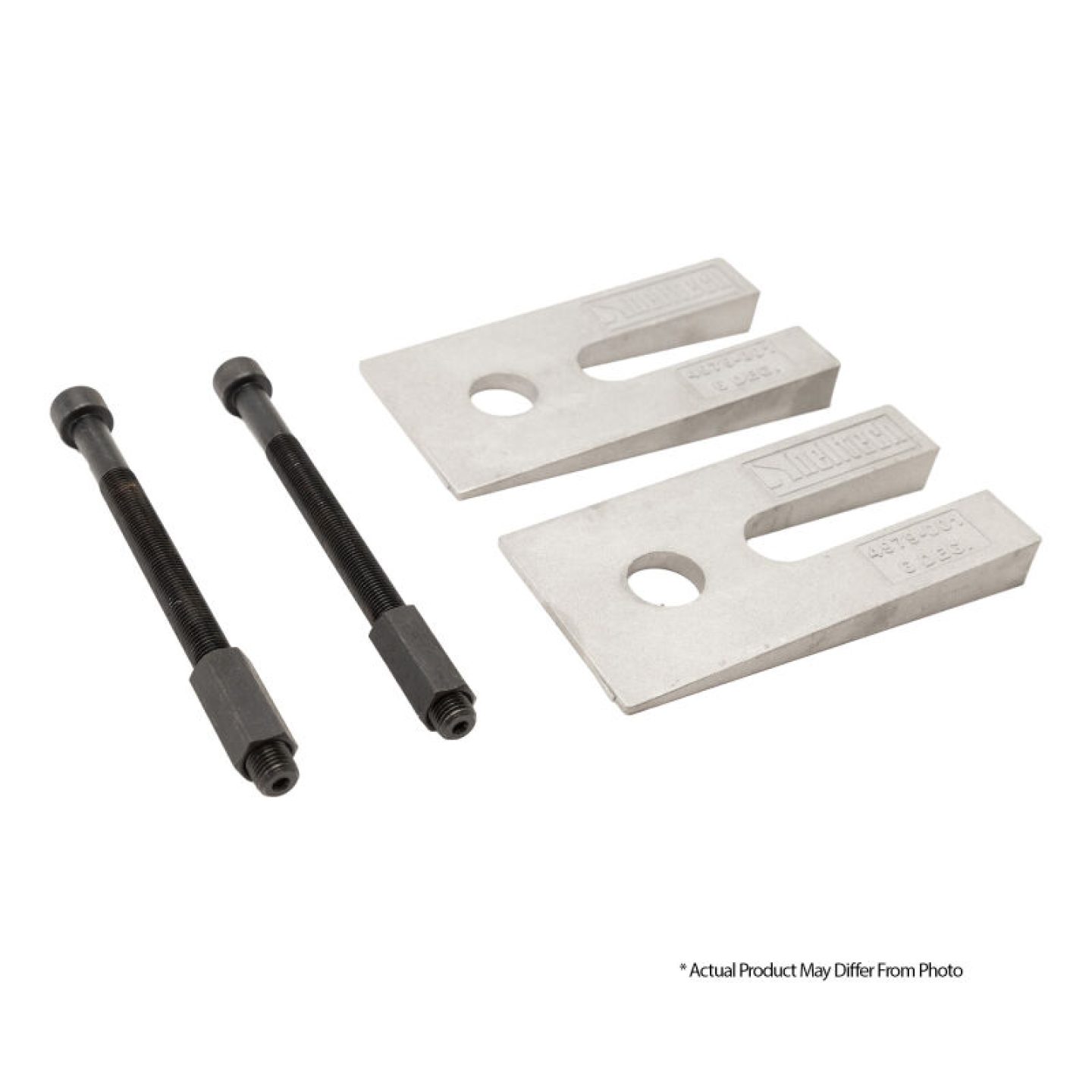

- Includes: 2x shims, 2x spring center bolts, 2x nuts
Product Details
| Adjustment: | 3deg |
| Color: | Silver |
| Description: | Pinion Shim Set |
| Function: | Pinion Angle Adjustment |
| Part Number: | bel4976 |
| Street Legal: | YES |
| Title: | BELLTECH 4976 PINION SHIM SET Universal 3 |
