Description
Strut
Bilstein B6 Camper shock absorbers and struts are the ideal choice for improving the performance of your camper van. Each damper utilizes a unique, velocity sensitive, digressive piston which reacts to changing road conditions to provide consistent fade free performance. All B6 Camper shock absorbers and struts are tuned for each specific application and increased vehicle weight to assure optimal performance is achieved.
Additional Information
Twintube Strut Assembly
Part Type
Suspension Strut Assembly
Features
- More engaging driving experience through high traction and precise handling
- Reduction of driving noise due to better damping on roads with changing road surfaces
- With patented BILSTEIN DampMatic technology and individually tuned to two characteristic curves in the BILSTEIN road test
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Boot Included: | No |
| Collapsed Length (IN): | 10.02 |
| Collapsed Length (mm): | 254.5 |

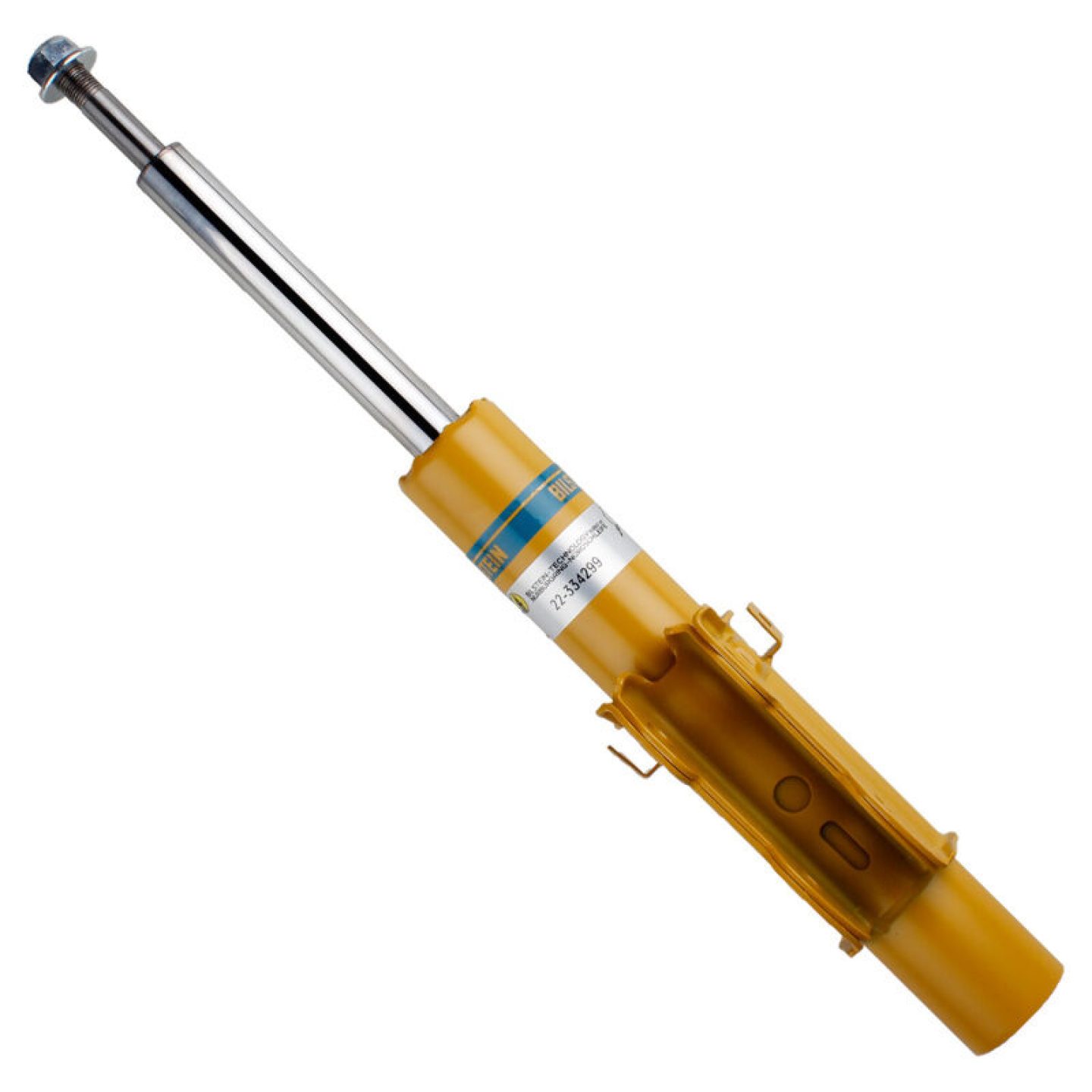

| Description: | Bilstein B6 Mercedes-Benz 10-24 Sprinter 2500 Front Suspension Strut Assembly |
| Extended Length (IN): | 17.11 |
| Extended Length (mm): | 434.5 |
| Finish: | Yellow Paint |
| Internal Design: | Twintube |
| Lower Mount Type: | Bracket |
| Part Number: | bil22-334299 |
| PartType: | Shocks / Struts |
| Segment: | Tuning |
| Series: | B6 Camper Advanced (DampMatic) |
| Spring Seat Included: | Yes - Fixed |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Stem |
Product Downloads
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Bilstein |
| StreetFX SKU | bil22-334299 |
| SFX Item ID | 4441717 |
| Accounting SKU | bil-22-334299 |
| Manufacturer SKU | 22-334299 |
| Manufacturer UPC | 651860914602 |
| Alternative References | 22-334299, BSN-22-334299 |
Shocks and Struts, B6 Series Camper Advanced Dampmatic, Stock Ride Height, Monotube, Gas-charged, Front, Dodge, Freightliner, Mercedes-Benz, Each
Bilstein offers B6 Series Camper Advanced Dampmatic shocks and struts for a variety of applications—including many Dodge, Mercedes-Benz, and Freightliner vehicles from 2007 and up. Each damper utilizes a unique, velocity sensitive, digressive piston which reacts to changing road conditions to provide consistent fade-free performance. All B6 Camper shock absorbers and struts are tuned for each specific application and increased vehicle weight to assure optimal performance is achieved.
| Product Attributes | |
|---|---|
| Brand | Bilstein |
| Manufacturer's Part Number | 22-334299 |
| Part Type | Shocks and Struts |
| Product Line | Bilstein B6 Series Camper Advanced Dampmatic Shocks and Struts |
| UPC | 651860914602 |
| Ride Height | Stock |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Internal Design | Monotube |
| Adjustable Valving | No |
| Gas Charged | Yes |
| Upper Mount | Stud |
| Lower Mount | Bracket |
| Boot Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
