Panhard Bar - Bolt-On - Adjustable - Polyurethane Bushings - Brace - Steel - Black Powder Coat - Ford Mustang 2005-14 - Kit

Panhard rod

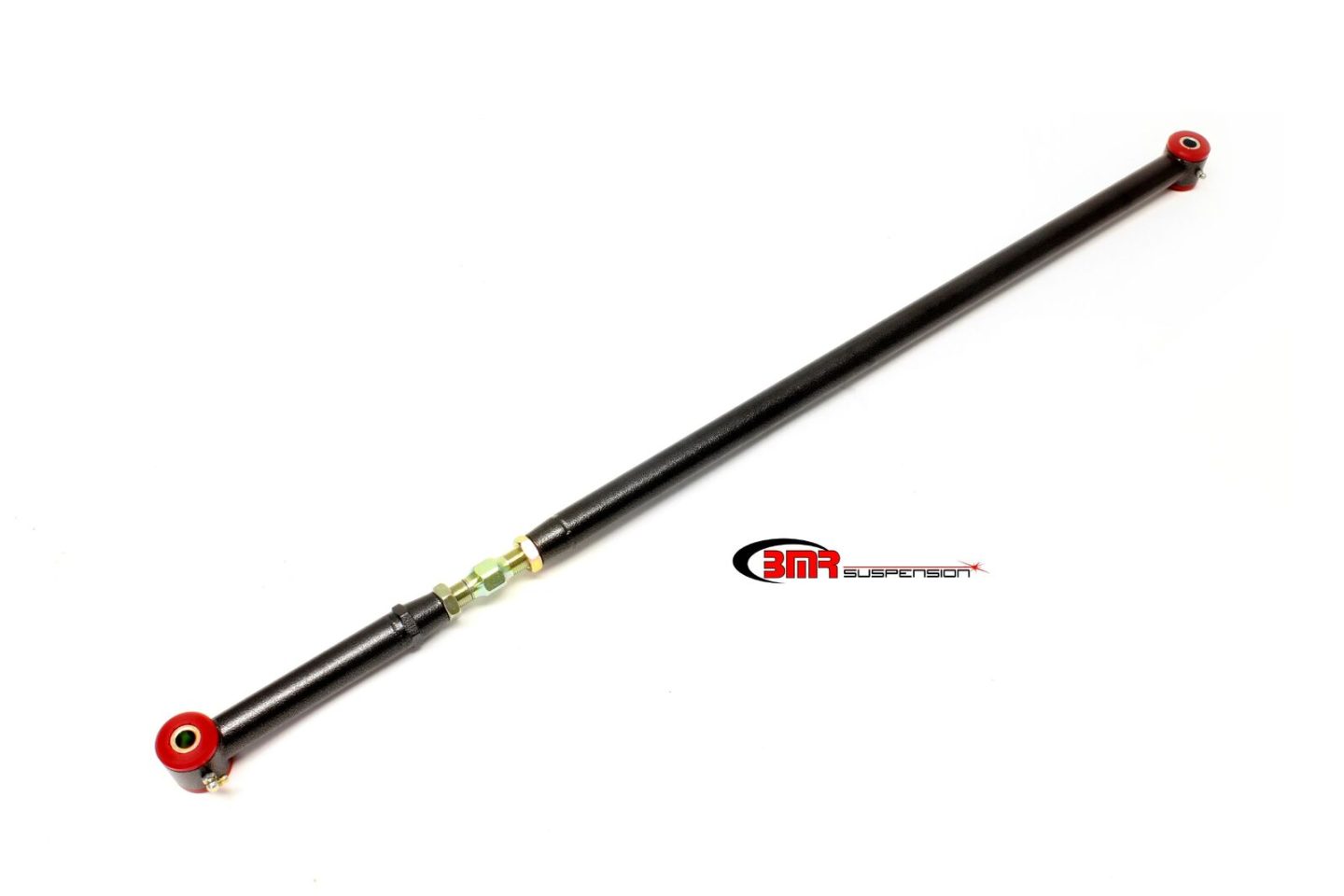

A Panhard rod is a suspension link that both locates the rear axle housing laterally and controls side-to-side movement. Factory S197 Mustang Panhard rods are made from weak U-shaped stamped steel with soft rubber bushings that allow excessive deflection under load. BMR's suspensions PHR006 Panhard rod is made 1.25-inch, 0.120-inch wall DOM tubing with TIG-welded chrome-moly tube adapters. The PHR006 features BMR's CNC-machined center adjuster, which is made from 4130 chrome-moly with rolled threads. The PHR006 features greaseable, 95-durometer bushings, which add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve, keeping grease in the bushing under high compression loads. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings. BMR's suspension designed the PHR006 to work well for street performance, drag race, and road race applications. The heavy-duty construction eliminates the deflection seen in stamped-steel Panhard rods. Other Panhard rods on the market include rubber bushings that will deflect under heavy loads. The 95-durometer polyurethane bushings of the PHR006 reduce bushing deflection, giving you much-improved, repeatable handling characteristics on the street, starting line, or in aggressive corners. The on-car adjustable design makes the PHR006 great lowered Mustangs. This gives you all the strength and adjustability you need for great handling without huge increases in NVH. When performance is a must, rely on BMR's suspension!

Additional Information

The on-car adjustable design makes the PHR006 great for lowered Mustangs. This gives you all the strength and adjustability you need for great handling without huge increases in NVH.

Part Type

Suspension Trailing Arm / Panhard Rod Kit

Product Overview

A Panhard rod is a suspension link that both locates the rear axle housing laterally and controls side-to-side movement. Factory S197 Mustang Panhard rods are made from weak U-shaped stamped steel with soft rubber bushings that allow excessive deflection under load. BMR Suspension's PHR006 Panhard rod is made 1.25-inch, 0.120-inch wall DOM tubing with TIG-welded chrome-moly tube adapters. The PHR006 features BMR's CNC-machined center adjuster, which is made from 4130 chrome-moly with rolled threads. The PHR006 features greasable, 95-durometer bushings, which add a solid, more responsive feel over the stock rubber bushings. BMR's bushings are internally fluted, which allows grease to evenly coat the inner sleeve, keeping grease in the bushing under high compression loads. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings. BMR Suspension designed the PHR006 to work well for street performance, drag race, and road race applications. The heavy-duty construction eliminates the deflection seen in stamped-steel Panhard rods. Other Panhard rods on the market include rubber bushings that will deflect under heavy loads. The 95-durometer polyurethane bushings of the PHR006 reduce bushing deflection, giving you much-improved, repeatable handling characteristics on the street, starting line, or in aggressive corners. The on-car adjustable design makes the PHR006 great lowered Mustangs. This gives you all the strength and adjustability you need for great handling without huge increases in NVH. When performance is a must, rely on BMR Suspension!

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Note for Australian and European Markets

Unless otherwise stated, this product may be engineered for use in Left-Hand Drive vehicles. Steering components, pedals, shifters, linkages, wing mirrors, instrument clusters, panhard rods/traction bars, drag links, brake boosters, brake or clutch lines, accelerator cables, heater cores, some master cylinders and adjacent parts can vary between LHD and RHD configurations. In some models compenents such as windscreen wiper arms, motors and linkages could differ in their size and orientation. Items such as floor mats & dash mats may have differences in their structure around the front row (or padding in different locations). In many cases items are identical depending on the design of the vehicle and part, but may have differing mounts, lengths or bolt patterns. Carefully review the product images and details to ensure suitability for your vehicle, or contact StreetFX support if you are unsure. Returns are not accepted for special order products.

Note for Pistons, Rings, Rotors, Rods and engine internals

Unless otherwise specified, some brands supply brake rotors, pistons, strut mounts, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Application Guide

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Panhard Bar, Steel, Black Hammertone Powdercoated, Ford, Each

Prevent your rear axle from moving side to side with BMR Suspension panhard bars. Factory bars use rubber bushings, allowing for deflection under a load. BMR panhard bars are made from heavy-walled tubing and employ either greasable polyurethane bushings or heavy-duty spherical bearings. Adjustable versions feature left hand and right hand threads for easy "on-car" adjustment. They are a must-have when lowering your ride or trying to fit the widest tires possible in your wheelwell.
