Sway Bar Kit

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR's suspensions SB012 front sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 29mm DOM tubing, the SB012 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection. The sway bar is 2-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.

Additional Information

BMR Suspension designed the SB012 sway bar kit for street performance, autocross, and road race applications.

Part Type

Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit

Product Overview

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspensions SB012 front sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-wall 29mm DOM tubing, the SB012 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection. The sway bar is 2-way adjustable to tune the amount of torsional spring rate and to determine the handling characteristics (understeer/oversteer) of the vehicle.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Application Guide

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

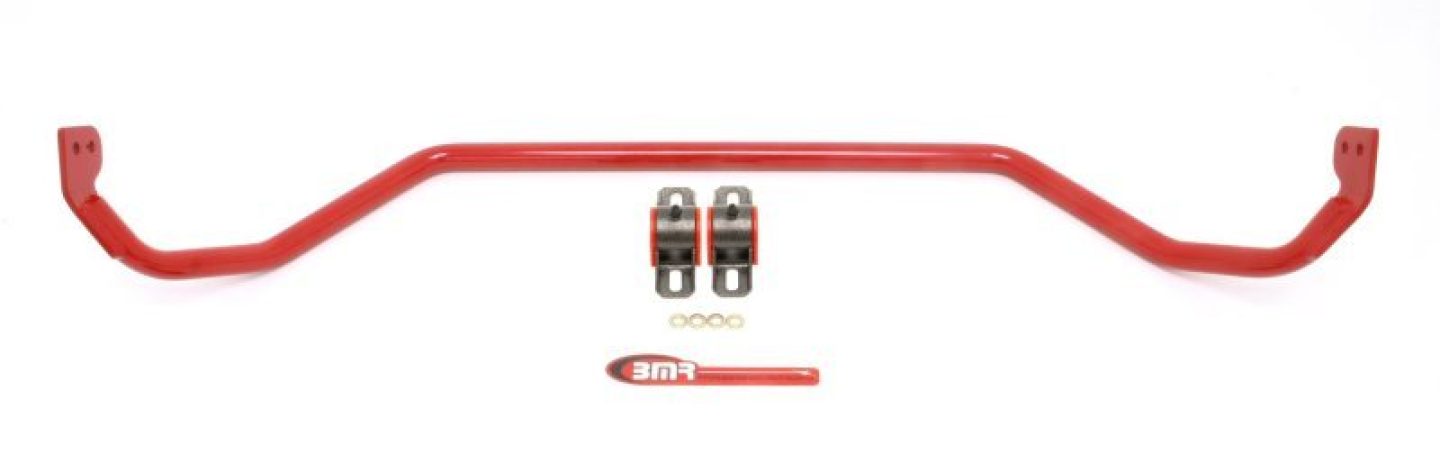

Sway Bar, Red, Hollow, Steel, Front, 29mm Diameter, Pontiac, Kit

BMR sway bars are the most significant handling upgrade you can make to your vehicle. With hand tools and about an hour or so of your time, BMR sway bars will deliver the most noticeable handling improvement to your ride. BMR chooses to cold form their tubular sway bars instead of the conventional hot formed process. For you that means better resistance to torsional fatigue, more consistent "memory" retention, and money well spent for lasting performance and driving enjoyment. BMR put countless hours into developing and testing the ideal rates for their bars, so feel their passion for perfection by installing one of their sway bar kits--you're in control with BMR Suspension.
