Lower Trailing Arms

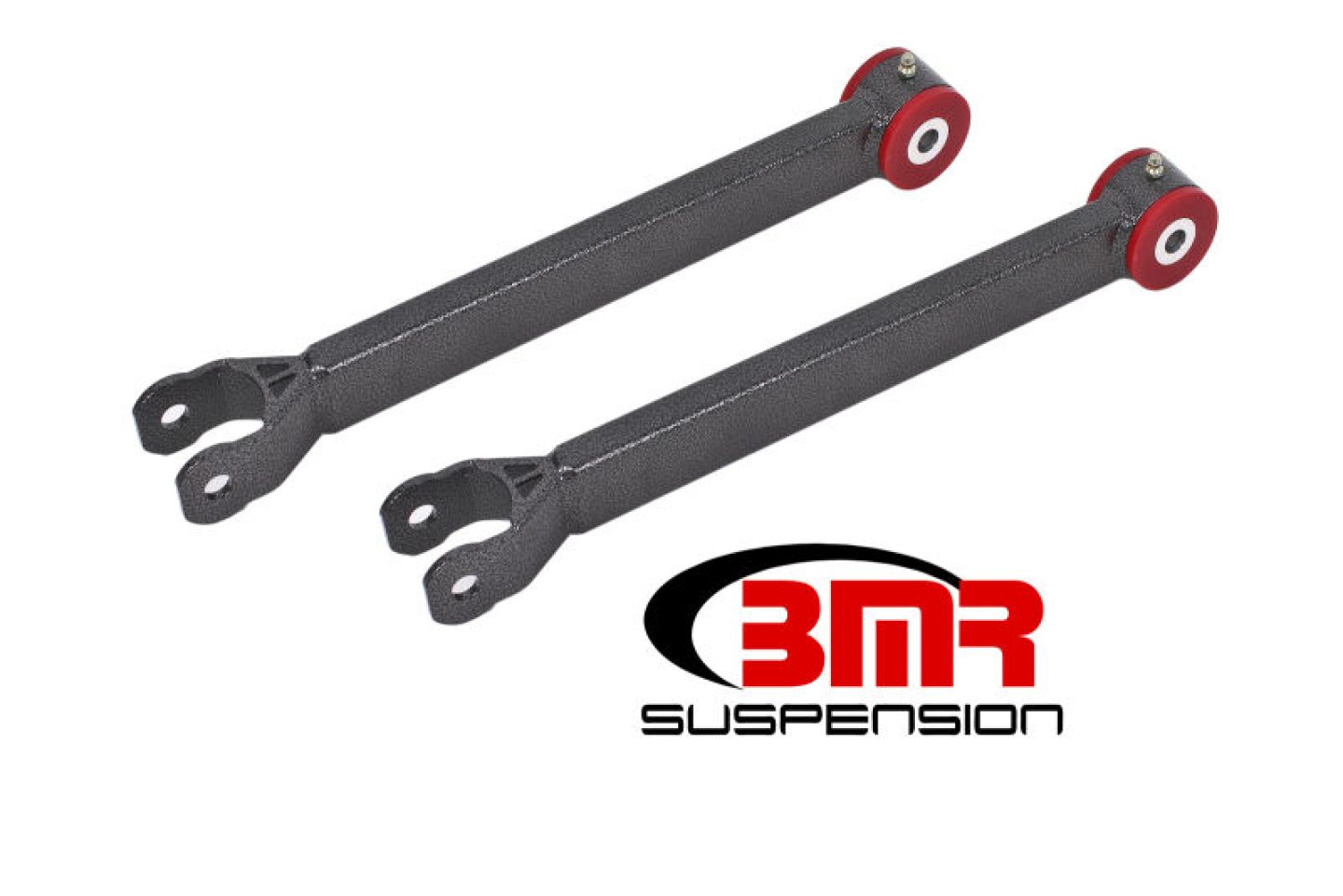

Launching harder, reducing wheel hop, and adding cornering consistency to your 2008-2017 Dodge Challenger is easy with lower trailing arms from BMR's suspension. Stock stamped steel trailing arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMRs polyurethane, non-adjustable trailing arms for Challengers (LTA110) are manufactured from heavy-duty 0.75-x1.5-inch boxed steel tubing. The open end is formed from CNC laser cut, CNC formed 3/16-inch steel plate. This design gives you a strong trailing arm that greatly improves performance. Greaseable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMRs bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.BMR's suspension designed the LTA110 to work well in street performance, drag race, and road race applications. The stock trailing arms flex under cornering loads giving you inconsistent handling characteristics.

Additional Information

The LTA110's heavy-duty construction eliminates trailing arm flex, giving you much improved repeatability on the street, starting line, or in the corners.

Part Type

Engine Mount

Product Overview

Launching harder, reducing wheel hop, and adding cornering consistency to your 2008-2017 Dodge Challenger is easy with lower trailing arms from BMR Suspension. Stock stamped steel trailing arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMRs polyurethane, non-adjustable trailing arms for Challengers (LTA110) are manufactured from heavy-duty 0.75-x1.5-inch boxed steel tubing. The open end is formed from CNC laser cut, CNC formed 3/16-inch steel plate. This design gives you a strong trailing arm that greatly improves performance. Greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMRs bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Application Guide

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Control Arms, Lower Trailing Arms, Tubular, Rear, Steel, Black Hammertone Powdercoated, Dodge, Pair

Stabilize your ride with BMR control arms. They are CNC-machined and made, depending on the application, from heavy-duty DOM steel tubing, chromoly steel, or 6061-T6 aluminum. BMR polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. Their greasable bushings are internally fluted to allow grease to coat the inner sleeve, while keeping the thrust surface lubricated—ensuring quiet, reliable operation over the life of the bushings.

BMR's heavy-duty spherical bearings are designed to eliminate deflection and wheel alignment changes. Their spherical bearings can withstand the extreme stresses of the performance environment, offering all of the bind-free suspension articulation needed for great handling.

These design features result in incredibly strong control arms that greatly improve performance and work well in street performance, drag race, and handling applications. Many are adjustable, allowing you to dial-in pinion angles for correct driveline geometry, or correct, add, or reduce negative camber and other alignment settings.

BMR control arms are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!
