Upper Control Arms

This means you get the ultimate in performance. Designed for street performance, drag race, and handling, and pro-touring applications, BMR upper A-arms are engineered to provide 2 additional degrees of positive caster for increased high-speed stability. Combine with BMR Lower A-arms, and you get 4 additional degrees of positive caster (2 degree from the uppers and 2 degrees from the lowers), providing up to 6 degrees of total positive caster over stock. This gives you improved geometry and increased lateral grip during cornering situations. These A-arms utilize tall ball joints, drastically improving the camber curve over OE arms/ball joints. This camber gain ensures maximum tire contact while cornering. The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you a improved camber curve through the front suspensions range of motion.BMR's suspension AA028 Non-Adjustable Upper A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.Control arm hardware kit RH006 (Includes upper and lower control arm hardware - Highly Recommended) also available.

Additional Information

BMR AA028 upper A-arms eliminate deflection, greatly improving steering feel and response in normal and performance driving situations.

Part Type

Suspension Control Arm

Product Overview

These A-arms utilize tall ball joints, drastically improving the camber curve over OE arms/ball joints. This camber gain ensures maximum tire contact while cornering. The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you a improved camber curve through the front suspensions range of motion.BMR Suspension AA028 Non-Adjustable Upper A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.Control arm hardware kit RH006 (Includes upper and lower control arm hardware - Highly Recommended) also available.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Application Guide

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

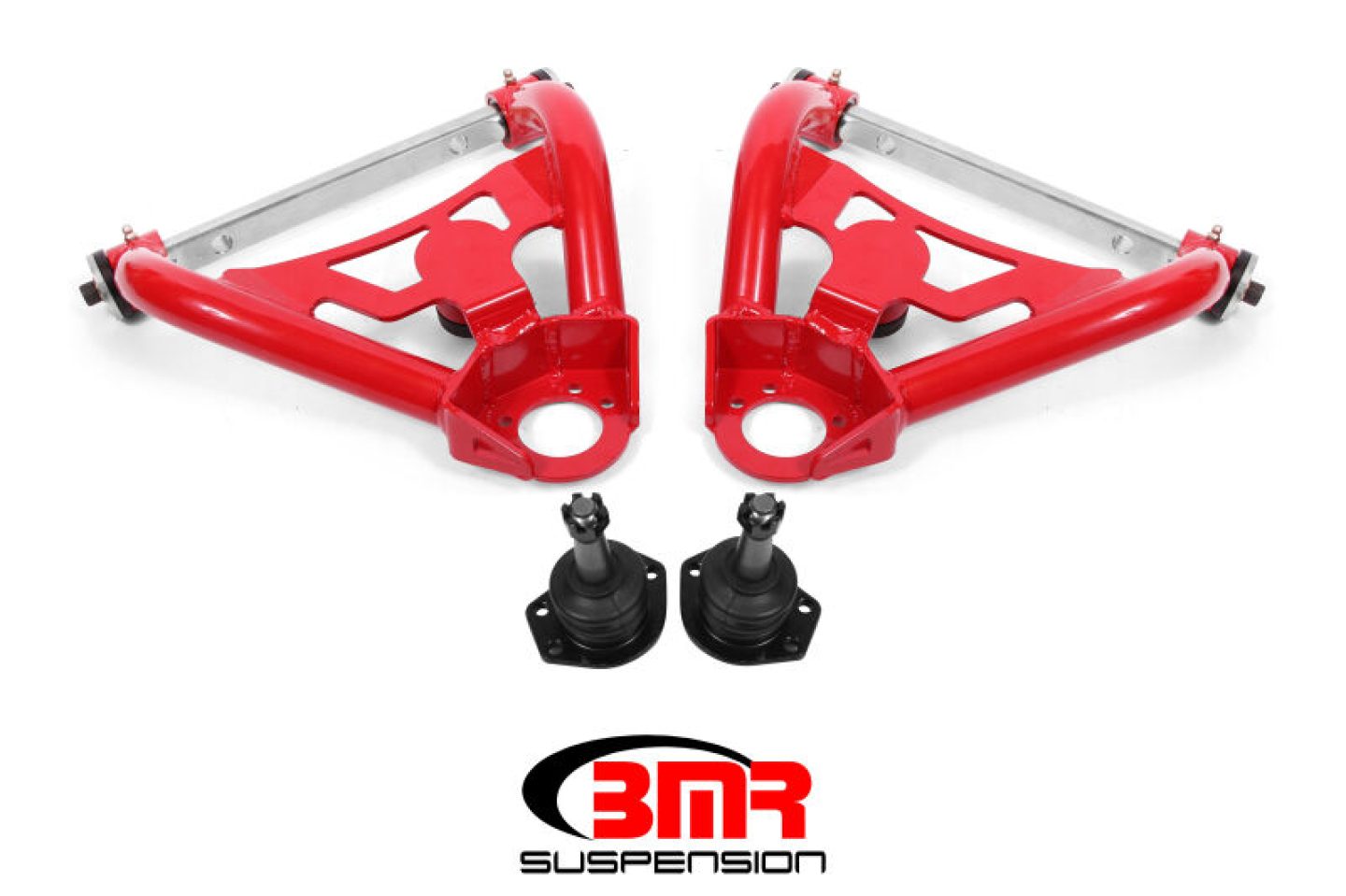

Control Arms, Tubular, Steel, Red Powdercoated, Front Upper, Chevy, Pontiac, Pair

BMR A-arms stabilize your vehicle. A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. BMR Suspension A-arms are fabricated from heavy-duty 0.095 in. wall DOM tubing with laser-cut, CNC-formed plate steel for extra strength and to eliminate deflection. BMR A-arms are fitted with heavy-duty ball joints and 95-durometer polyurethane bushings for a solid, more responsive feel over the stock rubber bushings. Polyurethane adds strength and reduces deflection over the stock rubber bushings, while still absorbing much of the NVH, providing you with a great blend of performance and comfort. Designed for street performance, drag race, handling, and pro-touring applications, BMR A-arms give you improved geometry and increased lateral grip during cornering situations.
