Sway Bar Kit

Reduce body roll and improve the handling of your 1978-1987 G-Body with a Rear Sway Bar Kit from BMR's suspension! Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMRs Non-Adjustable Rear Sway Bar Kit (SB021) increases sway bar rate and is designed for street performance, autocross, and road racing applications. When performance is a must, rely on BMR's suspension!

Additional Information

BMR Suspension designed the SB021 sway bar kit for street performance, autocross, and road race applications.

Part Type

Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit

Product Overview

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspensions SB021 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-duty, solid 1-inch bar stock, the SB021 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection.BMR Suspension designed the SB021 sway bar for street performance, autocross, and road race applications. The large adjustable sway bars three positions give you the versatility to drive to and from the road course or autocross and still out handle the competition with the same sway bar. The SB021 front sway bar gives you a 99% increase in sway bar rate. These rate increases and adjustability allow you to fine-tune the handling characteristics of your G-body so you can drive harder through corners with minimal body roll. The SB021 attaches to your G-body using the factory mounting locations in the lower control arms. This allows for great sway bar control, and more control equals better handling. When performance is a must, rely on BMR Suspension!BMR Suspensions SB021 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Application Guide

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

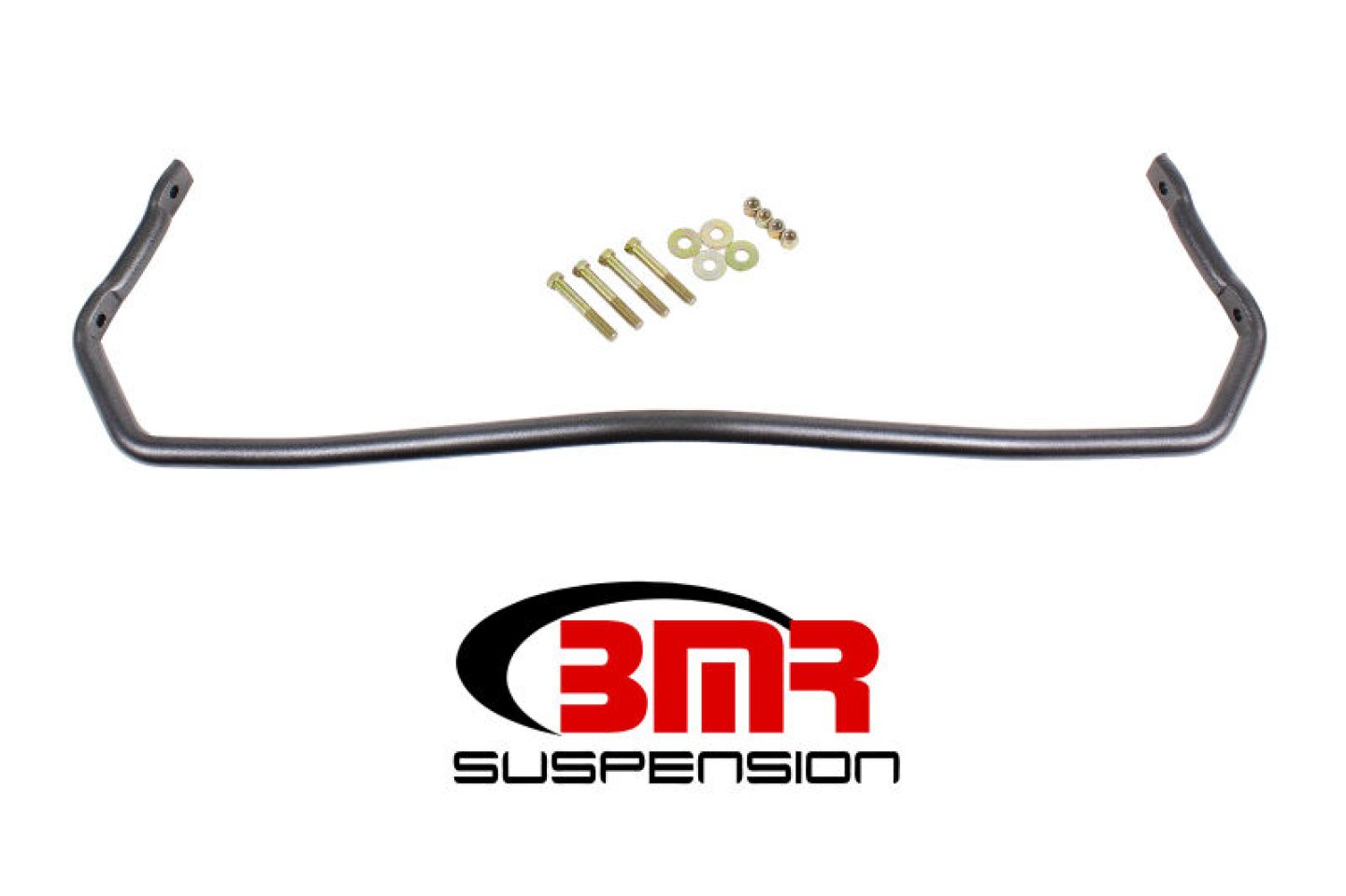

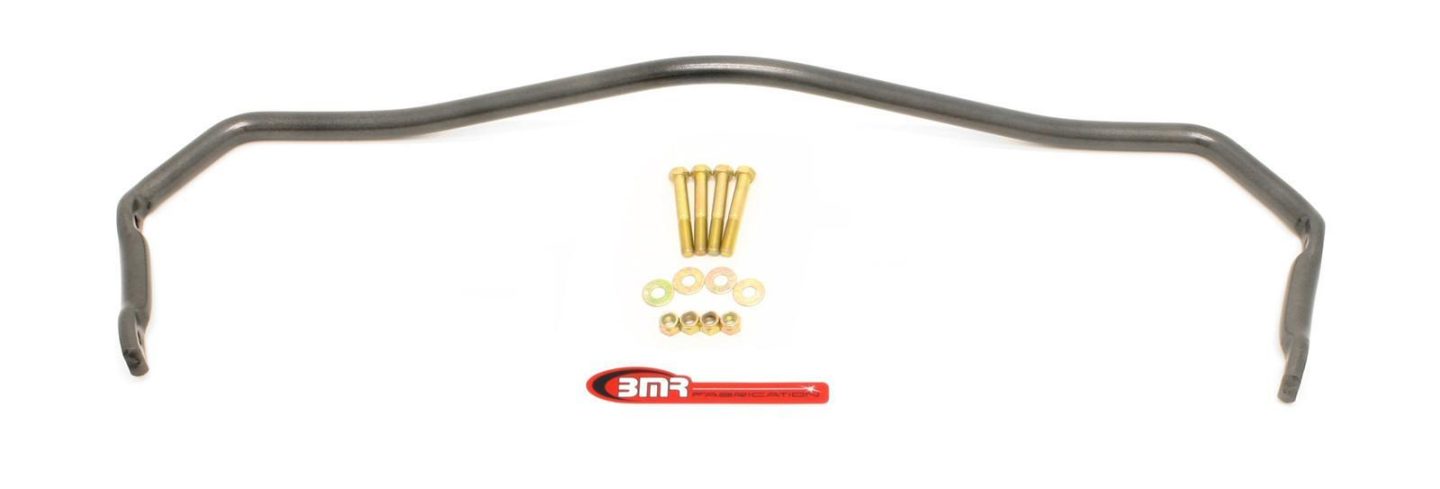

Sway Bar, Rear, Solid Steel, Black Hammertone Powdercoated, 1.0 in. Diameter, Buick, Chevy, Olds, Pontiac, Kit

BMR sway bars are the most significant handling upgrade you can make to your vehicle. With hand tools and about an hour or so of your time, BMR sway bars will deliver the most noticeable handling improvement to your ride. BMR chooses to cold form their tubular sway bars instead of the conventional hot formed process. For you that means better resistance to torsional fatigue, more consistent "memory" retention, and money well spent for lasting performance and driving enjoyment. BMR put countless hours into developing and testing the ideal rates for their bars, so feel their passion for perfection by installing one of their sway bar kits--you're in control with BMR Suspension.
