Sway Bar Kit

Reduce body roll and improve the handling of your S550 and S650 Mustang with a Sway Bar Kit from BMR's suspension! Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMRs Sway Bar Kit (SB760) increases sway bar rate and is designed for street performance, autocross, and road racing applications. When performance is a must, rely on BMR's suspension!

Additional Information

BMR Suspension designed the SB760 sway bar kit for street performance, autocross, and road race applications.

Part Type

Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit

Product Overview

Fits all S550 Mustangs;Designed for street performance, autocross, and road race applications;Dramatically reduces body roll;19%-55% increase in sway bar rate (front), 29%-41% increase is sway bar rate (rear);Cold formed to better resist torsional fatigue;Manufactured from 35mm heavy-wall DOM tubing (front), Manufactured from 22mm heavy-duty bar stock (rear);Front sway bar is three-way adjustable for street and track use ;Adjustability allows for fine-tuning of suspension;Rear sway bar is non-adjustable fixed design;High durometer, greasable polyurethane bushings;?? Formed front sway bar saddles;Zinc-plated rear sway bar saddle;Durable powdercoat finish;3-4 hour installation time;Proudly designed in the U.S.A.;Proudly made in the U.S.A.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Application Guide

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

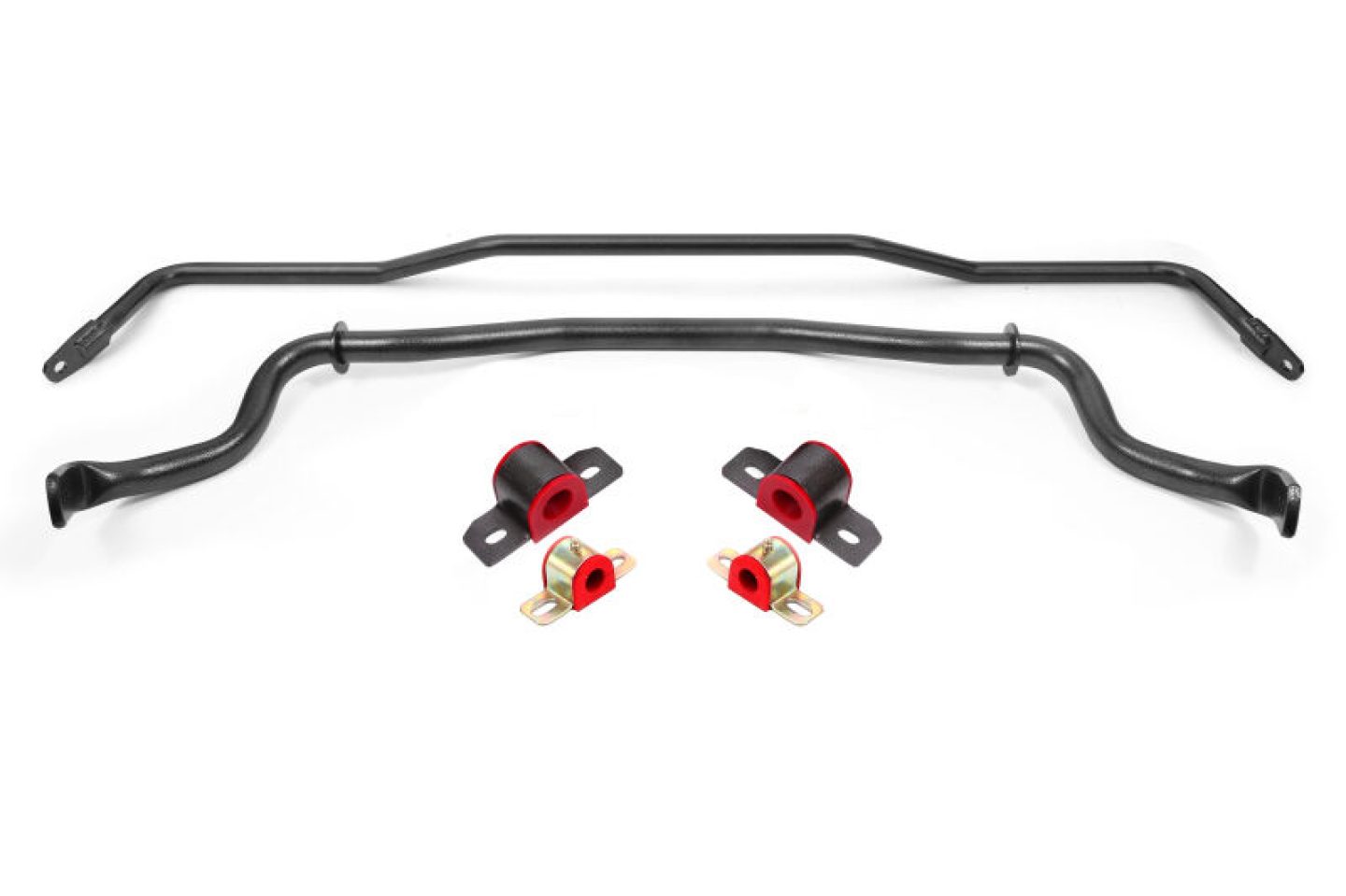

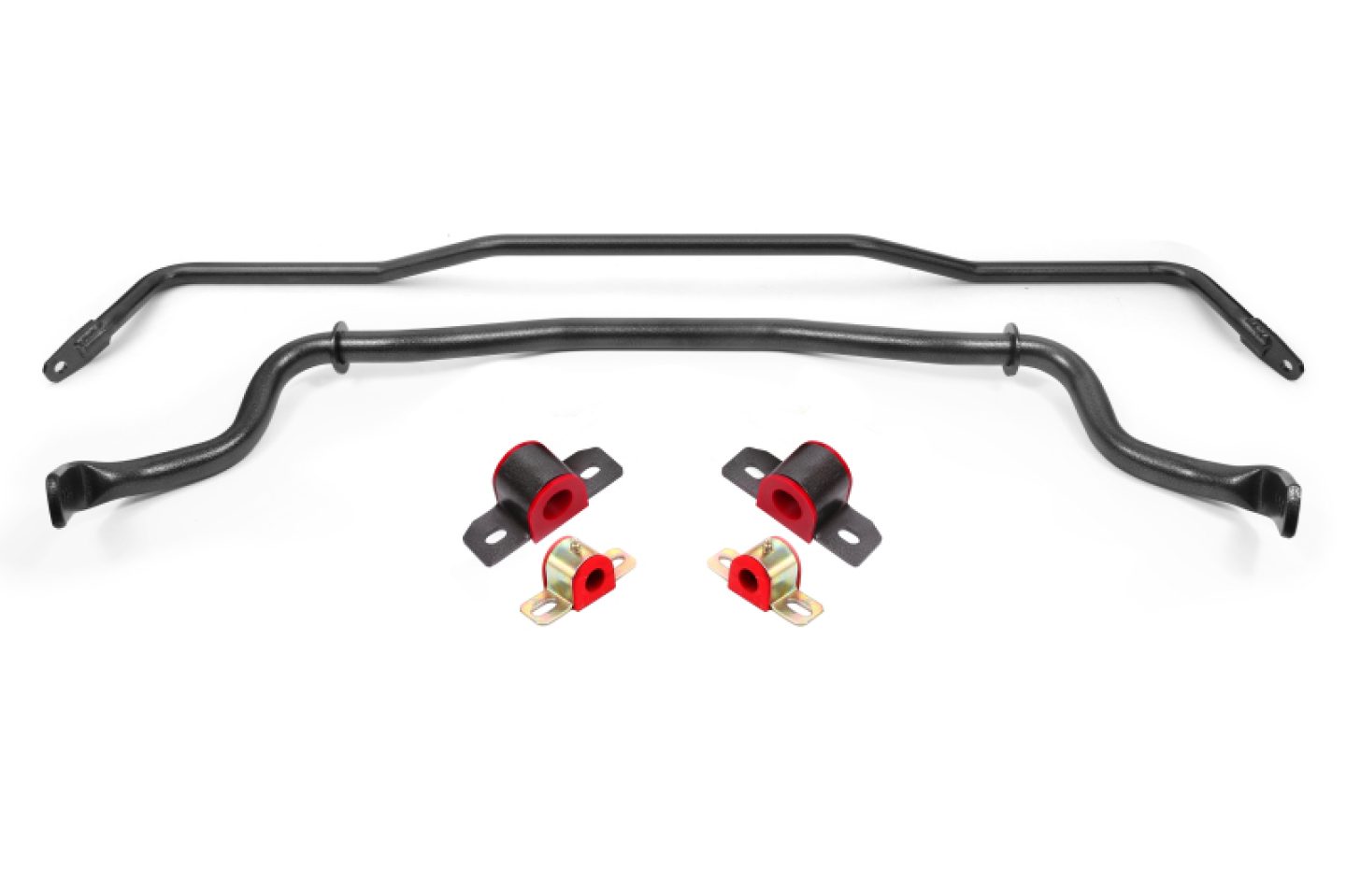

Sway bar kit with bushings, front (SB044H) and rear (SB762H) 2015-2022 S550 Mustang
