COMP Cams Camshaft C43 266H-R12
COMP Cams Camshaft C43 266H-R12
A$1,247.85
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
MagCPU210/215HRlr4.3
Retro-Fit Hydraulic Roller Cam
Additional Information
Works with throttle body and sequential port injection with aftermarket chip. Good low end, mid-range.
Application Summary
Fits 1980-1997 Chevrolet 90 Degree 262/4.3L V6
Part Type
Engine Camshaft
Product Overview
*Magnum Camshafts*
• Great high RPM power
• Easy on valve train parts
• Can be used with mild ratio rocker arms and traditional performance valve springsAvailable
• Best with aftermarket converter and 9.5:1+ compression
| Additional Application Notes | |
|---|---|
| • Fits only factory flat tappet Chevrolet 4.3L V6 engines. | |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Features
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Advertised Exhaust Duration: | 270 |
| Advertised Intake Duration: | 266 |
| Amazon ASIN: | B000P5B84W |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,800-5,000 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| Cam Type: | Hydraulic Roller |
| Cam and Lifter Kit Upgrade: | CL18-415-8 |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Austempered Ductile Iron |
| Camshaft Series: | Magnum Computer Controlled |
| Description: | Magnum Computer Controlled 210/215 Hydraulic Roller Cam for Chevrolet 262/4.3L |
| Engine Family: | Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1980-1997) |
| Exhaust Duration @ .050 in.: | 215 |
| Exhaust Duration at .050 inch Lift: | 215 |
| Exhaust Duration: | 270 |
| Exhaust Valve Lift(in): | 0.5 |
| Exhaust Valve Lift: | 0.5 |
| Grind Number: | 266HR |
| Intake Duration @ .050 in.: | 210 |
| Intake Duration at .050 Inch Lift: | 210 |
| Intake Duration: | 266 |
| Intake Valve Lift(in): | 0.500 |
| Intake Valve Lift: | 0.5 |
| K-Kit Upgrade: | K18-415-8 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Part Number: | cca18-415-8 |
| RPM Range: | 1000-7000 |
| SK-Kit Upgrade: | SK18-415-8 |
| Title: | Magnum Computer Controlled 210/215 Hydraulic Roller Cam for Chevrolet 262/4.3L |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Catalog |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Comp Cams, Comp Cams (edelbrock) |
| StreetFX SKU | cca18-415-8 |
| SFX Item ID | 4119241 |
| Accounting SKU | cca-18-415-8 |
| Manufacturer SKU | 18-415-8 |
| Manufacturer UPC | 036584780632 |
| Alternative References | 18-415-8, CCA-18-415-8 |

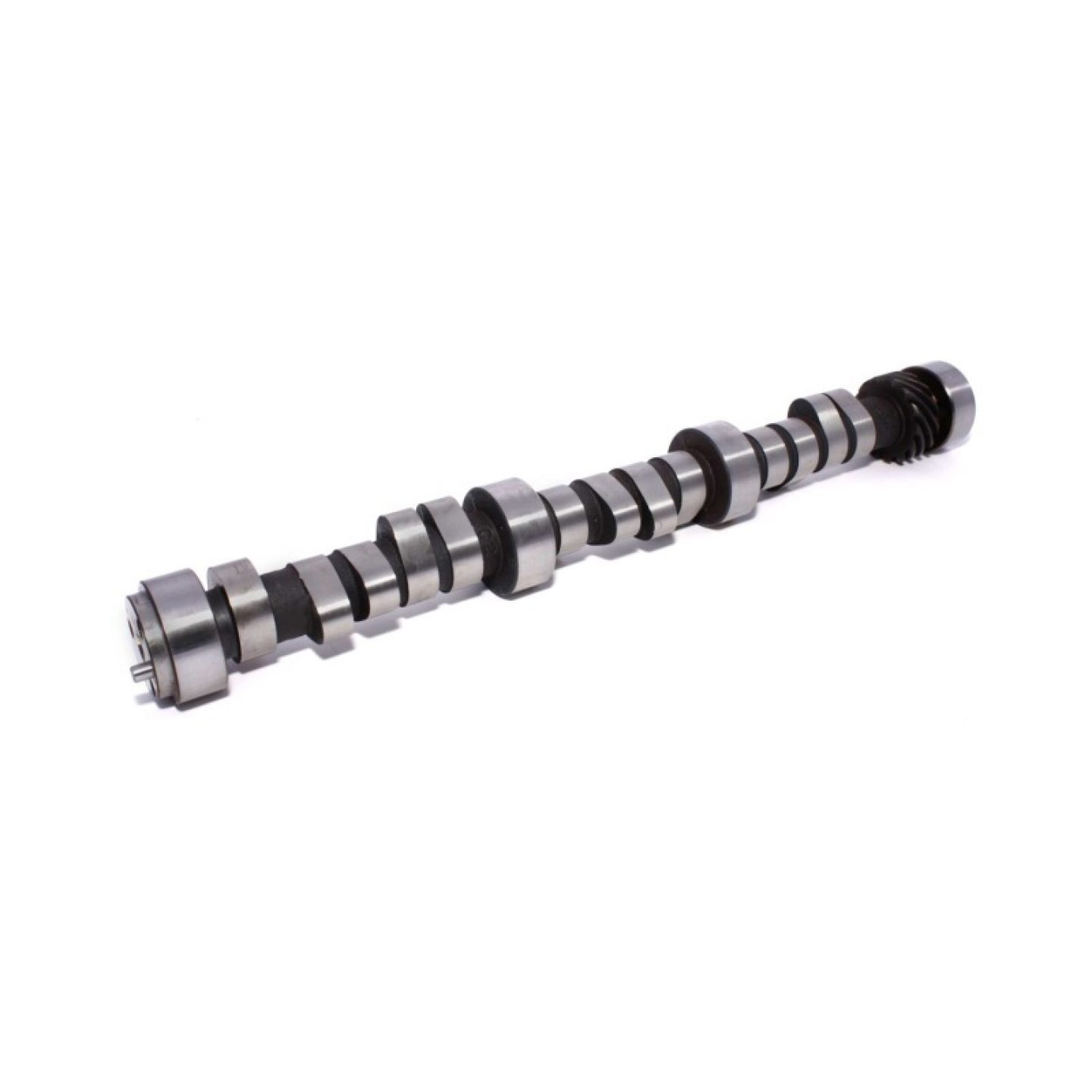

Camshaft, Hydraulic Roller Tappet, Advertised Duration 266/270, Lift .500/.500, Chevy 4.3 V-6, Each
COMP Cams Magnum retrofit camshafts are designed for everyone from the serious street performance enthusiast to the all-out competition drag racer. Whether you're driving a street rod, show car with power accessories, a super gas, or super competition car on alcohol, COMP Cams will fit your engine's needs.
| Product Attributes | |
|---|---|
| Brand | COMP Cams |
| Manufacturer's Part Number | 18-415-8 |
| Part Type | Camshafts |
| Product Line | COMP Cams Magnum Retrofit Camshafts |
| UPC | 036584780632 |
| Cam Style | Hydraulic roller, Retro-fit |
| Camshaft Use | Street/Strip |
| Basic Operating RPM Range | 1,800-5,000 |
| Intake Duration at 050 inch Lift | 210 |
| Exhaust Duration at 050 inch Lift | 215 |
| Duration at 050 inch Lift | 210 int./215 exh. |
| Advertised Intake Duration | 266 |
| Advertised Exhaust Duration | 270 |
| Advertised Duration | 266 int./270 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.500 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.500 in. |
| Valve Lift with Factory Rocker Arm Ratio | 0.500 int./0.500 exh. |
| Remanufactured | No |
| Computer-Controlled Compatible | Yes |
| Grind Number | 266HR |
| Valve Springs Required | Yes |
| Quantity | Sold individually. |
| Notes | Requires thrust button, wear plate, and adjustable valvetrain. |
