Description

COMP Cams Alum Ped MT RockersFord SB 1.

Additional Information

19054-16 - Alum Ped MT Rockers,Ford SB 1. 7 5/16 ARC

Part Type

Engine Rocker Arm

Product Details

Amazon ASIN:	B00N6LM8IC
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?:	No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:	Yes, but must be a race/competition only vehicle.
Description:	Ultra-Gold ARC Rocker Set w/ 1.7 Ratio for '77-'92 Ford 289-351W w/ 5/16" Stud
Engine Family:	Ford 302-351W (1977-1992)
Maximum Valve Spring Open Pressure:	700
Part Number:	cca19054-16
Ratio:	1.5
Rocker Arm Material:	Aluminum
Rocker Arm Ratio:	1.7
Rocker Arm Series:	Ultra-Gold ARC Aluminum
Rocker Stud Diameter:	5/16 Pedestal Mount
Stud Diameter:	3/8"
Title:	Ultra-Gold ARC Rocker Set w/ 1.7 Ratio for '77-'92 Ford 289-351W w/ 5/16" Stud

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Data: v2 - Desc: v4.1 - Upd: 2025-10-12 05:04:30

Features

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Reference Information

Reference Data (Provide these details to our support team)
Brand Name/s	Comp Cams, Comp Cams (edelbrock)
StreetFX SKU	cca19054-16
SFX Item ID	4119294
Accounting SKU	cca-19054-16
Manufacturer SKU	19054-16
Manufacturer UPC	036584276678
Alternative References	CCA-19054-16

Specifications

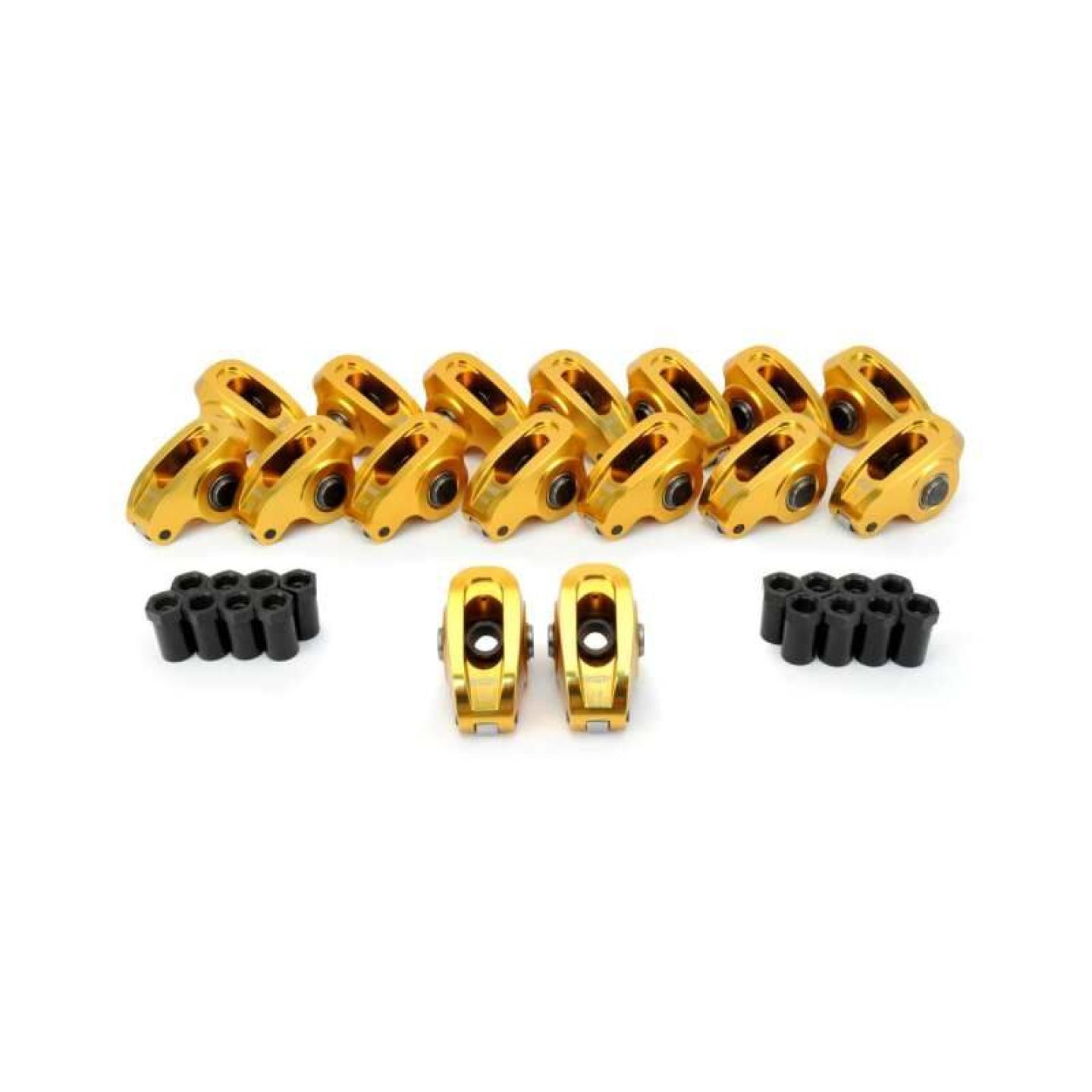

Rocker Arms, Ultra Gold, Full Roller, 1.7 Ratio, Aluminum, 5/16 in. Stud Size, Ford, 5.0L, 5.8L, Set of 16

Designed specifically for high performance street and race engines, COMP Cams Ultra Gold aluminum rocker arms are precision CNC-machined to strict tolerances. They incorporate modern technology and design features to create the most advanced aluminum rocker arms available. Proven to withstand extremely aggressive spring pressure, the COMP Cams Ultra Gold aluminum rocker arms use their CNC-machined aluminum design for high quality and the ultimate in ratio accuracy.

Product Attributes
Brand	COMP Cams
Manufacturer's Part Number	19054-16
Part Type	Rocker Arms
Product Line	COMP Cams Ultra Gold Aluminum Rocker Arms
UPC	036584276678
Rocker Arm Mounting Style	Stud
Self-Aligning	No
Rocker Arm Ratio	1.7
Stud Size	5/16 in.
Rocker Arm Style	Full roller
Shims Included	No
Rocker Arm Material	Aluminum
Rocker Arm Body Style	Standard
Rocker Arm Fasteners Included	Yes
Rocker Arm Nut Style	Polylock
Rocker Arm Finish	Gold anodized
Quantity	Sold as a set of 16.
Notes	Clearance must be checked when using stock valve covers.

compatibility

COMP Cams Alum Ped MT Rockers Ford SB 1.
Year Range	Make	Model	Submodels	Region
1977	Ford	Bronco	Custom, Sport	US
1980-1993	Ford	Bronco	Custom, Ranger XLT, XLS, XLT Lariat, XLT, Eddie Bauer, XL, XLT Nite	US
1979-1983	Ford	E-100 Econoline Club Wagon	Base, Chateau, Custom, XL	US
1979-1993	Ford	E-150 Econoline	Base, Chateau, Custom, XL	US
1979-1993	Ford	E-150 Econoline Club Wagon	Base, Chateau, Custom, XL, XLT	US
1977-1993	Ford	E-250 Econoline	Base, Chateau, Custom, Northland, XL	US
1977-1986	Ford	LTD	Base, Landau, Country Squire, Crown Victoria, S, Brougham, LX Brougham, Country Squire LX, Crown Victoria LX	US
1977-1981	Ford	Thunderbird	Base, Diamond Jubilee, Town Landau, Heritage, Silver Anniversary	US
1983-1988	Ford	Thunderbird	Base, Heritage, LX, Sport, Elan, Fila	US

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

Application Data
Make	FORD
Beginning Year	1977
Ending Year	1993
Engine Type	V8
Engine Family	Ford small block Windsor
Engine Size	5.0L/302

Make	FORD
Beginning Year	1977
Ending Year	1993
Engine Type	V8
Engine Family	Ford small block Windsor
Engine Size	5.8L/351

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
