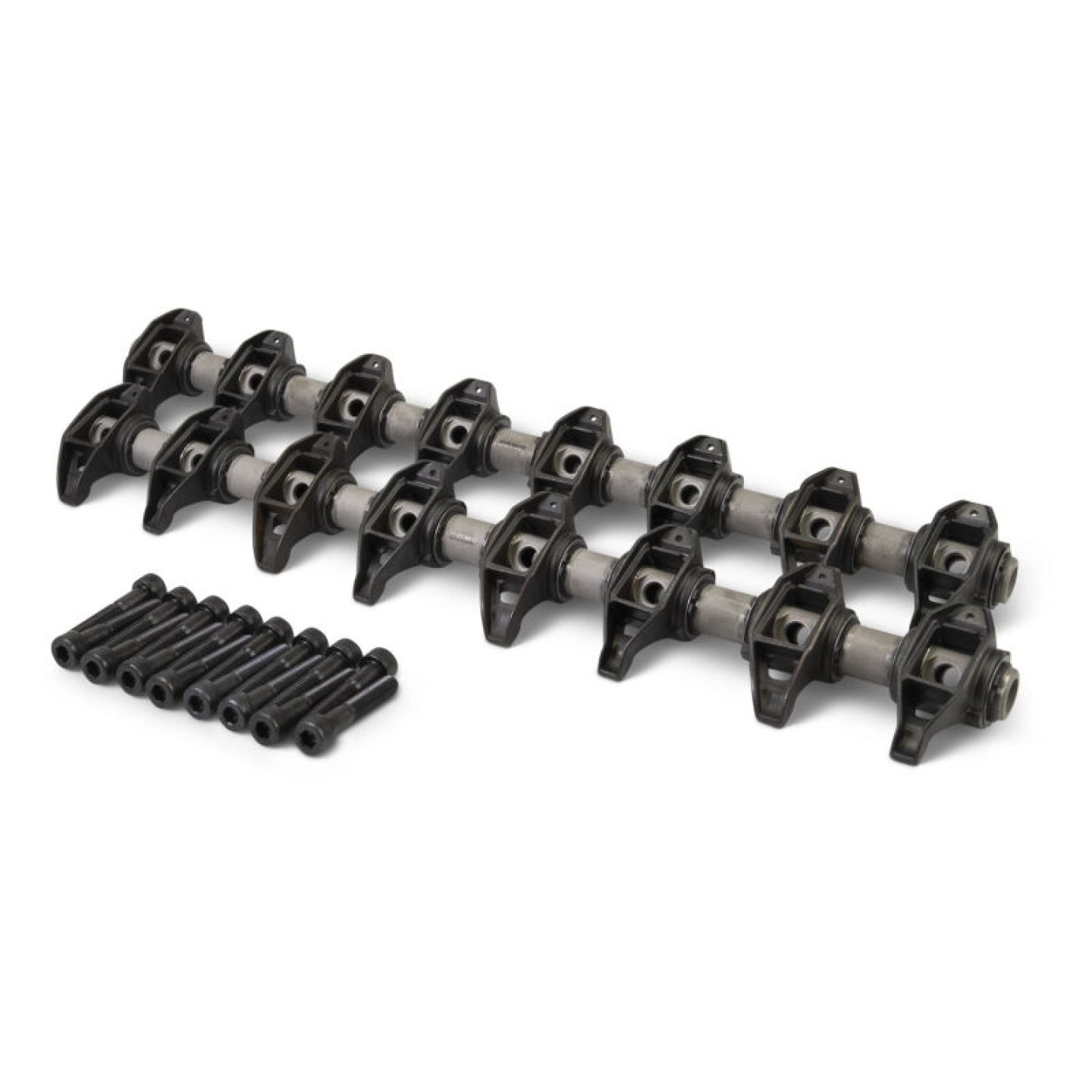

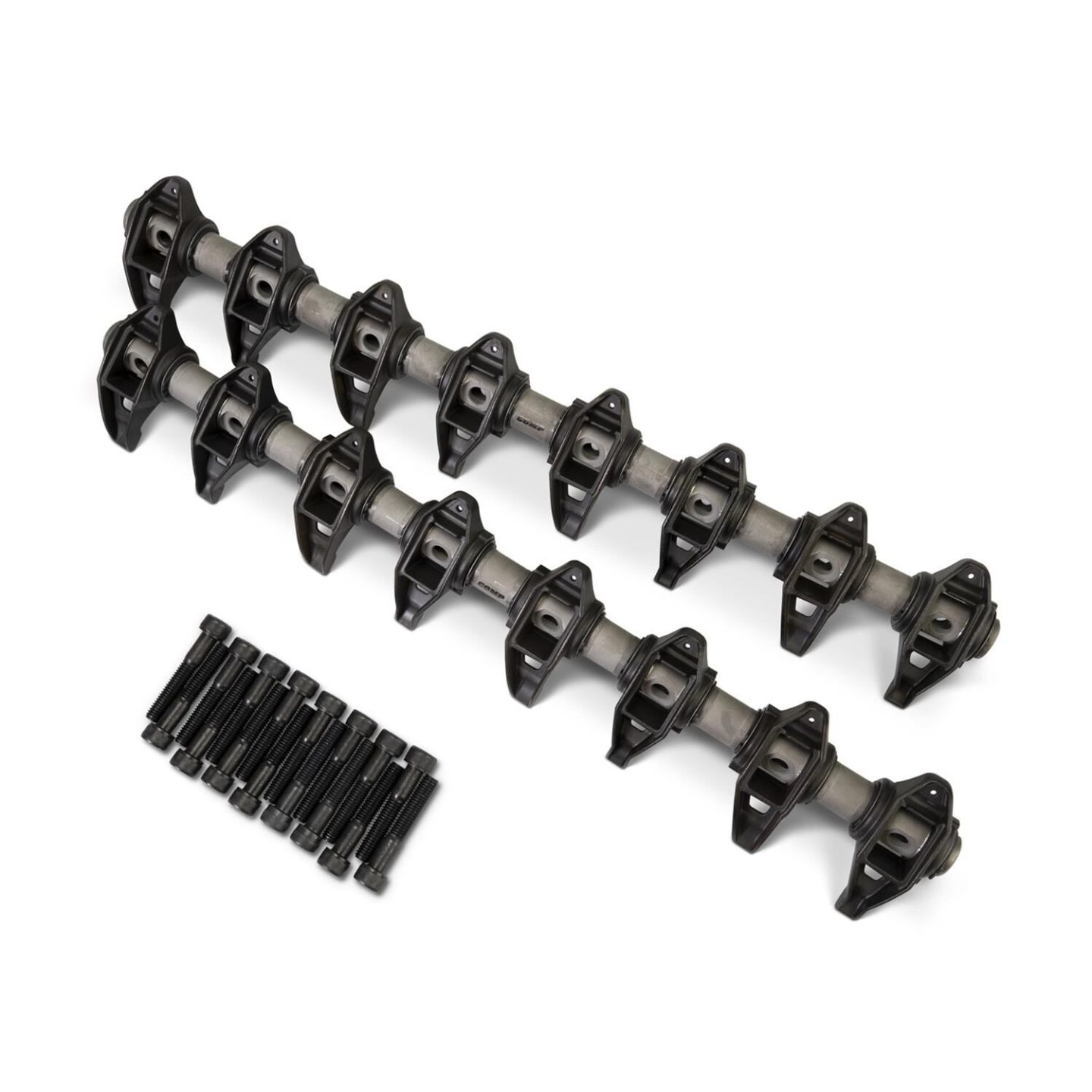

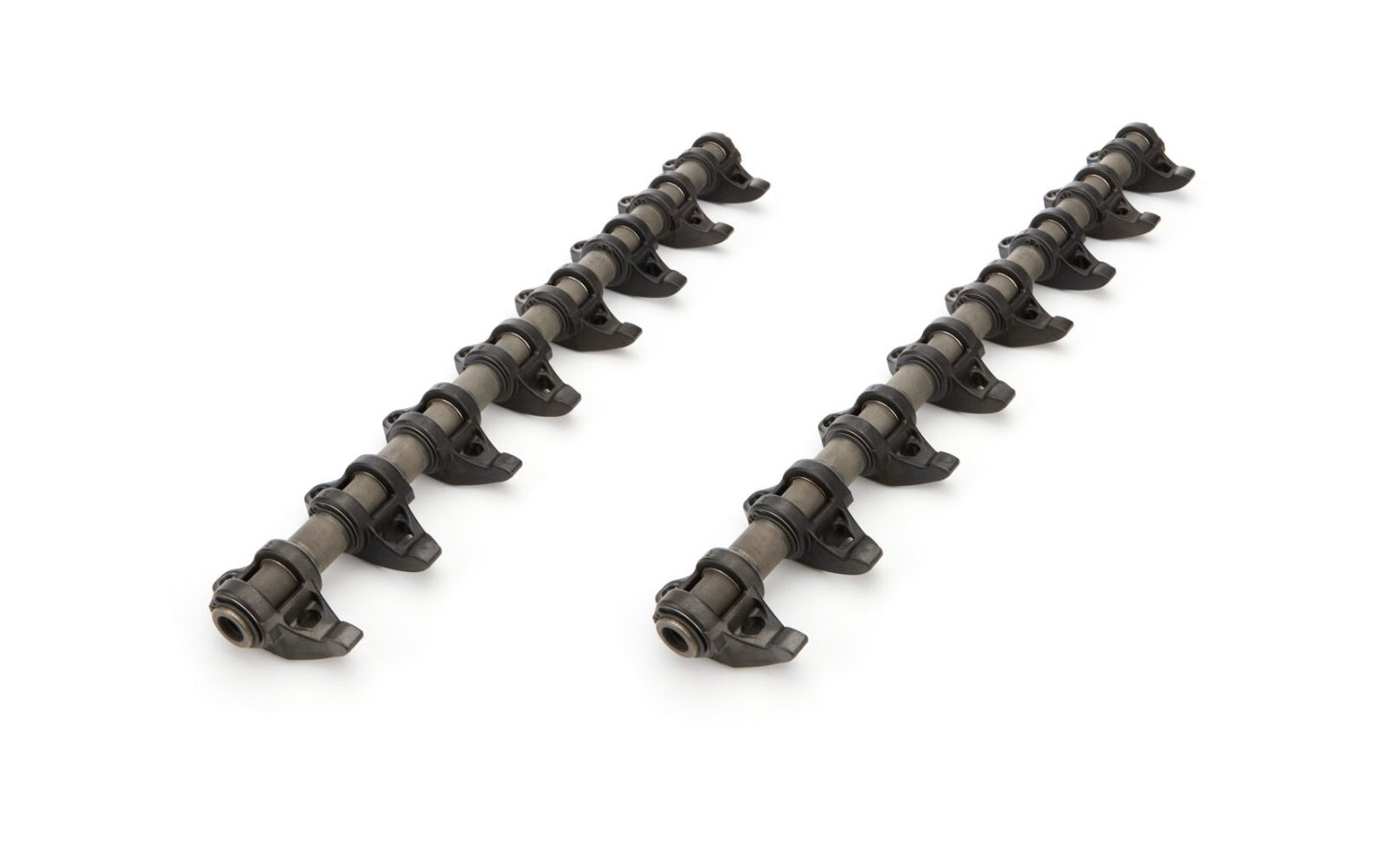

Rocker Arm - Max-Lift BSR - Shaft Mount - 1.7 Ratio - Non-Roller - Black Nitride - Steel - GM LS-Series - Kit
Additional Information
RHS Pro-Elite LS3 - AFR Mongoose LS3 - Trick Flow 255 LS3
LS3ShaftRockers
COMP Cams® expands upon its Max-Lift™ BSR Shaft Rocker Systems to include aftermarket LS3-style cylinder heads. This new bolt-in, bushed shaft rocker system is specifically designed for aftermarket LS3 heads where valve geometry is different from the stock configuration. By tying all eight rockers onto a single shaft, the BSR Series of rockers improves valve train dynamics by increasing valve train stiffness. Replacing the high-Hertz loading needle bearings with tri-layer bushings reduces deflection, allowing for increased rigidity and decreased rocker pad wear. The plasma-nitride finish minimizes friction and increases durability, while provisions for optional pressurized oiling further improve longevity and performance. The increased valve train stiffness provided by the COMP Cams Max-Lift BSR Shaft Rocker System makes the same camshaft perform like a slightly larger camshaft as more of the lobe lift is transferred directly to the valve train instead of being absorbed by deflection in the cylinder head and single-bolt rocker mounting design. The system will also allow the use of higher-lift, more aggressive camshafts before the valve train goes out of control. The Max-Lift BSR Shaft Rocker System ensures the rocker pad and valve tip remains parallel through the contact sweep, allowing the rocker to safely sweep up to .675†valve lift. The Max-Lift BSR Shaft Rockers System for aftermarket LS3-style heads will fit RHS 54550 Pro Elite LS3, Edelbrock Victor CNC LS3, Trick Flow 255 LS3, AFR Mongoose LS3, and Mast Black Label LS3.
Additional Information
Max-Lift BSR Shaft Rockers for Aftermarket LS3-style cylinder heads single-shaft design increases valve train stiffness, durability, and lift to .675", while improving dynamics. Tri-layer bushings and plasma-nitride finish reduces friction.
Part Type
Engine Rocker Arm Kit
Product Overview
COMP Cams® expands upon its Max-Lift⢠BSR Shaft Rocker Systems to include aftermarket LS3-style cylinder heads. This new bolt-in, bushed shaft rocker system is specifically designed for aftermarket LS3 heads where valve geometry is different from the stock configuration.By tying all eight rockers onto a single shaft, the BSR Series of rockers improves valve train dynamics by increasing valve train stiffness. Replacing the high-Hertz loading needle bearings with tri-layer bushings reduces deflection, allowing for increased rigidity and decreased rocker pad wear. The plasma-nitride finish minimizes friction and increases durability, while provisions for optional pressurized oiling further improve longevity and performance. The increased valve train stiffness provided by the COMP Cams Max-Lift BSR Shaft Rocker System makes the same camshaft perform like a slightly larger camshaft as more of the lobe lift is transferred directly to the valve train instead of being absorbed by deflection in the cylinder head and single-bolt rocker mounting design. The system will also allow the use of higher-lift, more aggressive camshafts before the valve train goes out of control. The Max-Lift BSR Shaft Rocker System ensures the rocker pad and valve tip remains parallel through the contact sweep, allowing the rocker to safely sweep up to .675â valve lift. The Max-Lift BSR Shaft Rockers System for aftermarket LS3-style heads will fit RHS 54550 Pro Elite LS3, Edelbrock Victor CNC LS3, Trick Flow 255 LS3, AFR Mongoose LS3, and Mast Black Label LS3.
Product Details
| Adjustable: | No |
| Description: | COMP Cams - LS3 BSR Rocker Shaft Set RHS Pro |
| Fulcrum Length: | 1.56 |
| Machining Required: | No |
| Part Number: | cca1980-16 |
| Quantity: | 16 |
| Requires Guide Plates: | No |
| Rocker Arm Body Style: | Slider Tip |
| Rocker Arm Fasteners Included: | Yes |
| Rocker Arm Finish: | Black Oxide |
| Rocker Arm Material: | Steel |
| Rocker Arm Mounting Style: | Bolt-down |
| Rocker Arm Pivot: | Bushing |
| Rocker Arm Ratio: | 1.7 |
| Roller Tip: | No |
| Self-Aligning: | No |
| Shims Included: | No |
| Stud Size: | 8mm |
| Uses Factory Pedestal: | Yes |
Product Downloads
| # | Document Type | Download |
| 1. | Photo - out of package |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
