COMP Cams Camshaft Cr2 C280H
COMP Cams Camshaft Cr2 C280H
A$908.01
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

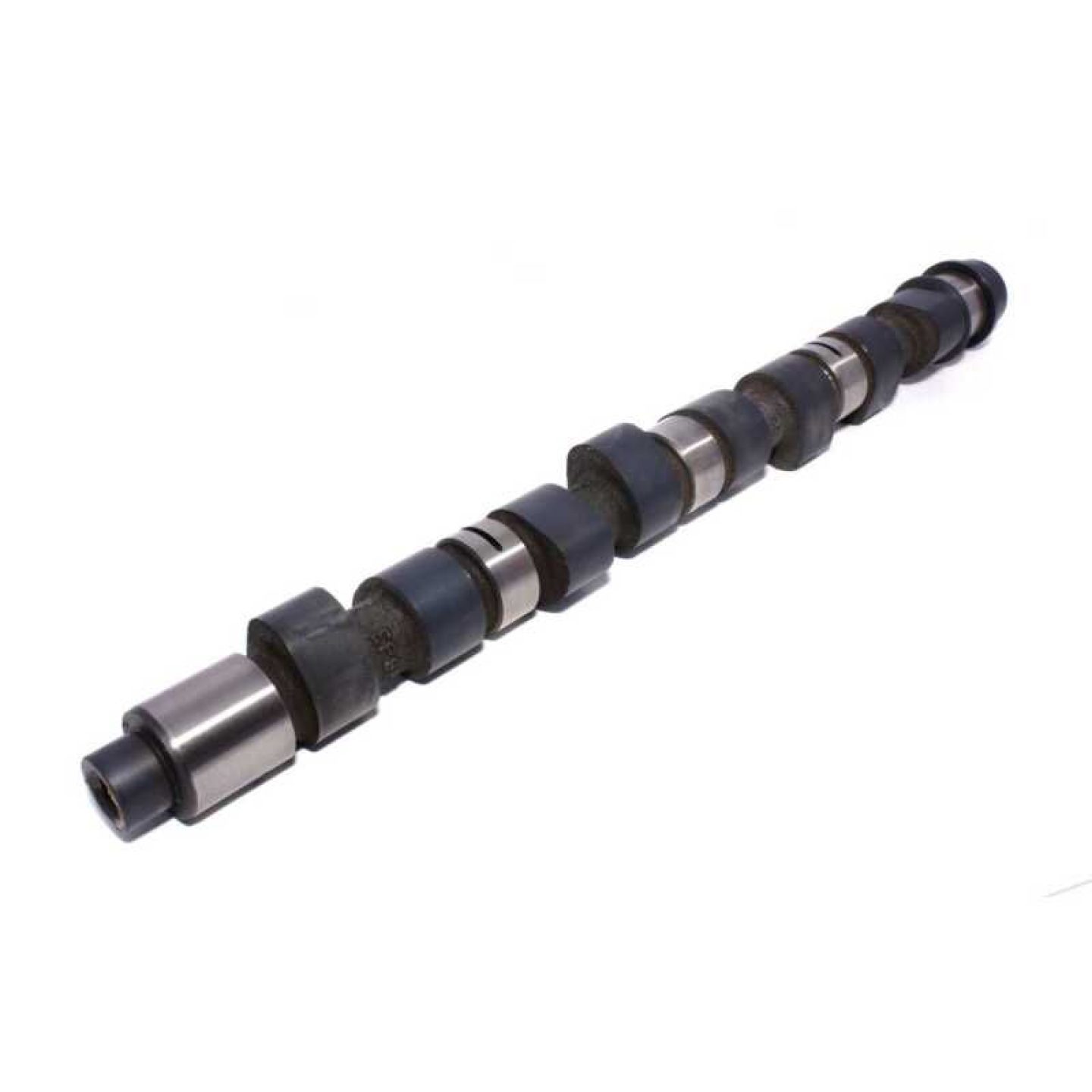

COMP Cams Camshaft Cr2 C280H
Hydraulic: Best Cam for performance usage. Slightly Choppy idle.
Additional Information
Best cam for performance usage. Slightly choppy idle.
Part Type
Engine Camshaft
Product Overview
*Magnum Camshafts*
• Great high RPM power
• Easy on valve train parts
• Can be used with mild ratio rocker arms and traditional performance valve springsAvailable
• Best with aftermarket converter and 9.5:1+ compression
| Additional Application Notes | |
|---|---|
| • Hyd. Roller; 1800-5500rpm; Adv. Dur. 280 In./Exh.; Valve Lift .46 In./Exh.; Lobe Angle 108 deg.; | |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Features
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Specifications
Product Details
| Advertised Exhaust Duration: | 280 |
| Advertised Intake Duration: | 280 |
| Amazon ASIN: | B0046ZE49I |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 1,800-5,500 |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| Cam Type: | Hydraulic Roller Swinging Follower |
| Cam and Lifter Kit Upgrade: | CL22-131-6 |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Magnum |
| Description: | Magnum 224/224 Hydraulic Roller Swinging Follower Cam Chrysler 2.2/2.5L |
| Engine Family: | Chrysler 2.2L, 2.5L SOHC 4 Cylinder (1981-1987) |
| Exhaust Duration @ .050 in.: | 234 |
| Exhaust Duration at .050 inch Lift: | 234 |
| Exhaust Duration: | 280 |
| Exhaust Valve Lift(in): | 0.46 |
| Exhaust Valve Lift: | 0.46 |
| Grind Number: | 280H |
| Intake Duration @ .050 in.: | 234 |
| Intake Duration at .050 Inch Lift: | 234 |
| Intake Duration: | 280 |
| Intake Valve Lift(in): | 0.46 |
| Intake Valve Lift: | 0.46 |
| Lifter Type: | Hydraulic Roller Swinging Follower |
| Lifters Included: | No |
| Part Number: | cca22-131-6 |
| RPM Range: | 1700-6800 |
| Title: | Magnum 224/224 Hydraulic Roller Swinging Follower Cam Chrysler 2.2/2.5L |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Product Downloads
| # | Document Type | Download |
|---|---|---|
| 1. | Catalog |
|
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Reference Information
| Reference Data (Provide these details to our support team) | |
|---|---|
| Brand Name/s | Comp Cams, Comp Cams (edelbrock) |
| StreetFX SKU | cca22-131-6 |
| SFX Item ID | 4119453 |
| Accounting SKU | cca-22-131-6 |
| Manufacturer SKU | 22-131-6 |
| Manufacturer UPC | 036584191179 |
| Alternative References | 22-131-6, CCA-22-131-6 |
Camshaft, Hydraulic Flat Tappet, Advertised Duration 280/280, Lift .460/.460, Mopar, 4-Cylinder, Each
Add performance to your ride with COMP Cams Magnum hydraulic SOHC camshafts. They offer you the benefits of hydraulic flat tappets--minimal maintenance, little valvetrain noise, and economy--plus great high-rpm power that's easy on your valvetrain parts. Magnum camshafts are great cams for added performance and can be used with mild ration rocker arms and traditional performance valve springs. Get a bigger charge from Magnum hydraulic SOHC camshafts.
| Product Attributes | |
|---|---|
| Brand | COMP Cams |
| Manufacturer's Part Number | 22-131-6 |
| Part Type | Camshafts |
| Product Line | COMP Cams Magnum Hydraulic SOHC Camshafts |
| UPC | 036584191179 |
| Cam Style | Hydraulic flat tappet |
| Camshaft Use | Street/Strip |
| Basic Operating RPM Range | 1,800-5,500 |
| Intake Duration at 050 inch Lift | 234 |
| Exhaust Duration at 050 inch Lift | 234 |
| Duration at 050 inch Lift | 234 int./234 exh. |
| Advertised Intake Duration | 280 |
| Advertised Exhaust Duration | 280 |
| Advertised Duration | 280 int./280 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.460 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.460 in. |
| Valve Lift with Factory Rocker Arm Ratio | 0.460 int./0.460 exh. |
| Remanufactured | No |
| Computer-Controlled Compatible | No |
| Grind Number | 280H |
| Valve Springs Required | Yes |
| Quantity | Sold individually. |
