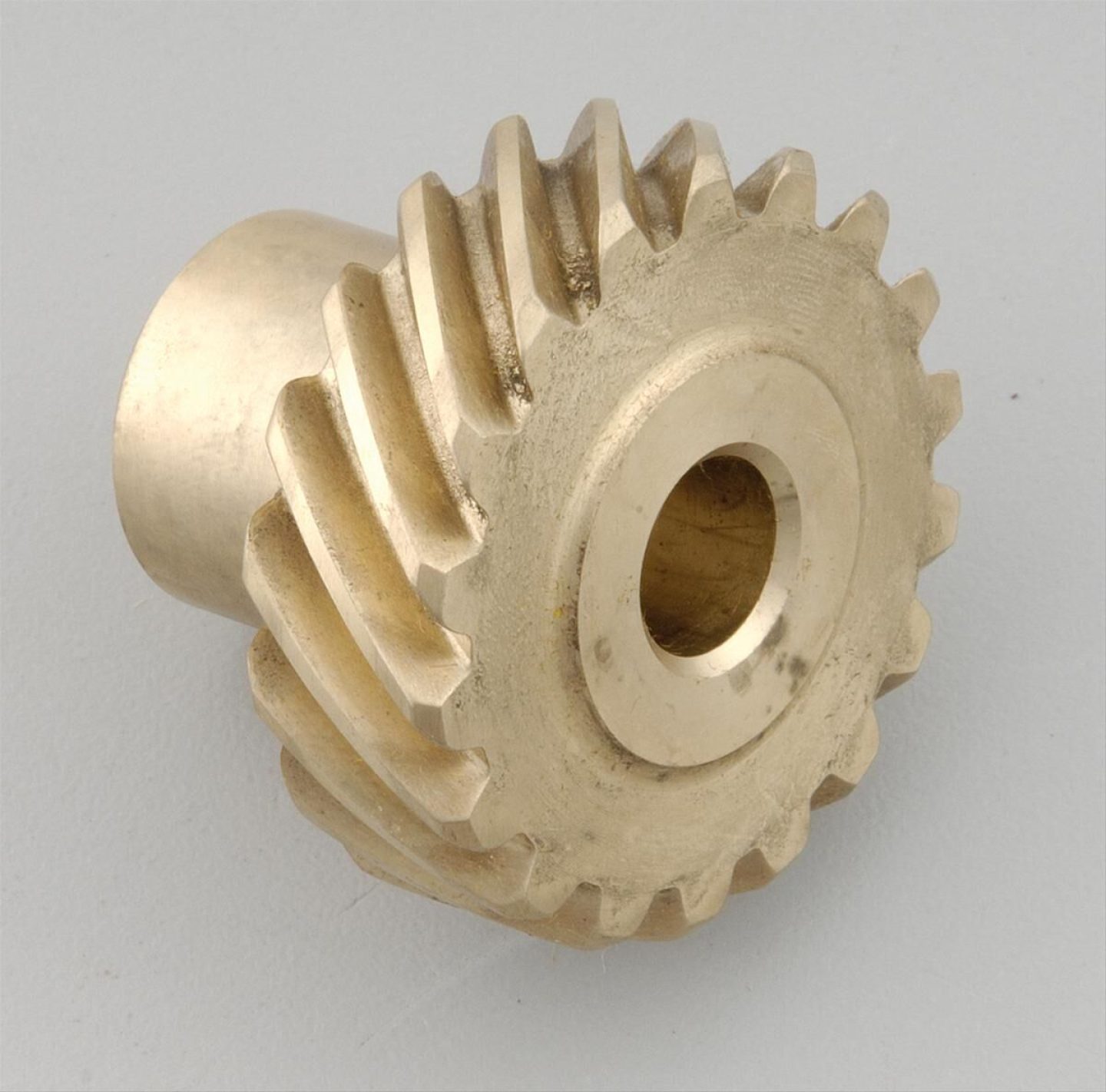

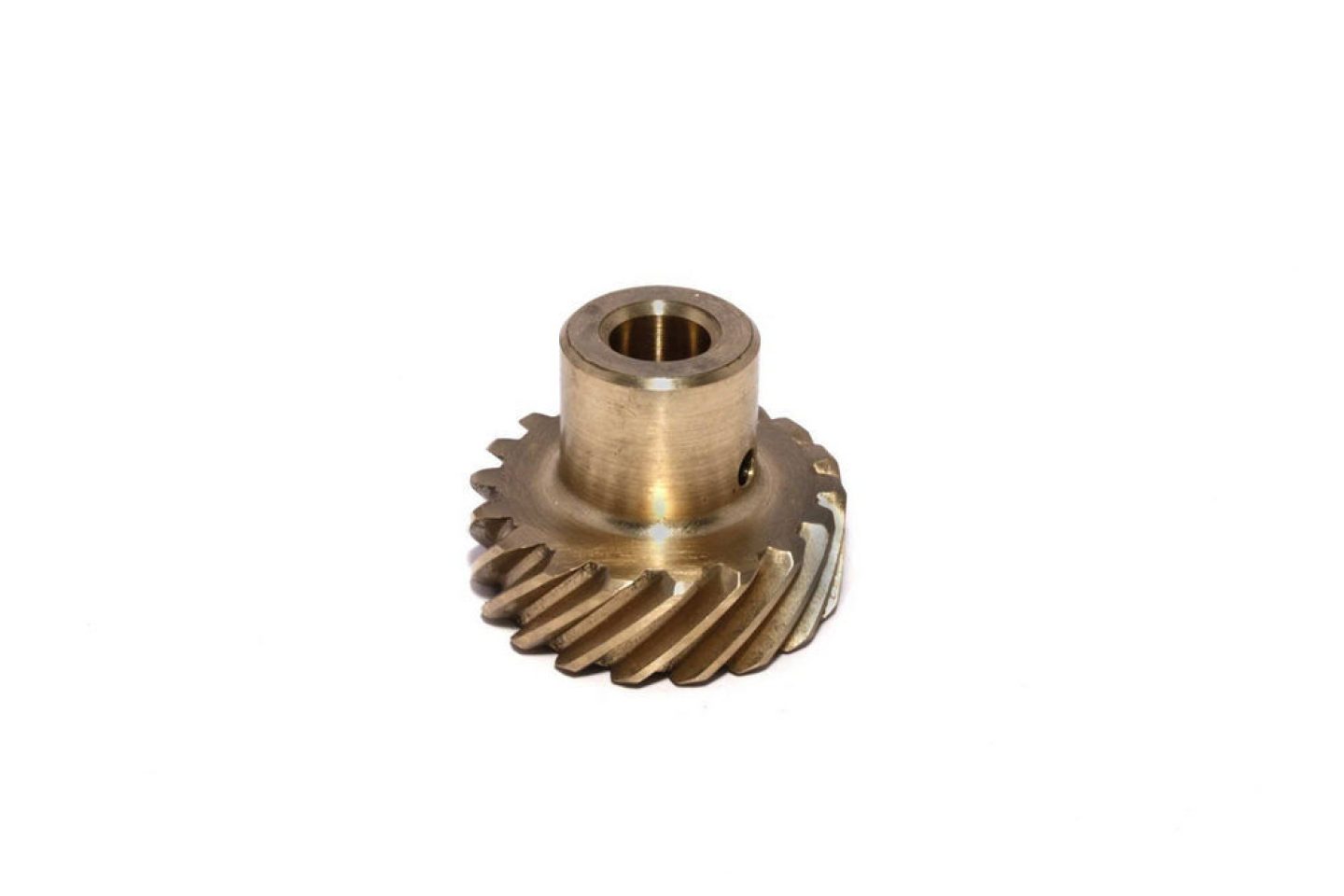

Distributor Gear - 0.484 in Shaft - Bronze - Natural - Mopar B / RB-Series / 426 Hemi - Each

Additional Information

Fits 383-440 B engines and 426 Hemi

Dstrbtr Drive Gear

One of the first requirements when installing a Steel Roller cam is the addition of a bronze distributor Gear. A stock cast iron Gear is not compatible with a Steel Camshaft. COMP Cams Gears are machined from AMPCO-45 extruded aluminum bronze with 5% Nickel added. These Gears feature a high-strength tooth design that resists wear even when used with high pressure oil pumps. These extra tough Gears are the answer when higher Mechanical properties are demanded.Chrysler-V8 "B" 383-440, V8 426 Hemi, Fits Shaft Diameter 0.484"

Additional Information

Featuring a high strength tooth that resists wear even with high-pressure oil pumps, this .484" I.D. bronze distributor gear fits steel roller cams in Chrysler B 383-400 and 426 HEMI.

Part Type

Distributor Drive Gear

Product Overview

*Composite Distributor Gears*
Manufactured from carbon ultra-poly, these represent the future of distributor gears. They are available for Small & Big Block Chevrolets with .500" or .491" distributor shafts, Small Block Ford and Chrysler R5 applications. These gears have undergone stringent testing in various applications with positive results and show great promise in solving the wear issues associated with bronze gears in racing applications with 300% increased durability.

*Composite gears are not recommended for use with high column or high pressure oil pumps.

*Bronze Distributor Gears*
One of the first requirements when installing a steel roller cam is the addition of a bronze distributor gear. A stock cast iron gear is not compatible with a steel camshaft. COMP Cams® gears are machined from AMPCO-45 extruded aluminum bronze with 5% nickel added. These gears feature a high-strength tooth design that resists wear even when used with high-pressure oil pumps. These extra tough gears are the answer when higher mechanical properties are demanded.

*Melonized Distributor Gears*
For your hydraulic or solid roller iron gear camshafts, it is recommended that you use a melonized distributor gear. These gears have undergone a “salt bath” nitriding process that gives them an extremely hard and slick surface to prevent excessive friction and wear, as well as rust accumulation. Used for factory engines, melonized steel distributor gears are harder than the standard iron or bronze gears.

*Oldsmobile Cast Iron Distributor Gear*
Made for use with flat tappet cams, cast iron distributor gears are developed in a manner which solidifies the outer layer, while leaving the core molten iron. Since cast iron contains 2% carbon, these gears work well with cam gears made from the same material. The COMP Cams® Oldsmobile Cast Iron Distributor Gear is also nitrided for wear protection and longevity.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Distributor Gear, Aluminum, Bronze, Race, .484 in. Diameter Shaft, Mopar, 383, 400, 413, 426, 440, Each

Don't ruin your new steel roller cam by running the wrong distributor gear. Install one of these quality bronze distributor gears from COMP Cams. A stock cast iron gear is not compatible with a steel camshaft and can cause serious damage. These bronze gears are machined from AMPCO-45 extruded aluminum bronze with 5 percent nickel. They feature a high-strength tooth design that resists wear, even when used with high-pressure oil pumps.
