Push Rod Guide Plate

Single guide plate

Additional Information

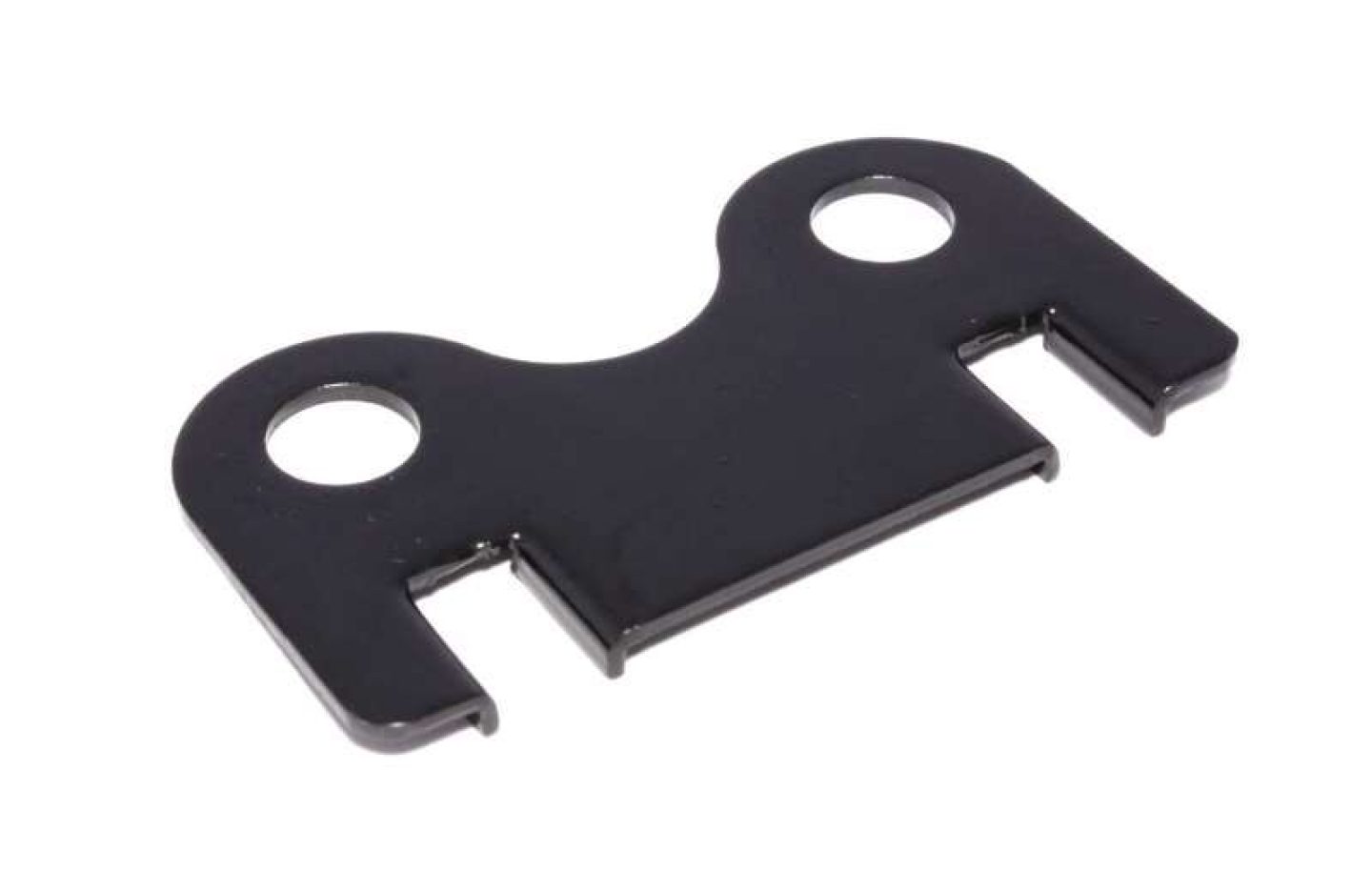

Hardened and black oxide coated for durability, this flat one-piece guide plate is designed for Pontiac 350-455 and AMC 290-401 engines with 7/16" studs and 5/16" pushrods.

Part Type

Engine Push Rod Guide Plate

Product Overview

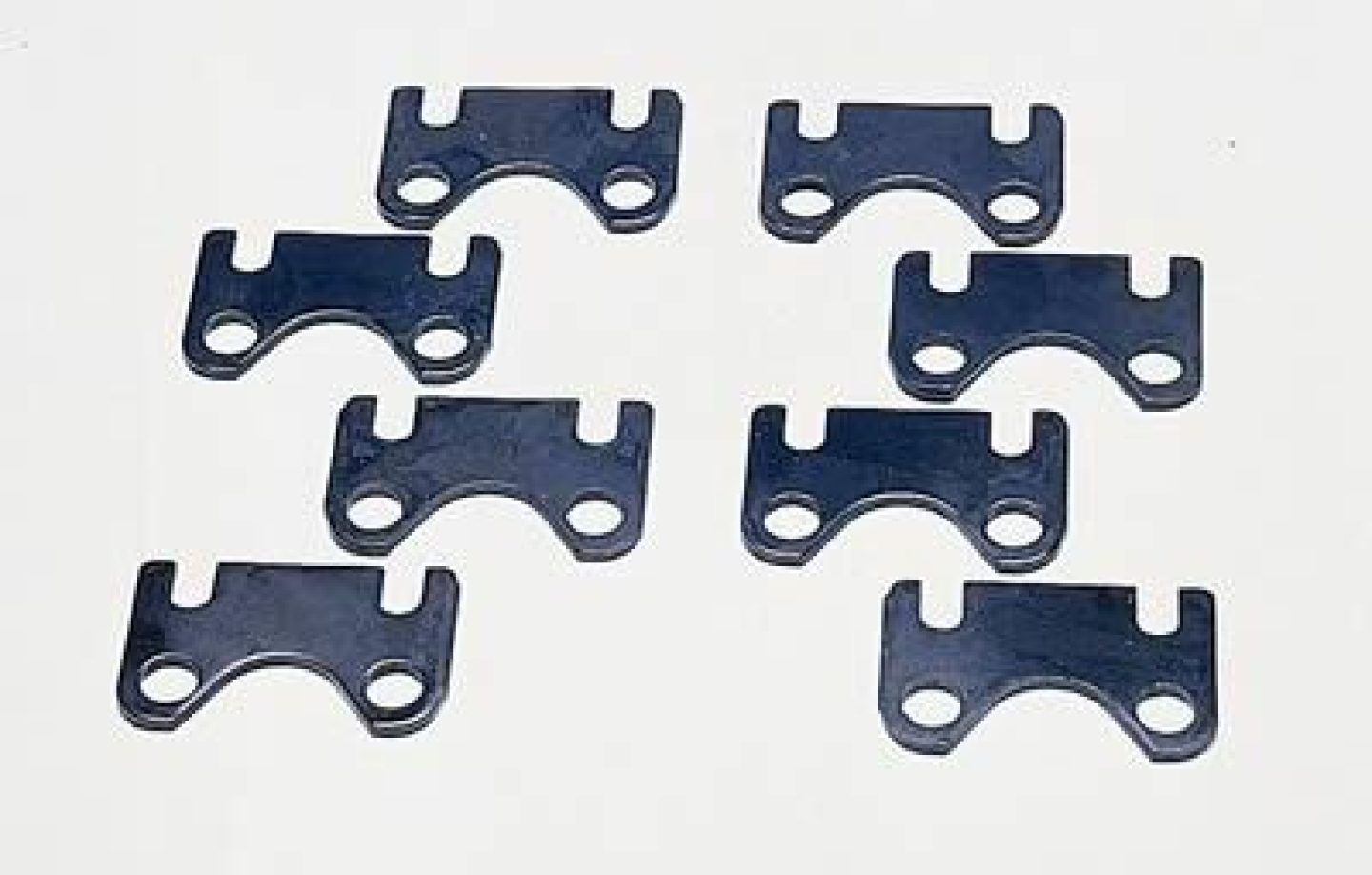

*One-Piece Guide Plates*
• Designed using stereo lithography techniques for accurate fit; hardened and black oxide finished
• Feature exact stud placement and rounded contact points
• Necessary for high lift/spring pressure environments of performance engines

*Two-Piece Adjustable Guide Plates*
• Available for Small and Big Block Chevy and Small Block Ford applications
• Designed for use on cylinder heads with relocated intake ports
• Big Block Chevy application designed for use with RHS or other aftermarket heads with relocated intake ports
• Able to be welded after final adjustment (SBC and SBF only); BBC is bolt-together design
• Contoured & clearanced for head bolts

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Guideplate, Flat, 5/16 in. Pushrod Size, Pontiac V8, 350-455, Each

COMP Cams pushrod guideplates are necessary in high-rpm motors. They keep your pushrods in line with your lifter cups and rocker arms—and prevent deflecting or walking sideways. The guideplates are hardened to prevent premature wear. They're available in sizes and styles for fitment on a variety of engine applications.
