Camshaft Phaser Limiter - 14 Degree Limit - Mopar Gen III Hemi - Kit

VariableTimingAdjstr

While Cam phasers provide tremendous efficiency benefits, they also present some limitations when it comes to performance Camshafts. In turn, COMP Cams has developed U.S. Patented Cam Phaser Limiter and Lock Kits for Chrysler HEMI 5.7L, 6.1L and 6.4L V8 engines. The limiter kits limit maximum Cam phasing to 14 crank degrees (7 Cam degrees) to provide the necessary piston to valve clearance when using larger aftermarket Camshafts. Meanwhile, lock kits take all movement out of the phaser. Combining these performance modifications with more aggressive Cam profiles will result in larger upper RPM gains without sacrificing any bottom end or mid-range performance. COMP Cams Phaser Limiter and Lock Kits are one-of-a-kind, as they are the first phaser tools designed specifically for HEMI engines.

Additional Information

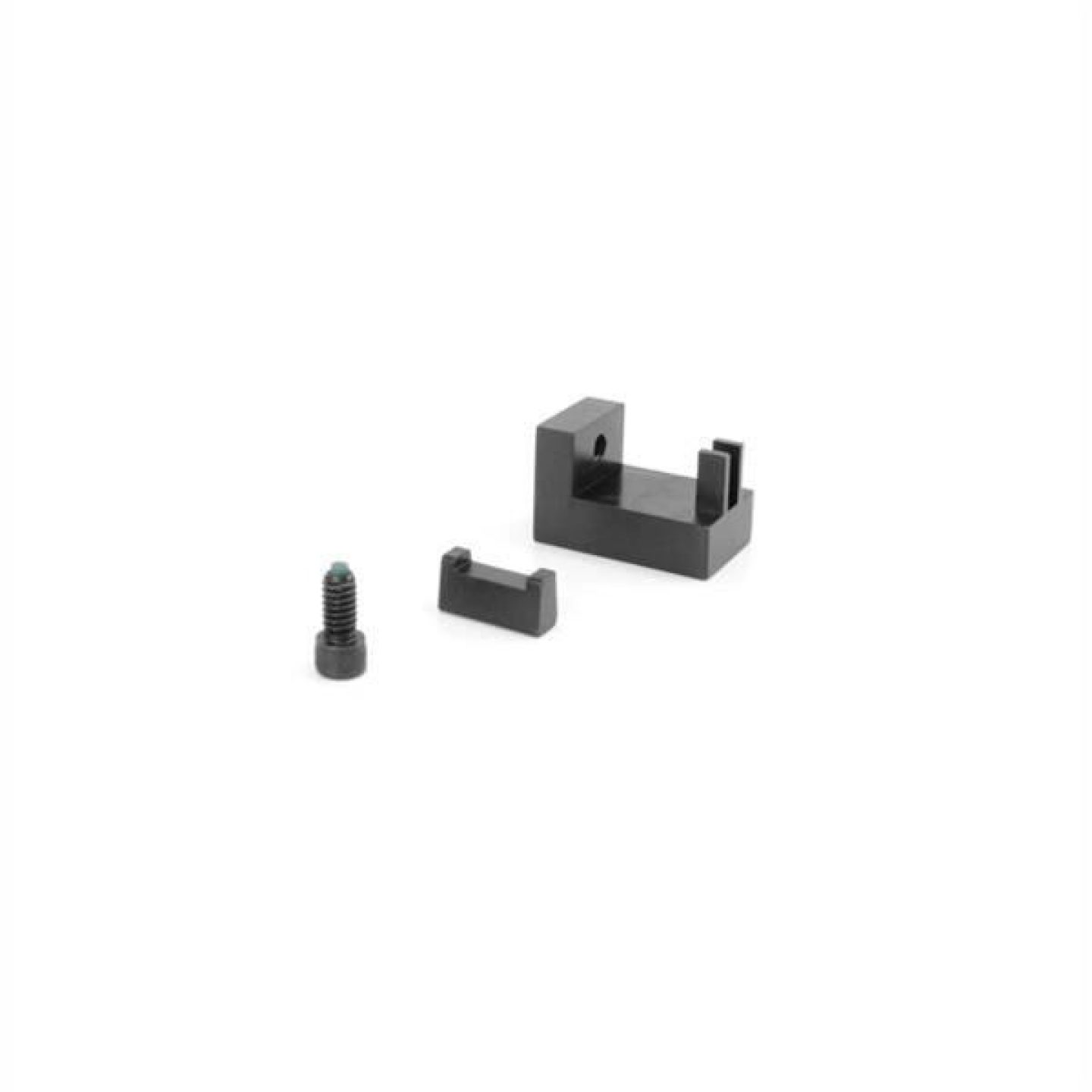

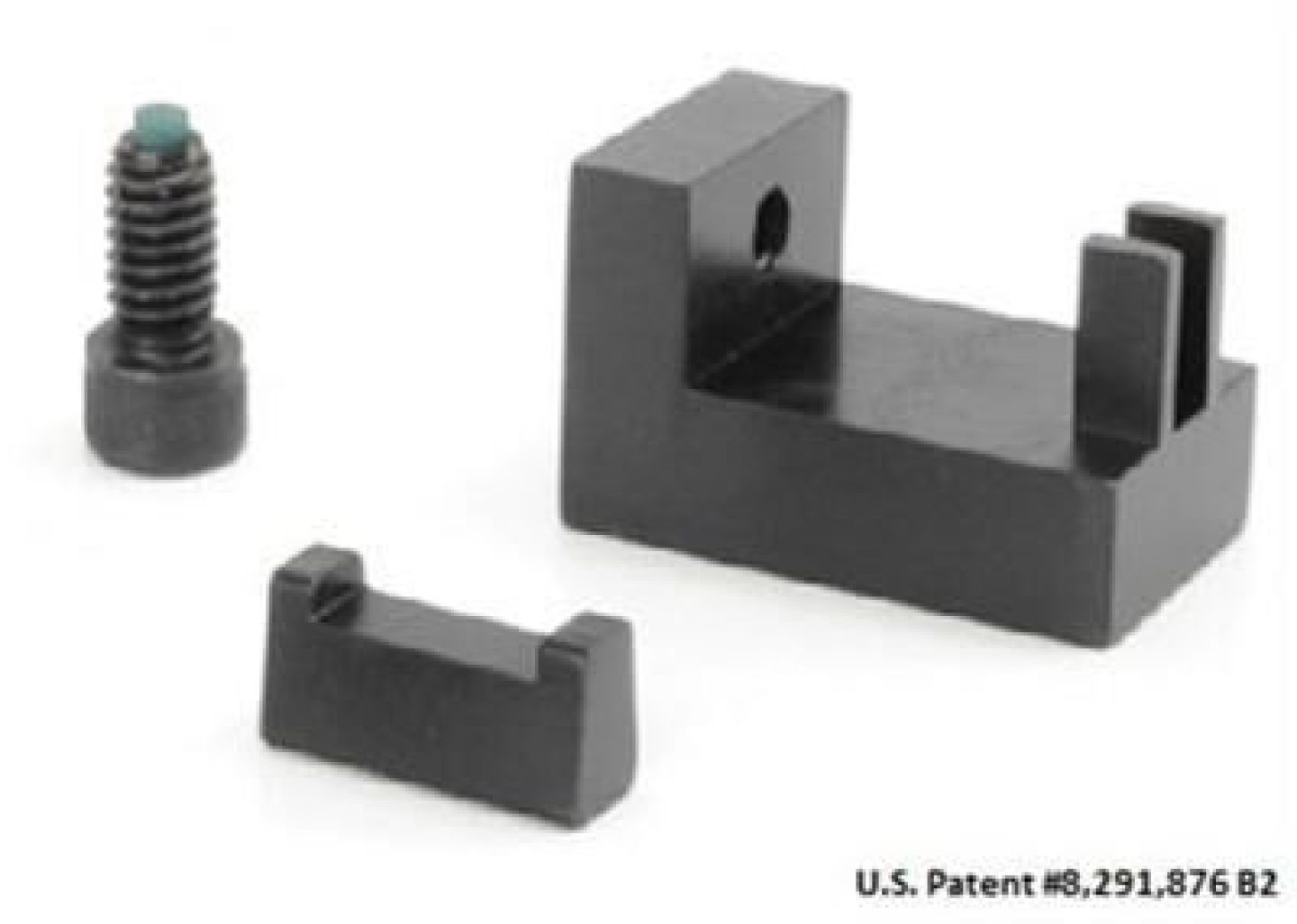

This phaser limiter kit for '08+ Chrysler 5.7-6.4L HEMI engines comes complete with the phaser limiter, limiter tool and instructions for proper installation. This kit limits the range of cam movement to 14 degrees.

Part Type

Engine Variable Valve Timing (VVT) Adjuster Plug

Product Overview

This phaser limiter kit for '08+ Chrysler 5.7-6.4L HEMI engines comes complete with the phaser limiter, limiter tool and instructions for proper installation. This kit limits the range of cam movement to 14 degrees.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Camshaft Phaser, Limiting Plate, Chrysler, Dodge, Kit

COMP Cams camshaft phaser limiter kits are specially designed, computer-controlled cam gears that automatically optimize camshaft timing based on the current engine rpm. The engine oil is pressure fed to the phasers through passageways in the cylinder heads and cams. The engine computer's control solenoids that adjust this oil flow into and out of the phasers' control chambers, give the ability to retard the cams. While this technology provides fuel efficiency and the ability to always be in the best position for maximum power, regardless of engine rpm, it does present some limitations when it comes to performance cams. With such a wide range of valve timing movement, there is very little piston to valve clearance, which limits you to small cam profiles with little overlap.
