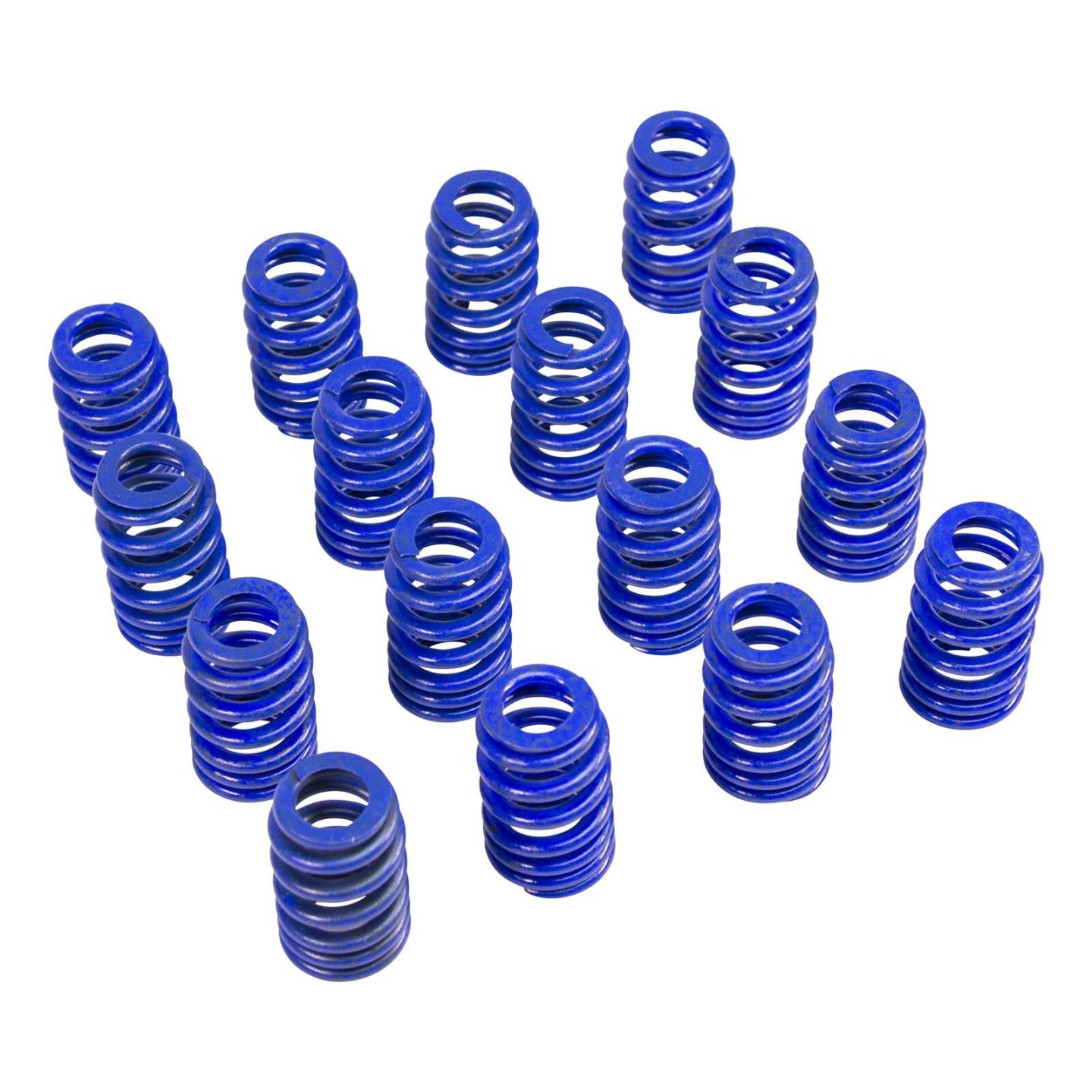

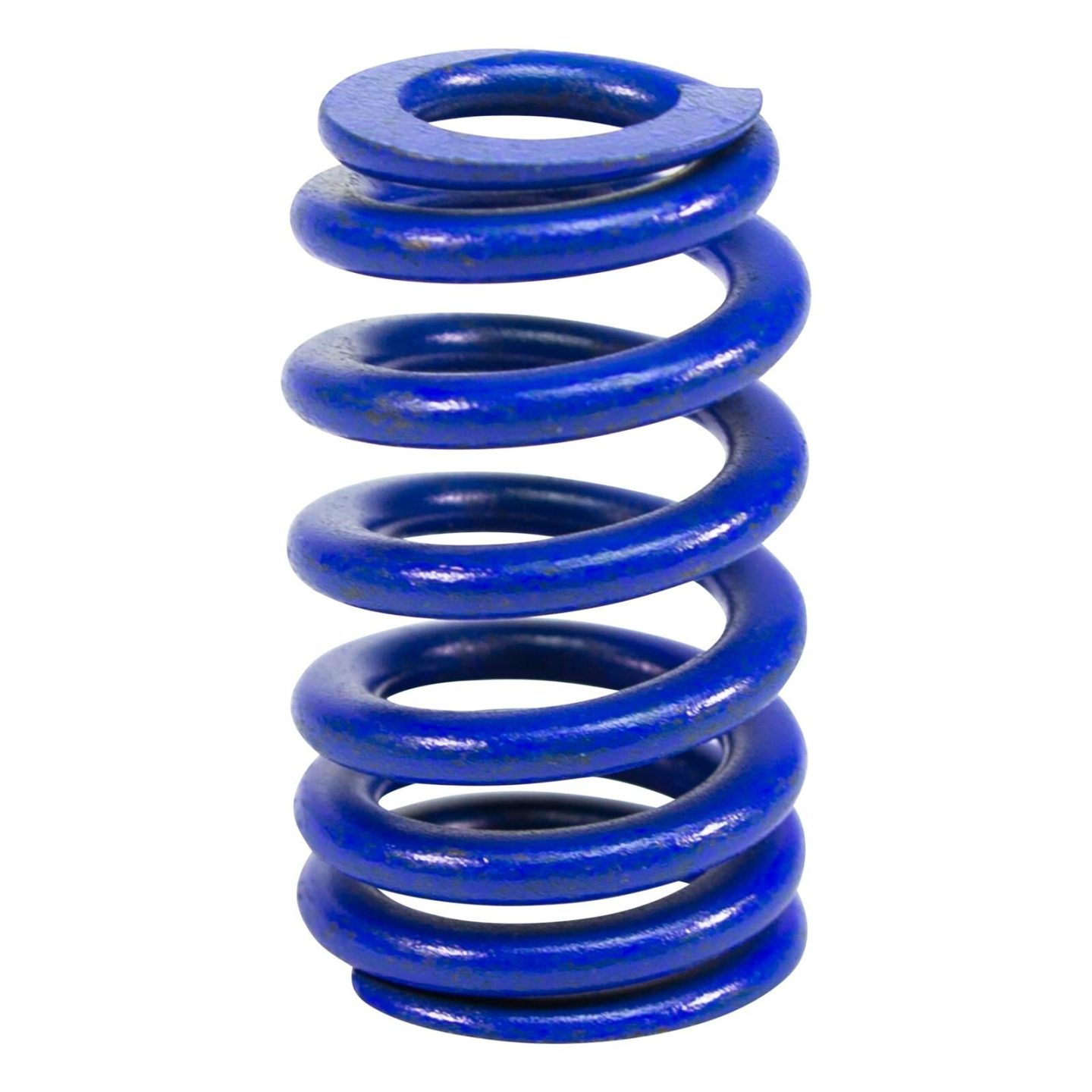

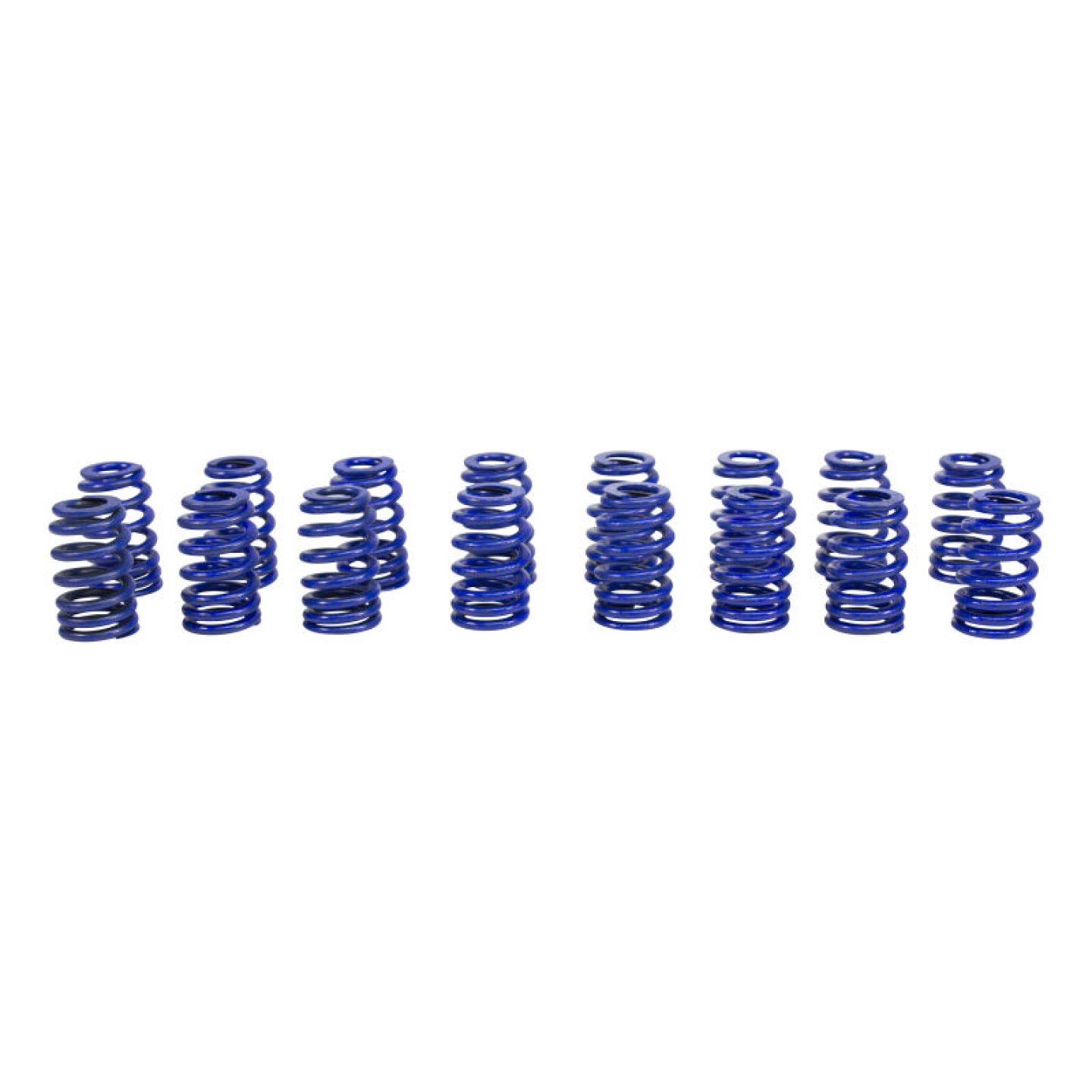

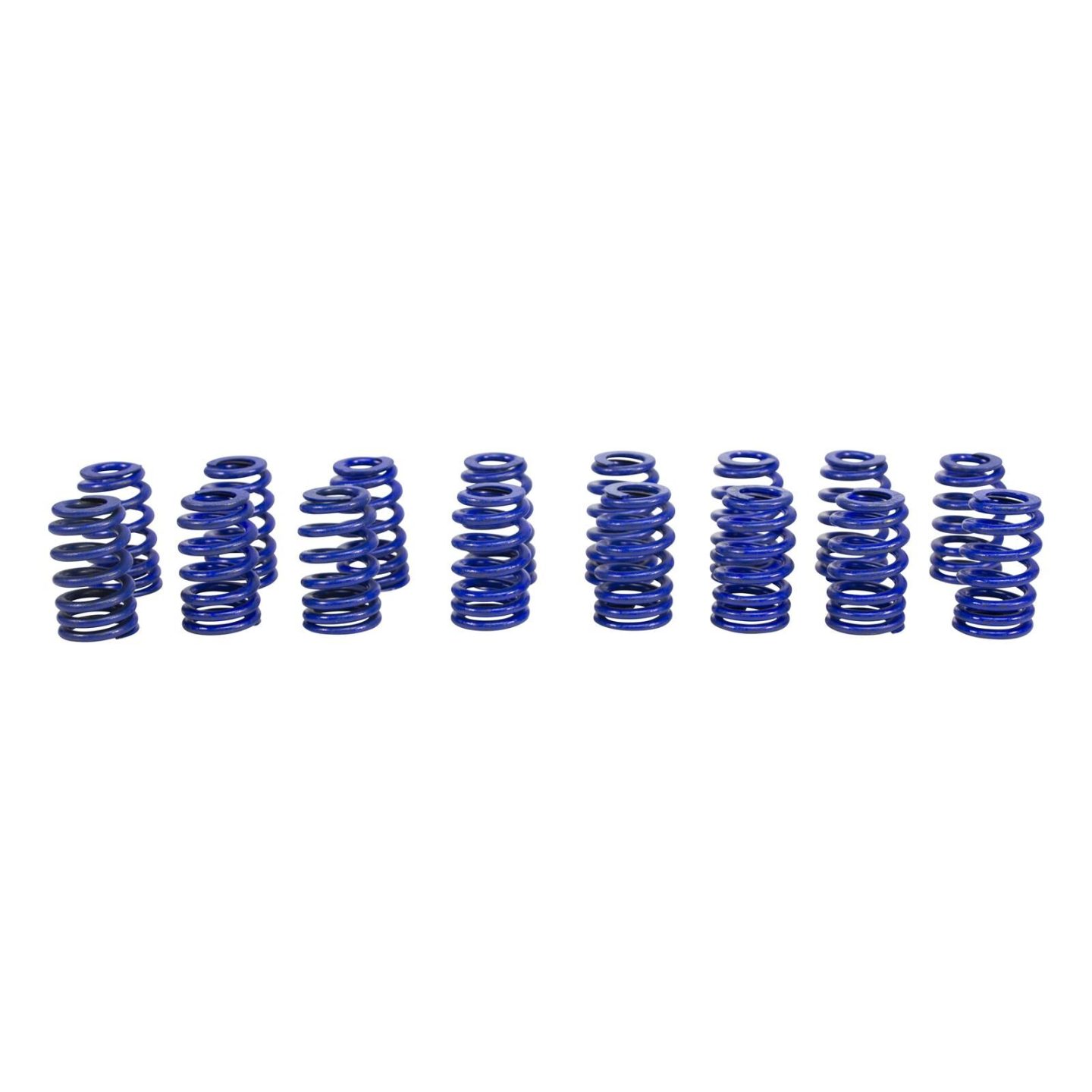

Valve Spring - Ovate Beehive Spring - 386 lb/in Spring Rate - 1.181 in Coil Bind - 1.077 in / 1.282 in OD - Set of 16

Hstlr BV Sprngs

COMP Cams Hustler Valve Springs are an improved version of the popular GM LS6 "blue" valve spring. They are based on popular GM part #12499224 and #12565313 LS6 springs but with 4% higher seat and open loads for better dynamic control, as well as an extra .020" of lift capability. They are an excellent performance upgrade in GM 603/604 and CT525 LS crate Race Applications with tight rules packages.

Additional Information

Visually identical to the blue LS6 springs, Hustler Beehive Springs add 4% higher load than stock for better valve control over stock. This spring delivers an advantage in circle track racing for those willing to bend the rules.

Part Type

Engine Valve Spring Kit

Product Overview

Visually identical to the blue LS6 springs, Hustler Beehive Springs add 4% higher load than stock for better valve control over stock. This spring delivers an advantage in circle track racing for those willing to bend the rules.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Valve Springs, Hustler, Beehive, Single, 1.077 in./1.282 in. O.D., 386 lbs./in. Rate, 1.181 in. Coil Bind Height, Set of 16

COMP Cams Hustler valve springs are excellent performance upgrades in GM 603/604 and CT525 LS crate race applications with tight rules packages. These improved versions of the popular GM LS6 "blue" valve springs, offer a 4 percent higher seat and open loads for better dynamic control, as well as an extra .020 in. of lift capability over stock. COMP Cams Hustler valve springs are made from high-quality wire in small batch manufacturing processes for durability, and they're even painted blue so they are visually identical to the OEM springs.
