Cylinder Head Gasket
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

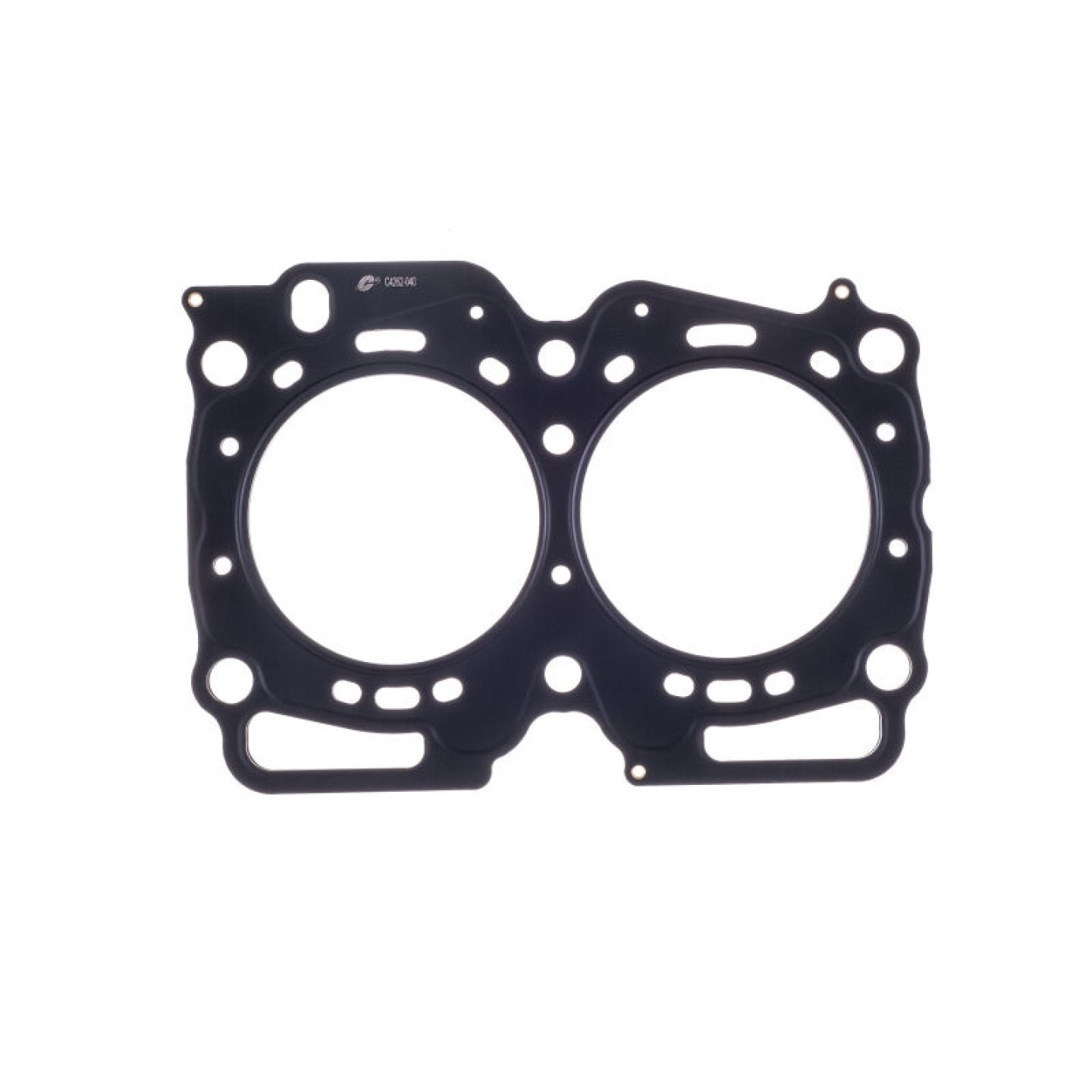

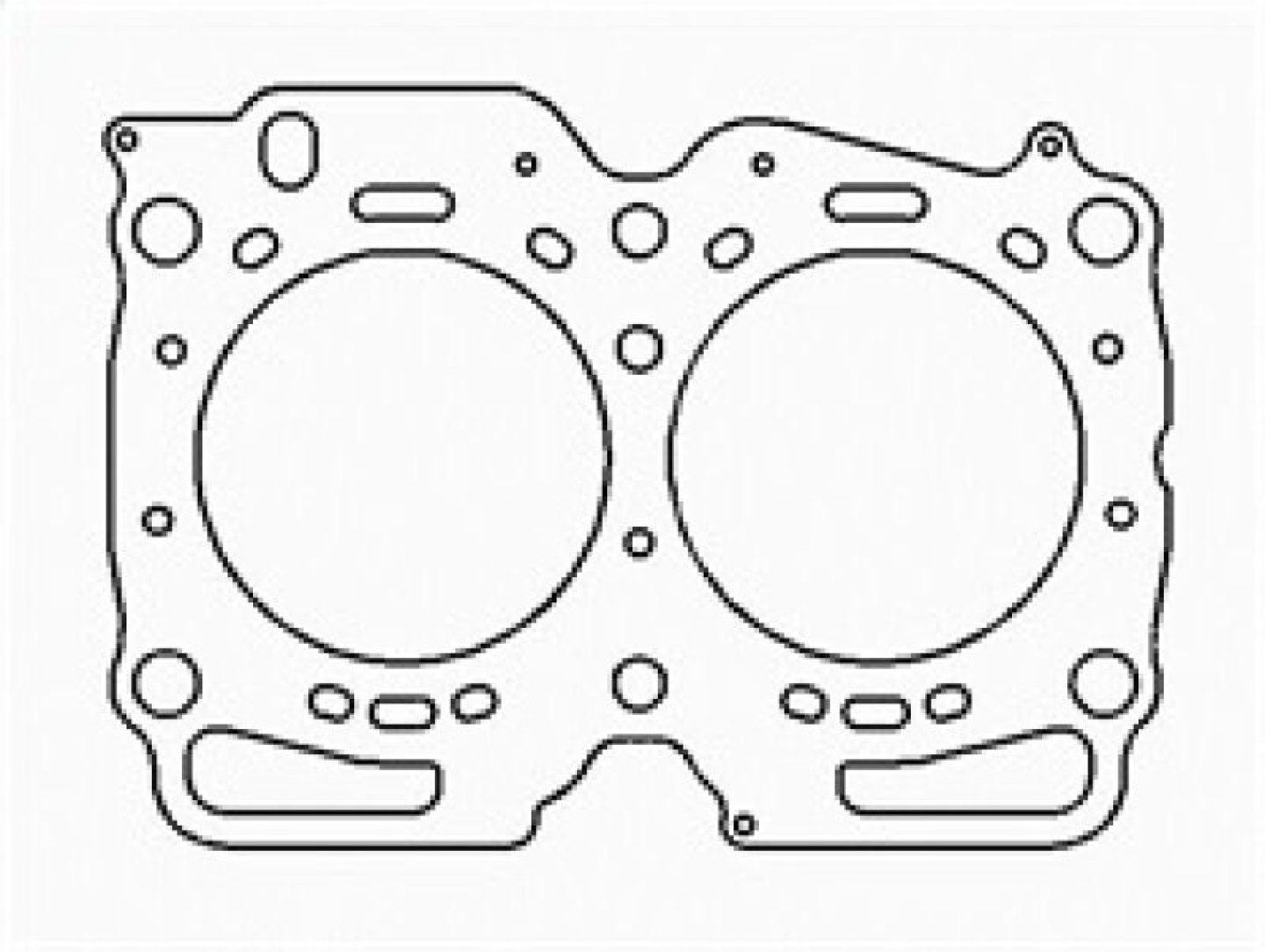

Subaru EJ22E .040 " MLS Cylinder Head Gasket, 98mm Bore
Engine Cylinder Head Gasket
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
| # | Document Type | Download |
|---|---|---|

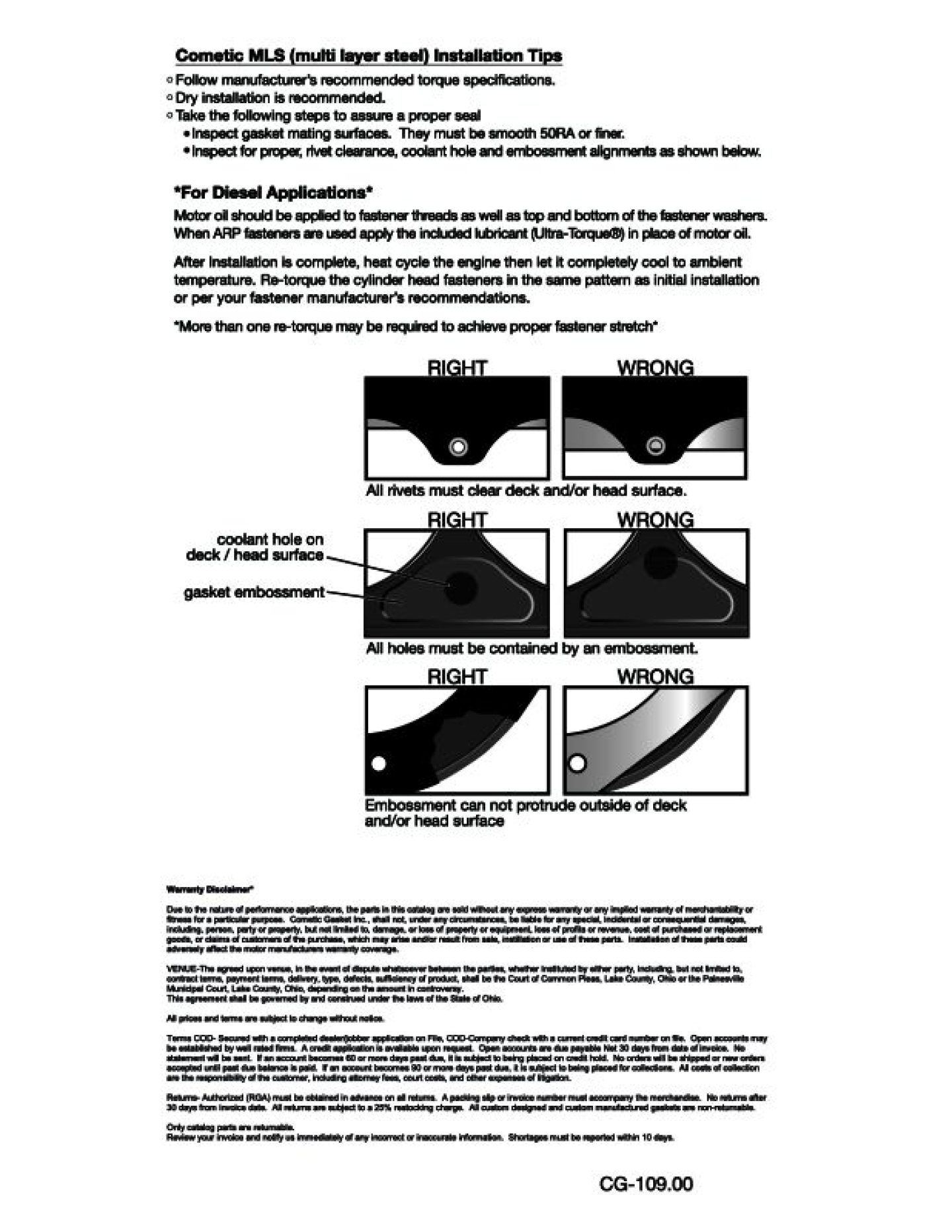

| 1. | Installation Instructions |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
Head Gasket, MLS, 98.00mm Bore, .040 in. Compressed Thickness, Subaru, Each
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
| Product Attributes | |
|---|---|
| UPC | 191070004989 |
| Brand | Cometic |
| Quantity | Sold individually. |
| Bore (mm) | 98.000mm |
| Lock Wire | No |
| Part Type | Head Gaskets |
| Bore (in.) | 3.858 in. |
| Product Line | Cometic MLS Head Gaskets |
| Gasket Material | Multi-layer stainless steel |
| Compressed Volume (cc) | 7.664cc |
| Compressed Thickness (in.) | 0.040 in. |
| Manufacturer's Part Number | C4262-040 |
| Manufacturer Attributes | |
|---|---|
| Title | Cometic Gasket Automotive Subaru EJ22E .040 in MLS Cylinder Head Gasket; 98mm Bore |
| Manufacturer Designation | Subaru EJ22E Cylinder Head Gasket |
| Product Class | Engine Cylinder Head Gasket |
| Construction/Type | Subaru EJ22E .040" MLS Cylinder Head Gasket, 98mm Bore |
| Vehicle Brief | Suba EJ22E Cylinder Head Gasket |
| Cometic Subaru EJ22E Motor 98mm .040 inch MLS Head Gasket SOHC 16V | ||||
|---|---|---|---|---|
| Year Range | Make | Model | Submodels | Region |
| 1995-1997 | Subaru | Impreza | L, LX, Outback, Brighton | US |
| 1995-1999 | Subaru | Legacy | Base, Brighton, L, LS, LSi, Outback, Postal, L 30th Anniversary, Limited 30th Anniversary | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
