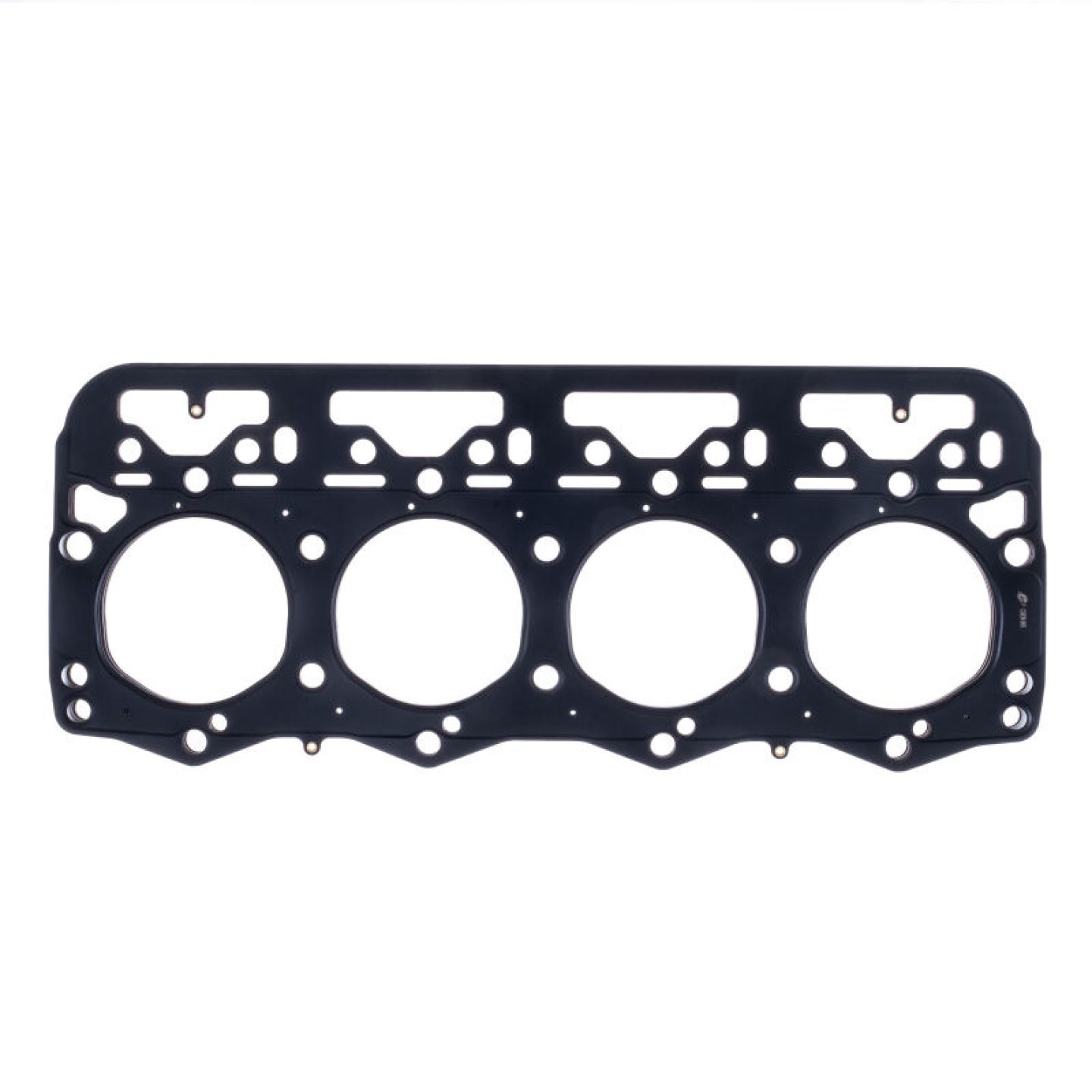

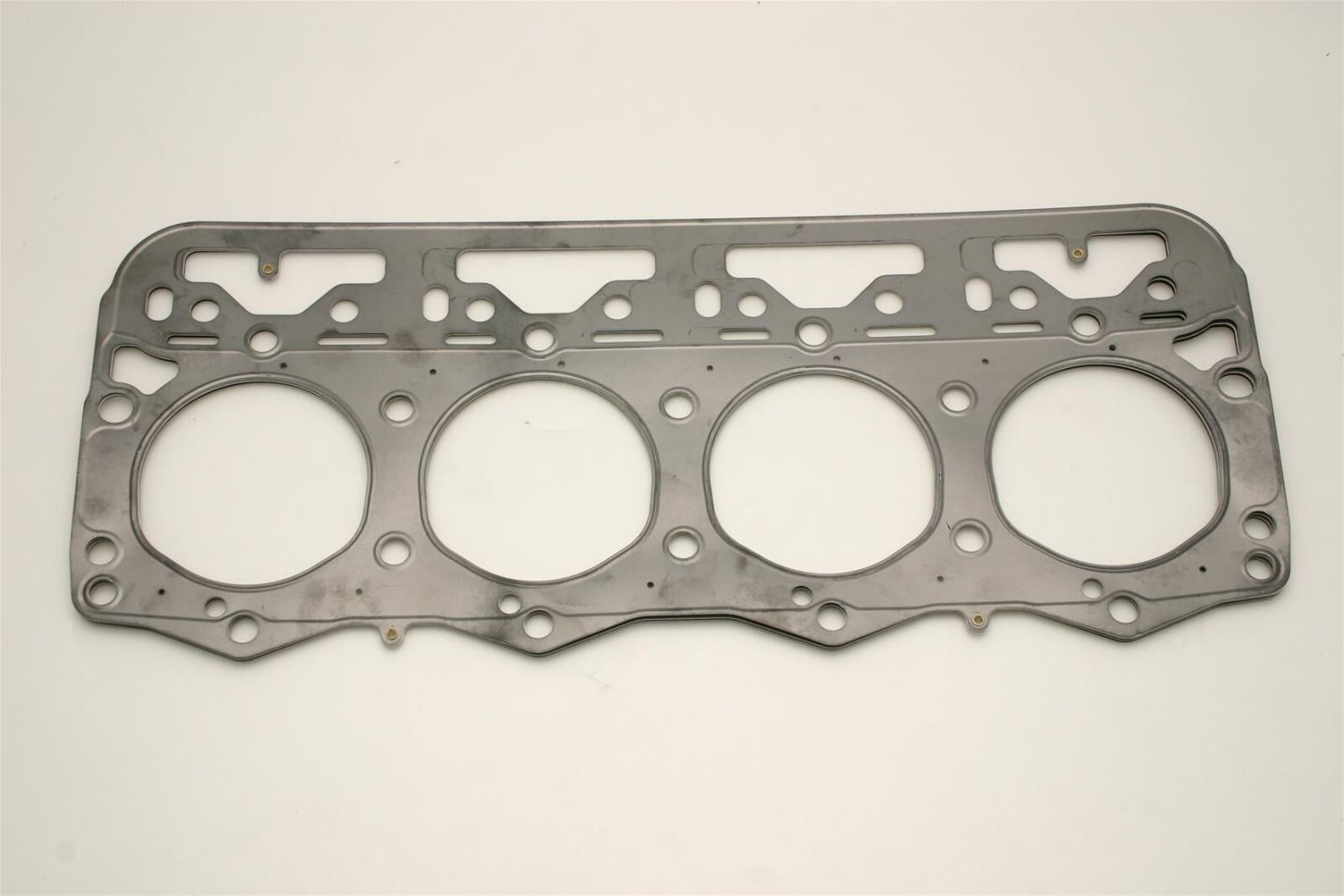

Cylinder Head Gasket
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Additional Information
Ford 7.3L Power Stroke .098 " MLS Cylinder Head Gasket, 4.140 " Bore, 1994-2003, VIN F
Part Type
Engine Cylinder Head Gasket
Product Overview
Features and Benefits
- Coated On Both Sides w/Viton
Product Details
| Description: | Ford 7.3L Power Stroke Cylinder Head Gasket |
| Engine Make/Size: | Ford 7.3L |
| OEM Part Number: | F7TZ-6051-AAA |
| Part Number: | cgsC5839-098 |
| Title: | Cometic Gasket Automotive Ford 7.3L Power Stroke .098 in MLS Cylinder Head Gasket, 4.140 in Bore, 1994-2003, VIN F |
| Additional Application Notes |
|---|
| • Material: MLS Compressed Thickness: .098 Bore Size (IN): 4.140 Bore Shape: ValvePocketed # of layers: 5 |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Product Downloads
| # | Document Type | Download |

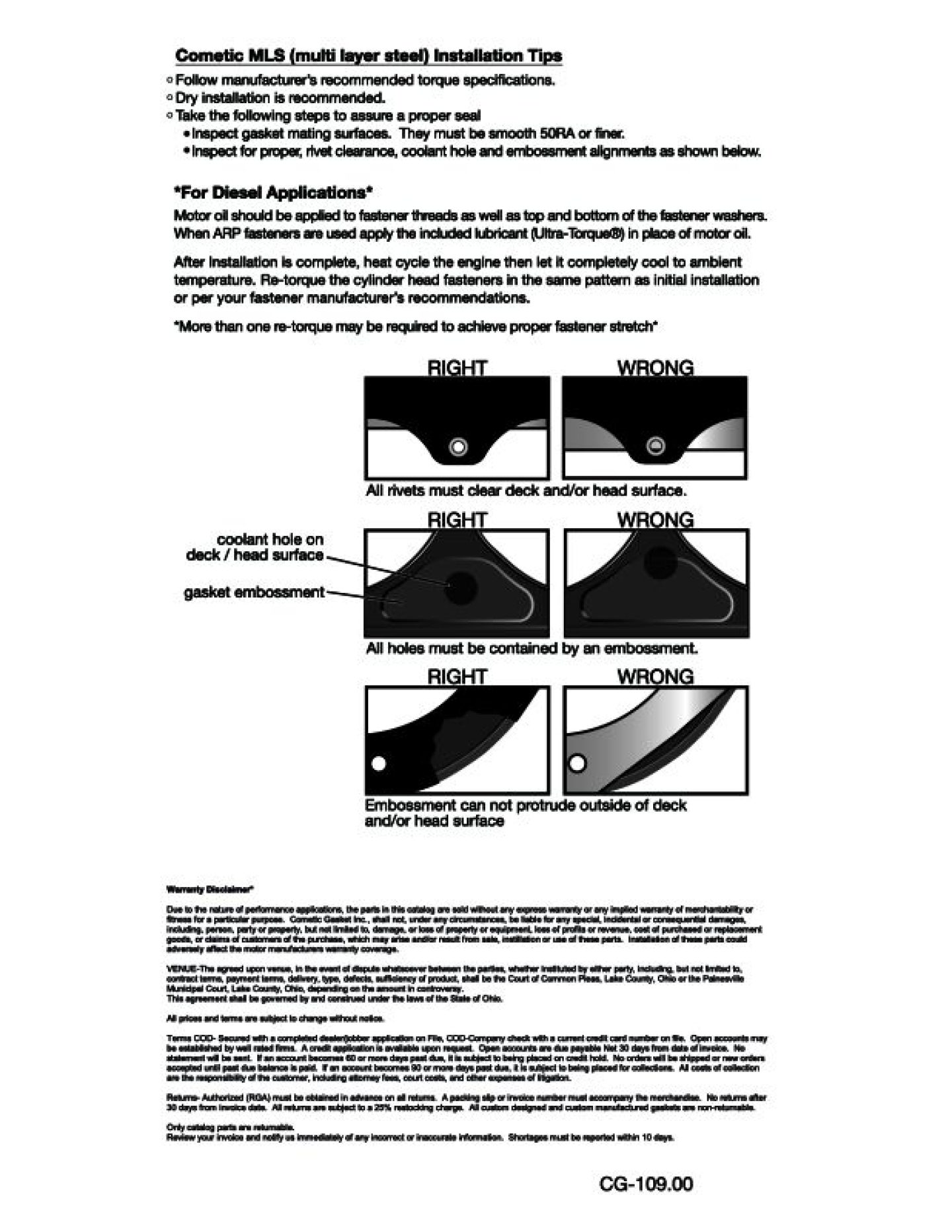

| 1. | Installation Instructions |  |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
