Control Arm Kit

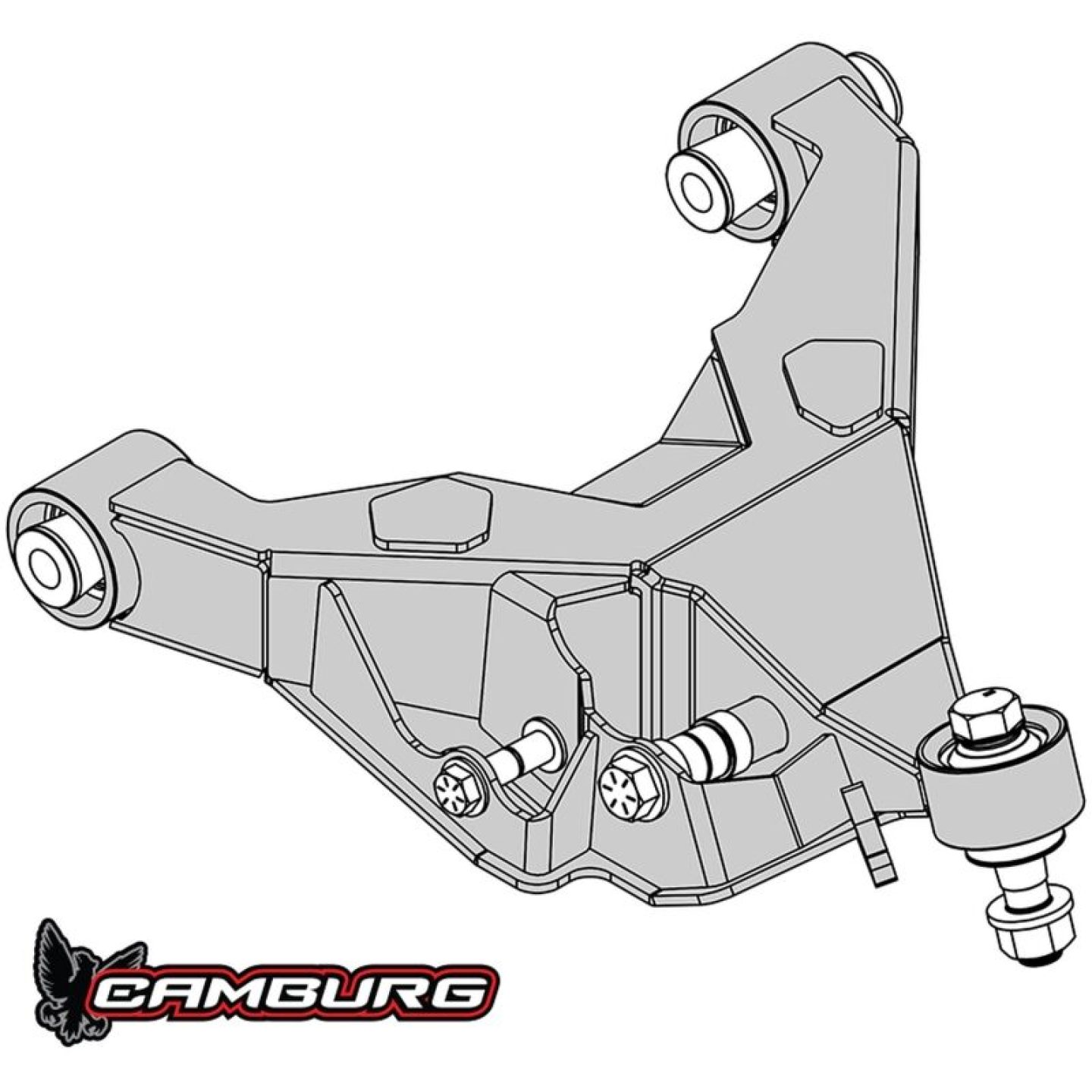

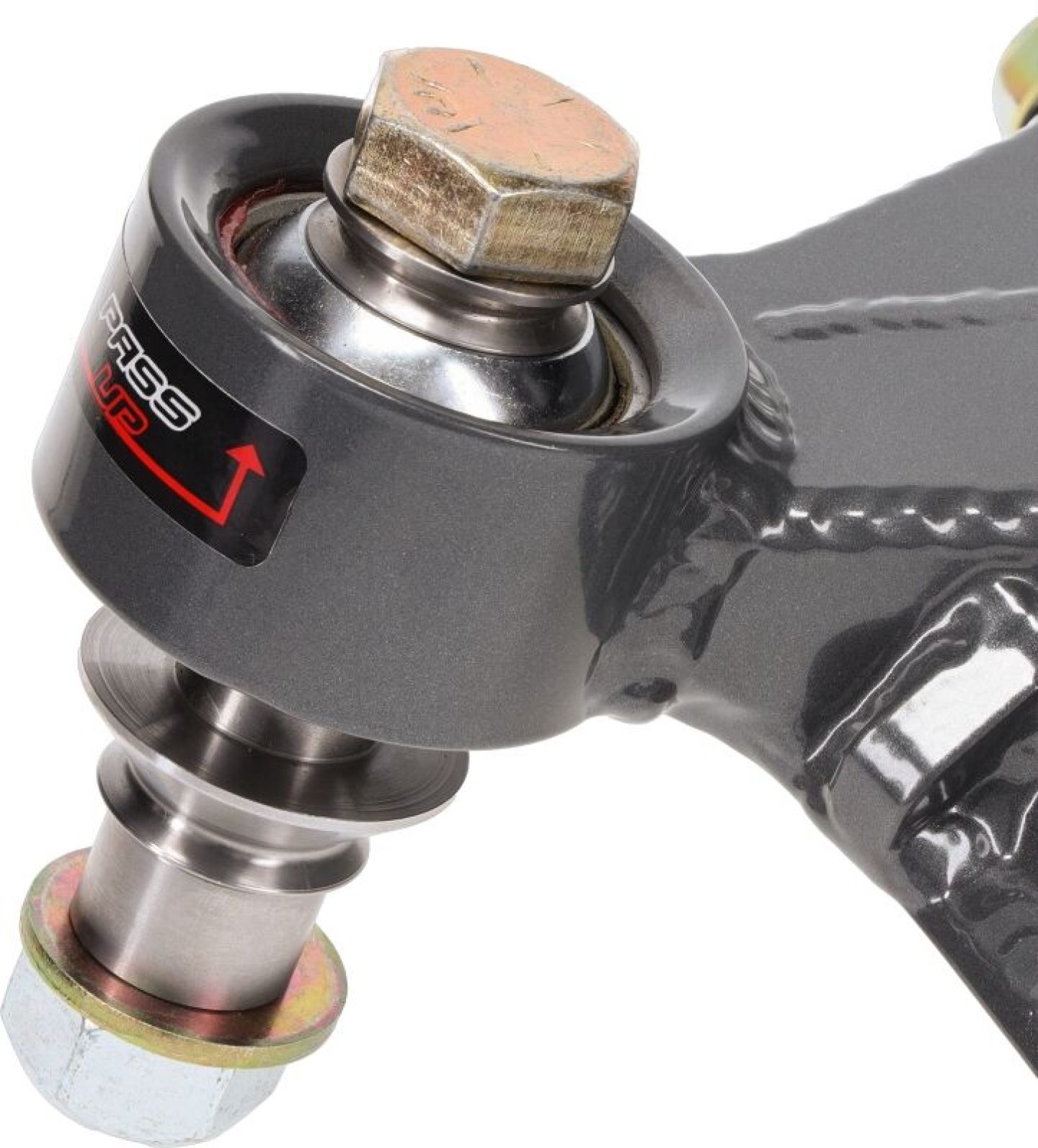

Our performance lower arms are designed to replace stock length lowers and offer several benefits. They are compatible with stock rubber bump stops or can be upgraded to a FOX or King bump stop for increased bottoming resistance. These arms prioritize ground clearance and off-road performance, featuring internal gusseting and pivot on FK 1" uniballs at the frame. Uniballs ensure zero binding during suspension cycling and zero flex under braking, resulting in consistent geometry and alignment. The uniball spacers have a diameter of 1.50", providing better clamping force in the frame mounts and preventing ovaling out over time. The lower ball-joint is replaced with an FK 1.00" uniball at the spindle for maximum strength and articulation. No modification to the spindle taper is required as machined heat-treated stainless-steel mis-alignment spacers are used. Our one-piece tapered uniball spacer is designed for superior strength. The arms come ready to install with all necessary hardware included and are the strongest stock length aftermarket arms available on the market.

Additional Information

Camburg Toyota Landcruiser 300 Series '22-23 Performance Lower Arm Kit

Part Type

Suspension Control Arm Kit

• Corrects camber and caster
• Eliminates weak factory ball-joints
• Increases usable wheel travel

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information
