Cylinder Head Gasket

MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel

Additional Information

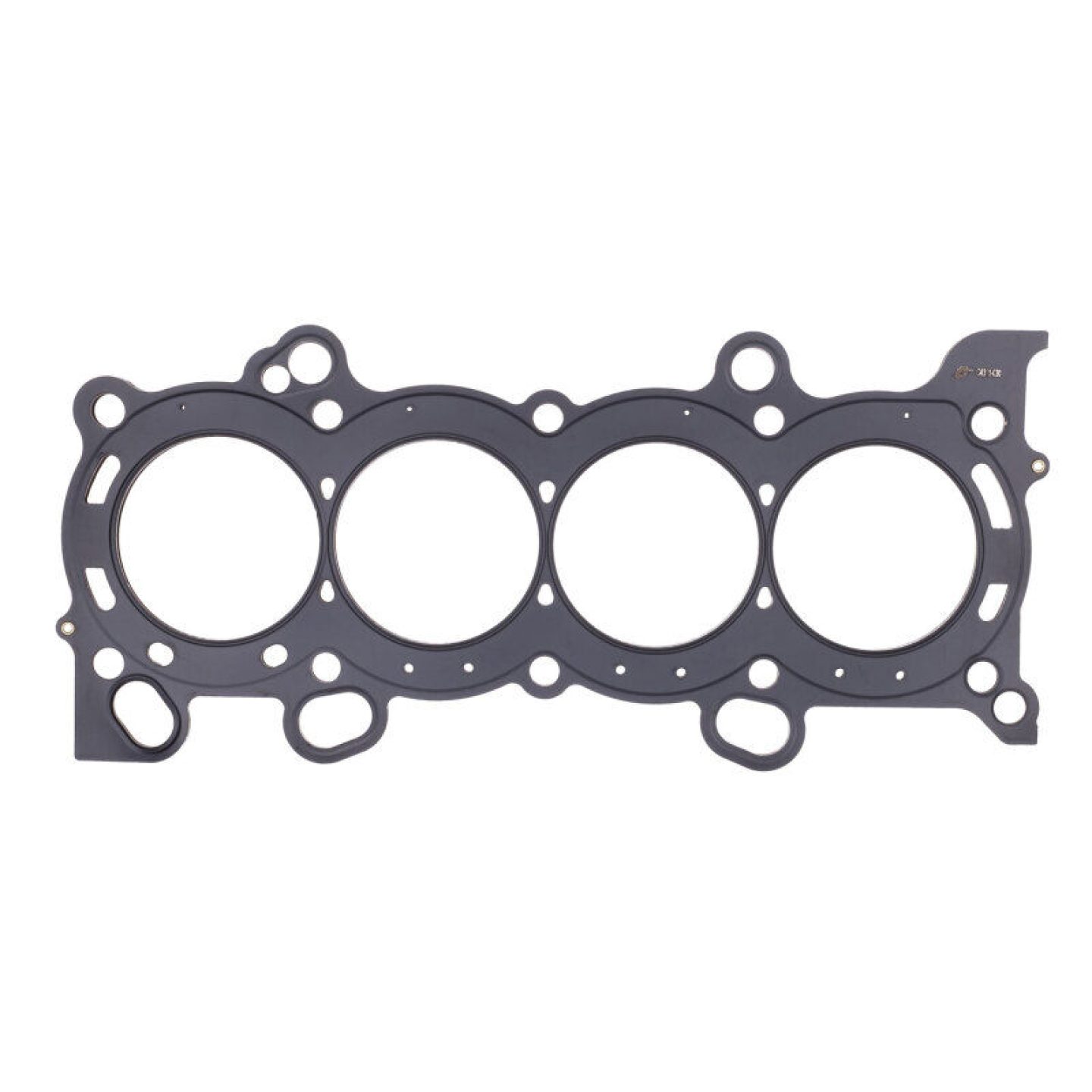

Honda K20A2/K20A3/K20Z1/K24A1 .040in. MLS Cylinder Head Gasket; 87.5mm Bore

Part Type

Engine Cylinder Head Gasket

Product Overview

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

• Conforms load distribution across the sealing area
• Embossed Outer Layers Coated w/Viton
• Requires less clamp load creating less bore distortion
• The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
• The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download

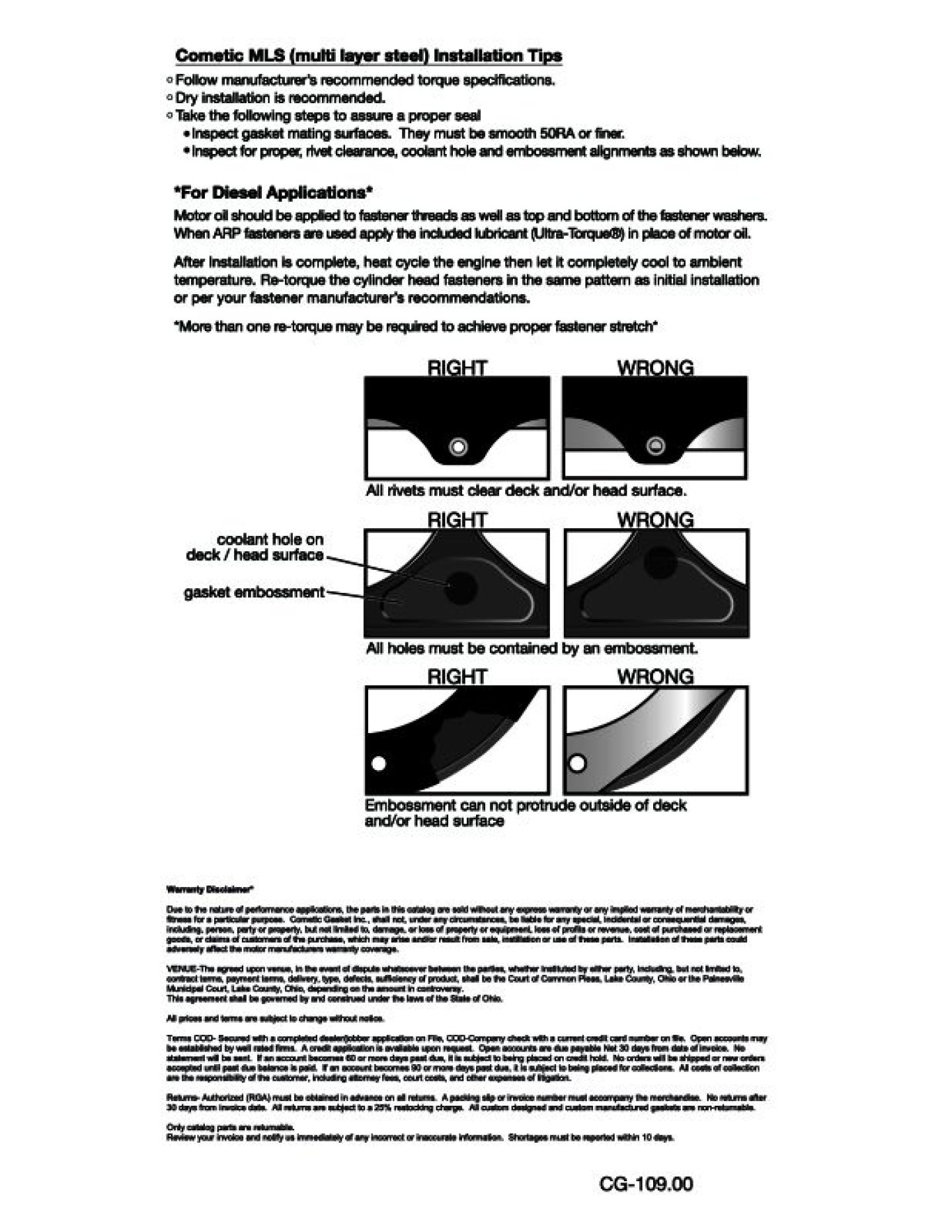

1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Honda K20A2/K20A3/K20Z1/K24A1 .040" MLS Cylinder Head Gasket, 87.5mm Bore
