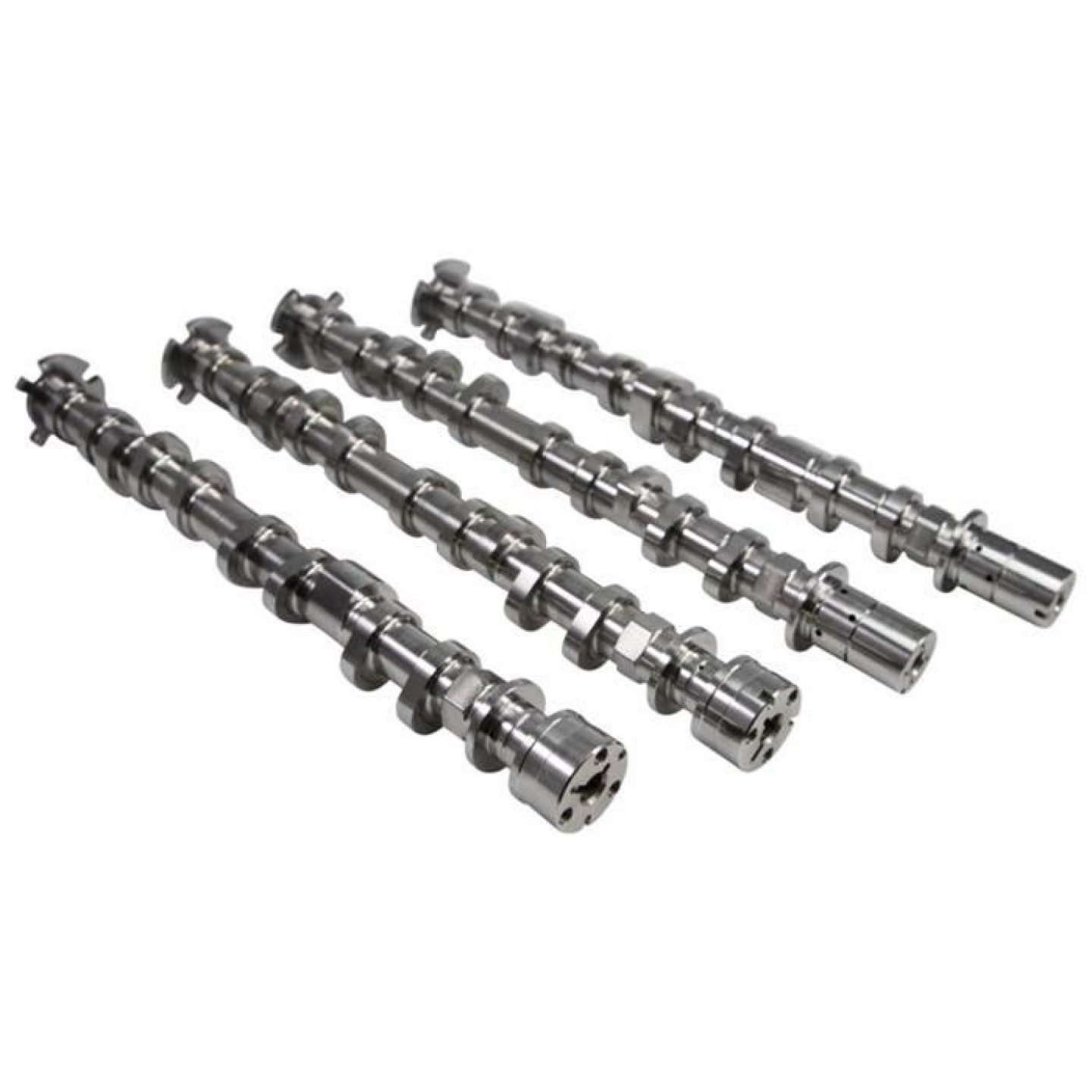

Camshaft, XFI VSR, Stage 2, Blower/Turbo, Hydraulic Roller, Advertised Duration 288/302, Lift .590/.580, Ford, Set of 4
COMP Cams XFI VSR Ford 5.0 Modular 4V camshafts offer billet steel strength and performance for maximum power on your supercharged/turbocharged street/strip application. These XFI Series, valve spring required camshafts are specifically engineered and ready to unlock the potential power of your Ford Coyote 5.0L DOHC modular 4V engine. They are available in two stages of performance. Features: * Stage 1: Optimized with higher lift for specific spring kits, allowing more rpm and added exhaust for forced induction * Stage 2: Very close to a competitive NHRA Factory Shootout or race turbo grind, but mild enough for limited street use
| Product Attributes |
|---|
| Brand | COMP Cams |
| Manufacturer's Part Number | 433580 |
| Part Type | Camshafts |
| Product Line | COMP Cams XFI VSR Ford 5.0 Modular 4V Camshafts |
| UPC | 036584402336 |
| Cam Style | DOHC |
| Camshaft Use | Street/Strip |
| Camshaft Manufacturers Description | Stage 2 Blower/Turbo grind for 2018+ Coyote. Very close to a competitive NHRA Factory Shootout or race turbo grind but mild enough for limited street use. Valve spring upgrade required. |
| Basic Operating RPM Range | 2,500-8,400 |
| Intake Duration at 050 inch Lift | 240 |
| Exhaust Duration at 050 inch Lift | 246 |
| Duration at 050 inch Lift | 240 int./246 exh. |
| Advertised Intake Duration | 288 |
| Advertised Exhaust Duration | 302 |
| Advertised Duration | 288 int./302 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.590 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.580 in. |
| Valve Lift with Factory Rocker Arm Ratio | 0.590 int./0.580 exh. |
| Remanufactured | No |
| Computer-Controlled Compatible | Yes |
| Valve Springs Required | Yes |
| Quantity | Sold as a set of 4. |
