Rocker Arm Nut - 7/16-20 in Thread - Conversion to Adjustable - Steel - Black Oxide - Big Block Chevy - Kit

Eng Rocker Arm Stud

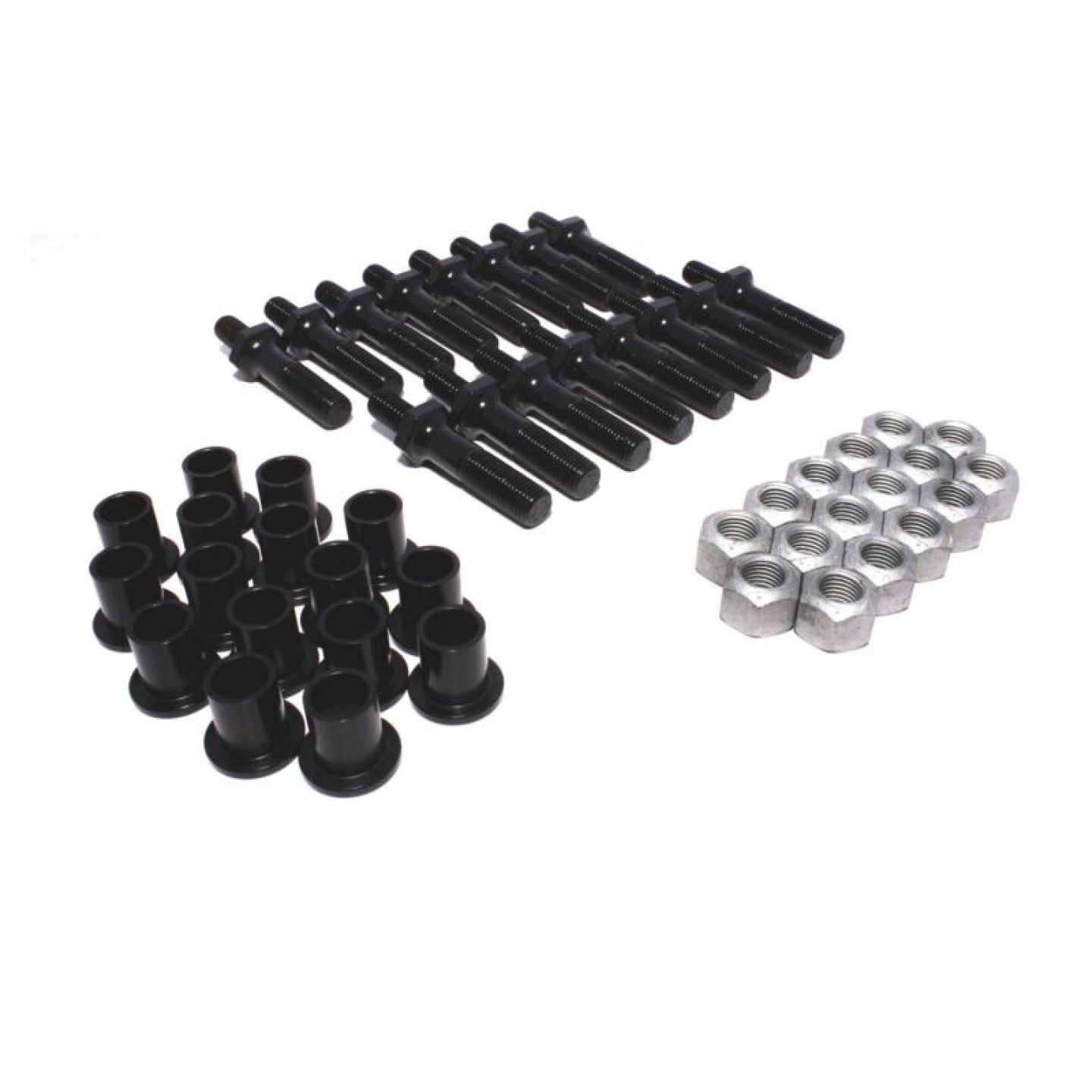

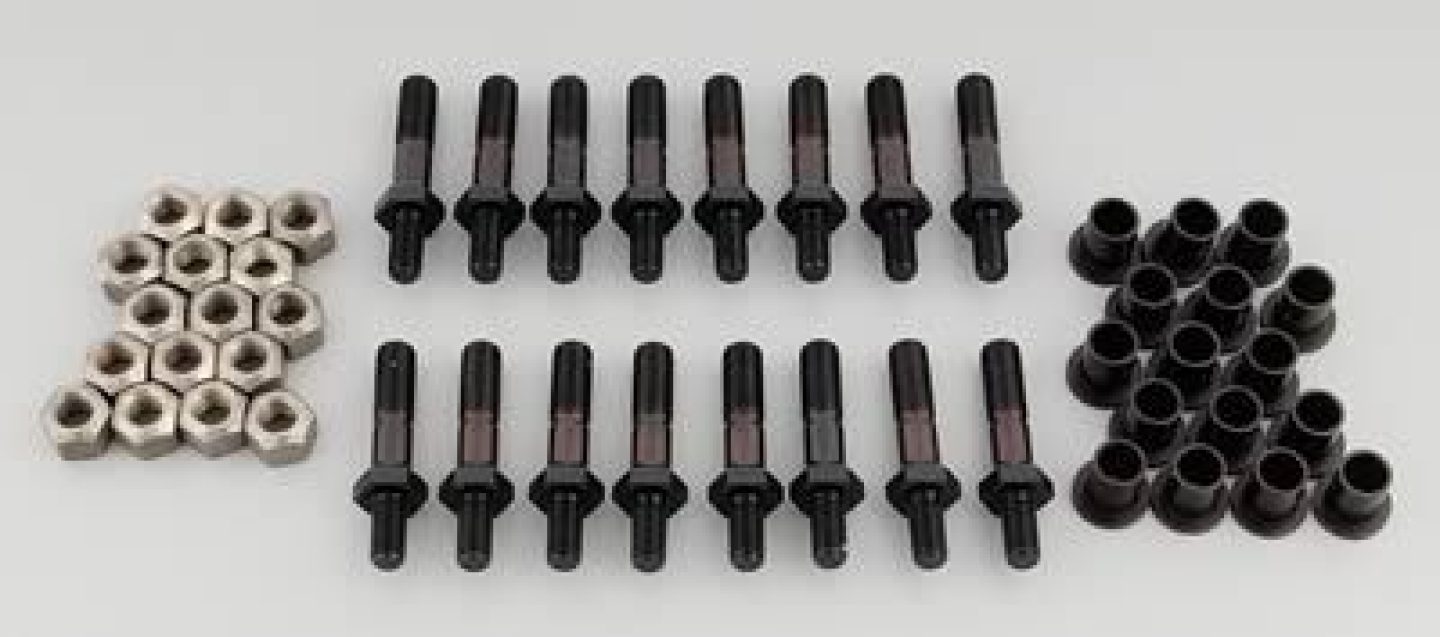

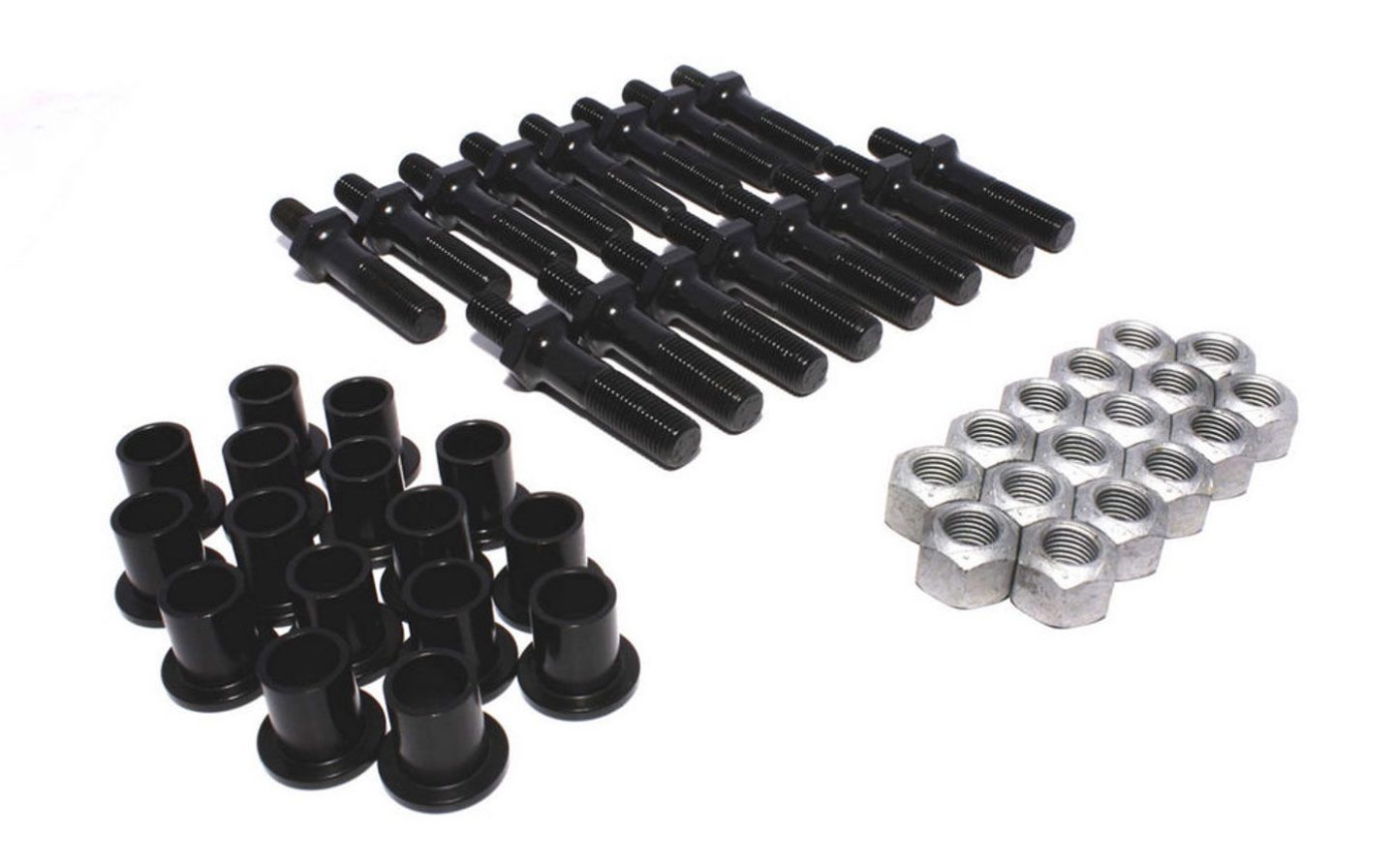

Include: (16) #4514 Studs, #4514SP Spacer, #1401-N Rocker Nut.

Additional Information

Complete with our 4514 studs, spacers and adjusting nuts, this kit adapts your late model Big Block Chevrolet engine to an adjustable valvetrain.

Part Type

Engine Rocker Arm Nut

Product Overview

*Rocker Arm Adjusting Nuts*
Many of the popular engine families utilize a positive stop type of rocker arm attachment, which does not allow for any adjustment, and consequently there is no consideration for different cam sizes or other modifications to the engine block and heads. For that reason, COMP has designed a kit to convert this setup to a fully adjustable valve train.
• Tapered for extra strength in locking areas
• High Energy and Magnum Polylocks are best for moderate lift and spring pressure applications
• Hi-Tech Polylocks work well in all high end race applications
• Stud girdle polylocks are precision ground for minimum runout

*Rocker Arm Studs*

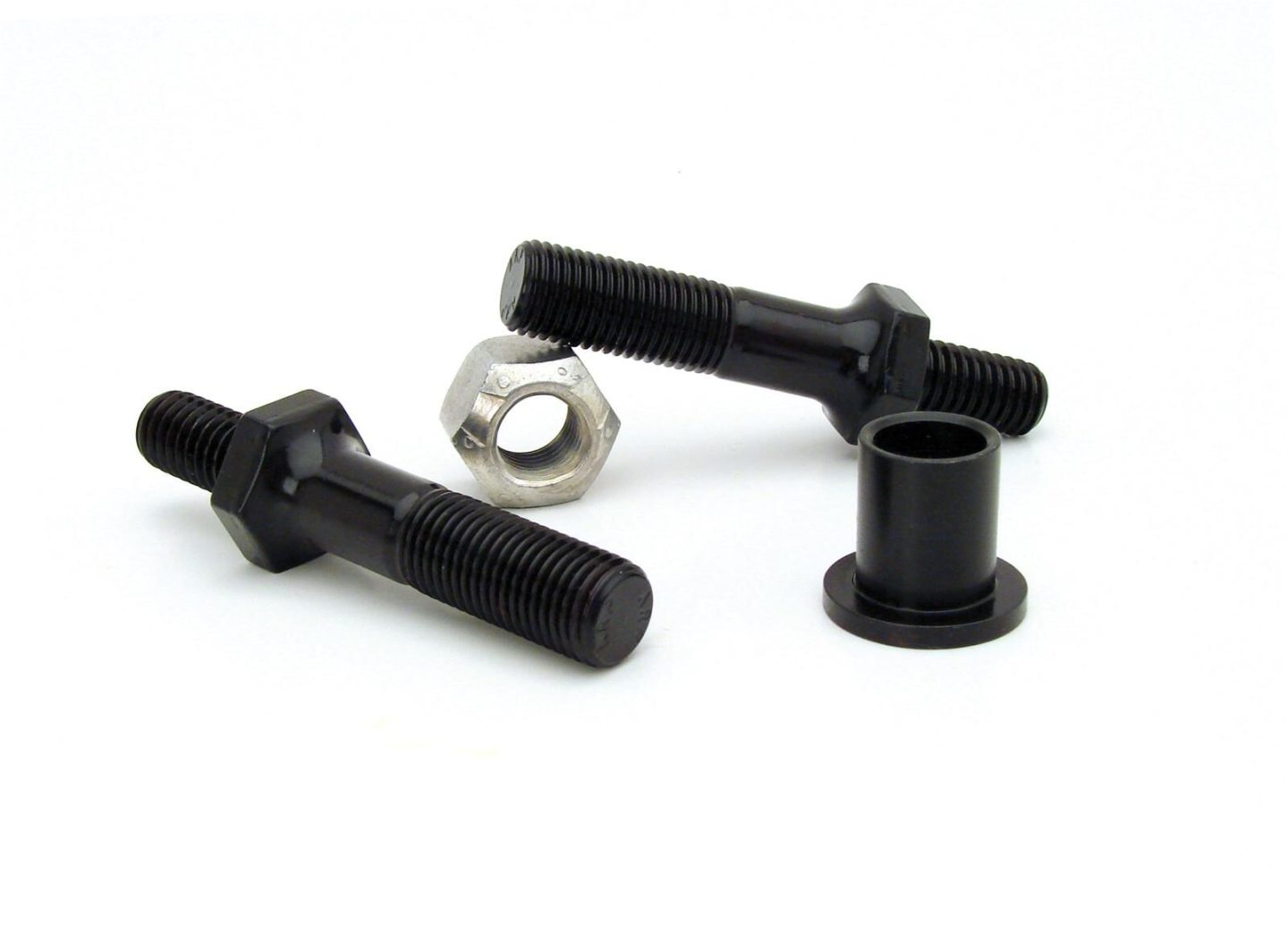

COMP Cams takes pride in having the finest rocker arm studs available on the market. The High Energy and Magnum series studs work well in applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required, as with high RPM roller cam applications, the Hi-Tech Race Stud is the answer. This stud has a thin jam nut for rocker clearance, rolled threads for maximum contact and a ground-flat top so that accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams® studs have generous radii and a black oxide finish.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Catalog

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Rocker Arm Conversion Kit, Adjustable, Chevy, 7.4L, Kit

COMP Cams adjustable rocker arm conversion kits replace the factory studs with new studs, spacers, and adjusting nuts. These kits are a simple, easy, and inexpensive way to add an adjustable valvetrain to your engine.
