SKU: csf3164
IN STOCK! Est Ship 10-14 Days.
SKU: csf3164
IN STOCK! Est Ship 10-14 Days.

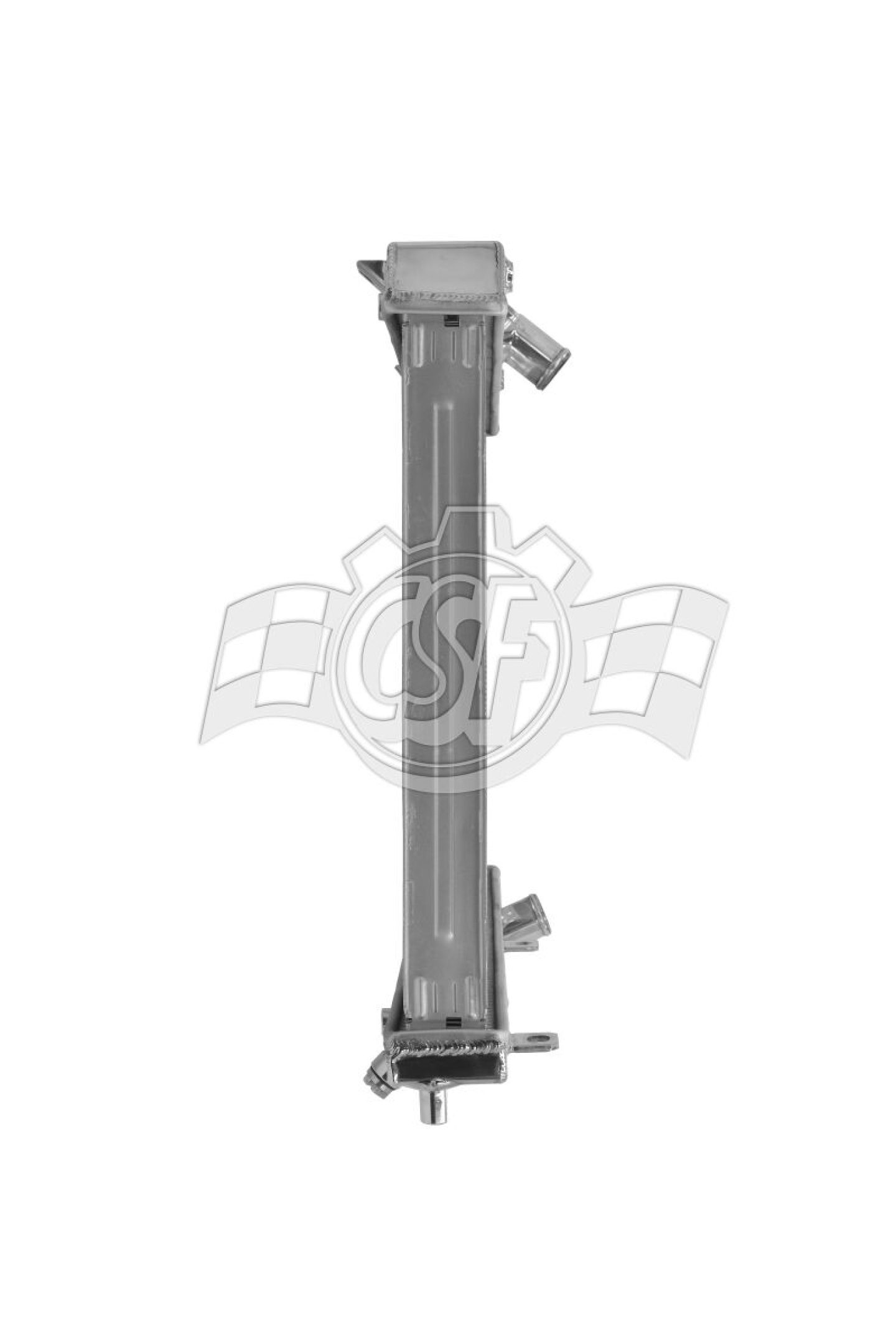

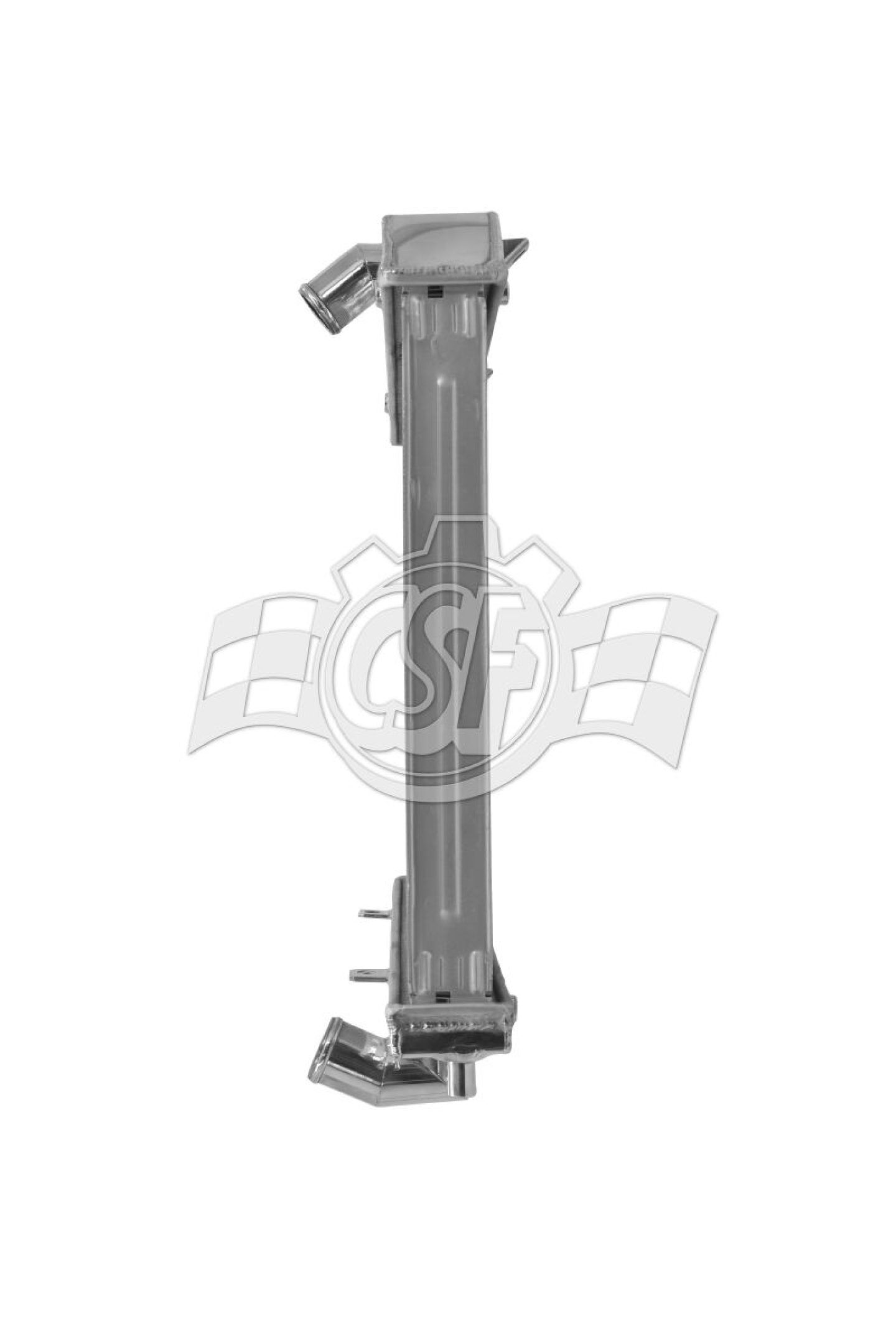

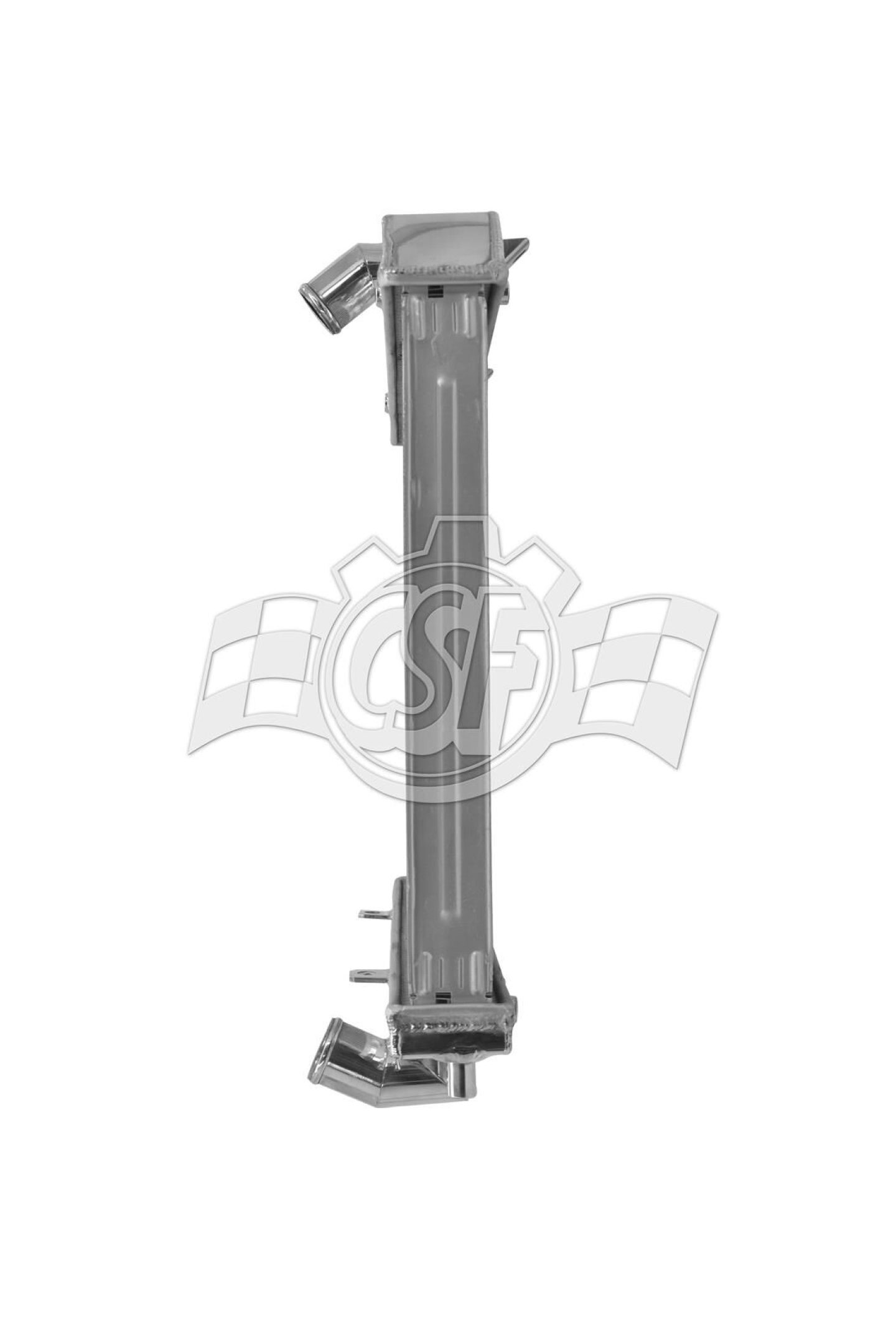

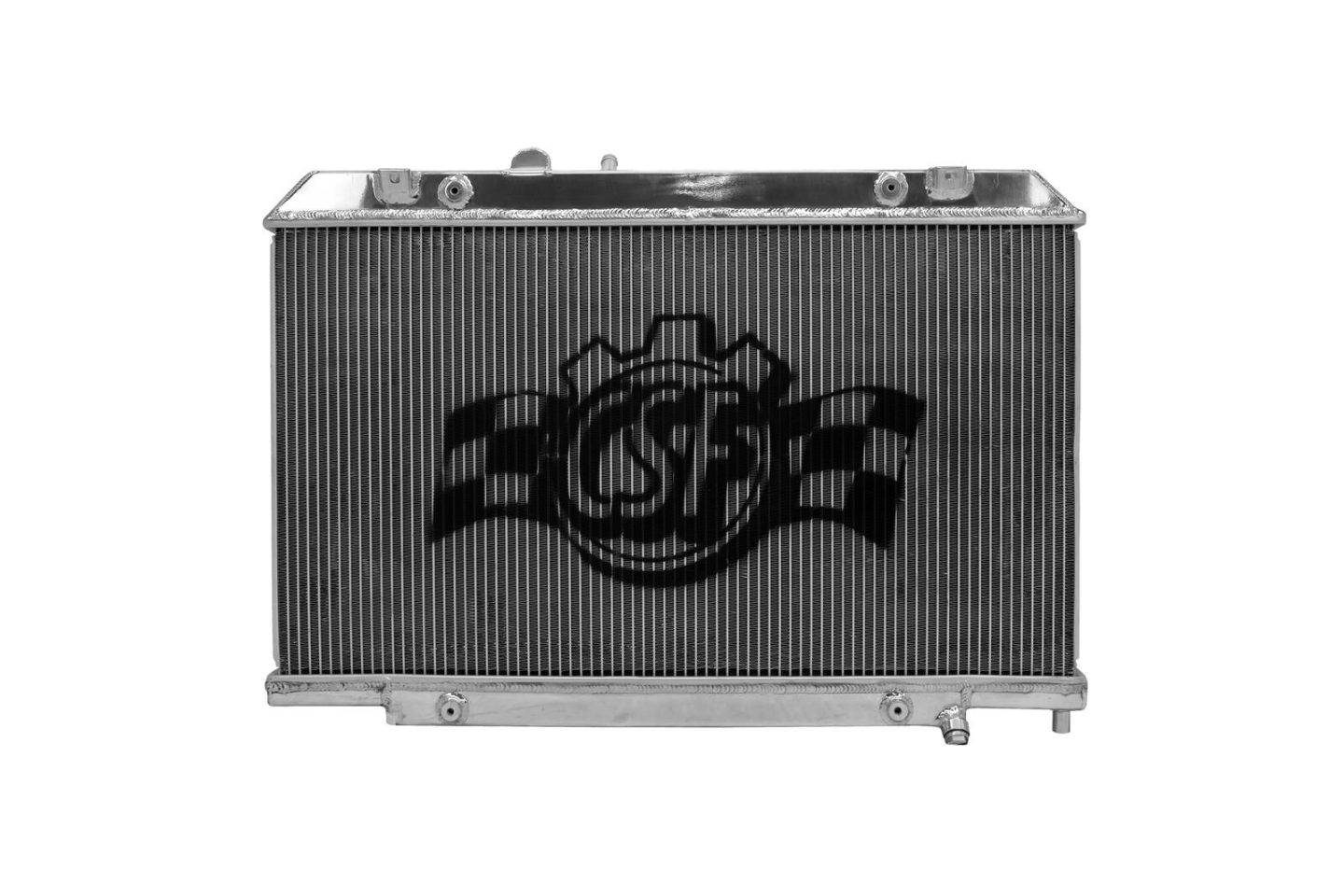

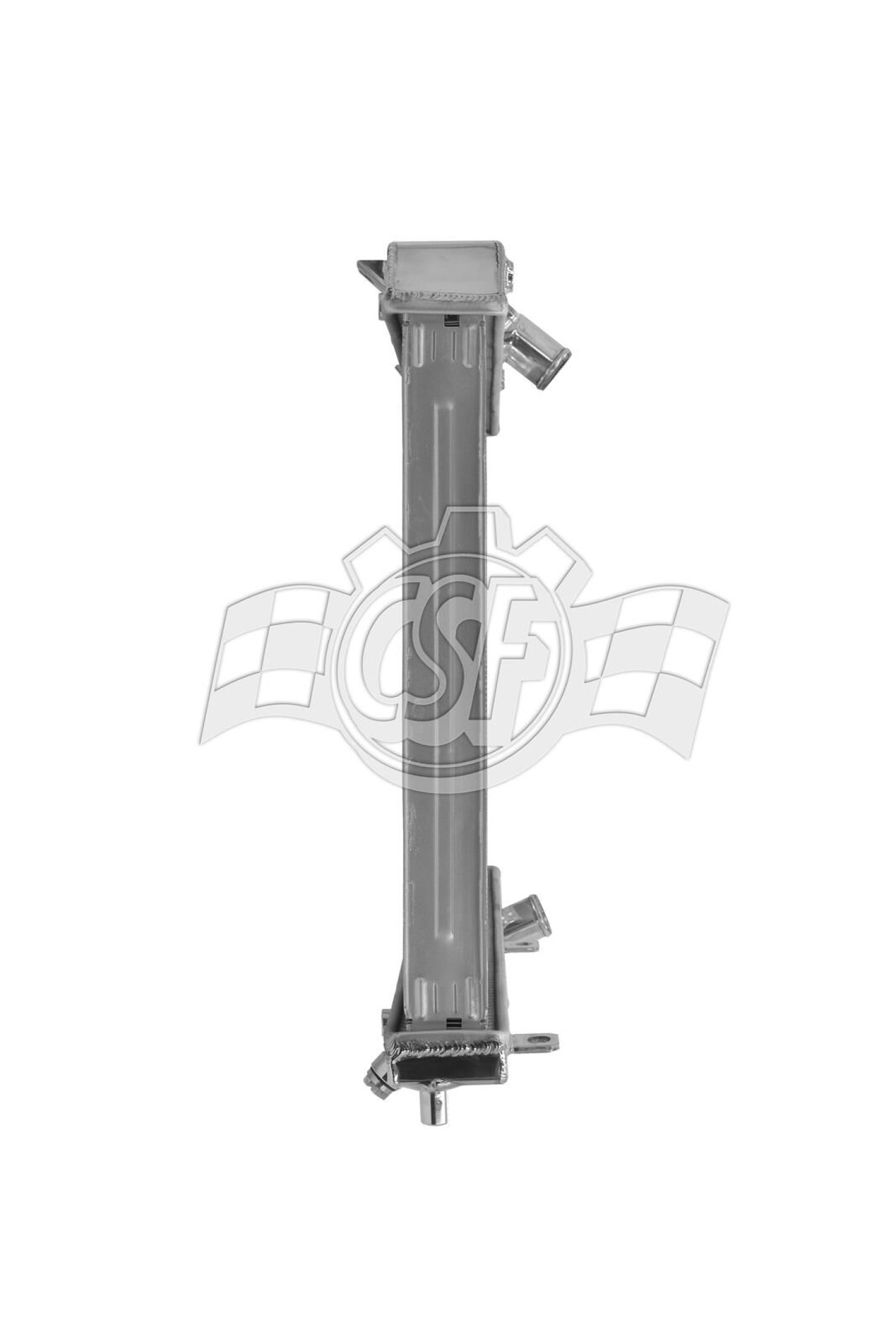

CSF Radiator
The CSF RX-8 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.
CSF manufactures the most advanced and efficient radiator in the industry for your RX-8. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
Radiator
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your RX-8 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
| Coolant Hose Inlet Connection Type: | OE Type Connection |
| Coolant Hose Outlet Connection Type: | OE Type Connection |

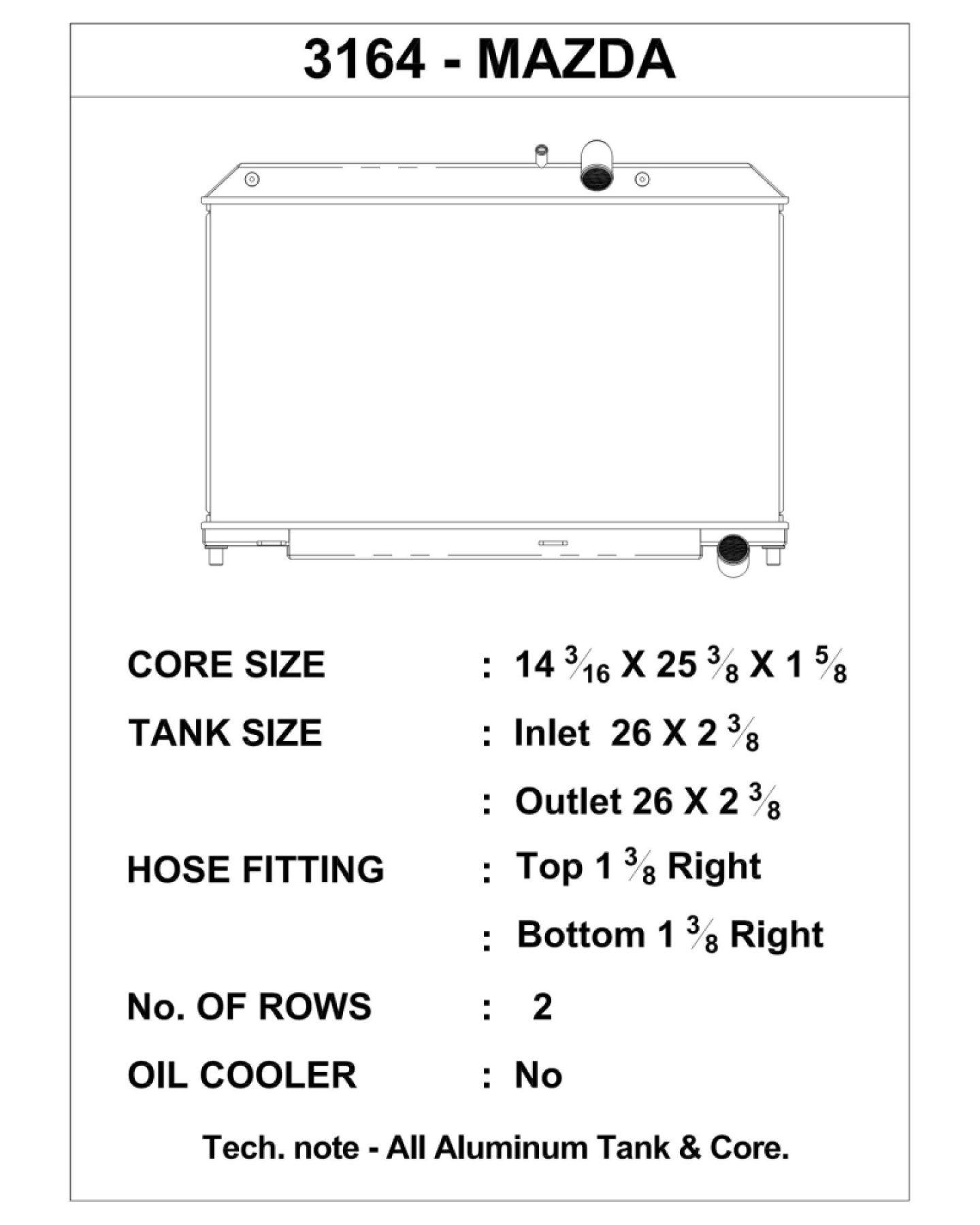

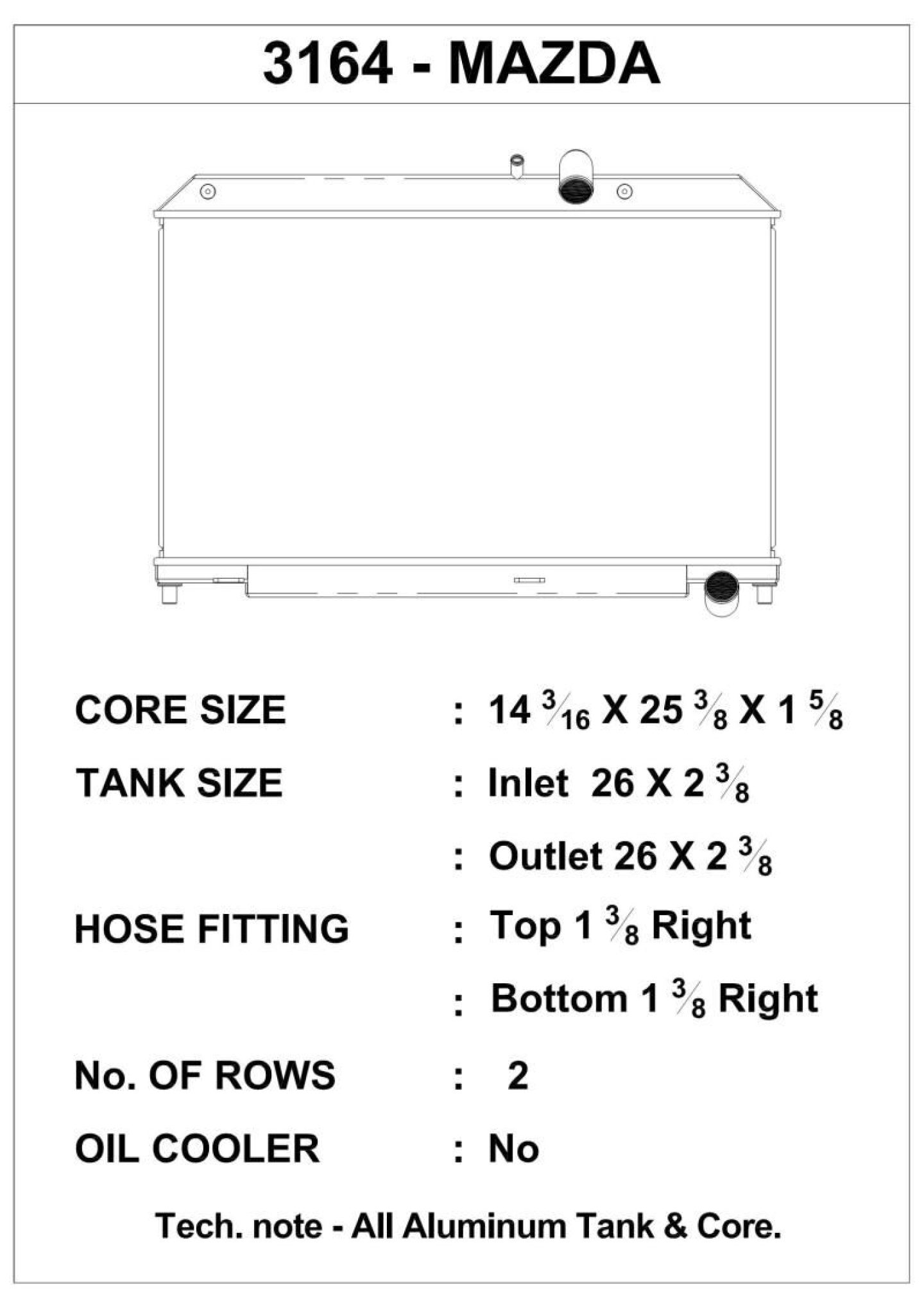

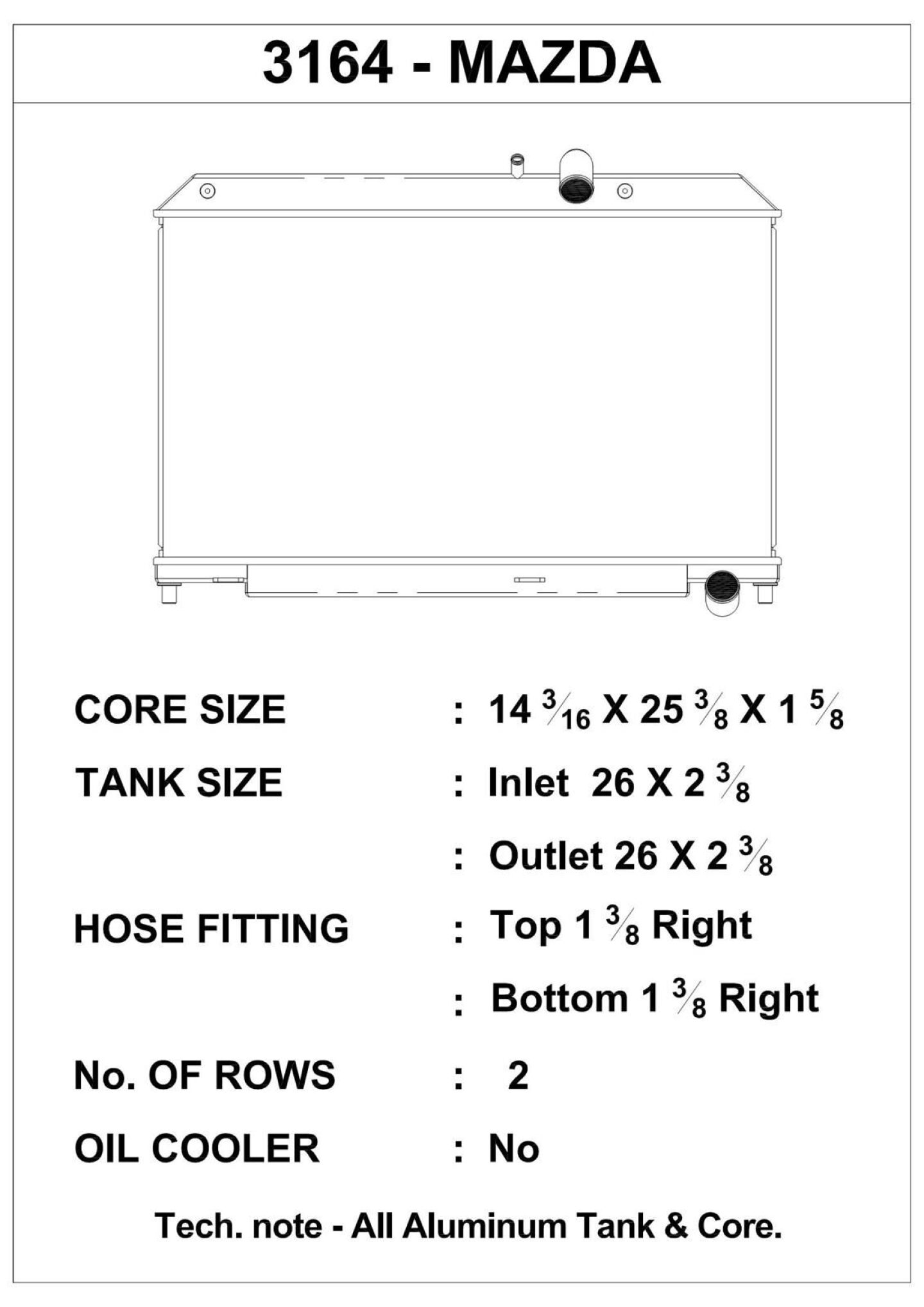

| Core Height: | 14.1875 in. |
| Core Material: | Aluminum |
| Core Row Quantity: | 2 |
| Core Thickness: | 1.625 in. |
| Core Width: | 25.375 in. |
| Description: | CSF 04-08 Mazda RX-8 Radiator |
| Down Flow Or Cross Flow Type: | Down Flow |
| Finish/Color: | Polished |
| Frame Included: | No |
| Grade Type: | Performance |
| Inlet Connector Type: | Slip On |
| Inlet Diameter: | 1.375 in. |
| Inlet Location: | Top Right |
| Installation Type: | Drop-In Fit Installation |
| Internal Engine Oil Cooler: | No |
| Internal Transmission Oil Cooler: | No |
| Mounting Hardware Included: | No |
| Mounting Type: | Mounts with OE Hardware |
| Outlet Connector Type: | Slip On |
| Outlet Diameter: | 1.375 in. |
| Outlet Location: | Bottom Right |
| Part Number: | csf3164 |
| Radiator Cap Included: | No |
| Tank Material: | Aluminum |
| Thermostat Included: | No |
| Title: | 04-08 Mazda RX-8 High-Performance All-Aluminum Radiator |
Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.
Radiator, Racing, Aluminum, Polished, Mazda, RX-8, Each
CSF racing radiators feature the most advanced and efficient radiator cores in the industry. Offered for both vehicle-specific and universal applications, they use innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. Specially engineered tubes in the shape of a "B" are carefully formed and then brazed over the seam. CSF is able to use thinner and lighter aluminum because this design is stronger than normal welded "O" shape tubes. With the inlet in the middle of a seam-brazed tube, the surface area of the tubes is increased approximately 15 percent over regular tubes. With CSF's B-tubes you get dual liquid laminar flow and the efficiency of two smaller tubes vs. one large tube in the same space. High-efficiency, multi-louvered fins are precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in CSF's wind-tunnel lab. CSF offers two all-aluminum end-tank designs to match any style and performance needs. CSF 7000 Series racing radiators have OE-style radial tanks that are flat, rounded, and welded together. Perfect for the customer who likes the sleek and smooth look, and wants to display the intricate welding. CSF deep-drawn end tanks are stamped to the same geometry of OE plastic end tanks. The only high performance manufacture to feature this advanced radiator technology; CSF deep-drawn end tanks feature less welding, and are generally considered the strongest tanks in the industry. Additional features of CSF racing radiators include: * Finished with CSF's Show-Stopper mirror polish process * CAD/CAM designed * Racing-style aluminum drain plug * Brazed in a controlled atmosphere brazing (CAB) furnace—the preferred process for aluminum * ISO 9001/9002 certification * Military-grade (special clad) aluminum used for tubes, fins, and headers * Plates and side brackets meet JIS 3003 specifications * Privately owned factories with full in-house tool rooms * CNC-machined fittings * TIG welded
| Product Attributes | |
|---|---|
| UPC | 710353031643 |
| Brand | CSF Radiator |
| Quantity | Sold individually. |
| Part Type | Radiators |
| Fan Included | No |
| Product Line | CSF Racing Radiators |
| Inlet Location | Upper passenger side |
| Radiator Style | Crossflow |
| Outlet Location | Lower passenger side |
| Radiator Finish | Polished |
| Core Width (in.) | 25.38 in. |
| Core Height (in.) | 14.19 in. |
| Radiator Material | Aluminum |
| Radiator Inlet Size | 1.375 in. |
| Transmission Cooler | No |
| Core Thickness (in.) | 1.63 in. |
| Radiator Outlet Size | 1.375 in. |
| Radiator Cap Included | No |
| Manufacturer's Part Number | 3164 |
| Trans Cooler Adapter Fittings Included | No |
| Manufacturer Attributes | |
|---|---|
| Core Material | Aluminum |
| Title | 04-08 Mazda RX-8 High-Performance All-Aluminum Radiator |
| Coolant Hose Inlet Connection Type | OE Type Connection |
| Coolant Hose Outlet Connection Type | OE Type Connection |
| Core Row Quantity | 2 |
| Down Flow Or Cross Flow Type | Down Flow |
| Frame Included | No |
| Grade Type | Performance |
| Inlet Connector Type | Slip On |
| Inlet Location | Top Right |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | No |
| Mounting Hardware Included | No |
| Mounting Type | Mounts with OE Hardware |
| Outlet Connector Type | Slip On |
| Outlet Location | Bottom Right |
| Radiator Cap Included | No |
| Tank Material | Aluminum |
| Thermostat Included | No |
| Core Height | 14.1875 in. |
| Core Thickness | 1.625 in. |
| Core Width | 25.375 in. |
| Inlet Diameter | 1.375 in. |
| Outlet Diameter | 1.375 in. |
| Installation Type | Drop-In Fit Installation |
| Finish/Color | Polished |
| Manufacturer Designation | 04-08 Mazda RX-8 High-Performance All-Aluminum Radiator |
| Product Class | Radiator |
| Construction/Type | CSF manufactures the most advanced and efficient radiator in the industry for your RX-8. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. |
| Product Outline | 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact CNC Machined "Quick-Connect" Inlet/Outlet Connections CNC Machined Brackets and Fittings for Superb Fit and Durability All-Aluminum Race Style Drain Plug 1-Hour "Mirror Finish" Hand Polish Drop-in Fit |
| Vehicle Brief | CSF 3164 - Mazda RX-8 Radiator |
| Market Description | CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your RX-8 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. The CSF RX-8 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators. |
| CSF 04-08 Mazda RX-8 Radiator | ||||
|---|---|---|---|---|
| Year Range | Make | Model | Submodels | Region |
| 2004-2008 | Mazda | RX-8 | Base, Shinka, Grand Touring, Touring, Sport, 40th Anniversary Edition | US |
Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.
