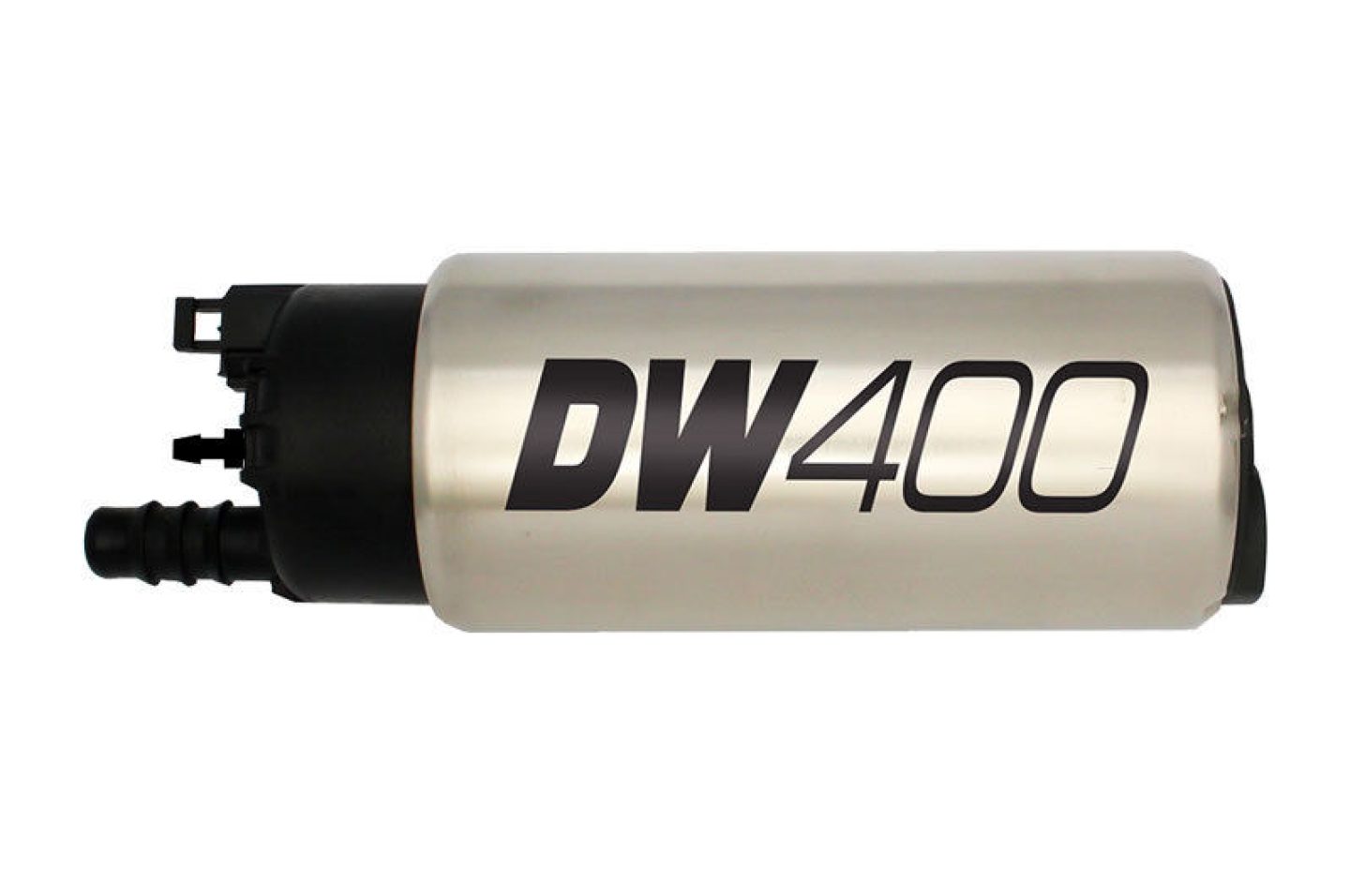

Fuel Pump - DW400 - Electric - In-Tank - 415 lph - Install Kit - Gas / Ethanol - Ford Mustang 2009-14 - Kit
Modules
DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications.
Additional Information

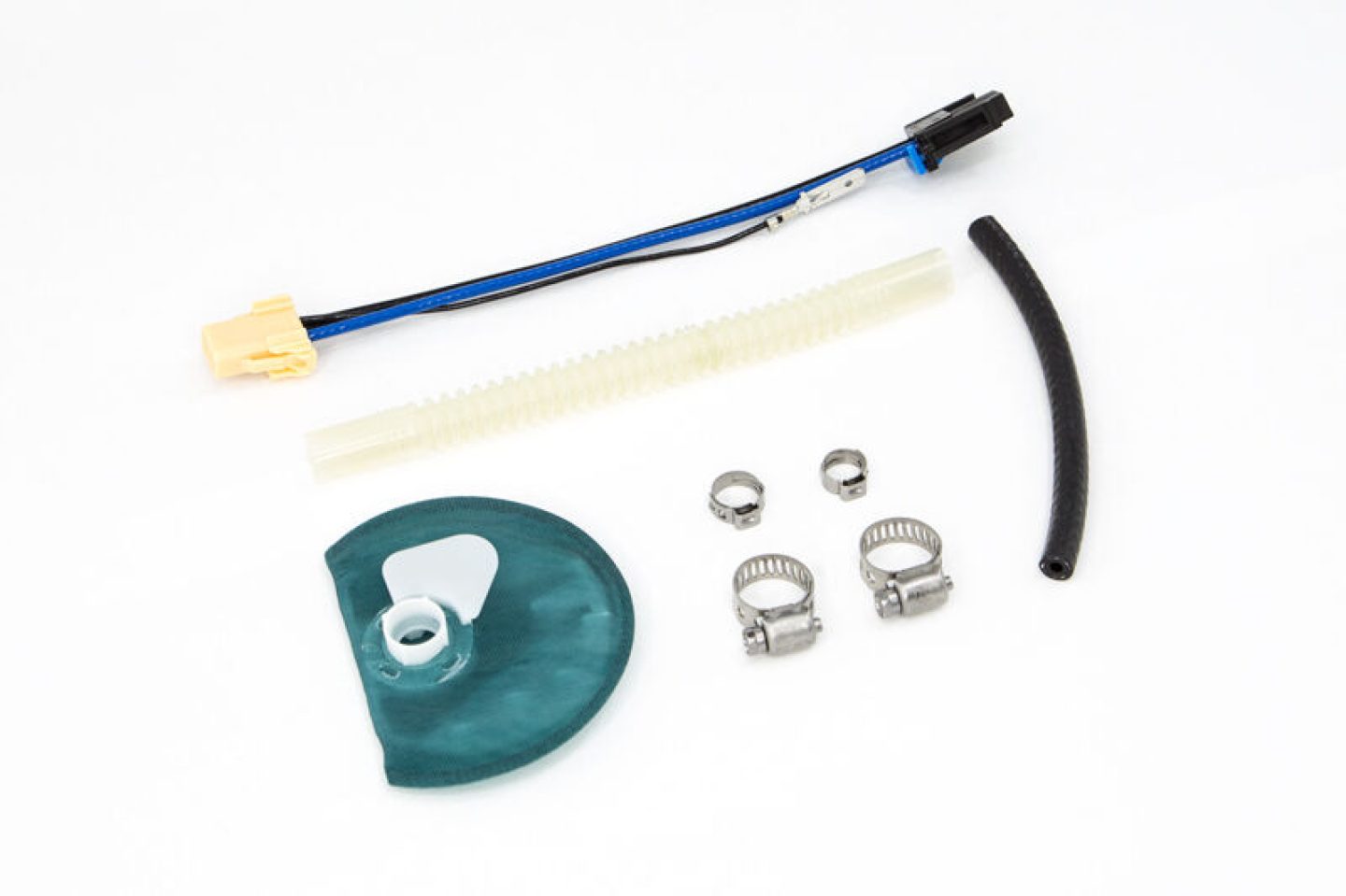

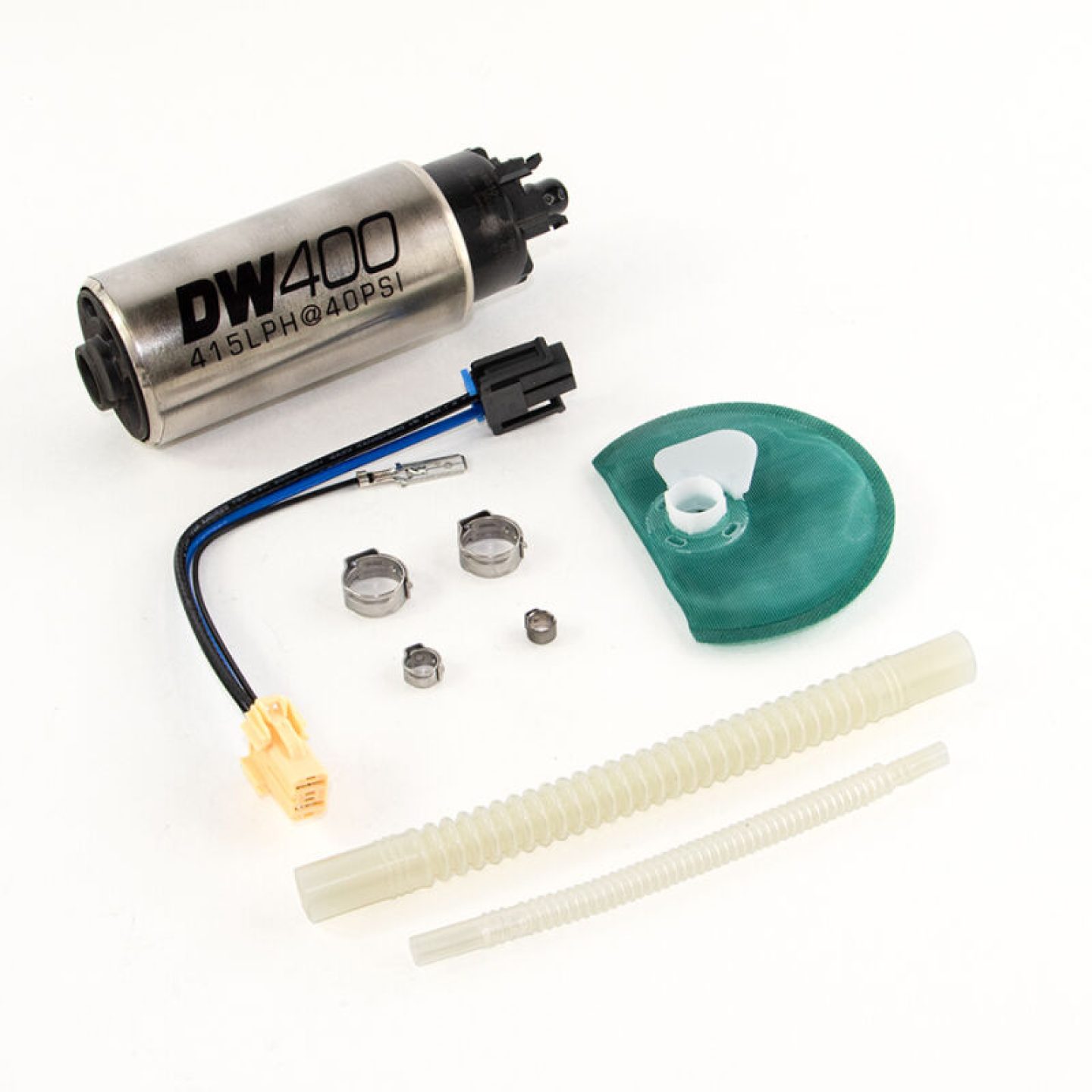

415lph in-tank fuel pump w/ 1/8" venturi w/ 9-1047 install kit for 15-17 Ford Mustang V6/GT
Product Overview
DeatschWerks in-tank fuel pumps are manufactured with a quiet and reliable turbine impeller which is compatible with pulse width modulated pump drivers. These pumps are also built with carbon commutators and fully encapsulated armatures for ethanol compatibility. DW's high-torque motors maintain flow at higher pressure better than competitors' pumps. Low amperage draw minimizes pump temperatures, maximizes pump life and reduces stress on OE wiring. Vehicle-specific pumps include a fitment kit assembled with everything you need for your application. Vehicle specific install instructions are also available on our website to walk you step-by-step through the installation process. Fuel Pump TECH SHEETS and INSTALLATION GUIDES can be found at "deatschwerks.com":http://www.deatschwerks.com under the Support tab. All DW fuel pumps are backed by a 3-year no fault warranty.
Product Details
| Category 2: | In-Tank Fuel Pumps |
| Category 3: | Vehicle-Specific In-Tank Fuel Pumps |
| Category: | Vehicle Specific In-Tank Fuel Pumps |
| Description: | DW400 Fuel pump for S550/S650 Mustang |
| Flow Rate: | 415lph |
| Installation Instructions: | 15-17_Mustang_DW400_Fuel_Pump_Install_Instructions_with_Pictures.pdf |
| Mounting Type: | In Tank |
| Note: | To ensure maximum voltage at the pump, a 10-gauge hardwire kit is strongly recommended for optimum performance. (DeatschWerks PN# FPHWK-10-HD) |
| Part Number: | dwk9-403-1047 |
| Price Group: | P1 |
| Product Photo 1: | 9-403-1047.jpg |

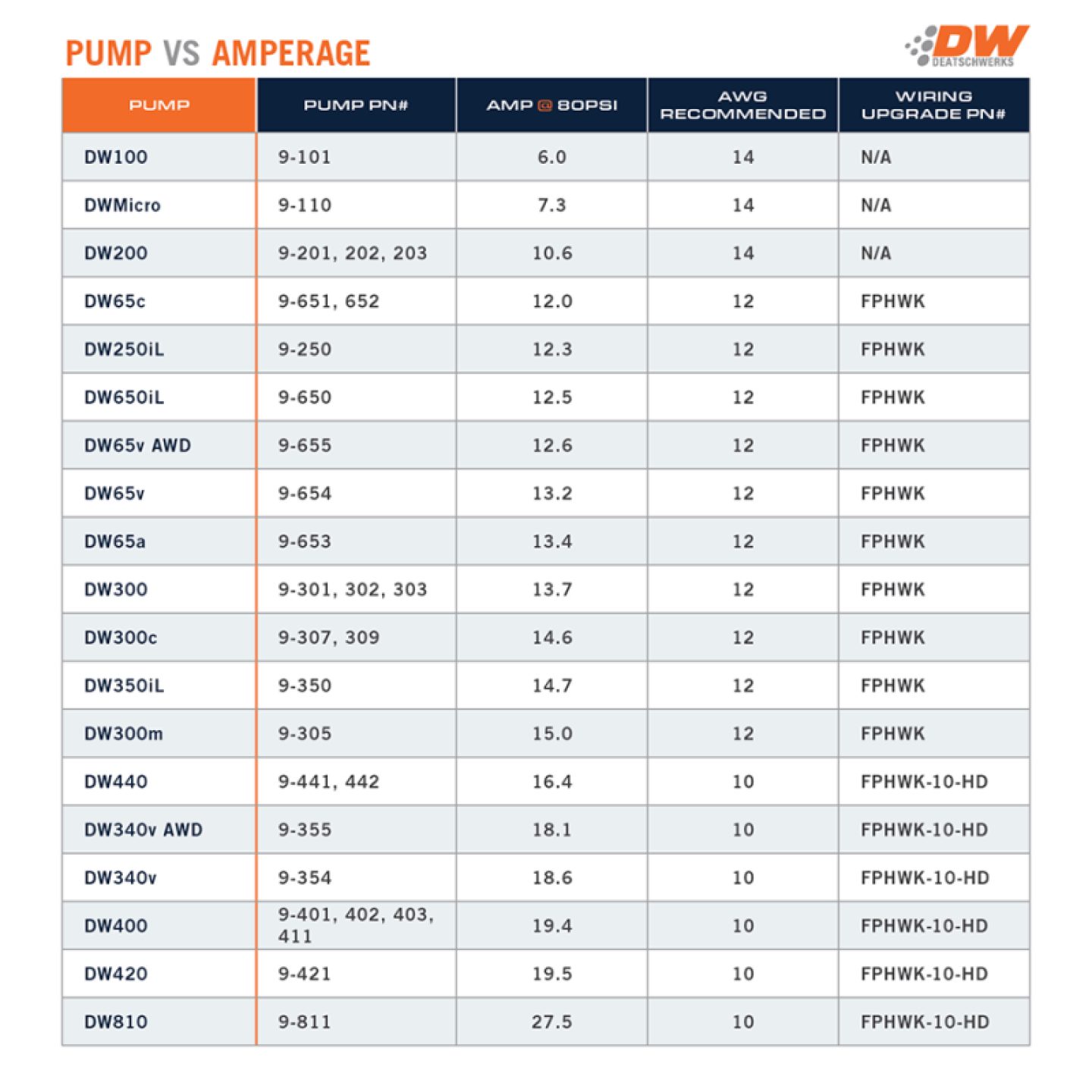

| Product Photo 2: | Pump_VS_Amperage_Table.png |
| Series: | DW400 Pump Modules |
| Shopify Category: | Motor Vehicle Fuel Systems |
| Shopify Collection: | Fuel Pumps |
| Shopify Type: | Electric Fuel Pump |
| Tech Data Sheet: | DW400_Tech_Sheet_rev_2024_-_Check-valve_1.pdf |
| Title: | 415lph in-tank fuel pump w/ 9-1047 install kit |
| Tuning Data: | DW_Pump_Complete_Flow_Data_-_published.xlsx |
| Web Site Category: | Fuel Pumps |
| Web Site Group: | Vehicle-Specific In-Tank Fuel Pumps |
| Additional Application Notes |
|---|
| • V6 3.5L T; V6 3.7L; V8 5.0L/6.2L |
| • V6 4.2L, V8 4.6L/5.4L/6.2L |
| • V8 4.6L; 5.4L |
| • V6; Ecoboost |
These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.
Product Downloads
| # | Document Type | Download |
| 1. | Installation Instructions |  |
| 2. | Technical Bulletin | |
| 3. | Product Specifications Sheet | |
Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.
