Heat Shield Sleeve

A high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100% silicone rubber with 304 stainless mesh outer covering, EXO Sleeve provides the ultimate in heat insulation and protection from direct heat up to 500°F. Silicone glass sleeve (DEI Fire Sleeve) surrounded by 304 stainless mesh outer coating Allows direct contact to heat source Highly abrasion resistant Provides air flow around sleeve Perfect for insulating wiring, hoses, oil / brake / transmission lines & more Size: 0.375 (3/8) inch x 36 inches Fitment Chart AN Conversion Chart AN Size Metal Tube O.D. Thread Size 2 1/8 in. 5/16 24 SAE 3 3/16 in. 3/8 24 SAE 4 1/4 in. 7/16 20 SAE 5 5/16 in. 3/8 18 SAE 6 3/8 in. 9/16 18 SAE 8 1/2 in. 3/4 16 SAE 10 5/8 in. 7/8 14 SAE 12 3/4 in. 1-1/16 12 SAE 16 1 in. 1-5/16 12 SAE 20 1-1/4 in. 1-5/8 12 SAE 24 1-1/2 in. 1-7/8 12 SAE 28 1-3/4 in. 2-1/4 12 SAE 32 2 in. 2-1/2 12 SAE Fire Sleeve Application Chart Part# Name Line Size* 10470 3/8 in. Fire Sleeve 3AN4AN6AN 10472 5/8 in. Fire Sleeve 6AN8AN 10474 1 in. Fire Sleeve 10AN12AN16AN**5/8 in. Heater Hose3/4 in. Heater Hose *Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines. **Tight fit: If you have fittings on your line, you may need to order one size up. You can achieve between 1/16 in. and 1/8 in. stretch out of our material. This may help on installs with fittings already on the lines.

Additional Information

EXOâ„¢ Sleeve; 3/8 in. x 3 ft.; Mesh Over Silicone;

Application Summary

Constructed from a high temperature resistant braided glass material; woven into a sleeve and heavily coated with 100% silicone rubber with 304 stainless mesh outer covering; EXO Sleeve provides the ultimate in heat insulation and protection from direct h

• Use For Bundling And Protecting Hoses/Electrical Wiring etc.

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

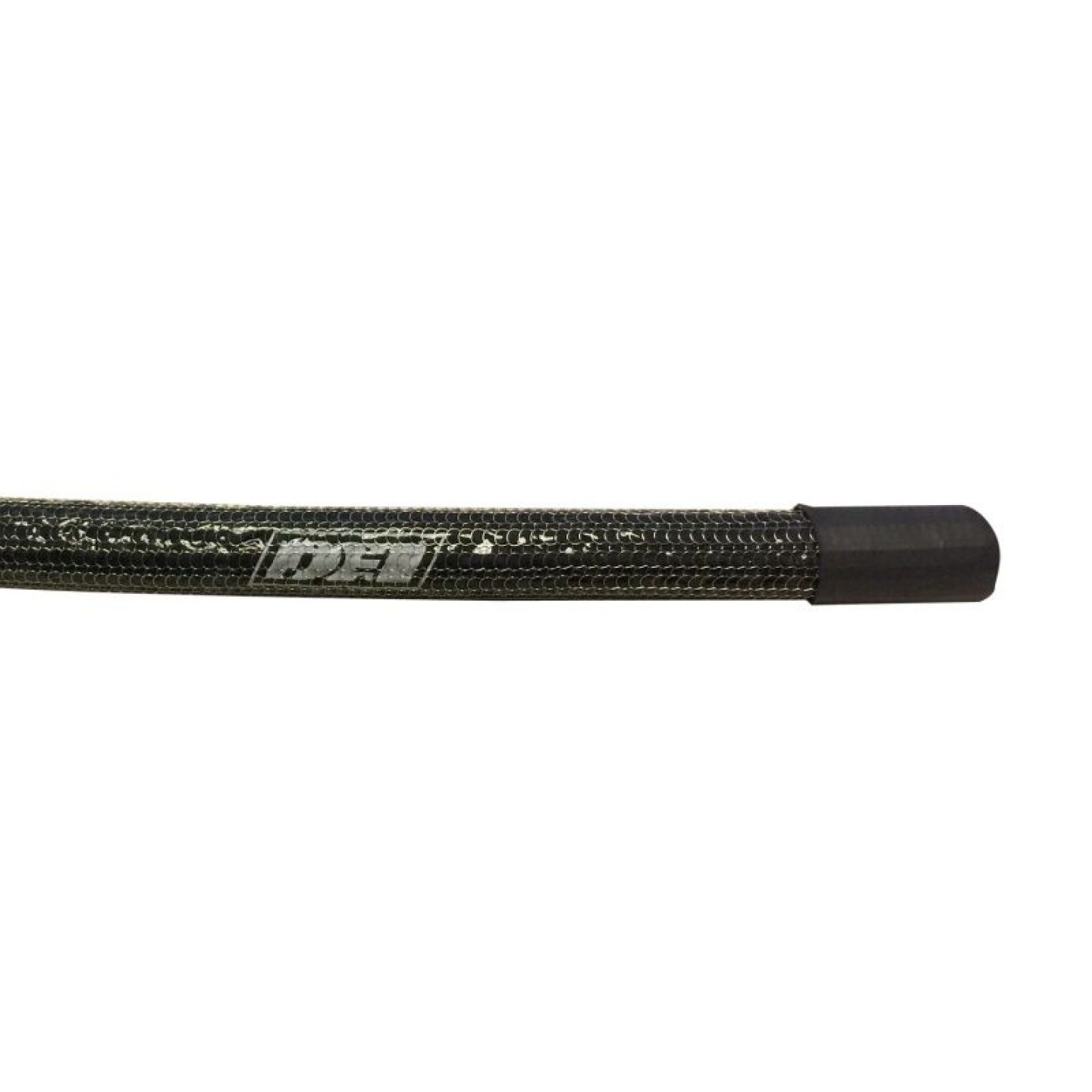

EXO Sleeve, 3/8 in. Diameter, 36 in. Long, Black, Each

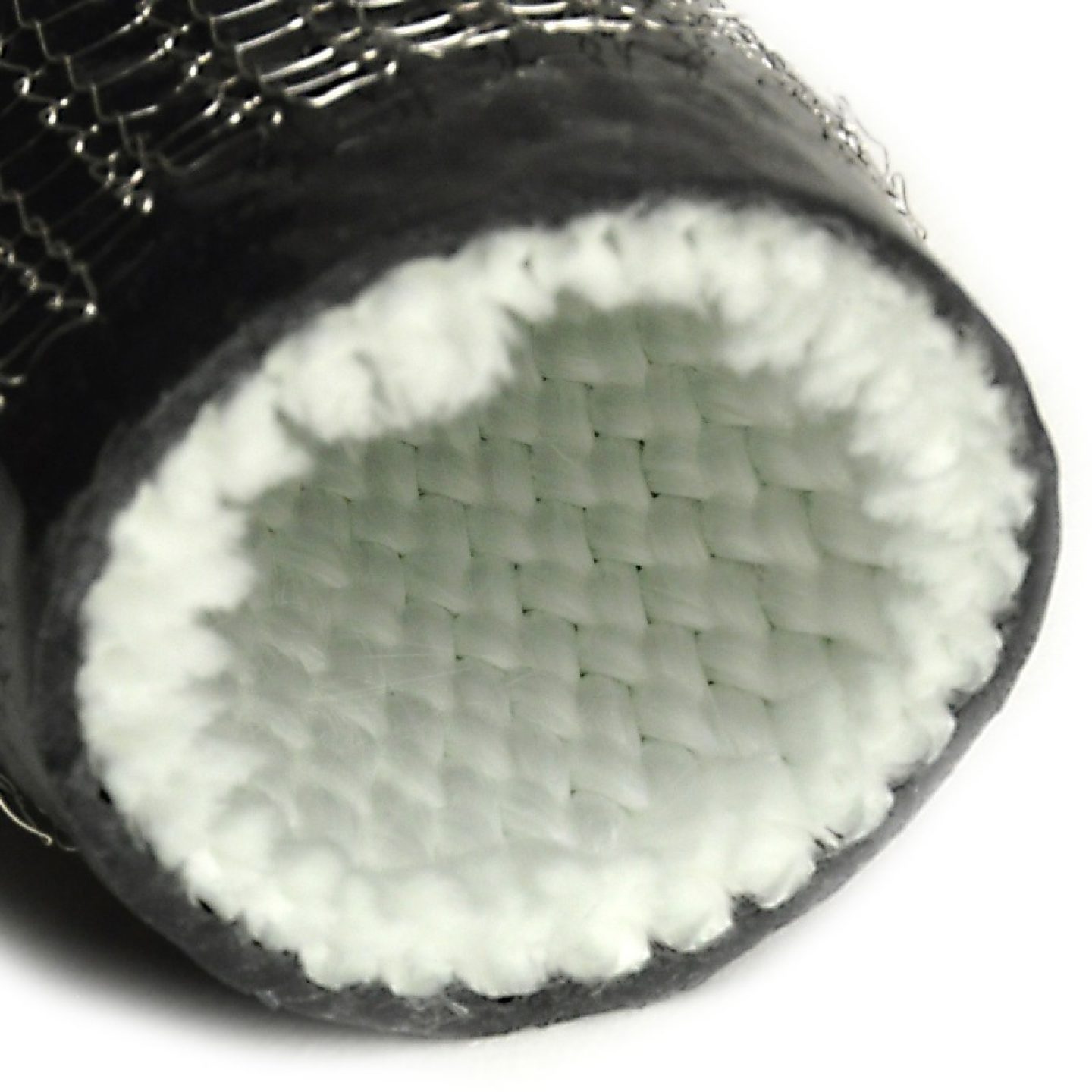

DEI EXO Sleeves provide the ultimate in heat insulation and protection from direct heat up to 500 degrees F. EXO Sleeves are constructed from a high-temperature resistant braided glass material, woven into a sleeve and heavily coated with 100 percent silicone rubber and a 304 stainless breathable mesh outer covering. These "shrouds" are available in different diameters.

Features include:
• Silicone glass sleeve (DEI Fire Sleeve) surrounded by 304 stainless mesh outer coating
• Allows direct contact to heat source
• Highly abrasion-resistant
• Provides airflow around sleeve

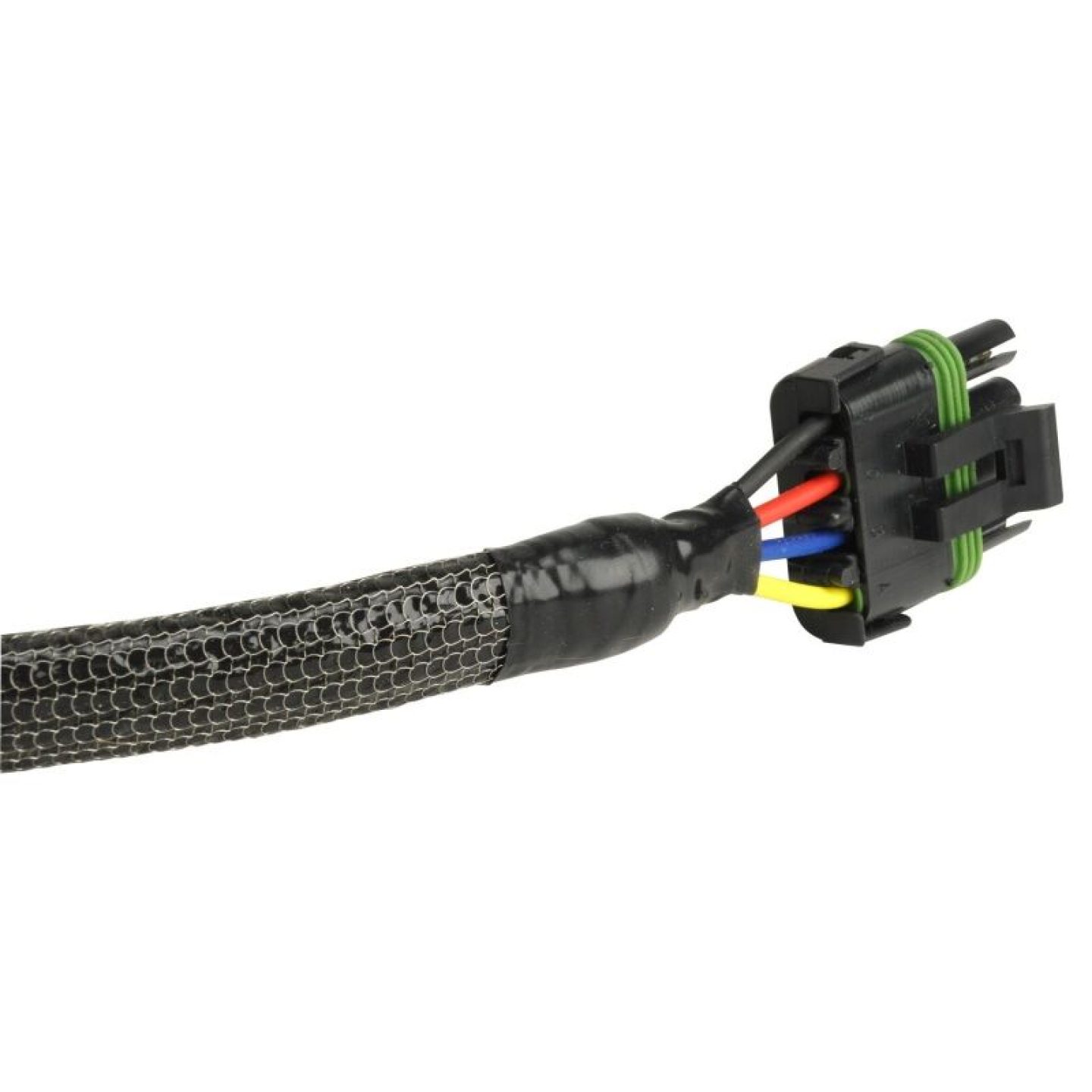

• Perfect for insulating wiring, hoses, oil/brake/transmission lines, and more
