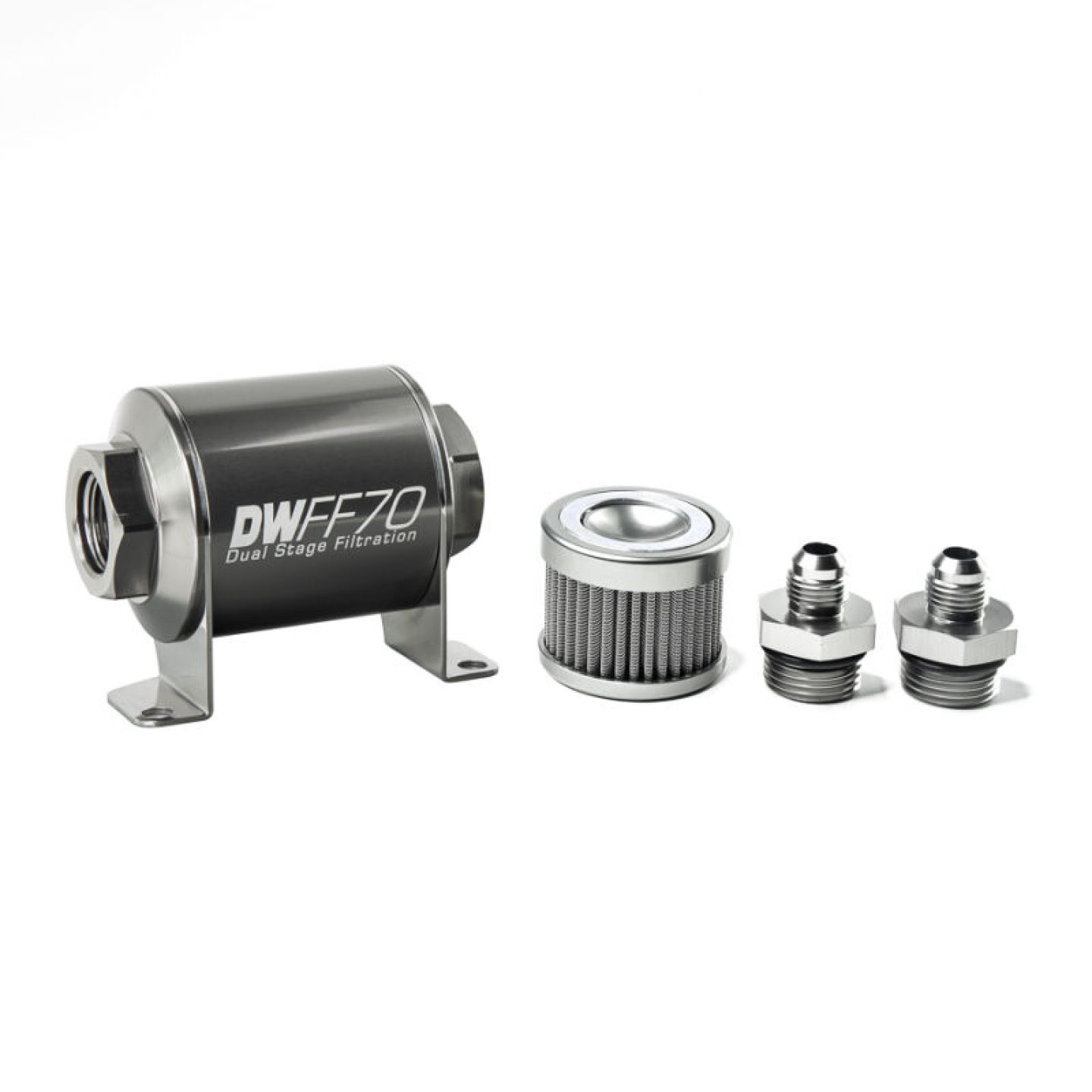

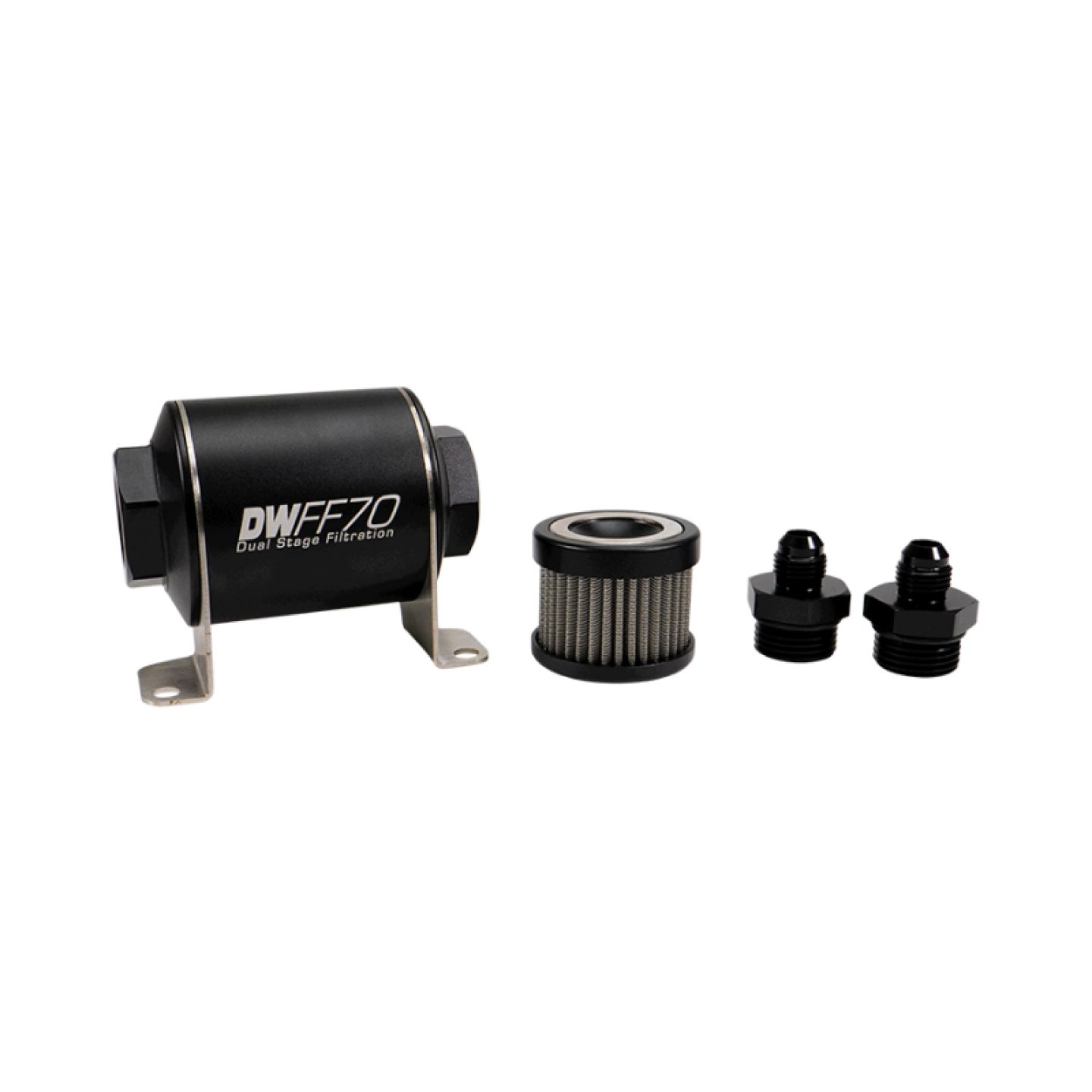

Fuel Filter, Inline Mount, Billet Aluminum, 100 Microns, -10 AN Female O-Ring Inlet/Outlet, 70mm Length, with Fittings, Each
E85 ethanol and other blended fuels have many contaminates capable of destroying fuel injectors and pumps. DeatschWerks inline fuel filters provide an extra layer of protection with their dual-stage, magneto-mechanical elements. In the first stage, zero flow restrictions are accomplished through magnetic filtration. This process uses a 35mm neodymium magnet at the filter inlet to trap ferrous contaminants, keeping them from destroying fuel injectors and pumps. For maximum filtration and minimum flow restrictions, DW filters use serviceable pleated 304-series stainless steel elements to capture non-ferrous materials in stage two. They're compatible with a wide range of fuels, including pump gas, race gas, MTBE, ethanol, methanol, and diesel. DW fuel filters are available in two bore sizes, three housing sizes, and are constructed from T6061 aluminum with -8 AN ORB inlets and outlets. Unique surge tank fuel filters that fit directly onto their popular 250iL and 350iL pumps are also available. For high temperature tolerance, incredible life spans, and excellent filtration, buy DeatschWerks inline fuel filters.
| UPC | 00887753537034 |
| Brand | DeatschWerks |
| Notes | Includes two -10 AN male straight cut O-ring to -6 AN male fittings. |
| Quantity | Sold individually. |
| Part Type | Fuel Filters |
| Product Line | DeatschWerks Inline Fuel Filters |
| Inlet Quantity | 1 |
| Clamps Included | No |
| Outlet Quantity | 1 |
| Inlet Attachment | Female straight cut O-ring |
| Fittings Included | Yes |
| Fuel Filter Style | Inline |
| Outlet Attachment | Female straight cut O-ring |
| Filter Housing Color | Silver/Gray anodized |
| Overall Length (in.) | 2.76 in. |
| Fuel Filter Inlet Size | -10 AN |
| Filter Element Included | Yes |
| Filter Element Material | Stainless steel mesh |
| Filter Housing Material | Billet aluminum |
| Fuel Filter Outlet Size | -10 AN |
| Mounting Bracket Included | Yes |
| Manufacturer's Part Number | 8-03-070-100K-6 |
| Smallest Particle Filtered | 100 microns |
