DscBrkPadRtr

Kit components ED91657+BSD7237

Additional Information

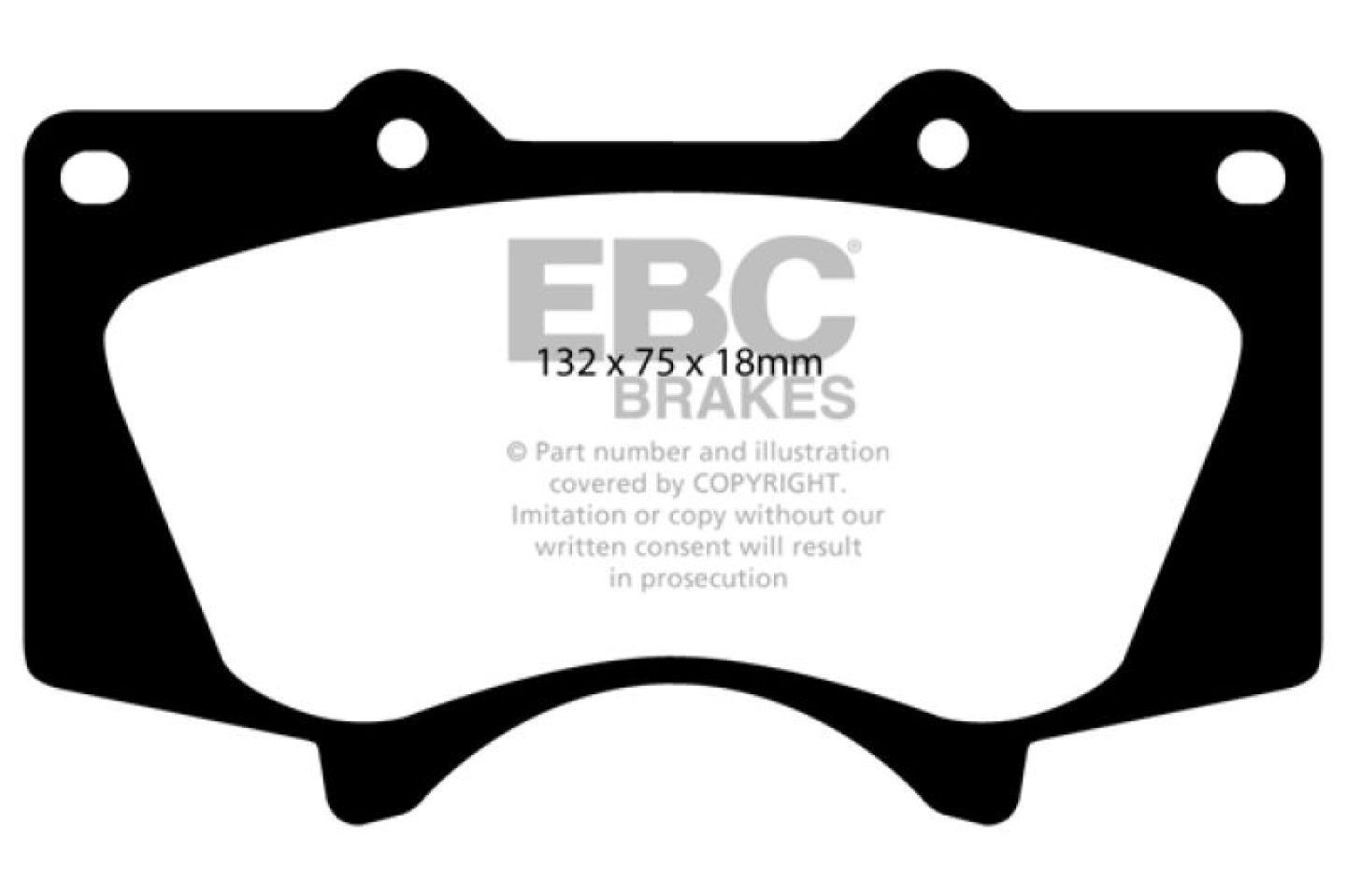

S7 Kits Orangestuff and BSD Rotors; Front; FMSI Pad No. D976; Vented; 6 Bolt Holes; 319mm Dia.; 67.5mm Height; 28mm Thick; 108mm Center Hole Dia.;

Application Summary

2005 and up TOYOTA Tacoma 4WD 4.0

Part Type

Disc Brake Pad and Rotor / Drum Brake Shoe and Drum Kit

Product Overview

Save 15% over cost of buying separate parts with this quality pad and rotor kit which includes pads rotors pads rotors and caliper lube. As with the Bluestuff pads Orange grade pads once bedded are safe for street driving on your way to a track event.Lifetime is longer than Bluestuff grade but again must be regularly monitored especially if driving home on these brakes after track use.

These additional application notes are supplied by the manufacturer and collated from multiple year ranges. Not all of these notes may apply to every year or every variant. Please contact a StreetFX agent for clarification if required.

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	ebcED91657	ED91657	840655088523	EBC 10+ Lexus GX460 4.6 Extra Duty Front Brake Pads

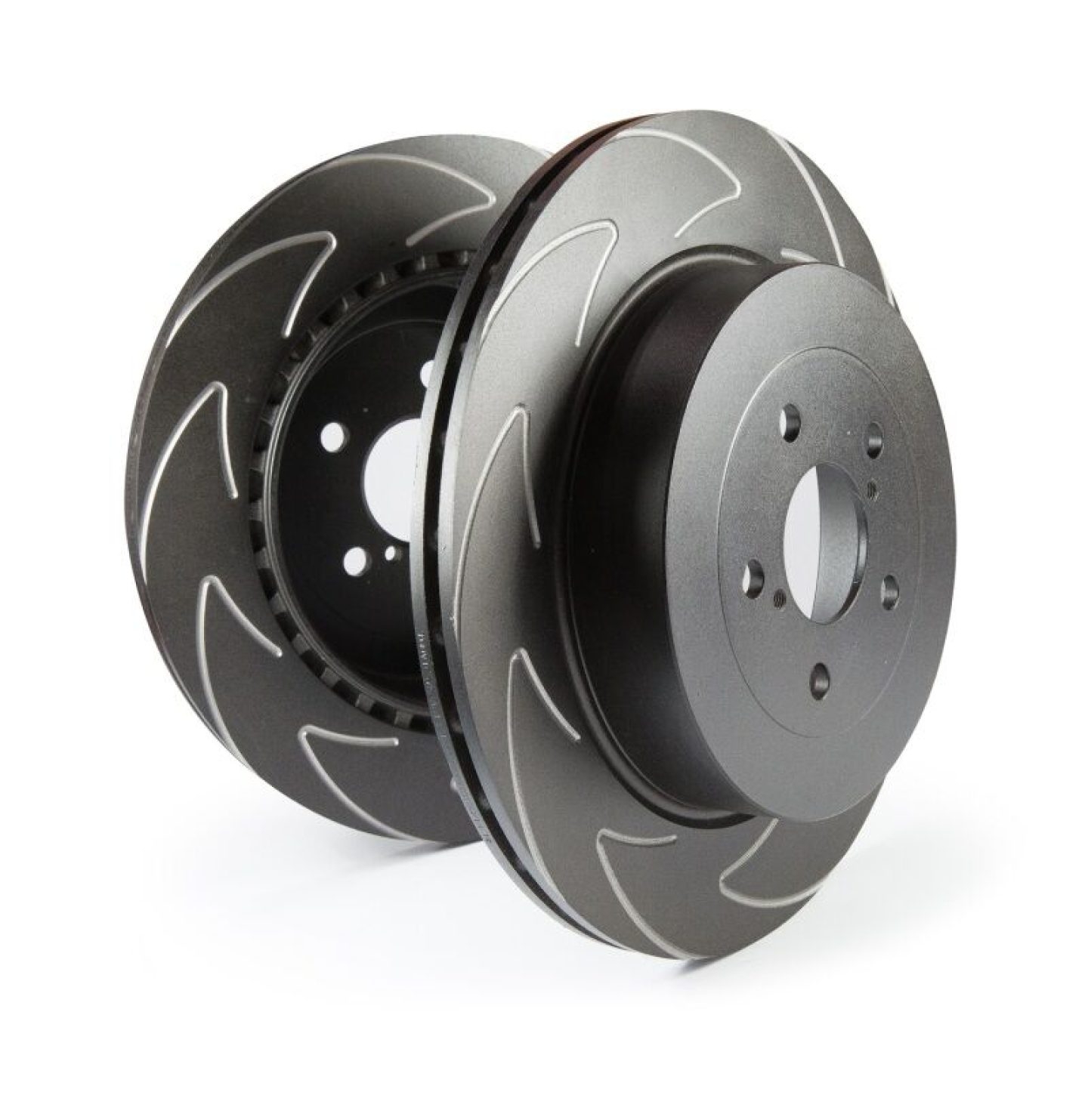

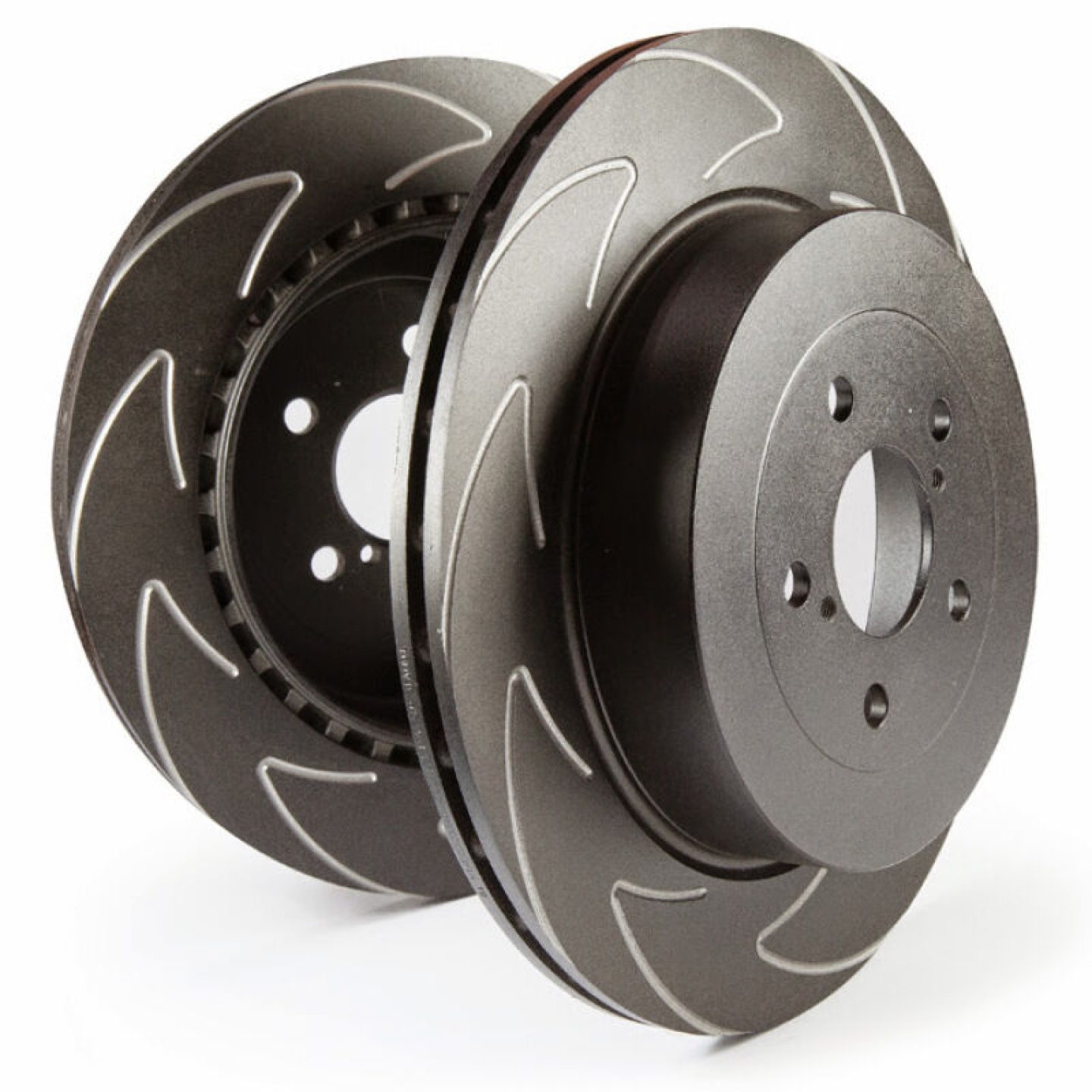

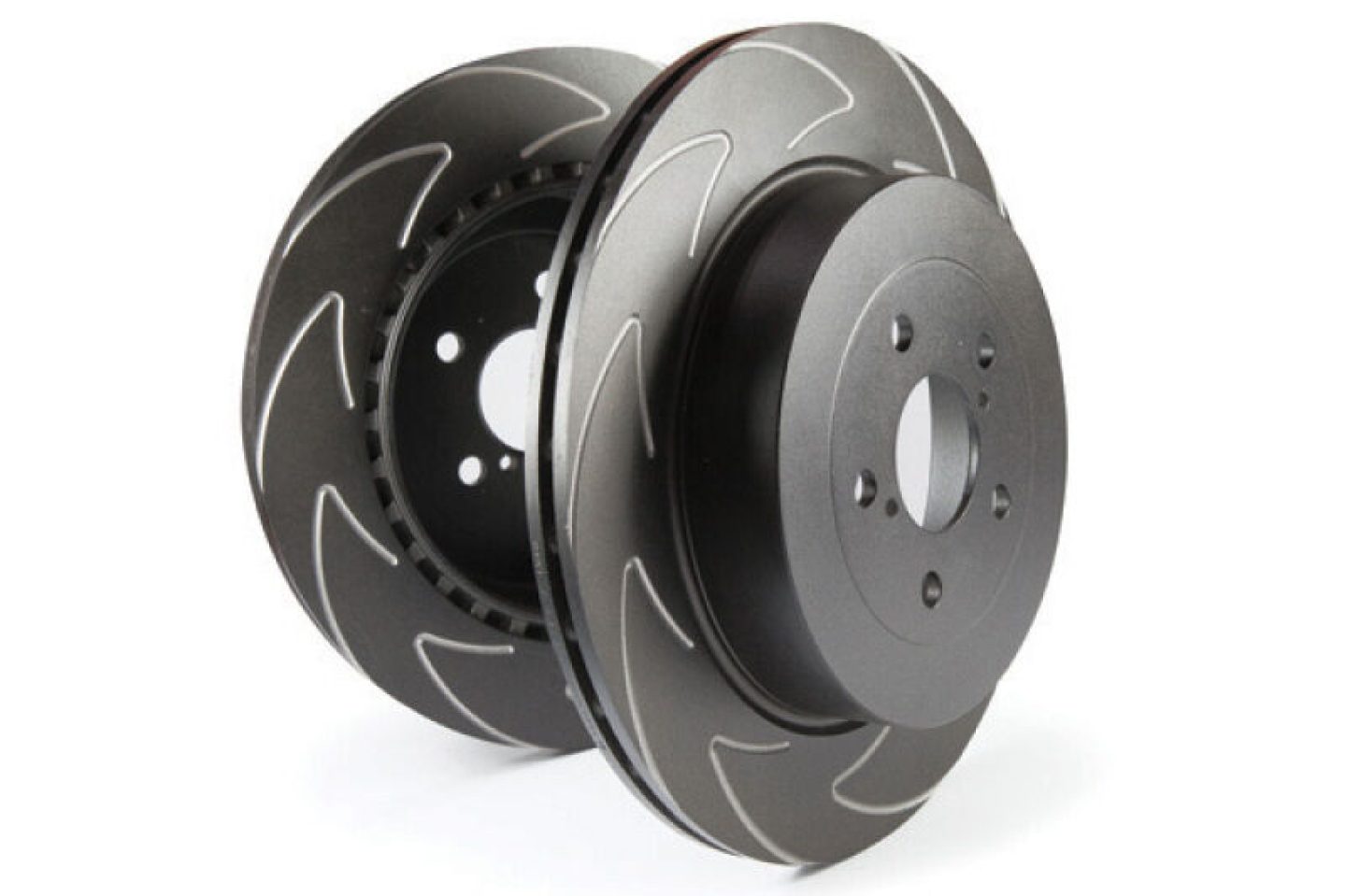

	1x	ebcBSD7237	BSD7237	889668095142	EBC 03-09 Toyota 4 Runner 4.0 BSD Front Rotors

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Direct Fit No Changes Required Over Stock Set UP

Note for Pistons, Rings, Rotors, Rods and engine internals

Unless otherwise specified, some brands supply brake rotors, pistons, strut mounts, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.

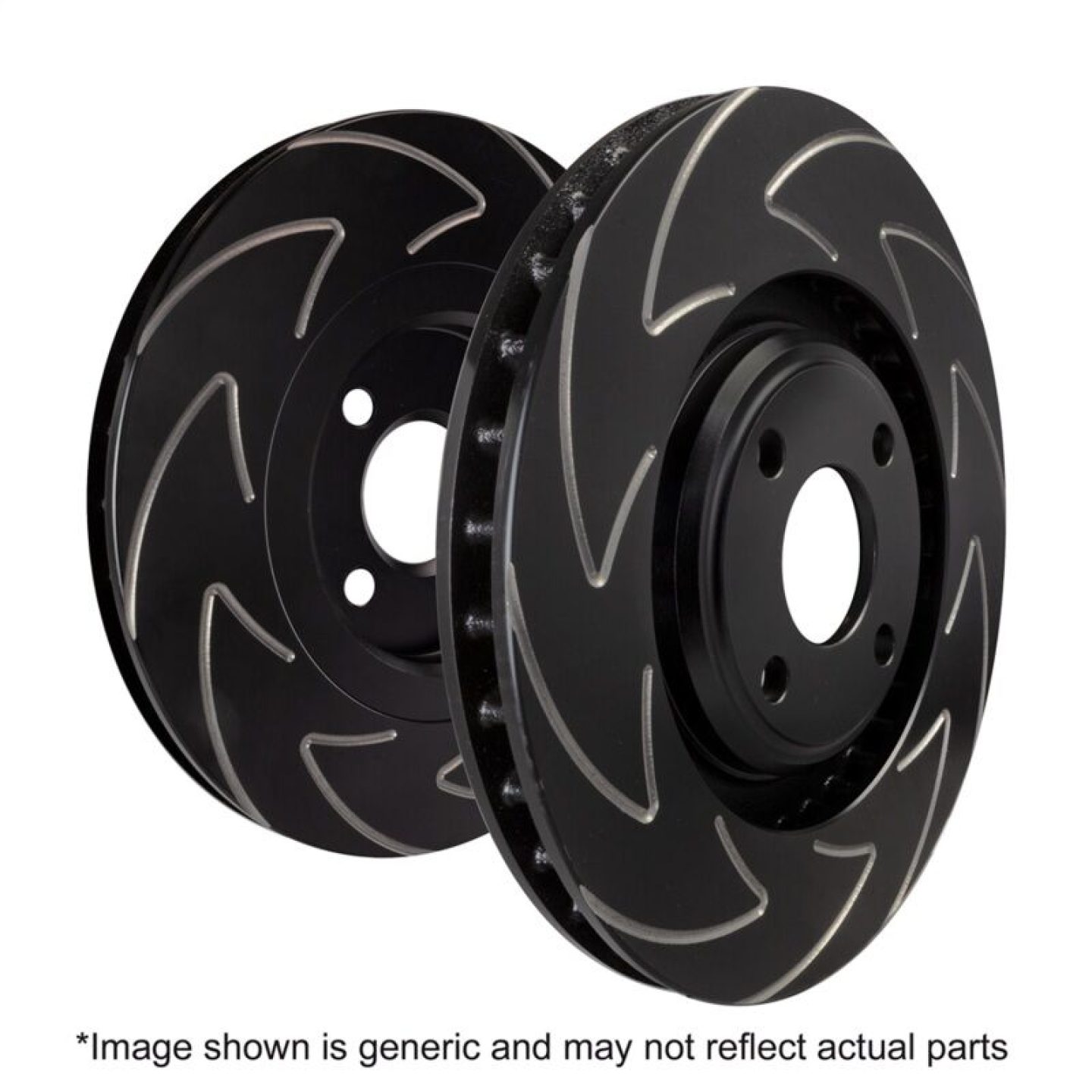

Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.

Product Details

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Reference Information

Brake Kit Stage 7 Kits Extra Duty and BSD Rotors

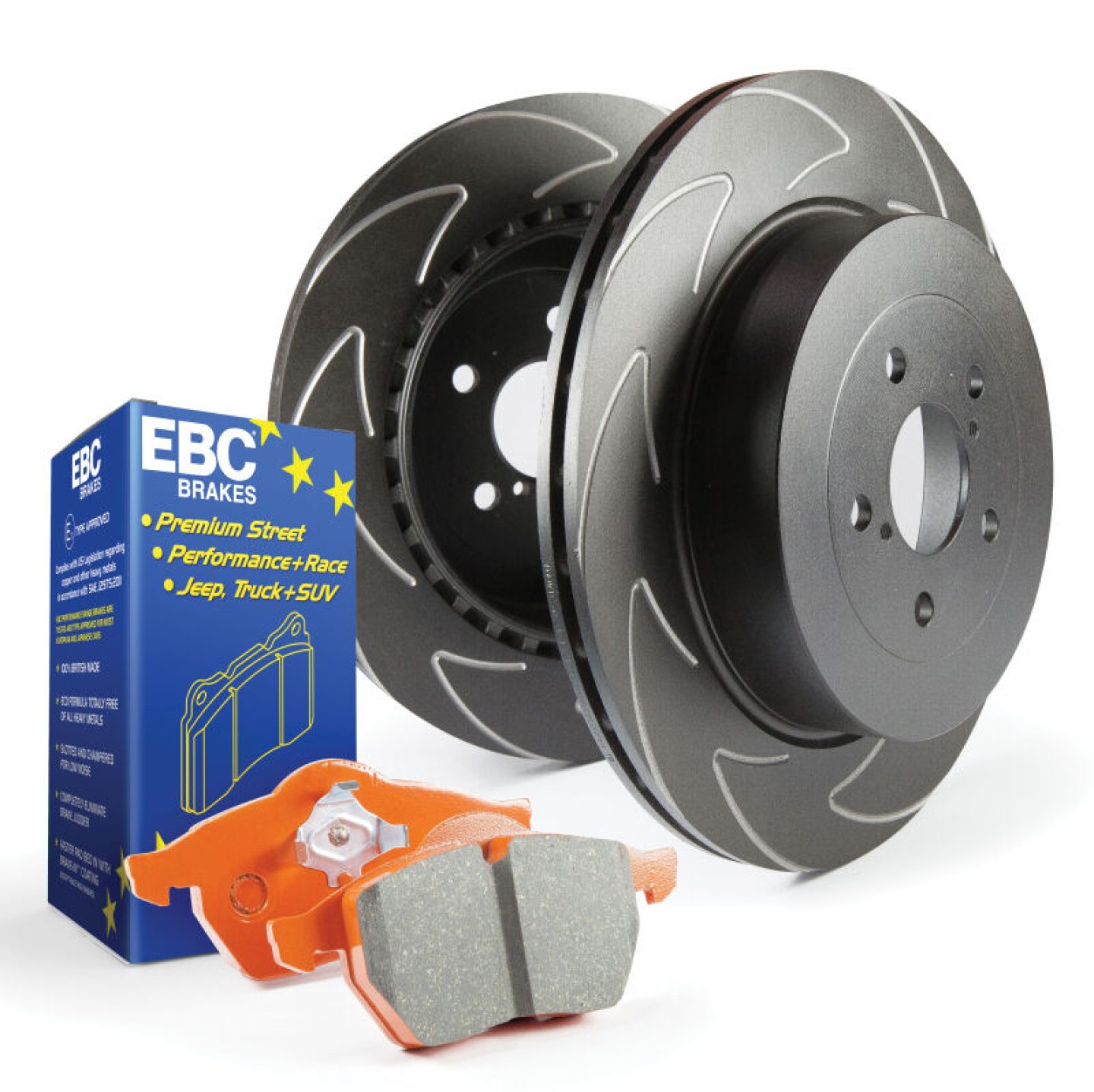

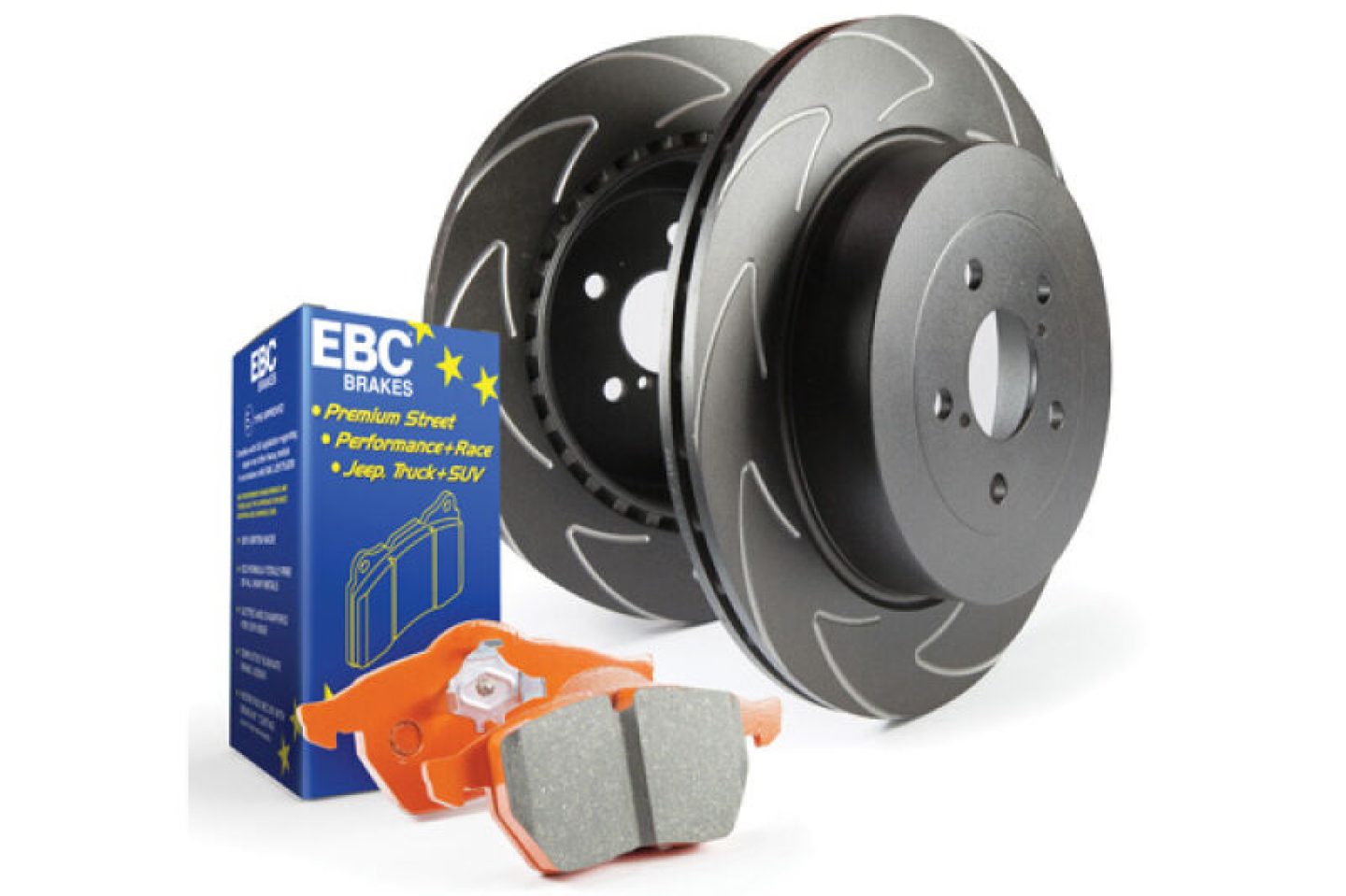

You expect three basic things from innovative brake technology: better stopping power, longer life, and zero noise. The EBC Stage 7 kits consist of Orangestuff brake pads, BSD Sport Series rotors, and caliper lube--everything you need to upgrade your vehicle. That's just the beginning of why EBC extra-duty light truck and SUV brake pads have taken the industry by storm. The backing plate steels feature NUCAP NRS system hook technology for five times the bond strength of conventional pads, while the fade-free material itself performs in both frigid winters and temperatures exceeding 1,400 degrees F--well above the maximum experienced in heavy braking, towing, or downhill descents. High-volume Vee grooves in the pads help to remove debris and better cool-vent the hot center areas. The new carbon granule-based extra-duty material is rotor-friendly, minimal in dust, and noiseless. The supplied high-carbon blade rotors offer unbeatable performance for fast road and race use on hot hatches! These 100 percent British-made rotors feature high carbon and high silicone levels that deliver matchless performance under high braking loads and temperatures, as well as rotor vibration dampening that reduces braking noise. They also receive a black GEOMET coating that looks great and prevents corrosion.
